Sanyo ECJ-D100S 10-Cup Micro-Computerized Rice Cooker/Steamer User Manual

1. Important Safeguards

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons, including the following:

• Read all instructions before operating the appliance.
• Do not touch hot surfaces. Use handles or knobs.
• To protect against electrical shock, do not immerse cord, plugs, or the appliance in water or other liquid.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
• Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or has been damaged in any manner.
• The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
• Do not use outdoors.
• Do not let cord hang over edge of table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
• Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to "off", then remove plug from wall outlet.
• Do not use appliance for other than intended use.
• This appliance is for household use only.
• NOTE: Please ensure to measure rice in the cup that comes along with the product ONLY.

2. Product Overview

The Sanyo ECJ-D100S is a 10-cup micro-computerized rice cooker and steamer designed for versatile cooking. It features fuzzy logic technology for precise temperature control, ensuring optimal results for various rice types and other dishes. The unit includes a durable non-stick inner pot and multiple cooking functions.

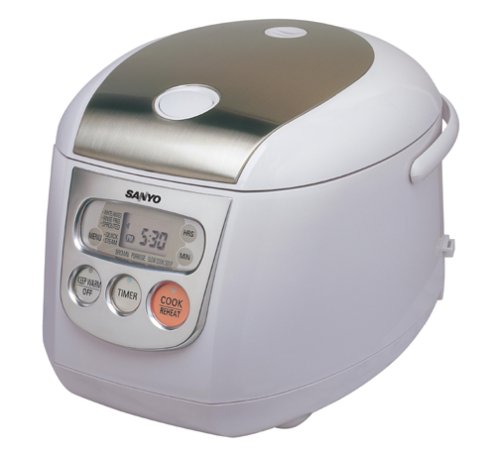

Figure 1: Sanyo ECJ-D100S Rice Cooker/Steamer. This image shows the appliance with its sleek white and stainless steel design, featuring a digital display and control panel on the front.

Key Features:

• 10-cup capacity micro-computerized cooker with fuzzy-logic technology.
• 24-hour preset timer for delayed cooking.
• Titanium-coated, extra-thick, 2.5mm non-stick inner pot for even heating.
• Multi-menu selections: White Rice, Rinse-Free Rice, Mixed Rice, Sprouted Brown Rice, Sweet Rice, Quick, Steaming, Brown Rice, Porridge, Soup, and Slow Cook.
• Keep warm and reheat functions.
• Includes steaming tray, measuring cup, and non-stick spatula.
• Compact dimensions: 10.75 inches (H) x 11 inches (W) x 13.5 inches (D).

3. Setup

3.1 Unpacking and Initial Cleaning

1. Carefully remove the rice cooker and all accessories from the packaging.
2. Wash the inner pot, steaming tray, measuring cup, and spatula with warm, soapy water. Rinse thoroughly and dry completely.
3. Wipe the exterior of the main unit with a damp cloth. Do not immerse the main unit in water.
4. Ensure all packing materials, especially any protective film or paper inside the pot, are removed before first use.

3.2 Placement

• Place the rice cooker on a stable, flat, heat-resistant surface.
• Ensure there is adequate ventilation around the unit, especially above the steam vent.
• Keep the appliance away from direct sunlight and heat sources.

4. Operating Instructions

4.1 Basic Rice Cooking (White Rice)

1. Measure Rice: Use the provided measuring cup to measure the desired amount of rice. Do not use standard kitchen measuring cups, as they may differ.
2. Wash Rice: Rinse the rice thoroughly in a separate bowl until the water runs clear.
3. Add to Inner Pot: Place the washed rice into the titanium-coated non-stick inner pot.
4. Add Water: Fill the inner pot with water up to the corresponding water level mark for the type and quantity of rice you are cooking. For example, if cooking 3 cups of white rice, fill to the "WHITE RICE 3" mark.
5. Place Pot in Cooker: Ensure the inner pot is properly seated inside the main unit. Close the lid securely.
6. Select Menu: Plug in the appliance. Press the MENU button to select "White Rice".
7. Start Cooking: Press the COOK button. The cooking indicator will illuminate.
8. Completion: Once cooking is complete, the cooker will automatically switch to the "Keep Warm" function. Fluff the rice with the spatula and serve.

4.2 Multi-Menu Selections

The ECJ-D100S features fuzzy logic technology that automatically adjusts cooking time and temperature for various food types. Use the MENU button to cycle through the following options:

• White Rice: For standard white rice.
• Rinse-Free Rice: For rice that does not require rinsing.
• Mixed Rice: For rice mixed with other ingredients.
• Sprouted Brown Rice: Optimized for sprouted brown rice.
• Sweet Rice: For glutinous or sweet rice varieties.
• Quick: For faster cooking of white rice when time is limited.
• Steaming: Use with the steaming tray for vegetables or other foods.
• Brown Rice: For cooking brown rice, which requires a longer cooking time.
• Porridge: For preparing rice porridge or congee.
• Soup: For cooking soups.
• Slow Cook: For slow-cooked dishes and stews.

4.3 24-Hour Preset Timer

The preset timer allows you to set a desired completion time for your meal. This feature is ideal for having freshly cooked rice ready when you arrive home or wake up.

1. Prepare rice and water in the inner pot as usual.
2. Select your desired cooking menu (e.g., White Rice).
3. Press the TIMER button. Use the HOUR and MIN buttons to adjust the completion time.
4. Press the COOK button to activate the timer. The timer indicator will light up. The cooker will start cooking automatically to finish at the set time.

4.4 Reheat Function

The reheat function allows you to warm up cooked rice quickly, making it taste freshly prepared. This typically takes about 5 minutes.

1. Ensure there is cooked rice in the inner pot.
2. Press the REHEAT button. The cooker will begin reheating.
3. Once complete, the cooker will return to "Keep Warm" mode.

4.5 Steaming

Use the included steaming tray to steam vegetables, dumplings, or other foods.

1. Add water to the inner pot (refer to the water level markings for steaming or general guidelines for your food).
2. Place the food to be steamed onto the steaming tray.
3. Insert the steaming tray into the inner pot, ensuring it sits above the water.
4. Close the lid. Select the STEAMING menu option.
5. Press the COOK button to start.

5. Cooking Guide

The Sanyo ECJ-D100S is designed to simplify cooking. Always use the provided measuring cup and follow the water level markings inside the inner pot for best results. The following table provides general guidance.

Note: Cooking times vary based on rice type, quantity, and desired texture. Always refer to the specific water level markings inside the inner pot for precise measurements.

6. Maintenance

Proper cleaning and maintenance will ensure the longevity and optimal performance of your Sanyo rice cooker.

6.1 Cleaning the Inner Pot and Accessories

• Always unplug the rice cooker and allow it to cool completely before cleaning.
• Remove the inner pot, steaming tray, and inner lid (if removable).
• Wash these parts with warm water and a mild dish soap using a soft sponge or cloth. Do not use abrasive cleaners, metal scrubbers, or harsh chemicals, as these can damage the non-stick coating.
• Rinse thoroughly and dry completely before reassembling or storing.
• The non-stick spatula and measuring cup can also be washed with warm, soapy water.

6.2 Cleaning the Main Unit Exterior

• Wipe the exterior of the rice cooker with a damp cloth. For stubborn stains, use a mild detergent on the cloth, then wipe with a clean damp cloth.
• Never immerse the main unit in water or any other liquid.
• Clean the steam vent area regularly to prevent blockages.

6.3 Storage

• Ensure the appliance is clean and dry before storing.
• Store the rice cooker in a cool, dry place.
• Utilize the retractable cord for easy and tidy storage.

7. Troubleshooting

If you encounter issues with your Sanyo ECJ-D100S, please refer to the following common problems and solutions before contacting support.

8. Specifications

9. Warranty and Support

9.1 Manufacturer's Warranty

This Sanyo ECJ-D100S Rice Cooker/Steamer comes with a limited warranty covering manufacturing defects. The warranty period is 1 year for parts and 1 year for labor from the date of purchase. Please retain your proof of purchase for warranty claims.

The warranty does not cover damage resulting from misuse, accident, alteration, neglect, unauthorized repair, or commercial use.

9.2 Customer Support

For technical assistance, warranty service, or general inquiries, please contact Sanyo customer support. Refer to the contact information provided in your product packaging or visit the official Sanyo website for the most up-to-date support details.

When contacting support, please have your model number (ECJ-D100S) and proof of purchase readily available.
