Henry Squire Hardened Boron Disc Style Stainless Steel 5 Pin Padlock User Manual

Product Overview

The Henry Squire Hardened Boron Disc Style Stainless Steel 5 Pin Padlock is engineered for high security applications, including roller shutter doors, warehouses, industrial units, commercial premises, and retail outlets. Its robust design features an anti-cut plate providing 360-degree protection against sawing, and a top-quality welded seam to secure against impact attacks. The shackle is made from case hardened steel and is protected within a stainless steel body, ensuring durability and resistance to harsh environments. This padlock is designed for medium security requirements in external conditions.

Image: Front view of the Henry Squire Hardened Boron Disc Style Stainless Steel 5 Pin Padlock, showcasing its hardened boron disc style and stainless steel construction.

Key Features

• Anti-Cut Plate: Provides 360 degrees of protection against sawing attempts.
• Robust Construction: Features a top-quality welded seam for resistance against impact attacks.
• Hardened Shackle: Manufactured from case hardened steel for enhanced security.
• Stainless Steel Body: Protects the shackle and internal mechanisms, suitable for harsh environments.
• Disc Style Design: Offers a compact and secure form factor.
• Key Unlock: Operates with a traditional key mechanism.

Setup

1. Unpack the Padlock: Carefully remove the padlock and its keys from the packaging. Inspect for any visible damage.
2. Identify Keys: Each padlock comes with a set of unique keys. Keep spare keys in a secure location separate from the padlock.
3. Initial Test: Before deployment, insert a key into the keyway and turn it to ensure smooth operation of the locking mechanism. The shackle should retract fully when unlocked and secure firmly when locked.
4. Familiarize Yourself: Understand the orientation of the keyway and how the shackle engages with the body.

Image: The Henry Squire padlock shown in its retail packaging, indicating the product's presentation upon purchase.

Operating Instructions

Locking the Padlock:

1. Position the Padlock: Place the padlock around the items or through the hasp you wish to secure.
2. Engage the Shackle: Push the shackle firmly into the padlock body until it clicks into place. Ensure it is fully seated and cannot be pulled open without the key.
3. Verify Lock: Gently pull on the shackle to confirm it is securely locked.

Unlocking the Padlock:

1. Insert Key: Insert the correct key into the keyway.
2. Turn Key: Turn the key clockwise (or counter-clockwise, depending on the lock's design) until the shackle releases.
3. Remove Padlock: Once the shackle is open, remove the padlock from the secured items.
4. Remove Key: Always remove the key after unlocking to prevent it from being lost or damaged while the padlock is open.

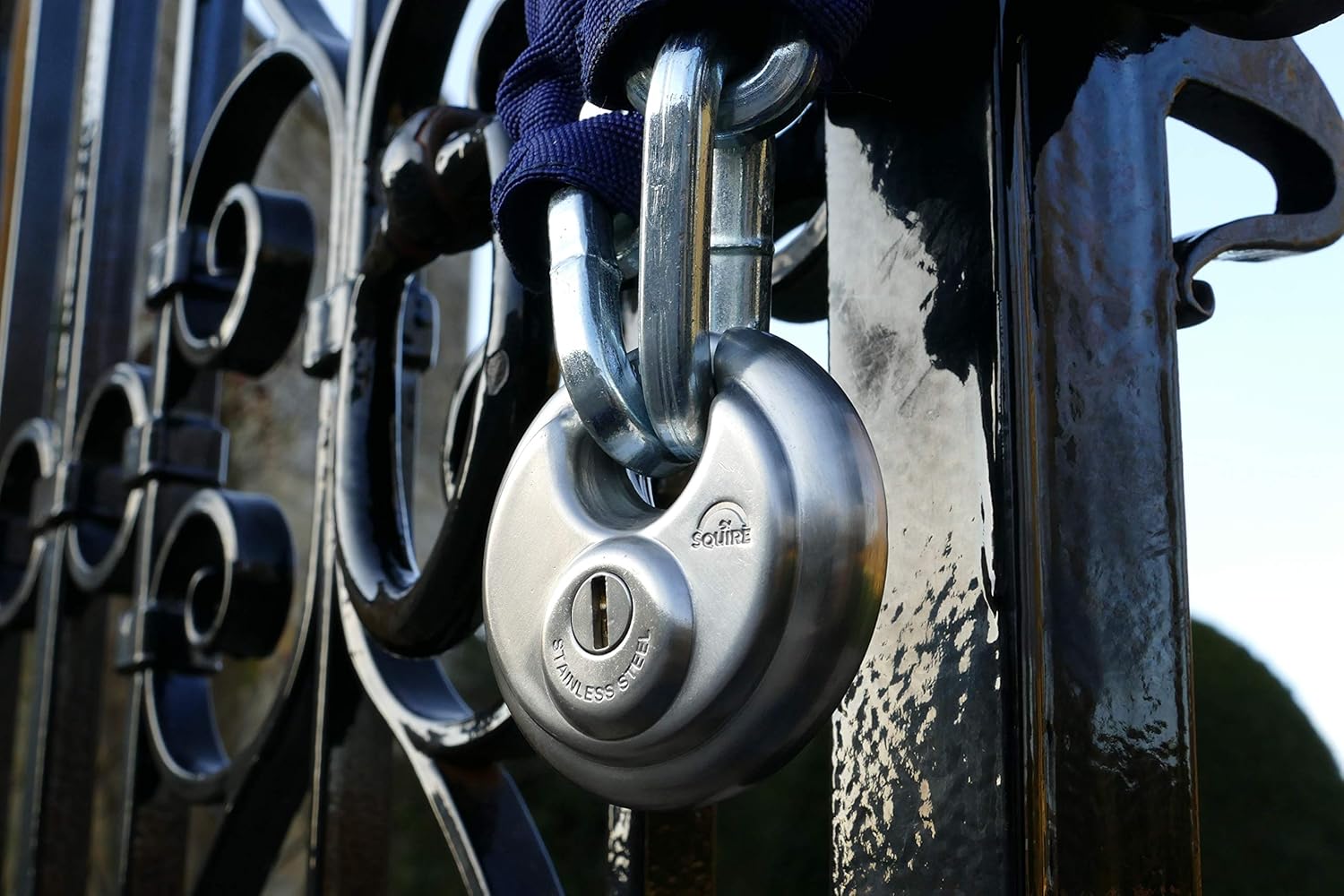

Image: The Henry Squire padlock in active use, securing a heavy-duty metal gate with a chain, demonstrating its application.

Maintenance

• Lubrication: Periodically apply a small amount of graphite powder or a silicone-based lubricant into the keyway to ensure smooth operation, especially in dusty or harsh environments. Avoid oil-based lubricants as they can attract dirt.
• Cleaning: Wipe the exterior of the padlock with a clean, damp cloth to remove dirt and grime. For stainless steel, a mild detergent can be used. Ensure the padlock is dry before storing or using.
• Key Care: Do not force the key if it feels stiff. Check for debris in the keyway or on the key itself. Avoid using keys for purposes other than operating the lock.
• Storage: When not in use, store the padlock in a dry environment to prevent corrosion, although its stainless steel construction offers good resistance.

Troubleshooting

Problem: Key is difficult to insert or turn.

Solution: Check the keyway for obstructions (dirt, debris). Clean the key and keyway. Apply graphite powder lubricant. Ensure you are using the correct key.

Problem: Shackle is stiff or does not fully engage/disengage.

Solution: Lubricate the shackle mechanism and keyway. Ensure the shackle is aligned correctly when attempting to lock. If the padlock has been exposed to extreme cold, allow it to warm up slightly.

Problem: Padlock appears corroded.

Solution: While the stainless steel body is highly resistant, surface discoloration can occur. Clean with a stainless steel cleaner or a mild abrasive pad (e.g., Scotch-Brite) in the direction of the grain. Ensure proper drying after cleaning.

Specifications

Warranty and Support

The Henry Squire Hardened Boron Disc Style Stainless Steel 5 Pin Padlock is backed by a 10-year personal guarantee, reflecting the manufacturer's confidence in its durability and performance. This guarantee covers defects in materials and workmanship under normal use.

For warranty claims, technical support, or any inquiries regarding your padlock, please refer to the contact information provided with your purchase or visit the official Squire website. Ensure you have your product model number (DCL1) and proof of purchase available when contacting support.

EU Spare Part Availability Duration: 1 Year.
