1. Product Overview
The Gardena Combisystem Adjustable Rake Head (Model 3103) is designed for efficient raking of leaves, grass clippings, and other garden debris. Its key feature is the adjustable width of its flexible, zinc-plated spring-steel prongs, allowing for versatile use in various garden conditions.
This product is sold as a rake head only and requires a compatible Gardena Combisystem handle for operation. Gardena recommends a handle length of 130 cm, depending on user height, for optimal comfort and performance.
Key Features:
- Adjustable Tine Spacing: Suitable for raking both coarse and fine material.
- Durable Construction: Features flexible, zinc-plated spring-steel prongs for longevity.
- Variable Working Width: Easily adjustable from 12 to 20 inches (30 to 50 cm).
- Combisystem Compatibility: Designed to attach to any Gardena Combisystem handle (handle sold separately).
2. Setup and Assembly
The Gardena 3103 Rake Head is designed for quick and easy attachment to any Gardena Combisystem handle. No tools are typically required for assembly.
Assembly Steps:
- Select a Compatible Handle: Ensure you have a Gardena Combisystem handle. The rake head is not designed for use with standard, non-Combisystem handles without modification.
- Align and Connect: Align the rake head's connector with the end of the Gardena Combisystem handle.
- Secure Attachment: Push the rake head onto the handle until it clicks securely into place. Some models may require twisting a locking mechanism on the handle to fully secure the attachment.
3. Operating Instructions
The adjustable nature of the Gardena 3103 Rake Head allows for efficient raking in various situations. Follow these steps to adjust and operate your rake:
Adjusting the Rake Width:
- Locate the Adjustment Lever: Find the blue adjustment lever located near the base of the rake head, where it connects to the handle.
- Release the Lock: Flip or slide the lever to release the locking mechanism that holds the tines in place.

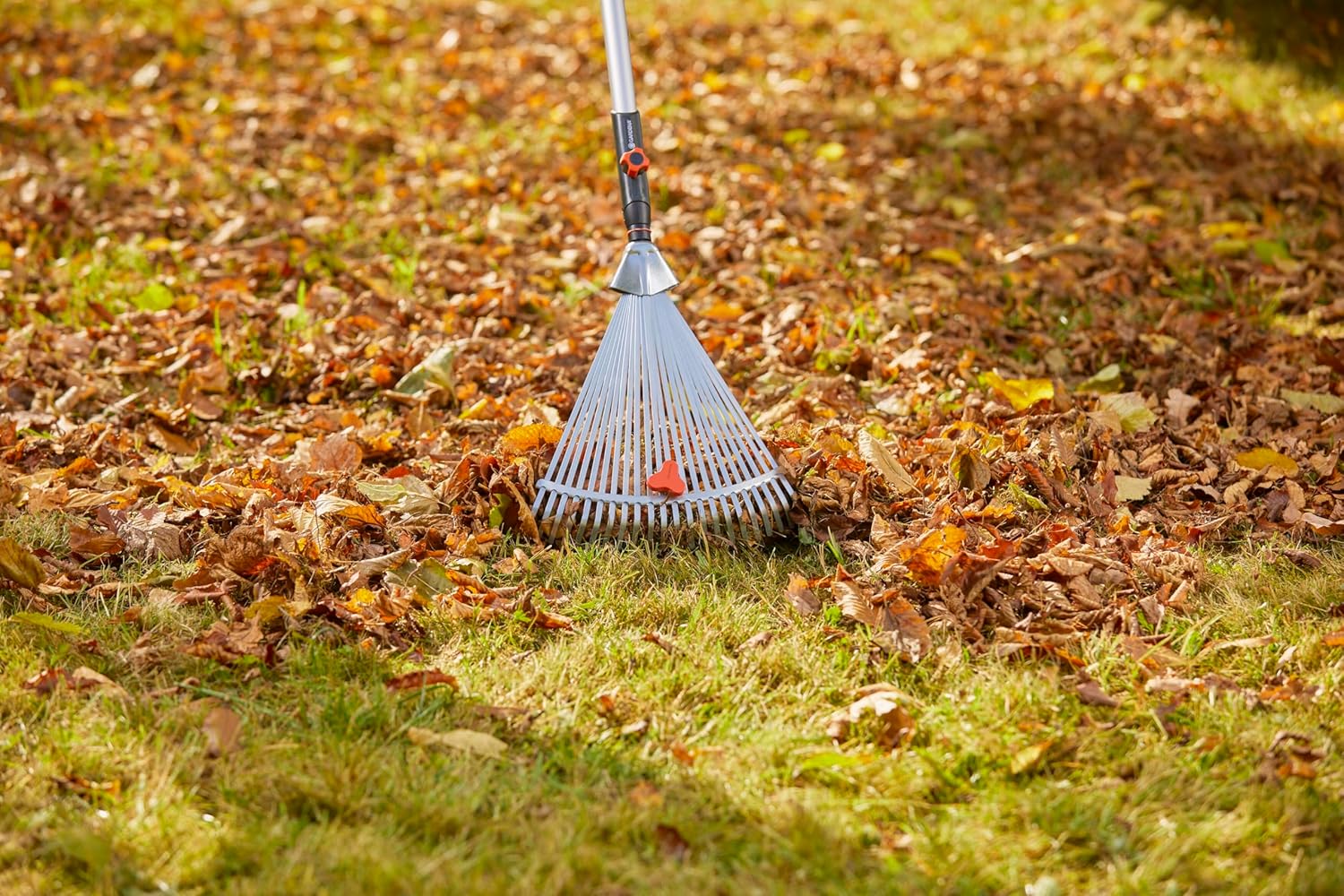

- Adjust Tine Spacing: Gently slide the tines along the central bar to achieve the desired working width. The width can be adjusted from 12 inches (narrow) to 20 inches (wide).
- Narrow Setting: Ideal for raking in tight spaces, between plants, or for collecting fine debris.
- Wide Setting: Best for clearing large areas quickly, such as open lawns.
- Secure the Adjustment: Once the desired width is set, flip or slide the lever back to its locked position to secure the tines.
Raking Technique:
- Hold the handle firmly with both hands.
- Use a sweeping motion to gather leaves and debris into piles.
- Adjust the rake width as needed for different areas of your garden.
4. Maintenance
Proper maintenance will extend the life of your Gardena 3103 Rake Head and ensure optimal performance.
Cleaning:
- After each use, remove any debris, leaves, or grass caught between the tines.
- Wipe the metal parts clean with a damp cloth.
- For stubborn dirt, use a mild soap solution and rinse thoroughly.
Storage:
- Store the rake head in a dry place to prevent rust, although the zinc-plated prongs offer good corrosion resistance.
- For compact storage, adjust the tines to their narrowest setting.
- If detached from the handle, store both components in a safe place where they won't be damaged.
5. Troubleshooting
Rake Head Not Attaching Securely to Handle:
- Ensure Compatibility: Verify that you are using an official Gardena Combisystem handle. The rake head is specifically designed for this system.
- Check for Obstructions: Inspect both the rake head connector and the handle for any dirt or debris that might prevent a secure connection.
- Engage Locking Mechanism: Make sure the locking mechanism on the handle is fully engaged after attaching the rake head.
Tines Not Adjusting Smoothly:
- Release Lever: Ensure the adjustment lever is fully released before attempting to slide the tines.
- Clean Mechanism: Check for any debris or dirt obstructing the sliding mechanism of the tines. Clean as necessary.
- Lubrication (Optional): A small amount of silicone-based lubricant can be applied to the sliding mechanism if it feels stiff, but avoid petroleum-based lubricants which can attract dirt.
6. Specifications
| Specification | Detail |
|---|---|
| Model Number | 3103-U |
| Brand | Gardena |
| Rake Type | Garden Rake |
| Working Width | Adjustable from 12 to 20 inches (30 to 50 cm) |
| Head Material | Flexible, zinc-plated spring-steel prongs |
| Item Weight | 1.43 pounds (650 Grams) |
| Product Dimensions | 17.91 x 12.8 x 2.76 inches |
| Color | Silver |
| GTIN | 04078500310307 |
7. Warranty and Support
Gardena stands behind the quality of its products. The Gardena Combisystem Adjustable Metal Fan Rake Head comes with a comprehensive warranty.
Warranty Period:
- The warranty period for this product is 25 years.
- A minimum 12-month parts and labor warranty is offered on all Gardena products.
In the unlikely event that your Gardena product develops a fault within the warranty period, Gardena will repair or replace the item free of charge. For products older than 12 months but within the 25-year warranty, a national repair service is available to provide a free estimate for parts and labor.
Customer Support:
For further assistance, product inquiries, or to initiate a warranty claim, please refer to the official Gardena website or contact their customer service department. Keep your proof of purchase for warranty validation.
