1. Introduction
This manual provides essential information for the safe and efficient use of your new Whirlpool W7FHP33A dishwasher. Please read these instructions carefully before installation and operation. Keep this manual for future reference.
2. Safety Information
Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, or injury to persons.
- Ensure the dishwasher is properly grounded.
- Do not operate the dishwasher if it is damaged.
- Keep children away from the dishwasher, especially when it is operating.
- Use only detergents and rinse aids specifically designed for automatic dishwashers.
- Sharp items should be loaded with points down to prevent injury.
- Do not touch the heating element during or immediately after use.
3. Setup and Installation
The Whirlpool W7FHP33A is designed for built-in installation. Proper installation is crucial for optimal performance and safety. It is recommended that installation be performed by a qualified technician.
3.1 Dimensions and Placement
Ensure the installation space meets the following dimensions:
- Product Dimensions (D x W x H): 55 cm x 60 cm x 85 cm
- Weight: 49 kg
Refer to the diagram below for detailed installation measurements.
Figure 3.1: Installation dimensions for the Whirlpool W7FHP33A dishwasher. The diagram shows required clearances and overall unit dimensions.
3.2 Electrical Connection
The dishwasher requires a 230 Volt electrical supply. Ensure the electrical outlet is easily accessible after installation and is properly grounded.
3.3 Water Connection
Connect the water inlet hose to a cold water supply with a minimum pressure of 0.04 MPa and a maximum of 1 MPa. Connect the drain hose to a suitable drain pipe, ensuring there are no kinks or obstructions.
4. Operating Instructions
This section guides you through the daily operation of your Whirlpool W7FHP33A dishwasher.
4.1 Loading the Dishwasher
The dishwasher has a capacity for 15 place settings and features a versatile MaxiSpace Tub and a third rack for cutlery and smaller items.
Figure 4.1: Front view of the dishwasher with the door open, illustrating the three racks for loading dishes.

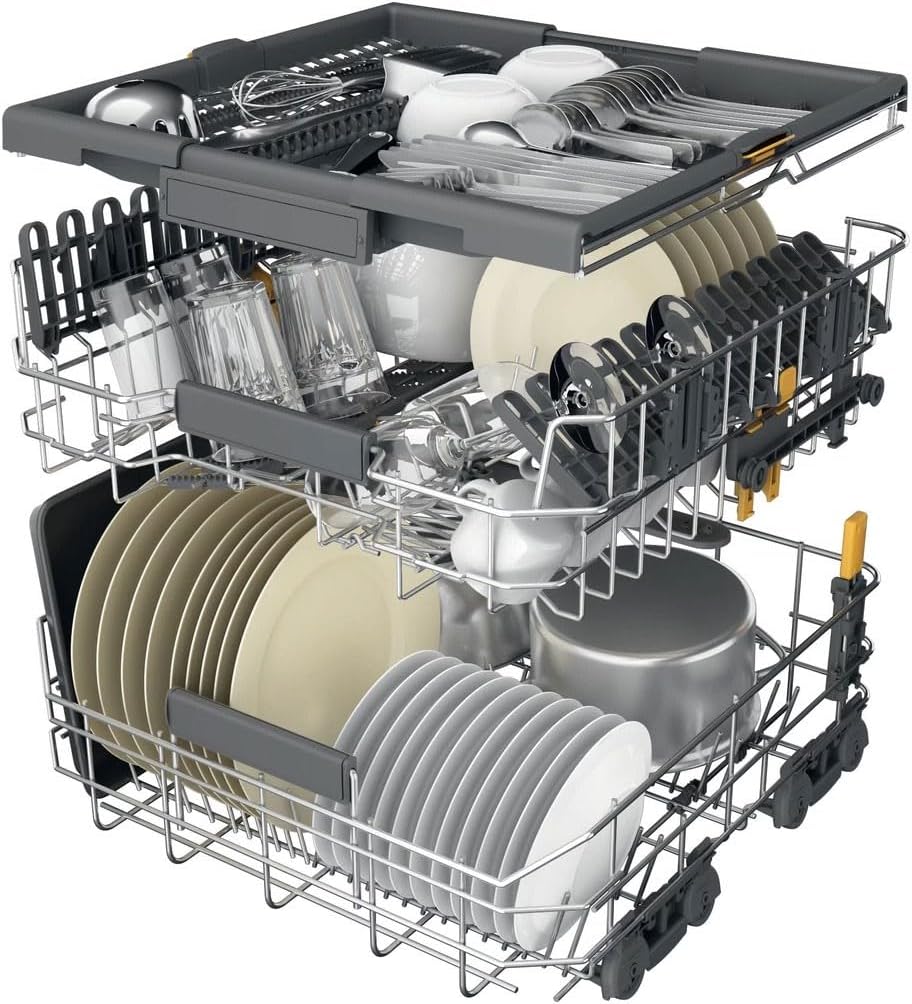

Figure 4.2: Close-up view of the dishwasher racks, demonstrating how to load various dishes, glasses, and cutlery.
- Lower Rack: Ideal for large items like plates, bowls, pots, and pans.
- Upper Rack: Suitable for glasses, cups, and smaller plates.
- Third Rack: Designed for cutlery, spatulas, and other small utensils.
4.2 Adding Detergent and Rinse Aid
Fill the detergent dispenser with the appropriate amount of dishwasher detergent. Add rinse aid to the rinse aid dispenser as needed to improve drying performance and prevent water spots.
4.3 Program Selection and Start
Select the desired wash program using the control panel. The dishwasher offers various programs to suit different soil levels and dish types. Press the start button to begin the cycle.
Figure 4.3: The control panel of the Whirlpool W7FHP33A dishwasher, showing program selection buttons and display.
4.4 Special Features
- Automatic Door Opening: At the end of the cycle, the door automatically opens a few centimeters to allow steam to escape and facilitate natural drying, improving drying efficiency without additional power consumption. This feature can be deactivated if preferred.
- Half-Load Function: For smaller loads, this function saves water, energy, and time by adjusting the wash cycle.
- Extra Drying: Enhances drying performance, particularly beneficial for plastic items.
- Delay Start: Program the dishwasher to start at a later time, up to 24 hours.
5. Maintenance
Regular maintenance ensures the longevity and optimal performance of your dishwasher.
5.1 Cleaning the Filters
The filter system, located at the bottom of the wash tub, should be cleaned regularly to prevent blockages and ensure effective cleaning. Twist and remove the cylindrical filter, then separate and rinse all filter components under running water. Reassemble and replace securely.
5.2 Cleaning the Spray Arms
Check the spray arm nozzles for any blockages. If necessary, remove the spray arms and clear any debris from the holes using a thin wire or toothpick.
5.3 Exterior and Interior Cleaning
Wipe the exterior of the dishwasher with a soft, damp cloth. For the interior, periodically run a dishwasher cleaning cycle with a specialized dishwasher cleaner to remove grease and limescale buildup.
6. Troubleshooting
Before contacting service, refer to the following common issues and their solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Dishes are not clean | Clogged spray arms, incorrect loading, insufficient detergent, clogged filters. | Clean spray arms and filters. Reload dishes correctly. Use adequate detergent. |
| Dishwasher does not start | Door not closed properly, power supply issue, program not selected. | Ensure door is latched. Check power connection. Select a program and press start. |
| Water not draining | Clogged drain hose or filter, drain pump issue. | Clean filters. Check drain hose for kinks or blockages. |
| Excessive noise | Dishes interfering with spray arms, foreign object in pump. | Rearrange dishes. Inspect the bottom of the tub for foreign objects. |
7. Specifications
| Feature | Detail |
|---|---|
| Brand | Whirlpool |
| Model Number | W7F HP33 A |
| Installation Type | Built-in |
| Capacity | 15 Place Settings |
| Energy Efficiency Class | D |
| Noise Level | 43 Decibels |
| Product Dimensions (D x W x H) | 55D x 60B x 85H cm |
| Weight | 49 Kilograms |
| Voltage | 230 Volt |
| Interior Material | Stainless Steel |
8. Warranty and Support
For warranty information and technical support, please refer to the warranty card included with your product or visit the official Whirlpool website. Keep your purchase receipt as proof of purchase for warranty claims.
Whirlpool Customer Service: www.whirlpool.com/support
