1. Introduction

Thank you for choosing the Whirlpool PACW29COL Freestanding Portable 3-in-1 Air Conditioner. This appliance is designed to provide efficient cooling, dehumidification, and air circulation for your indoor spaces. Featuring a silent mode, remote control, and HEPA filter, it offers enhanced comfort and air quality. Please read this manual thoroughly before operating the appliance to ensure safe and optimal performance.

For further assistance or information, please visit the official Whirlpool support website.

2. Safety Information

Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, and injury.

• Ensure the power supply matches the voltage specified on the appliance's rating label.
• Do not operate the air conditioner with a damaged cord or plug.
• Keep the appliance away from heat sources and direct sunlight.
• Do not block air inlets or outlets. Ensure proper ventilation.
• Always unplug the unit before cleaning or performing maintenance.
• This appliance is for indoor use only.
• Do not allow children to play with the appliance.
• The appliance contains R-290 refrigerant. Handle with care and ensure proper disposal according to local regulations.

3. Product Overview

Familiarize yourself with the main components of your Whirlpool PACW29COL portable air conditioner.

Figure 3.1: Front view of the Whirlpool PACW29COL portable air conditioner, showing its compact and freestanding design.

Figure 3.2: Side view of the air conditioner, highlighting its sleek profile and the integrated remote control holder on the side panel.

Figure 3.3: Detailed view of the remote control, showing its LCD display and various function buttons including Silent, Timer, Mode, 6th Sense, Around U, and Sleep.

Figure 3.4: Close-up image of the durable wheels located at the base of the unit, designed for easy portability.

Figure 3.5: Diagram illustrating the dimensions of the unit: 23.23 cm height, 17.64 cm width, and 15.75 cm depth.

4. Setup

Proper setup is crucial for the efficient operation of your portable air conditioner.

4.1 Unpacking

1. Carefully remove the appliance from its packaging.
2. Check for any signs of damage during transit. If damaged, do not operate and contact customer service.
3. Ensure all accessories are present: main unit, remote control, exhaust hose, and window kit components.

4.2 Positioning the Unit

1. Place the unit on a flat, stable surface.
2. Ensure there is at least 30 cm (12 inches) of space around the unit for proper airflow.
3. Position the unit near a window or opening for the exhaust hose.

4.3 Installing the Window Kit

The window kit is essential for venting hot air outside.

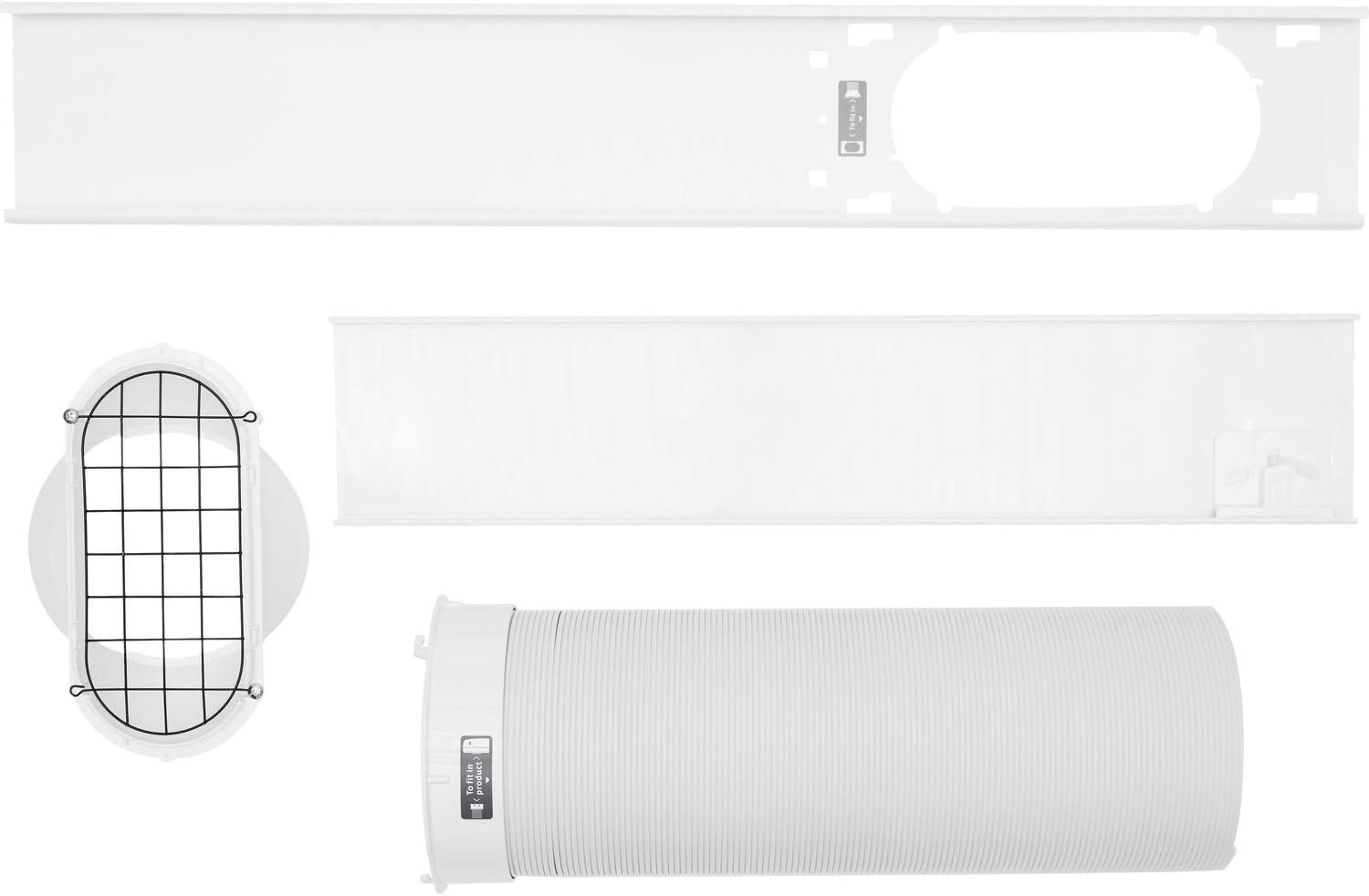

Figure 4.1: The window kit components, including the adjustable window panel, exhaust hose, and hose adapter.

1. Attach the hose adapter to one end of the exhaust hose.
2. Connect the other end of the exhaust hose to the air outlet on the back of the unit.
3. Adjust the window panel to fit your window opening.
4. Insert the hose adapter into the opening of the window panel.
5. Ensure the window is sealed as much as possible around the panel to prevent hot air from re-entering the room.

Figure 4.2: The portable air conditioner with its exhaust hose properly installed and vented through a window, demonstrating a typical setup.

Figure 4.3: An alternative angle showing the unit connected to the window kit, emphasizing the flexible exhaust hose and its connection points.

5. Operating Instructions

Your Whirlpool PACW29COL offers multiple operating modes for various comfort needs.

5.1 Powering On/Off

1. Plug the power cord into a grounded electrical outlet.
2. Press the Power button on the control panel or remote control to turn the unit on or off.

5.2 Selecting Operating Modes

Press the Mode button on the remote control to cycle through the available modes:

• Cool Mode: Provides cooling. Adjust the desired temperature using the temperature up/down buttons. The unit has a 9000 BTU cooling capacity, recommended for rooms of 14.5 - 17 m².
• Dehumidify Mode: Removes excess moisture from the air.
• Fan Mode: Circulates air without cooling or dehumidifying.

5.3 Special Features

• Silent Mode: Activates a unique operating mode where the evaporator and condenser work at low fan speed, significantly reducing noise levels. This mode is designed for quiet operation, especially suitable for nighttime use.
• Around U Function: Utilizes a temperature sensor located within the remote control to detect the ambient temperature around your immediate vicinity. The unit then adjusts its operation to maintain the ideal temperature at your location, enhancing personal comfort.
• 6th Sense Technology: An intelligent feature that automatically evaluates the room's temperature and humidity. Based on these readings, it selects the most suitable operational functions (cooling, fan speed, dehumidification) to achieve optimal comfort and energy efficiency without manual adjustments.
• Timer Function: Allows you to set a specific time for the unit to turn on or off automatically.
• Sleep Mode: Optimizes settings for comfortable sleep, often by gradually increasing the temperature and reducing fan speed.

6. Maintenance

Regular maintenance ensures the longevity and efficiency of your air conditioner.

6.1 Cleaning the HEPA Filter

The HEPA filter can remove up to 99.9% of particles greater than 0.3 µm, including most allergen particles. A clean filter is vital for air quality and unit performance.

1. Unplug the air conditioner from the power outlet.
2. Locate the filter access panel, usually at the back or side of the unit.
3. Remove the HEPA filter.
4. Clean the filter using a vacuum cleaner to remove dust and debris. For stubborn dirt, rinse with lukewarm water (do not use hot water) and mild detergent.
5. Allow the filter to air dry completely before reinserting it into the unit. Do not expose to direct sunlight.
6. Reinstall the filter and close the access panel.
7. Frequency: Clean the filter every two weeks or more frequently depending on usage and air quality.

6.2 General Cleaning

1. Unplug the unit before cleaning.
2. Wipe the exterior of the unit with a soft, damp cloth. Do not use harsh chemicals, abrasives, or solvents.
3. Ensure no water enters the electrical components.

6.3 Storage

If storing the unit for an extended period:

1. Drain any accumulated water from the unit.
2. Clean the HEPA filter and ensure it is dry.
3. Store the unit in a dry, cool place, away from direct sunlight and extreme temperatures.

7. Troubleshooting

Before contacting customer service, please refer to the following table for common issues and their solutions.

8. Specifications

9. Warranty and Support

Whirlpool products are manufactured to high-quality standards. For information regarding your product's warranty, please refer to the warranty card included with your purchase or visit the official Whirlpool website.

For technical support, spare parts, or service inquiries, please contact Whirlpool customer service. Contact details can typically be found on the Whirlpool website or in your product's packaging.

You can visit the Whirlpool Store on Amazon for more product information.
