1. Introduction
Thank you for choosing the Convair 1500 Arctic Breeze Portable Evaporative Cooler. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your unit. Please read it thoroughly before use and retain it for future reference.
The Convair 1500 is designed to cool and filter fresh outdoor air, distributing it over areas up to 300 square feet. It operates by pumping water from a 5.5-gallon reservoir through a cooling pad, then drawing air through the pad with a 3-speed fan. This process lowers the air temperature and filters out pollen and dust. The unit can also function as a fan without water.
2. Safety Information
Always observe the following safety precautions to reduce the risk of fire, electric shock, or injury:
- Read all instructions before operating the appliance.
- Ensure the power supply matches the voltage specified on the unit's rating label.
- Do not operate the unit with a damaged cord or plug. If damaged, contact qualified service personnel.
- Do not immerse the unit, cord, or plug in water or other liquids.
- Unplug the unit from the power outlet before filling with water, cleaning, or performing any maintenance.
- Keep the unit away from heat sources, direct sunlight, and flammable materials.
- Do not block air inlets or outlets.
- This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
- Children should be supervised to ensure that they do not play with the appliance.
- Use only clean water in the reservoir.
- Place the unit on a stable, level surface to prevent tipping.
3. Product Overview
The Convair 1500 Arctic Breeze Portable Evaporative Cooler is a freestanding unit designed for efficient air cooling. Key components include the main housing, control knobs, air guide vanes, water reservoir, and a sturdy base.

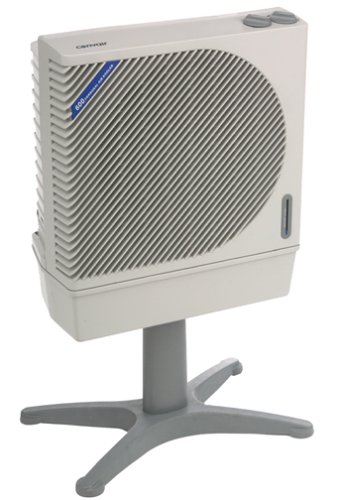

An image showing the Convair 1500 Arctic Breeze Portable Evaporative Cooler from an angled side view, highlighting its dimensions: approximately 18.5 inches deep, 25 inches wide, and 41.5 inches high. The unit is white with a gray base and control knobs on top.
The unit features simple dials for control and a front-mounted gauge to indicate the water level in the reservoir.
4. Setup
- Unpacking: Carefully remove the cooler from its packaging. Retain packaging materials for future storage or transport.
- Assembly: The unit requires basic assembly, primarily attaching the main cooler body to its freestanding base. Ensure all components are securely fastened according to the included assembly diagrams (if provided separately).
- Placement: Place the cooler on a firm, level surface. For optimal cooling, position the unit in front of a partly open door or window to draw in fresh outdoor air. Ensure there is adequate space around the unit for proper airflow.
- Filling the Water Reservoir:
- Ensure the unit is unplugged from the power outlet.
- Locate the water reservoir access point (refer to product diagrams if available).
- Fill the 5.5-gallon reservoir with clean, cool water. Do not overfill; observe the maximum fill line or the front-mounted water gauge.
- Power Connection: Plug the power cord into a grounded electrical outlet.
5. Operating Instructions
The Convair 1500 features simple dial controls for ease of use.
- Power On/Off: Turn the main control dial to the "ON" position to power on the unit. Turn to "OFF" to power off.
- Fan Speed Selection: Use the speed control dial to select one of the three available fan speeds: Low, Medium, or High.
- Cooling Function: To activate evaporative cooling, ensure the water reservoir is filled. Turn the cooling function dial to the "COOL" position. The pump will begin circulating water to the cooling pad. If you only desire fan operation, leave this dial in the "FAN ONLY" position.
- Adjusting Airflow: Manually adjust the air-guide vane levers to direct the airflow as desired.
- Water Level Monitoring: Periodically check the front-mounted water gauge. Refill the reservoir when the water level is low to ensure continuous cooling.
6. Maintenance
Regular maintenance ensures optimal performance and longevity of your evaporative cooler.
- Daily/Weekly:
- Check and refill the water reservoir with clean water.
- Wipe the exterior of the unit with a soft, damp cloth.
- Monthly/Bi-Monthly (or as needed):
- Clean the Water Reservoir: Unplug the unit. Drain any remaining water. Clean the reservoir with a mild detergent and water to prevent mold and mildew growth. Rinse thoroughly.
- Clean/Replace Cooling Pad: The unit's filter traps pollen and dust. Depending on usage and air quality, the cooling pad may need cleaning or replacement. Refer to specific instructions for accessing and cleaning the pad. Gently rinse the pad with water to remove accumulated dust and mineral deposits.
- Clean Air Filter: If a separate air filter is present, clean it according to manufacturer instructions.
- Seasonal Storage: Before storing the unit for an extended period, ensure the water reservoir is completely drained and dry. Clean all components thoroughly. Store in a dry, cool place.
Always unplug the unit before performing any cleaning or maintenance.
7. Troubleshooting
If you encounter issues with your Convair 1500, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Unit does not turn on. | No power supply; power cord not plugged in; faulty outlet. | Check power cord connection. Test outlet with another appliance. Check household circuit breaker. |
| No cooling effect. | Water reservoir empty; cooling function not activated; cooling pad clogged. | Fill water reservoir. Ensure cooling dial is set to "COOL". Clean or replace cooling pad. |
| Weak airflow. | Air inlets/outlets blocked; fan speed set too low; dirty air filter. | Ensure clear path for airflow. Increase fan speed. Clean air filter. |
| Unpleasant odor. | Stagnant water in reservoir; mold/mildew growth. | Drain and clean the water reservoir thoroughly. Use fresh water. |
| Water leakage. | Overfilled reservoir; unit not level; damaged reservoir. | Do not overfill. Place unit on a level surface. Inspect reservoir for damage. |
If the problem persists after attempting these solutions, contact customer support.
8. Specifications
| Feature | Detail |
|---|---|
| Brand | Convair |
| Model Number | 1500 |
| Type | Portable Evaporative Cooler |
| Cooling Capacity | 5510-BTU or 1600-watt equivalent |
| Coverage Area | Up to 300 square feet |
| Water Reservoir Capacity | 5.5 gallons |
| Fan Speeds | 3 |
| Special Features | Portable, Fan-only option, Filter traps pollen and dust, Adjustable air-guide vane levers, Rust-proof construction |
| Material | Plastic |
| Color | White |
| Dimensions (D x W x H) | 18.5"D x 25"W x 41.5"H |
| Item Weight | 18 Pounds |
| Wattage / Energy Consumption | 1600 watts |
| UPC | 034369006199 |
9. Warranty Information
The Convair 1500 Arctic Breeze Portable Evaporative Cooler comes with a 2-year warranty from the date of purchase. This warranty covers manufacturing defects under normal use. Please retain your proof of purchase for warranty claims. For specific terms and conditions, refer to the warranty card included with your product or contact Convair customer support.
10. Customer Support
For technical assistance, troubleshooting beyond this manual, or warranty inquiries, please contact Convair customer support. Please have your model number (1500) and proof of purchase ready when contacting support.
Contact information for Convair can typically be found on the product packaging, the official Convair website, or your purchase receipt.
