Rival Electric Food Grinder

Introduction

This manual provides instructions for the safe and efficient operation, maintenance, and care of your Rival Electric Food Grinder, Model 2275-WP. This appliance is designed for grinding various food items such as meats, nuts, vegetables, and fruits. Please read all instructions carefully before first use and retain this manual for future reference.

Important Safety Instructions

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons, including the following:

• Read all instructions.
• To protect against electrical shock, do not immerse the motor housing, cord, or plug in water or other liquid.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use, before putting on or taking off parts, and before cleaning.
• Avoid contact with moving parts.
• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been dropped or damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair, or electrical or mechanical adjustment.
• The use of attachments not recommended or sold by the manufacturer may cause fire, electric shock, or injury.
• Do not use outdoors.
• Do not let cord hang over edge of table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Do not use appliance for other than intended use.
• Always ensure the appliance is properly assembled before operation.
• Never feed food by hand. Always use the food pusher provided.

Parts Identification

Familiarize yourself with the components of your Rival Electric Food Grinder:

• Motor Housing: The main body containing the motor and controls.
• Grinder Head: Attaches to the motor housing, where food is processed.
• Hopper: Tray for holding food before it enters the grinder head.
• Food Pusher: Used to guide food into the grinder head safely.
• Grinding Plates: Includes coarse and fine plates for different textures.
• Cutting Blade: Rotates to cut food against the grinding plate.
• Locking Collar: Secures the grinding plate and cutting blade in place.
• Sausage Stuffer Attachment: For making sausages.

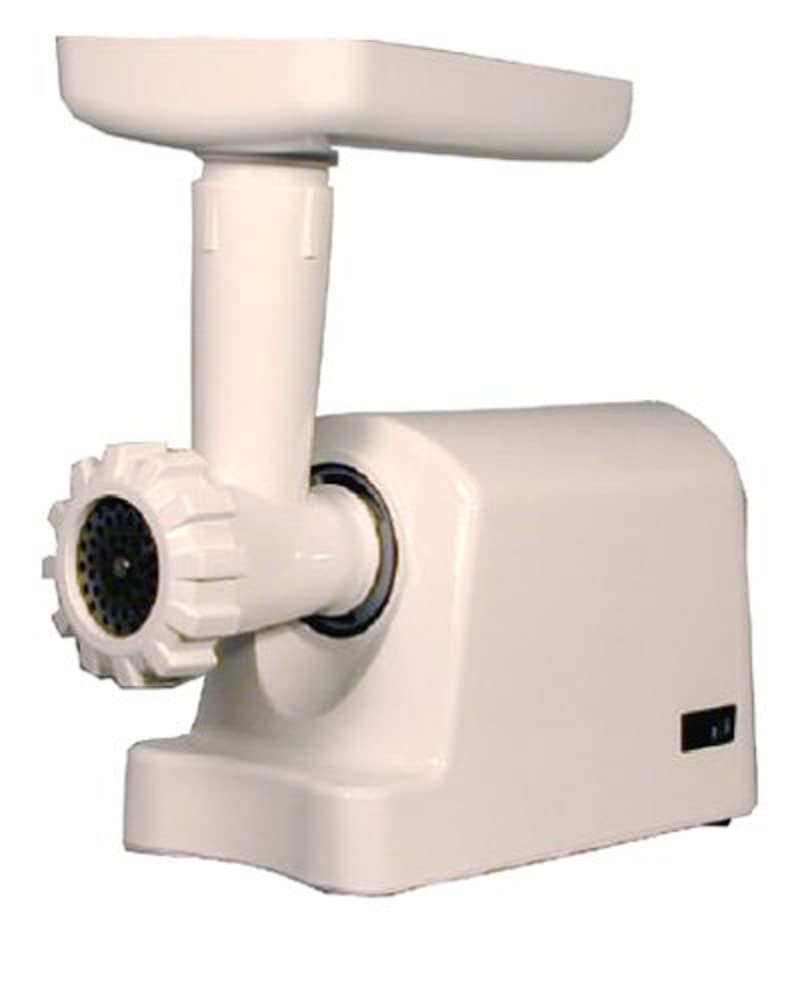

Image: Rival Electric Food Grinder, Model 2275-WP, showing the main unit with hopper, grinder head, and grinding plate.

Setup and Assembly

1. Ensure the appliance is unplugged from the power outlet.
2. Place the motor housing on a stable, flat surface. The rubber feet will help hold the grinder in place.
3. Insert the grinder head into the front opening of the motor housing, twisting it gently until it locks securely.
4. Place the cutting blade onto the shaft inside the grinder head, ensuring the sharp edge faces outwards towards the grinding plate.
5. Select the desired grinding plate (coarse or fine) and place it over the cutting blade, aligning the notches.
6. Screw the locking collar onto the grinder head until it is hand-tight, securing the blade and plate.
7. Place the hopper onto the top of the grinder head.
8. Your grinder is now assembled and ready for use.

Operating Instructions

Before operating, ensure all parts are correctly assembled and the appliance is on a stable surface.

1. Prepare your food by cutting it into pieces that fit easily into the hopper opening. Remove any bones, tough sinews, or large seeds.
2. Place a bowl or container under the grinder head to collect the ground food.
3. Plug the grinder into a standard electrical outlet.
4. Turn the grinder ON using the power switch.
5. Feed the prepared food into the hopper. Use the food pusher to gently guide the food down into the grinder head. Never use your fingers or other utensils to push food.
6. Continue feeding food until all items are ground.
7. Once grinding is complete, turn the grinder OFF and unplug it from the outlet.

Tips for Grinding:

• For meat, chill it thoroughly before grinding for best results.
• Use the coarse plate for ground beef, lamb, or general grinding.
• Use the fine plate for pâtés, baby food, or finely ground ingredients.
• When using the sausage stuffer attachment, ensure the grinding plate and cutting blade are removed, and the stuffer is correctly installed before securing with the locking collar.

Cleaning and Maintenance

Proper cleaning ensures the longevity and hygienic operation of your food grinder.

1. Always unplug the appliance before cleaning.
2. Disassemble the grinder head by unscrewing the locking collar and removing the grinding plate, cutting blade, and grinder head from the motor housing.
3. The detachable hopper, grinder head, grinding plates, cutting blade, food pusher, and sausage stuffer attachment are dishwasher-safe for easy cleaning. Alternatively, wash them in warm, soapy water, rinse thoroughly, and dry immediately to prevent rust on metal parts.
4. The motor housing is not immersible. Wipe it clean with a damp cloth and mild detergent. Do not use abrasive cleaners or scouring pads.
5. Ensure all parts are completely dry before reassembling or storing.
6. Store the grinder in a dry place.

Troubleshooting

Specifications

• Model: 2275-WP
• Power: 200 Watts
• Dimensions (L x W x H): Approximately 14.5 x 8.5 x 6.3 inches
• Weight: Approximately 5.7 pounds
• Color: White

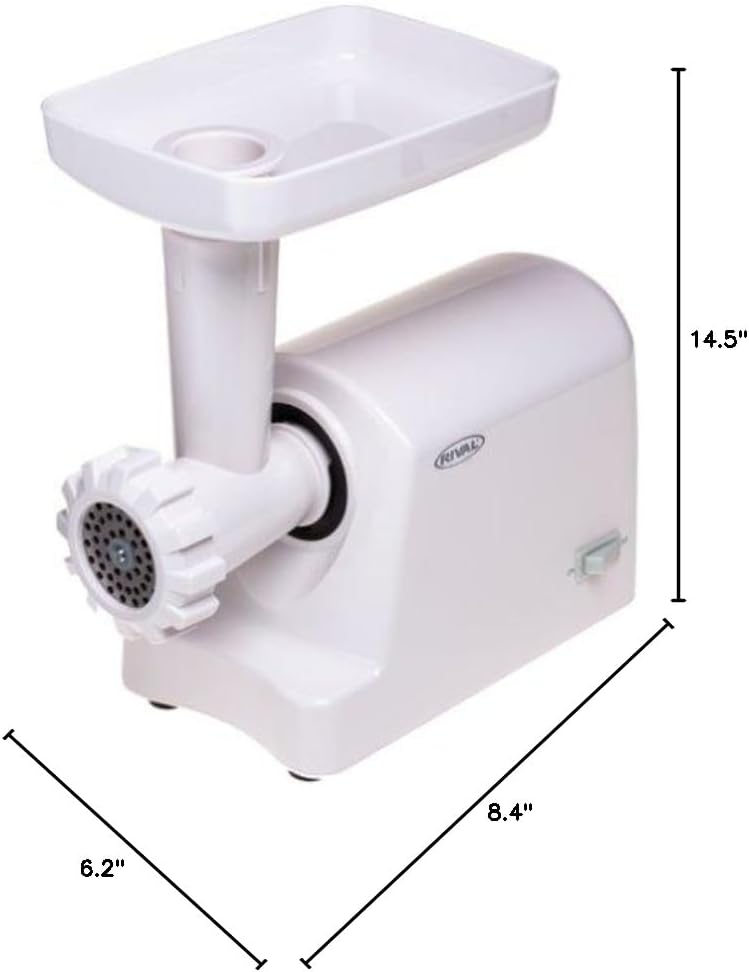

Image: Dimensions of the Rival Electric Food Grinder, Model 2275-WP, indicating approximate measurements.

Warranty and Support

This Rival Electric Food Grinder, Model 2275-WP, comes with a one-year warranty against defects from the date of purchase. This warranty covers manufacturing defects in materials and workmanship under normal household use.

The warranty does not cover damage resulting from misuse, abuse, accident, alteration, lack of proper care, or normal wear and tear. Any attempt to repair or modify the appliance by unauthorized personnel will void the warranty.

For warranty claims, technical support, or inquiries regarding replacement parts, please contact Rival customer service. Keep your purchase receipt as proof of purchase for warranty validation.

Please refer to the official Rival website or product packaging for the most current contact information and detailed warranty terms.
