1. Product Overview
The RCA AH201 Y-Adaptor Cable is designed to split a single RCA audio or video signal into two separate outputs. This adapter features one RCA female connector and two RCA male connectors, allowing for flexible connection configurations. Its construction aims to provide a reliable and precise connection, minimizing signal loss and resisting corrosion.

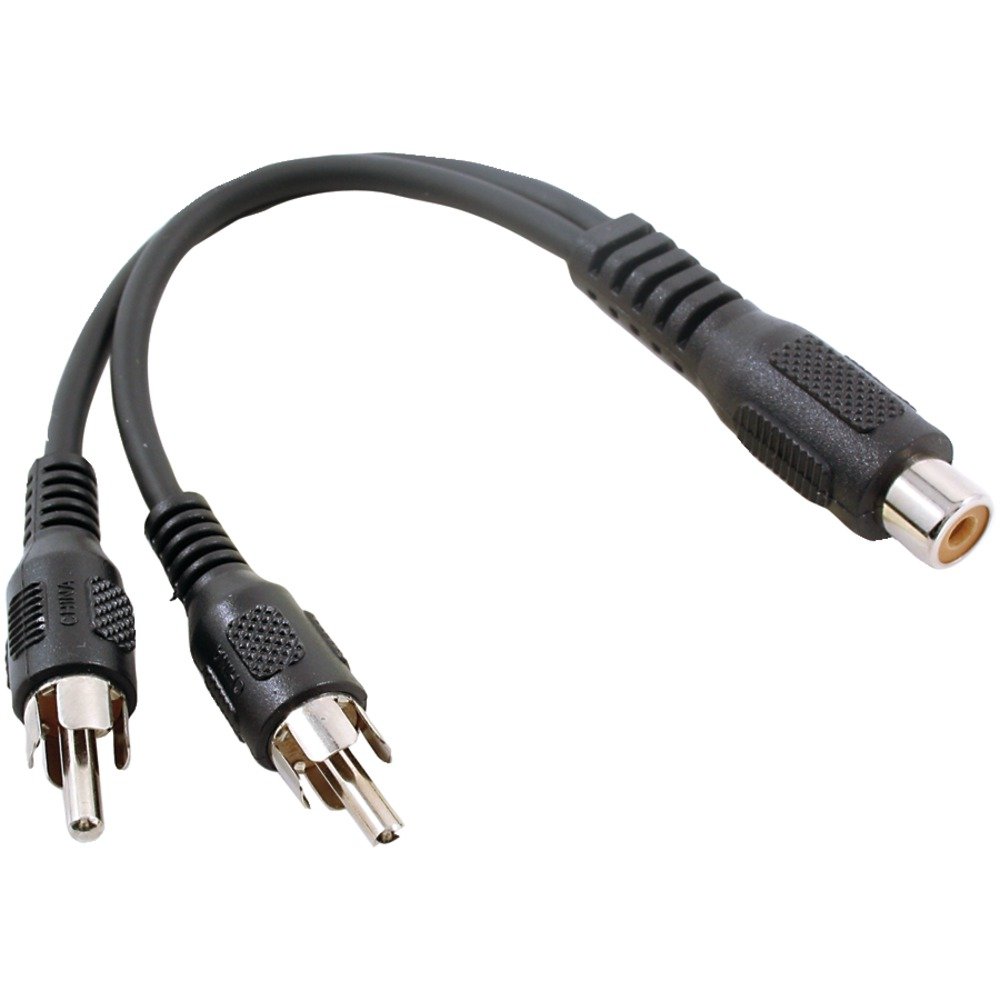

Figure 1: The RCA AH201 Y-Adaptor Cable, showing one female RCA input splitting into two male RCA outputs. Connectors are typically color-coded for audio (red/white) or video (yellow) applications.
2. Setup and Installation
Follow these steps to correctly install your RCA AH201 Y-Adaptor Cable:
- Identify Connectors: Locate the single female RCA connector and the two male RCA connectors on the Y-adaptor cable.
- Connect Source: Plug the male RCA connector from your audio or video source device (e.g., DVD player, game console, subwoofer output) into the single female RCA connector of the Y-adaptor. Ensure a firm connection.
- Connect Destinations: Plug the two male RCA connectors of the Y-adaptor into the corresponding RCA input jacks on your destination devices (e.g., two separate amplifier inputs, two speakers, or a stereo receiver). Match the color coding (e.g., red to red, white to white, yellow to yellow) for proper signal routing.
- Secure Connections: Verify that all connections are secure to prevent signal interruption or degradation.
Common Applications:
- Splitting a mono audio output from a device to play through both left and right stereo inputs on a receiver or TV.
- Connecting a single subwoofer output to a subwoofer with dual L/R inputs.
- Distributing a single video signal to two displays (note: signal quality may vary depending on source strength).
3. Operating Instructions
The RCA AH201 Y-Adaptor Cable operates passively, meaning it does not require external power. Once connected, it functions by splitting the incoming signal. Ensure that the source device is powered on and outputting a signal, and that the destination devices are correctly configured to receive the input from the connected RCA cables.
- Signal Flow: The signal travels from the single female connector to the two male connectors.
- Device Settings: Confirm that your audio/video devices are set to the correct input channel where the Y-adaptor is connected.
4. Maintenance
To ensure the longevity and optimal performance of your RCA AH201 Y-Adaptor Cable, follow these maintenance guidelines:
- Cleaning: Use a soft, dry cloth to gently wipe the cable and connectors. Avoid using liquid cleaners or abrasive materials, as these can damage the connectors or insulation.
- Storage: When not in use, store the cable in a cool, dry place away from direct sunlight and extreme temperatures. Avoid tightly coiling the cable, which can stress the internal wiring.
- Handling: Always grasp the connector housing when plugging or unplugging the cable, rather than pulling on the cable itself. This prevents damage to the cable-connector junction.
- Inspection: Periodically inspect the cable and connectors for any signs of wear, fraying, or corrosion. Replace the cable if any damage is observed.
5. Troubleshooting
If you experience issues with your RCA AH201 Y-Adaptor Cable, consider the following troubleshooting steps:
| Problem | Possible Cause | Solution |
|---|---|---|
| No audio/video signal | Loose connection; incorrect input selected on device; faulty source/destination device. | Ensure all RCA connections are secure. Verify the correct input is selected on your TV, receiver, or amplifier. Test with different cables or devices to isolate the issue. |
| Poor signal quality (e.g., static, distorted sound, blurry video) | Loose connection; interference; damaged cable; signal degradation from splitting. | Check all connections for tightness. Ensure the cable is not near sources of electromagnetic interference. Inspect the cable for physical damage. While the cable is designed for reliability, splitting a signal can sometimes introduce minor degradation depending on the source and destination devices. |
| Only one output device receives signal | One of the male connectors is not properly seated or is damaged; issue with the destination device. | Re-seat both male connectors firmly. Test the non-working output with a different destination device or input port. |
6. Specifications
- Brand: RCA
- Model: AH201
- Connector Type: RCA
- Cable Type: Composite (Audio/Video Y-Adaptor)
- Connector Gender: 1 Female RCA to 2 Male RCA
- Item Weight: Approximately 9.07 grams
- Included Components: 1 x RCA Y ADAPTER (2M - 1F)
- Indoor/Outdoor Usage: Indoor, Outdoor
7. Warranty and Support
For warranty information and customer support regarding the RCA AH201 Y-Adaptor Cable, please contact the manufacturer directly. Details on warranty coverage and how to obtain service are typically provided with the product packaging or on the official RCA website.
For general inquiries or further assistance, refer to the official RCA support channels.
