Introduction
Welcome to your new Toastmaster 6432 Eclipse Double Burner. This manual provides essential information for the safe and efficient operation, maintenance, and care of your appliance. Please read all instructions carefully before use and retain this manual for future reference.
Important Safety Instructions
When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons.
General Safety
- Read all instructions before operating the appliance.
- Do not touch hot surfaces. Use handles or knobs.
- To protect against electrical shock, do not immerse cord, plugs, or the appliance in water or other liquid.
- Close supervision is necessary when any appliance is used by or near children.
- Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
- Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
- The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
- Do not use outdoors.
- Do not let cord hang over edge of table or counter, or touch hot surfaces.
- Do not place on or near a hot gas or electric burner, or in a heated oven.
- Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to 'OFF', then remove plug from wall outlet.
- Do not use appliance for other than intended use.
Electrical Safety
- Ensure the appliance is connected to a properly grounded electrical outlet with the correct voltage (220-240V AC).
- Avoid using extension cords. If an extension cord is necessary, ensure it is rated for the appliance's wattage.
- Keep the power cord away from hot surfaces and ensure it is not pinched or damaged.
Parts and Features
Your Toastmaster 6432 Eclipse Double Burner consists of the following main components:
- Large Burner (7-5/8 inches diameter)
- Small Burner (5-5/8 inches diameter)
- Large Burner Control Knob
- Small Burner Control Knob
- Indicator Lights (one for each burner)
- Base Unit (Black Case)
- Power Cord

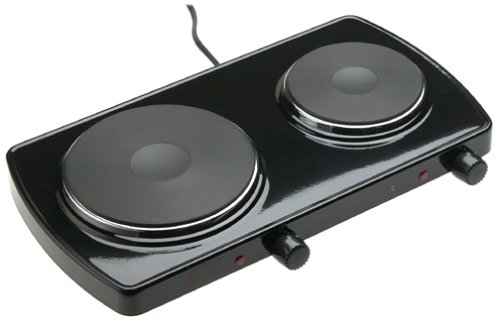

Image: The Toastmaster 6432 Eclipse Double Burner, featuring two solid disk heating elements and two control knobs on the front panel. The larger burner is on the left, and the smaller burner is on the right.
Setup and First Use
Unpacking
Carefully remove all packaging materials from the appliance. Place the unit on a stable, heat-resistant, and level surface, ensuring adequate ventilation around the unit.
Before First Use
Before using your double burner for the first time, wipe the solid disk burner plates and the black case with a damp cloth. Operate both burners on their highest setting for approximately 5 minutes without any cookware. This process helps to burn off any manufacturing residues. A slight odor or small amount of smoke may be observed during this initial operation; this is normal and will dissipate quickly.
Operating Instructions
Power Connection
Plug the power cord into a standard 220-240V AC electrical outlet. Ensure the outlet is easily accessible for unplugging.
Using the Burners
- Place appropriate cookware, such as pots or pans with flat bottoms, onto the desired solid disk burner.
- Turn the corresponding control knob clockwise to the desired heat setting. Settings typically range from 'MIN' (low) to 'MAX' (high).
- The indicator light for the active burner will illuminate, signaling that the burner is heating.
- Adjust the heat setting as needed during cooking.
- After cooking, turn the control knob counter-clockwise to the 'OFF' position.
- Unplug the unit from the electrical outlet and allow it to cool completely before handling or cleaning.
Temperature Control
Each burner features an independent adjustable temperature control knob, allowing for precise heat management. The large burner provides up to 1000 watts, and the small burner provides up to 500 watts, offering versatility for various cooking tasks from simmering to boiling.
Cleaning and Maintenance
Proper cleaning and maintenance will ensure the longevity and optimal performance of your double burner.
Cleaning
- Always unplug the unit from the electrical outlet and allow it to cool completely before cleaning.
- Wipe the solid disk heating elements and the black case with a damp cloth and a mild, non-abrasive detergent.
- Do not immerse the appliance in water or any other liquid.
- Do not use abrasive cleaners, scouring pads, or harsh chemicals, as these can damage the surface finish.
- Ensure all surfaces are dry before plugging the unit back in or storing it.
Storage
When not in use, store the appliance in a dry, cool place, away from direct sunlight and moisture. Ensure the power cord is neatly coiled and not under tension.
Troubleshooting
If you encounter any issues with your Toastmaster 6432 Eclipse Double Burner, please refer to the table below for common problems and solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Burner not heating | Unit is not plugged in. Control knob is in 'OFF' position. Power outlet is not functioning. | Ensure the power cord is securely plugged into a working electrical outlet. Turn the control knob to a desired heat setting. Test the outlet with another appliance or check your circuit breaker. |
| Slow heating or insufficient heat | Heat setting is too low. Cookware is not suitable (e.g., warped bottom). Cookware is too large for the burner. | Increase the heat setting using the control knob. Use cookware with a flat, even bottom that makes full contact with the burner. Use cookware appropriate for the burner size. |
| Smoke or odor during first use | Manufacturing residues burning off. | This is normal during initial use. Ensure good ventilation. The odor/smoke will dissipate. |
| Indicator light not illuminating | Burner is not active. Light malfunction. | Ensure the control knob is turned to an 'ON' position. If the burner heats but the light does not work, the light may need service. |
Product Specifications
Refer to the following specifications for your Toastmaster 6432 Eclipse Double Burner:
| Feature | Detail |
|---|---|
| Brand | Toastmaster |
| Model Number | 6432 |
| Total Wattage | 1500 watts (1000W large burner, 500W small burner) |
| Burner Type | Solid Disk Elements |
| Burner Diameter | Large: 7-5/8 inches (approx. 19.4 cm) Small: 5-5/8 inches (approx. 14.3 cm) |
| Dimensions (Overall) | 19 x 11.5 x 3 inches (approx. 48.3W x 29.2D x 7.6H cm) |
| Controls | Adjustable Temperature Knobs (independent for each burner) |
| Material | Metal |
| Color | Black |
| Power Source | Corded Electric |
| UPC | 048109338716 |
Warranty and Customer Support
This Toastmaster product is covered by a limited manufacturer's warranty. For specific warranty details, including coverage period and terms, please refer to the warranty documentation included with your original purchase. It is recommended to retain your purchase receipt as proof of purchase for any warranty claims.
For technical assistance, service inquiries, or to obtain replacement parts, please visit the official Toastmaster website or contact their customer service department. Contact information can typically be found on the manufacturer's website or on the product packaging.
