Introduction
This manual provides essential instructions for the safe and effective use of your Krause 121383 VarioTop Scaffold/Ladder System. Please read this manual thoroughly before assembly, operation, or maintenance. Keep this manual for future reference.
Safety Information
Your safety is paramount. Failure to follow these instructions can result in serious injury or death. Always adhere to local safety regulations and standards (e.g., OSHA, ANSI A14.2).
- Inspect Before Use: Always inspect all components for damage, wear, or missing parts before each use. Do not use if damaged.
- Stable Surface: Ensure the scaffold/ladder is placed on a firm, level, and stable surface. Do not use on slippery or uneven ground.
- Weight Capacity: Do not exceed the maximum load capacity. The ladder is rated for 300 pounds, and the platform for 1,000 pounds.
- Electrical Hazards: Maintain a safe distance from power lines and electrical equipment. Aluminum conducts electricity.
- Weather Conditions: Do not use in high winds, storms, or icy conditions.
- Proper Footwear: Always wear appropriate, non-slip footwear.
- One Person Rule: Only one person should be on the ladder at a time. For scaffold use, ensure proper load distribution and adherence to capacity limits.
- Secure Setup: Ensure all locking mechanisms are fully engaged before climbing or working on the platform.
- UL-listed: This product is UL-listed, indicating compliance with safety standards.
Components
The Krause 121383 VarioTop system typically includes the following main components:
- Multi-position aluminum ladder sections
- Work platform(s)
- Stabilizer bars (if applicable)
- Locking hinges/mechanisms
Note: Specific components may vary slightly. Refer to your packaging for a complete list.
Setup and Assembly
The VarioTop system is designed for versatile configuration as a scaffold or a ladder. Always ensure a clear workspace before assembly.
1. Assembling as a Scaffold
- Unfold Ladder Sections: Carefully unfold the ladder sections to their full extension on a flat surface.
- Position Stabilizer Bars: Attach the stabilizer bars (if included) to the base of the ladder sections, ensuring they are securely fastened.
- Form Scaffold Base: Adjust the ladder sections to form two A-frame bases. Ensure all hinge locks are fully engaged and secure.

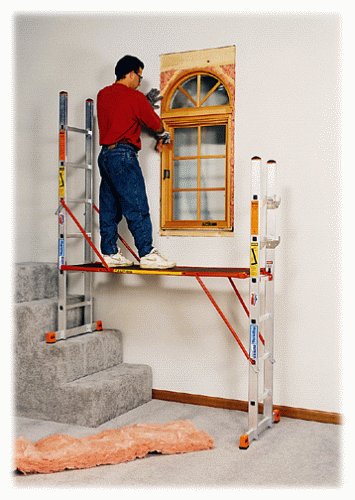

- Install Work Platform: Place the work platform(s) onto the designated rungs between the two A-frames. Ensure the platform is level and securely seated.
- Final Check: Before use, verify that all components are correctly assembled, all locks are engaged, and the scaffold is stable.
2. Assembling as a Ladder
- Select Configuration: The VarioTop can be configured as an extension ladder, stepladder, or stairway ladder.
- Adjust Hinges: Release the hinge locks and adjust the ladder sections to the desired configuration.
- Secure Locks: Ensure all hinge locks are fully engaged and secure in the chosen position.
- Placement: For extension ladder use, ensure a 1:4 ratio (one foot out for every four feet up) against a stable support. For stepladder use, ensure all four feet are firmly on the ground.
- Final Check: Verify stability and secure locking before climbing.
Operating Instructions
Always prioritize safety during operation.
Using as a Scaffold
- Access: Always use the ladder sections to climb onto the platform. Do not jump onto or off the platform.
- Working Area: Do not lean out from the scaffold. Keep your body centered over the platform.
- Tools and Materials: Distribute weight evenly on the platform. Do not overload.
- Movement: If the scaffold has wheels, ensure they are locked when working. Unlock and carefully move the scaffold only when no one is on it.
Using as a Ladder
- Three-Point Contact: Maintain three points of contact (two hands and one foot, or two feet and one hand) with the ladder at all times.
- Face the Ladder: Always face the ladder when ascending or descending.
- Reach Limits: Do not overreach. Reposition the ladder instead of stretching.
- Top Rung: Do not stand on the top rung or top cap of a stepladder. For extension ladders, do not stand on the top three rungs.
Maintenance and Storage
Regular maintenance ensures the longevity and safe operation of your VarioTop system.
- Cleaning: Clean the aluminum surfaces with a damp cloth and mild detergent. Avoid abrasive cleaners.
- Inspection: Periodically inspect all rungs, rails, hinges, and locking mechanisms for signs of wear, damage, or corrosion. Ensure all rivets and fasteners are tight.
- Lubrication: Lightly lubricate moving parts, such as hinges, with a silicone-based lubricant if they become stiff.
- Storage: Store the system in a dry, protected area, away from extreme temperatures and direct sunlight. Ensure it is stored in a way that prevents accidental falling or damage. The foldable design allows for compact storage.
- Repairs: Do not attempt to repair damaged components yourself. Contact Krause customer support or a qualified service center for repairs or replacement parts.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Ladder/Scaffold feels unstable | Uneven ground; locking mechanisms not fully engaged; damaged component. | Move to a level surface; ensure all locks are secure; inspect for damage and replace if necessary. |
| Hinges are stiff or difficult to adjust | Lack of lubrication; dirt or debris in hinge mechanism. | Clean hinges and apply a silicone-based lubricant. |
| Platform does not sit level | Incorrect placement; bent rungs or platform. | Re-seat platform correctly; inspect for damage and replace if necessary. |
Specifications
- Model Number: 121383
- Material: Aluminium
- Color: Silver
- Special Features: Foldable, Lightweight, Portable
- Ladder Load Capacity: 300 pounds
- Platform Load Capacity: 1,000 pounds
- Maximum Height: 5 Feet (This typically refers to the platform height in scaffold mode or a specific ladder configuration.)
- Compliance: UL-listed, OSHA and ANSI A14.2 compliant
- GTIN/UPC: 040381121383
Warranty and Support
For warranty information, technical support, or to order replacement parts, please contact Krause customer service. Refer to the product packaging or the official Krause website for the most current contact details.
Krause Official Website: www.krause-systems.com
