Introduction
This manual provides detailed service and repair information for various Vespa scooter models manufactured between 2005 and 2018. It covers essential procedures from routine maintenance to complex system overhauls, designed to assist owners and technicians in maintaining their vehicles.
Key areas addressed include vehicle identification, safety protocols, pre-ride inspection checks, and comprehensive specifications for the covered models.
Image 1: Front cover of the Haynes Service and Repair Manual. This image displays the manual's title, the Haynes logo, and illustrations of various Vespa scooter models, including the GTS, GTV, GT, LX, LXV, S, Primavera, and Sprint series, covering model years 2005 to 2018.
Models Covered
This manual specifically covers the following Vespa models and engine sizes:
- GTS125/150 (124/151cc) from 2009-2018
- GTS250 (244cc) from 2005-2009
- GTS300 (278cc) from 2008-2018
- GTV/GT250 (244cc) from 2007-2010
- GTV300 (278cc) from 2010
- LX125/150 (124/151cc) from 2009-2014
- LXV125/150 (124cc) from 2010-2014
- S125/150 (124/151cc) from 2009-2013
- Primavera (124cc) from 2014-2018
- Sprint (124cc) from 2014-2018
This includes Super, SuperSport, Touring, i-get, and Special Edition/Anniversary models, as well as mechanical features of the 946.
Image 2: Back cover of the Haynes manual. This image provides a summary of the Vespa models covered by the manual, along with an overview of the types of content included, such as step-by-step instructions, reference sections, and wiring diagrams. The ISBN-13 is 978-1785214189 and UPC is 0699414007110.
Routine Maintenance and Servicing
Chapter 1 details all routine maintenance and servicing procedures necessary to keep your Vespa in optimal condition. This includes regular checks and scheduled service tasks to ensure longevity and reliable performance.
Pre-Ride Checks
- Engine oil level check
- Coolant level check
- Brake fluid level check
- Suspension and steering checks
- Legal and safety checks
- Tyre checks

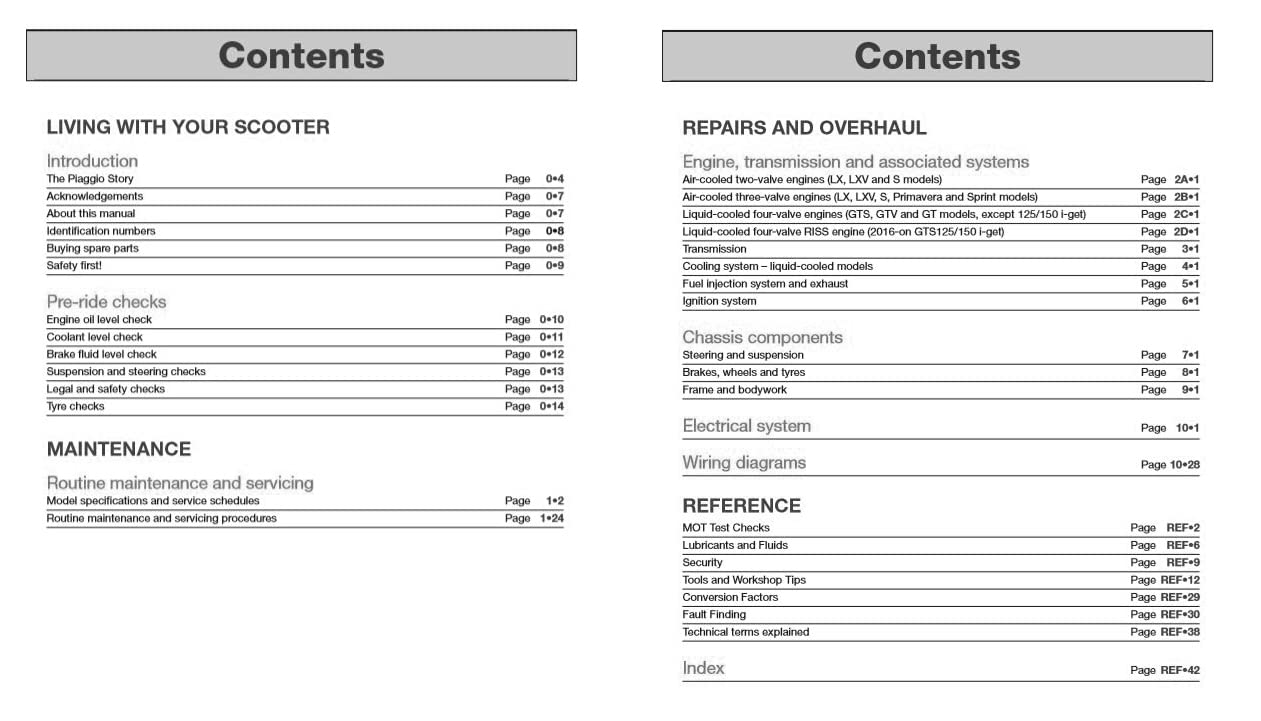

Image 3: Contents page from the manual. This image displays a detailed list of chapters and sections, including "Living With Your Scooter," "Maintenance," and "Repairs and Overhaul," providing a clear roadmap to the manual's content.
Engine Systems
This section provides in-depth information on various engine types found in the covered Vespa models.
- Chapter 2A: Air-cooled two-valve engines (LX, LXV and S models)
- Chapter 2B: Air-cooled three-valve engines (LX, LXV and S models)
- Chapter 2C: Liquid-cooled four-valve engines (GTS, GTV and GT models)
Image 4: An example page from the manual illustrating the removal of the alternator and stator. This page includes detailed step-by-step instructions, diagrams, and tool tips for performing the procedure.
Transmission
Chapter 3 covers the transmission system, including inspection, maintenance, and repair procedures for optimal power delivery.

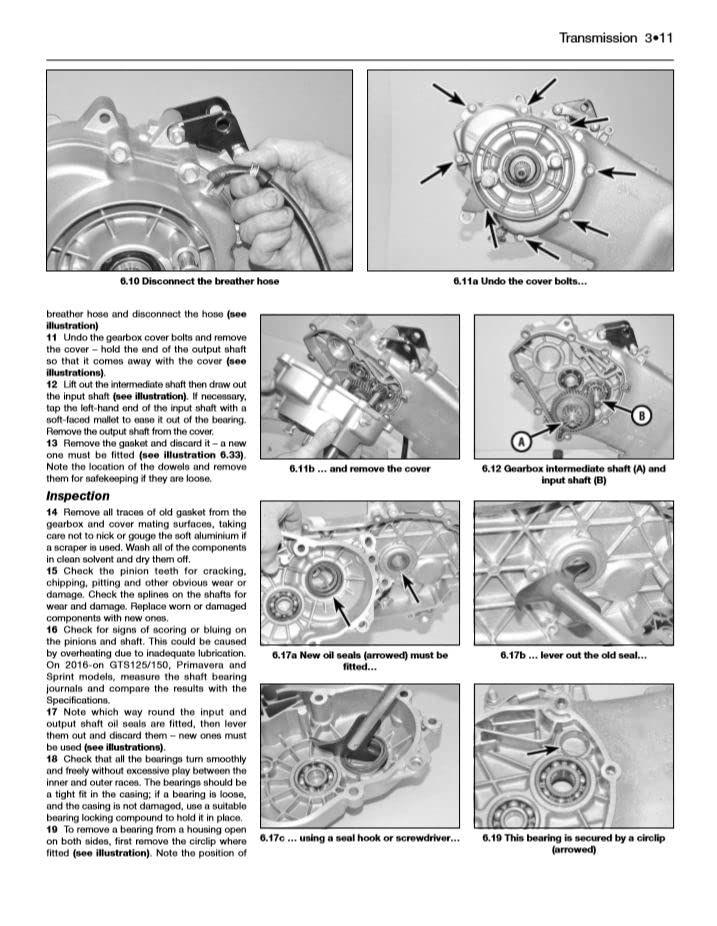

Image 5: A page from the manual focusing on transmission components. It shows diagrams and instructions for disconnecting the breather hose, removing covers, inspecting gears, and replacing oil seals, providing visual guidance for complex tasks.
Cooling System
Chapter 4 provides guidance on the cooling system, essential for maintaining engine temperature and preventing overheating.
Fuel Injection System and Exhaust
Chapter 5 details the fuel injection system and exhaust components, covering maintenance, troubleshooting, and repair procedures.
Ignition System
Chapter 6 focuses on the ignition system, including spark plug maintenance, coil checks, and wiring information.

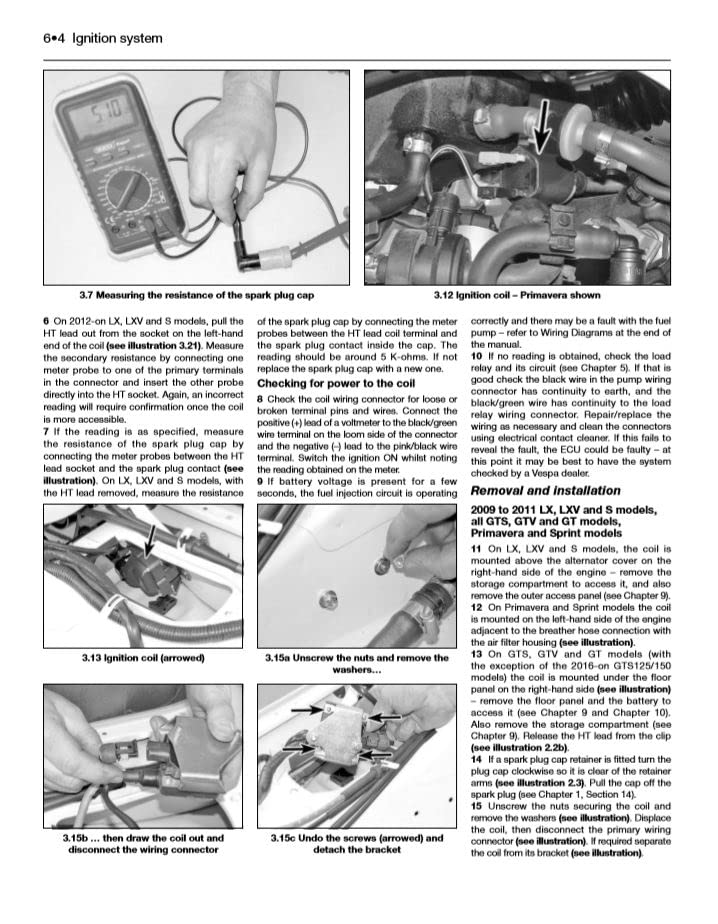

Image 6: A page from the manual explaining how to measure the resistance of the spark plug cap and check the ignition coil. It includes diagrams of the ignition coil and instructions for removal and installation, along with notes on specific models.
Steering and Suspension
Chapter 7 addresses the steering and suspension components, crucial for vehicle handling and ride comfort.
Brakes, Wheels and Tyres
Chapter 8 provides detailed information on the braking system, wheels, and tyres, including inspection, replacement, and safety guidelines.
Image 7: A page from the manual detailing common tyre sidewall markings and providing general information about wheels and tyres. It includes guidance on fitting new tyres and important safety considerations.
Frame and Bodywork
Chapter 9 covers the frame and bodywork, including removal, installation, and repair procedures for various components.
Electrical System and Wiring Diagrams
Chapter 10 provides comprehensive information on the electrical system, including wiring diagrams to assist in troubleshooting and repairs.
Specifications
This manual includes detailed specifications for the covered Vespa models, providing critical data for maintenance and repair tasks.
- Publisher: HAYNES PUBLISHING GROUP
- Publication Date: September 21, 2018
- Edition: 3rd
- Language: English
- Print Length: 352 pages
- ISBN-10: 1785214187
- ISBN-13: 978-1785214189
- Item Weight: 1.45 pounds
- Dimensions: 10.75 x 0.94 x 8.35 inches
Support and Additional Resources
For further assistance or specific technical inquiries not fully covered within this manual, it is recommended to consult an authorized Vespa service center or refer to official Vespa documentation for your specific model year.
This manual serves as a comprehensive guide for hands-on maintenance and repair, empowering owners to perform various tasks with confidence.
