Introduction to Your Manual
This Haynes manual provides detailed instructions for the maintenance, service, and repair of Volvo S70 Saloon, V70 Estate, and C70 Coupe models manufactured between 1996 and 1999. It covers petrol engine variants, including Turbo and T5 versions. The manual is designed to assist both the novice and experienced mechanic in performing various tasks, from routine checks to complex repairs.
Each procedure is explained with clear, step-by-step guidance and supported by numerous illustrations to ensure accuracy and ease of understanding. The content is based on a complete stripdown and rebuild of the vehicle, ensuring practical and reliable information.
Figure 1.1: Front cover of the Haynes Service and Repair Manual for Volvo S70, V70, and C70 models.
About This Manual's Approach
Haynes manuals are developed through a comprehensive process involving the complete disassembly and reassembly of a vehicle. This approach ensures that all instructions are practical, accurate, and easy to follow for vehicle owners. The manual emphasizes DIY-friendly techniques, making it accessible for individuals with varying levels of mechanical experience.
- Stripdown and Rebuild: Every procedure is based on hands-on experience, providing detailed insights into vehicle components.
- DIY-Friendly Techniques: Instructions are designed to be understood and executed by individuals using common tools.
- Fault Finder: Includes a dedicated section to help diagnose common issues, saving time and effort in troubleshooting.
Figure 1.2: Illustration of the Haynes manual development process, highlighting practical, step-by-step guidance for vehicle maintenance and repair.
Safety First
Always prioritize safety when working on your vehicle. Before beginning any procedure, ensure the vehicle is securely supported, the engine is cool, and the battery is disconnected if necessary. Wear appropriate personal protective equipment, such as gloves and eye protection. Refer to the manual's dedicated safety section for detailed precautions.
Weekly Checks
Regular weekly checks are crucial for maintaining your Volvo's performance and longevity. This section outlines essential inspections to perform, including:
- Underbonnet check points
- Engine oil level
- Coolant level
- Brake and clutch fluid level
- Power steering fluid level
- Battery condition
- Screen washer fluid level
- Tyre condition and pressure
- Wiper blades inspection
- Bulbs and fuses functionality
Roadside Repairs
This section provides guidance for common roadside emergencies and temporary fixes to get your vehicle to a service point. Topics covered include:
- What to do if your car won't start
- Jump starting procedures
- Wheel changing instructions
- Identifying fluid leaks
- Towing procedures
Maintenance and Servicing
Routine maintenance is essential for the optimal performance and longevity of your Volvo. This section details scheduled servicing tasks and general maintenance procedures.
Servicing Specifications
Detailed specifications for various components and fluids are provided to ensure correct maintenance. This includes capacities, ignition system details, brake specifications, and torque wrench settings.
Figure 2.1: Example page from the manual detailing servicing specifications, including fluid capacities, ignition system data, and torque settings.
Example Specifications:
- Engine Oil Capacity: 5.8 liters (including filter change)
- Cooling System Capacity: Non-turbo engines 7.2 liters, Turbo engines 7.0 liters
- Fuel Tank Capacity: Front-wheel drive models 68 liters, Four-wheel drive (AWD) models 66 liters
- Cooling System Mixture: 50% antifreeze/50% water
- Spark Plugs: Specific Bosch models with 0.9 mm electrode gap.
- Brakes: Front brake pad minimum lining thickness 3.0 mm, Rear brake pad minimum lining thickness 2.8 mm.
- Torque Wrench Settings: Engine oil drain plug 35 Nm, Roadwheel bolts 110 Nm, Spark plugs 25 Nm.
Lubricants and Fluids
This section provides information on the correct types and quantities of lubricants and fluids required for your vehicle, ensuring proper operation and preventing premature wear.
Tyre Pressures
Correct tyre pressures are vital for safety, fuel efficiency, and tyre longevity. Refer to this section for recommended tyre pressures for various load conditions.
Engine In-Car Repair Procedures
This section covers various repair procedures that can be performed on the engine while it remains in the vehicle. Detailed steps are provided for tasks such as checking and adjusting timing marks, which are critical for engine synchronization.
Figure 3.1: Detailed illustrations showing timing marks on camshaft sprockets (A) and their alignment with notches (B) on the belt cover for both early and later model vehicles.
Procedures include identifying timing marks on camshaft sprockets and belt covers, ensuring correct engine timing. The manual provides specific instructions for different engine configurations and model years.
Cooling, Heating, and Air Conditioning Systems
This section provides instructions for diagnosing, repairing, and maintaining the vehicle's cooling, heating, and air conditioning systems. It covers components such as the radiator, cooling fan, and temperature sensors.
Figure 4.1: Visual guide for cooling system repairs, demonstrating the removal of the cooling fan wiring connectors and the radiator shroud.
Key procedures detailed include:
- Removing and refitting the cooling fan and radiator.
- Testing and replacing the coolant temperature sensor.
- Troubleshooting common cooling system faults.
- Draining and refilling the cooling system.
Body Equipment and Interior Controls
This section provides instructions for working with various body equipment and interior components, including the removal and installation of control panels and associated wiring.

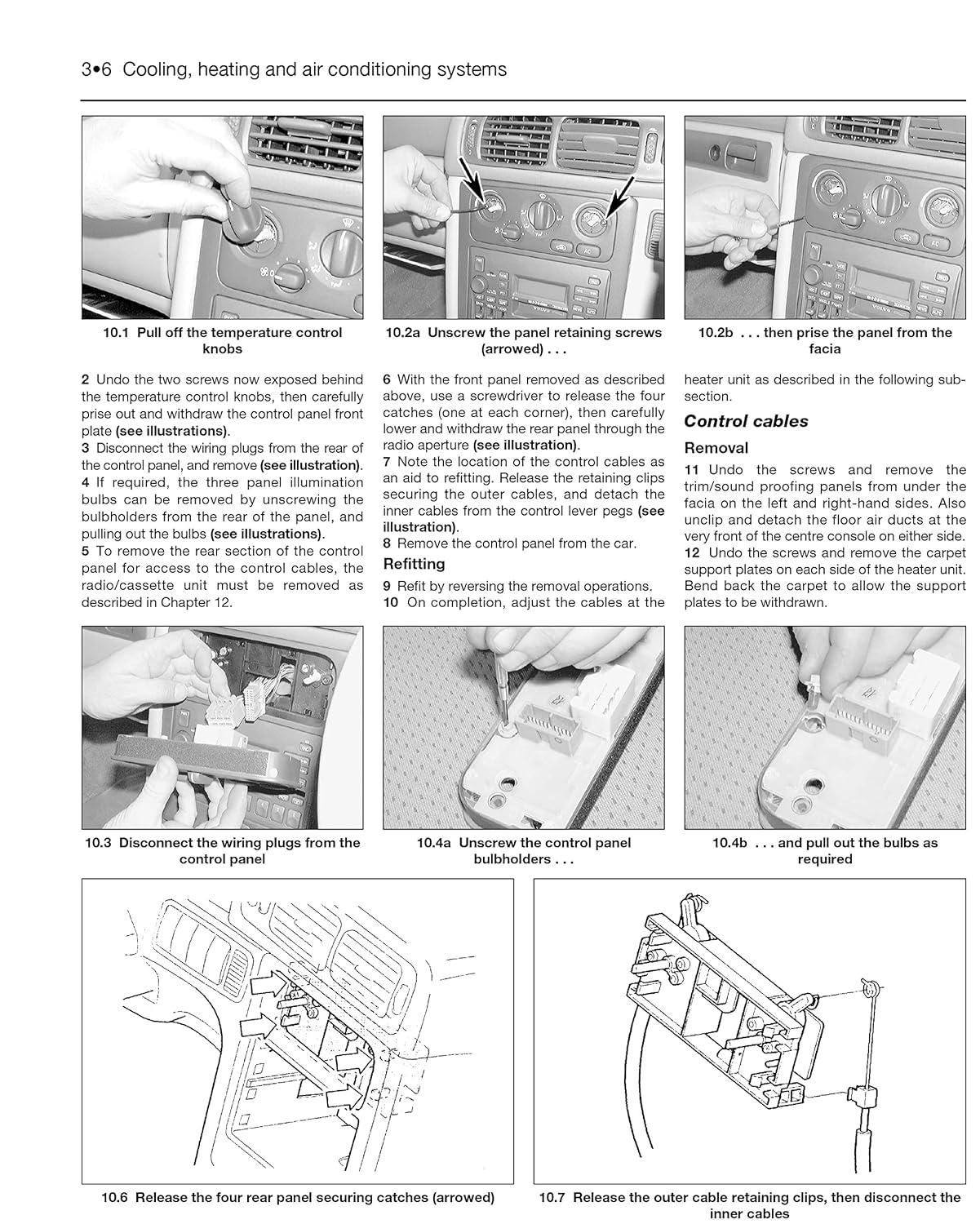

Figure 5.1: Step-by-step guide for removing the temperature control knobs and unscrewing the control panel retaining screws to access interior components.
Procedures covered include:
- Removing the fascia and control panel.
- Disconnecting wiring plugs and bulbholders.
- Accessing and removing the radio/cassette anti-theft system.
Troubleshooting
The manual includes a dedicated fault-finding section to assist in diagnosing common vehicle problems. This section provides systematic approaches to identify the root cause of issues, from engine performance problems to electrical malfunctions, guiding users through logical diagnostic steps.
Specifications Overview
This manual provides comprehensive technical specifications for the Volvo S70, V70, and C70 models (1996-1999). Key details include:
- Publisher: Haynes
- Publication Date: October 18, 2014
- Language: English
- Print Length: 256 pages
- ISBN-10: 0857339540
- ISBN-13: 978-0857339546
- Item Weight: 14.4 ounces
- Dimensions: 8.31 x 0.59 x 10.63 inches
Additional Resources
For further assistance or specific inquiries not covered in detail within this manual, it is recommended to consult a certified Volvo service center or refer to official Volvo technical documentation. Always ensure that any parts used for repair or replacement meet the manufacturer's specifications.
