ARDUINO RFLINK-Mix Wireless UART to I2C Module
RFLINK-Mix Wireless UART-to-I2C is an easy-to-use wireless suite that allows users to quickly setup I2C devices. You don’t need to connect multiple long cables from I2C port of host to the I2C devices one by one. You only needs to connect the UART ROOT of the RFLINK-Mix to the UART interface of main control (Arduino, Raspberry Pi, any other HOST) , and I2C SLAVE devices to the RFLINK-Mix on the I2C Master side, a wireless UART-to-I2C system is ready to go.
Module appearance and dimension

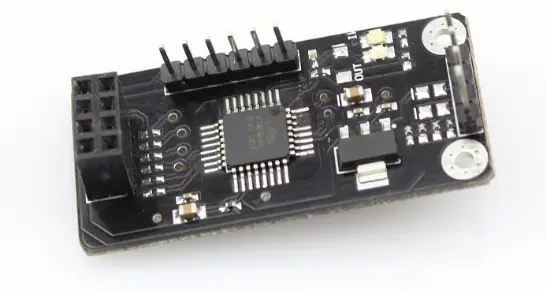

The RFLINK-Mix UART-to-I2C module contains one piece of the UART ROOT (left) and up to four pieces The I2C Device side (the RFLINK-Mix I2C module is the Master–the right side of the figure below, numbered 0 ~ 3). The appearance of the two type is the same, but it can be identified via the checkbox of the label on the back .
As shown in the figure below, the leftmost figure is the part side, and the others are the label side The Group Address of this group of RFLINK-UART ROOT modules is 0001, baud rate 19200. RFLINK I2C Device is Device 0 (CLK 1.4M), Device 1 (CLK 400K), Device 2 (CLK 400K), Device 3 (CLK 100K). , group address is 0001, Clock can be selected at the time of purchase
Module characteristics
- Operating voltage: 3.3~5.5V
- RF Frequency:2400MHz~2480MHz。
- Power consumption: 24 mA@ +5dBm at TX mode and 23mA at RX mode.
- Transmit power: +5dBm
- Transmission distance: about 80 to 100m in the open space
- Baud Rate(UART ROOT)：9,600bps or 19,200bps
- Clock(I2C MASTER) : 1.2M/750K/400K/200K/100K/50K/25K/12.5K。 (Default 400K)
- Dimension : 25 mm x 15 mm x 2 mm (LxWxH)
- Supports 1-to-1 or 1-to-multiple (up to four) transfers, and is used in command mode when used 1-to-multiple Command choose which device to transmit with. 。
Pin pin definition
UART ROOT |
I2C DEVICE |
| GNDè Ground +5Vè 5V voltage input The TXè corresponds to the RX of the motherboard UART The RXè corresponds to the TX of the motherboard UART THE CEBè This CEB should connect to the ground (GND),then the module will be power-on and can be used as a power- saving control function. OUTè Output pin of IO Port (On/Off export) INèInput pin of the IO Port (On/Off receive). |
GNDè Ground +5Vè 5V voltage input The SCLè corresponds to the SCL (Serial Clock Line serial clock) of the I2C Slave device The SDAè corresponds to the SDA (Serial Data Line Serial Data Line) to the I2C Slave device THE CEBè This CEB should connect to the ground (GND),then the module will be power-on and can be used as a power- saving control function. OUTè Output pin of IO Port (On/Off export) |
| CMD_Modeè ROOT for command mode startup pin, active low | INèInput pin of the IO Port (On/Off receive). |
How to use
This module supports the Liquid Crystal I2C LCD module, which controls multiple sets of LCDs through the UART communication interface.
You can download this RFLINK-Mix UART-to-I2C usage example at the official website http://www.sunplusit.com/TW/Shop/IoT/Document.
