VEVOR Water Storage Bladder (Model WT-20113) Instruction Manual

1. انتهى المنتجview

The VEVOR Water Storage Bladder is a durable and portable solution for various water storage needs. Constructed from 1000D double-layer PVC material, it is designed to be rainproof, fire-resistant, and wear-resistant, ensuring reliable performance in diverse conditions. Its collapsible design allows for easy storage and transport when empty.

المميزات الرئيسية:

• 29.85 Gallon (113L) Capacity: مثالي للاستخدام المنزلي، جamping, garden watering, RV setups, drought resistance, and emergency water supply.
• Durable 1000D PVC Material: Thickened double-layer PVC offers rainproof, fire, and wear-resistant properties for long-term reliability.
• Excellent Sealing: High-temperature welding technology and reinforced seals at ports prevent leaks.
• Efficient Water Storage: Features large inlet (OD 38mm/1.5", ID 32mm) and outlet (OD 32mm/1.25", ID 25mm) ports for quick hose connection.
• تطبيقات واسعة: Suitable for non-potable water storage and rainwater collection.

2. تعليمات الإعداد

1. Unpack the Bladder: Carefully remove the water storage bladder from its packaging. Unroll it and lay it flat in the desired location for use. Ensure the surface is clear of sharp objects to prevent damage.
2. Install the Drain Valve:
   • Locate the outlet port on the bladder.
   • Place the rubber sealing ring onto the valve connection to ensure a leak-proof seal.
   • Apply PTFE tape (provided) to the threads of the drain valve for an enhanced seal.
   • Screw the drain valve clockwise into the outlet port. Tighten firmly until the valve is centered and secure.
3. Prepare for Filling: Ensure the drain valve is in the closed position before filling.
4. Filling the Bladder:
   • Open the top intake cover.
   • Connect a hose to the inlet port (OD 38mm/1.5", ID 32mm) or fill directly through the top intake cover.
   • Slowly fill the bladder with water. It is recommended to partially fill the bladder in its desired final location to ensure stability before it becomes too heavy to move.
   • Once filled to the desired capacity, close the top intake cover securely.

3. تعليمات التشغيل

Filling the Bladder:

1. Ensure the bladder is placed on a flat, stable surface.
2. Unscrew the top intake cover.
3. Insert a hose into the intake port or pour water directly into the opening.
4. Fill the bladder to the desired level, being careful not to overfill.
5. Once full, securely close the top intake cover.

Draining the Bladder:

1. Position the bladder so the drain valve is at the lowest point, allowing gravity to assist drainage.
2. Connect a hose to the drain valve if needed, or position a container to collect the water.
3. Slowly open the drain valve to release water.
4. Close the valve once the desired amount of water has been dispensed or the bladder is empty.

4. الصيانة والتخزين

• تنظيف: Use mild detergent and water for cleaning. Avoid scrubbing with hard objects or brushes that could damage the PVC material.
• تجفيف: Ensure the bladder is completely dry before storage to prevent mold or mildew growth.
• تخزين: Store the bladder in a dark, dry, and damp-free place. Its collapsible nature allows for compact storage.
• Filter Port Maintenance: Regularly clean any debris at the filter port to prevent clogging and ensure efficient water flow.
• Damage Repair: If the bladder body is damaged, it can be repaired using the provided patch and repair glue. Ensure the area is clean and dry before applying the patch.
• منع التسرب: If any joint is leaking, tighten the joint or re-wrap the threads with PTFE tape to ensure a secure seal.

5. استكشاف الأخطاء وإصلاحها

• Water Leakage from Joints:
  • Ensure all connections, especially the drain valve, are tightened securely.
  • Verify that the rubber sealing ring is correctly placed and not damaged.
  • Re-apply PTFE tape to the threads of the valve if necessary to create a tighter seal.
• تدفق المياه البطيء:
  • Check the filter port for any debris or blockages and clean as needed.
  • Ensure the drain valve is fully open.
• Bladder Not Holding Shape When Filling:
  • The bladder is designed to take shape as it fills with water. It may not be fully stable until partially or completely filled.
  • Ensure it is placed on a level surface to distribute weight evenly.
• Damage to Bladder Material:
  • Use the provided repair patches and glue for minor punctures or tears. Follow the instructions for patch application carefully.
  • Avoid dragging the bladder over rough surfaces or exposing it to sharp objects.

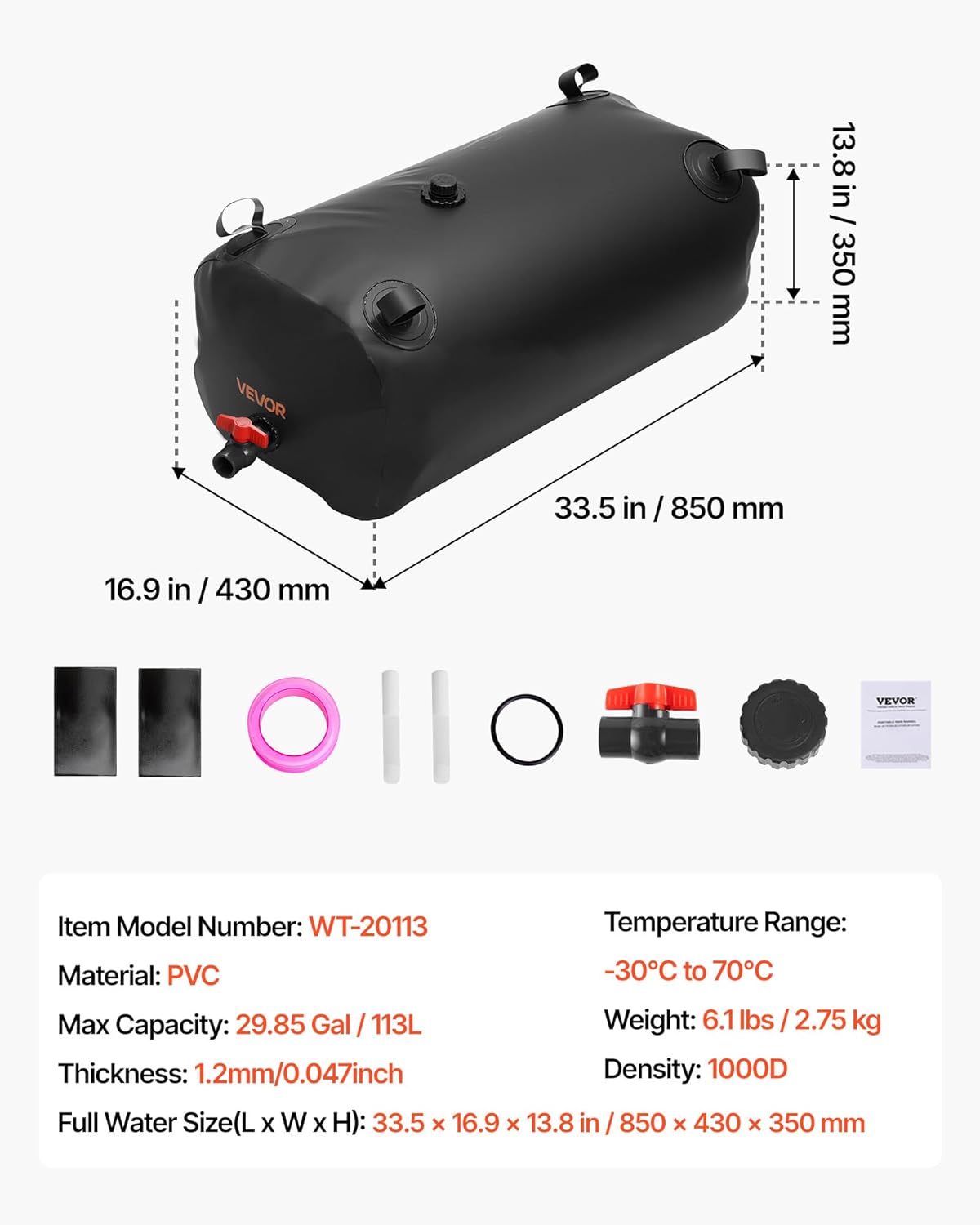

6. مواصفات المنتج

7. الضمان والدعم

للحصول على الدعم الفني، أو معلومات الضمان، أو لتسجيل منتجك، يرجى زيارة موقع دعم VEVOR الرسمي. website. VEVOR is committed to providing reliable products and customer service.

الدعم الرسمي من VEVOR: www.vevor.com/support
