XIXIMENG R35 Plus Retro Handheld Game Console User Manual

مقدمة

Welcome to the user manual for your new XIXIMENG R35 Plus Retro Handheld Game Console. This guide provides essential information for setting up, operating, maintaining, and troubleshooting your device to ensure an optimal gaming experience.

Image: The R35 Plus console showcasinج- تصميمه وميزاته الرئيسية.

المنتج انتهىview

The R35 Plus is a portable retro gaming console featuring a 3.5-inch IPS screen, a 64-bit quad-core processor, and an open-source system. It comes pre-loaded with over 15,000 games and supports expansion via a TF card. Below is a detailed diagram of the console's buttons and ports.

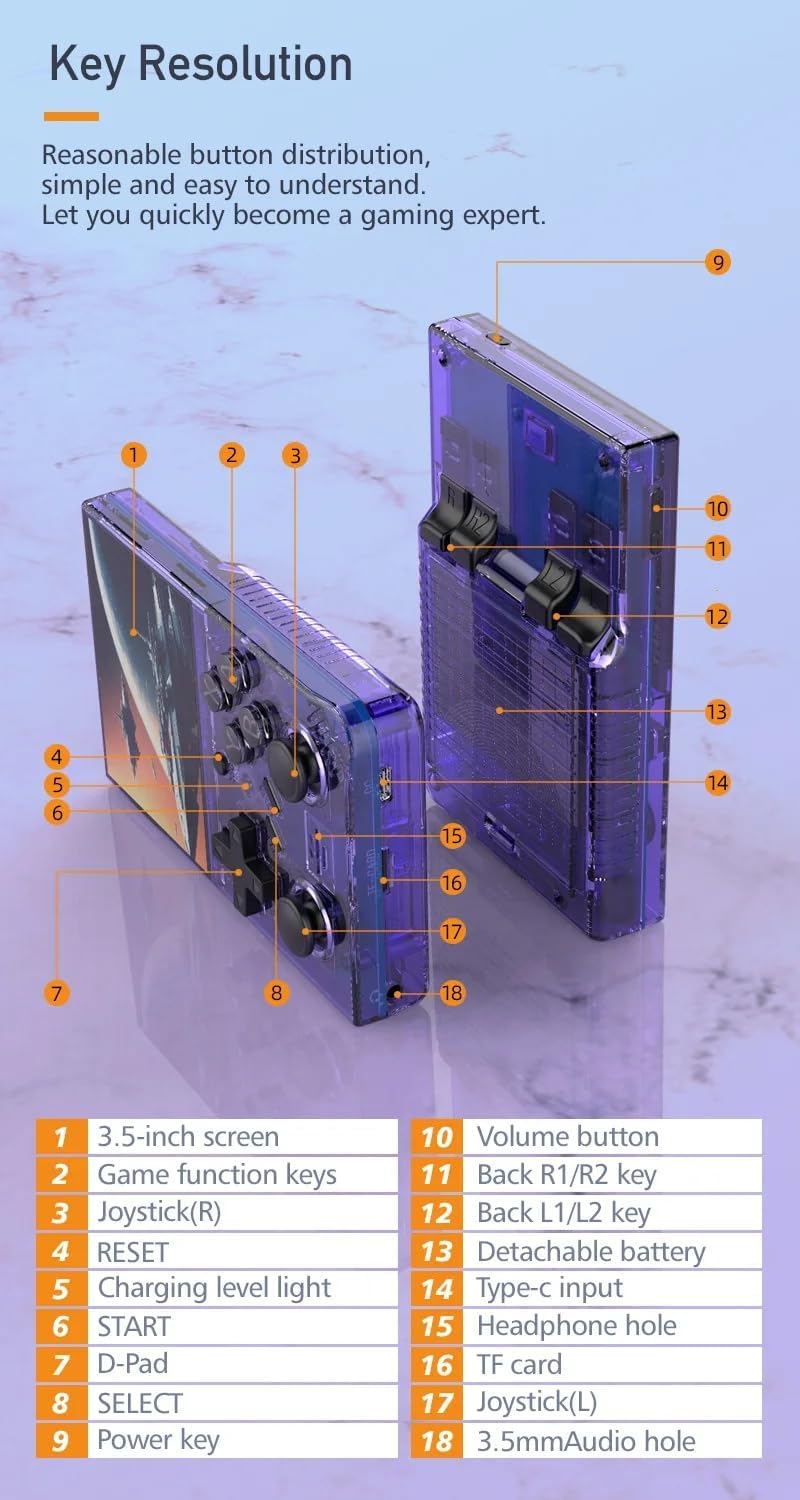

Image: Labeled diagram of the R35 Plus console's controls and ports.

1. شاشة 3.5 بوصة
2. Game function keys (A, B, X, Y)
3. Joystick (Right)
4. زر إعادة الضبط
5. ضوء مستوى الشحن
6. زر البدء
7. لوحة التحكم الرقمية
8. حدد زر
9. مفتاح التشغيل
10. زر التحكم في الصوت
11. Back R1/R2 keys
12. Back L1/L2 keys
13. مقصورة بطارية قابلة للفصل
14. منفذ إدخال من النوع C
15. فتحة سماعة الرأس
16. فتحة بطاقة TF
17. Joystick (Left)
18. 3.5mm Audio hole

يثبت

شحن الجهاز

Before first use, fully charge the console. Connect the console to a power source using the provided Type-C cable. The charging level light will indicate the charging status. A single full charge provides up to 6 hours of gameplay.

Image: The R35 Plus console's battery compartment and battery.

إدخال بطاقة TF

Locate the TF card slot (labeled 16 in the diagram) on the console. Gently insert the pre-loaded TF card or your own compatible TF card into the slot until it clicks into place. Ensure the card is inserted correctly to avoid damage.

تشغيل/إيقاف التشغيل

To power on, press and hold the Power key (labeled 9 in the diagram) until the screen illuminates. To power off, press and hold the Power key until the shutdown options appear on the screen, then select "Power Off".

تعليمات التشغيل

عناصر التحكم الأساسية

The R35 Plus features a D-Pad (labeled 7), dual joysticks (labeled 3 and 17), and action buttons (A, B, X, Y, labeled 2), along with L/L1/R/R1 keys (labeled 11 and 12) on the back for enhanced gameplay.

Image: The R35 Plus console's dual joysticks.

Image: The R35 Plus console's crystal buttons.

التنقل في النظام

Use the D-Pad or joysticks to navigate through the system menus. The A button typically confirms selections, while the B button cancels or goes back to the previous screen.

لعب الألعاب

Select a game from the main menu. The console supports over 21 emulators, allowing you to play a wide variety of retro titles. Game controls will vary depending on the emulator and game.

حفظ وتحميل تقدم اللعبة

Most emulators on the R35 Plus support save states. Refer to the specific emulator's in-game menu or documentation for instructions on how to save and load your game progress. This often involves a combination of system buttons (e.g., SELECT + START) to access the emulator menu.

الاتصال بالأجهزة الخارجية

The console includes a 3.5mm audio jack (labeled 15 and 18 in the diagram) for connecting headphones or external speakers, allowing for private listening or enhanced audio experience.

صيانة

تنظيف

Use a soft, dry, lint-free cloth to clean the console's exterior. Avoid using liquid cleaners, solvents, or abrasive materials, as these can damage the finish or internal components.

تخزين

Store the console in a cool, dry place away from direct sunlight, extreme temperatures, and high humidity. When not in use for extended periods, it is recommended to store it in its original packaging or a protective case.

العناية بالبطارية

To prolong battery life, avoid fully discharging the battery frequently. Charge the console regularly, even if not in use for extended periods. Do not expose the battery to extreme heat or puncture it.

استكشاف الأخطاء وإصلاحها

لا يعمل الجهاز

• Ensure the battery is charged. Connect the console to a power source using the Type-C cable and allow it to charge for at least 30 minutes before attempting to power on again.
• Try a different Type-C cable and power adapter to rule out faulty accessories.

Games Not Loading or Crashing

• Verify that the TF card is properly inserted into its slot. Remove and reinsert it firmly.
• تحقق مما إذا كانت اللعبة files are corrupted or incompatible with the installed emulators. Try loading other games to isolate the issue.
• Ensure the console's firmware is up to date, if applicable.

Screen Issues (e.g., unresponsive, flickering)

• حاول إعادة تشغيل الجهاز.
• Ensure the screen is clean and free from physical damage.
• إذا استمرت المشكلة ، فاتصل بدعم العملاء.

تحديد

معلومات الدعم

For further assistance, technical support, or warranty inquiries, please refer to the manufacturer's official website or contact their customer service directly. Please have your product model and ASIN ready when contacting support.

• الشركة المصنعة: XIXIMENG
• نموذج: ر35 بلس
• ASIN: B0D25ZFGS9
