Waterdrop WD-G2FCT Filtered Water Faucet Instruction Manual (Matte Black)

1. المقدمة

Thank you for choosing the Waterdrop WD-G2FCT Filtered Water Faucet. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your new faucet. Designed for use with water purification systems such as Reverse Osmosis (RO) and under-sink filtration, this lead-free 304 stainless steel faucet offers convenience and durability for your kitchen.

2. معلومات السلامة

• قم دائمًا بإيقاف تشغيل مصدر المياه الرئيسي قبل البدء في أي تركيب أو صيانة.
• تأكد من أن جميع التوصيلات آمنة لمنع التسربات.
• This faucet is designed for cold water use only.
• إذا لم تكن متأكدًا من أي خطوات التثبيت، فاستشر سباكًا مؤهلًا.
• أبقِ الأجزاء الصغيرة بعيدًا عن متناول الأطفال لمنع مخاطر الاختناق.

3. قائمة الأجزاء

Before installation, please ensure all parts are present and undamaged. The package includes the following components:

• صنبور (1)
• Mounting Washer (1)
• وينج الجوز (1)
• 3/8" Quick-connect fitting (1)
• 1/4" Quick-connect fitting (1)
• Black Seal Ring (1)
• 3/8" Lock Clip (1)
• 1/4" Lock Clip (1)
• Sticker to drill the hole (1)

4. الإعداد والتثبيت

Follow these steps for proper installation of your Waterdrop filtered water faucet. This faucet is compatible with kitchen sink holes ranging from 0.4 inches to 1.57 inches.

4.1 Drilling the Hole (If necessary)

If your sink or countertop does not have an existing hole, use the provided sticker as a guide to drill a 1-inch hole. Ensure the location is suitable and clear of any obstructions below the sink.

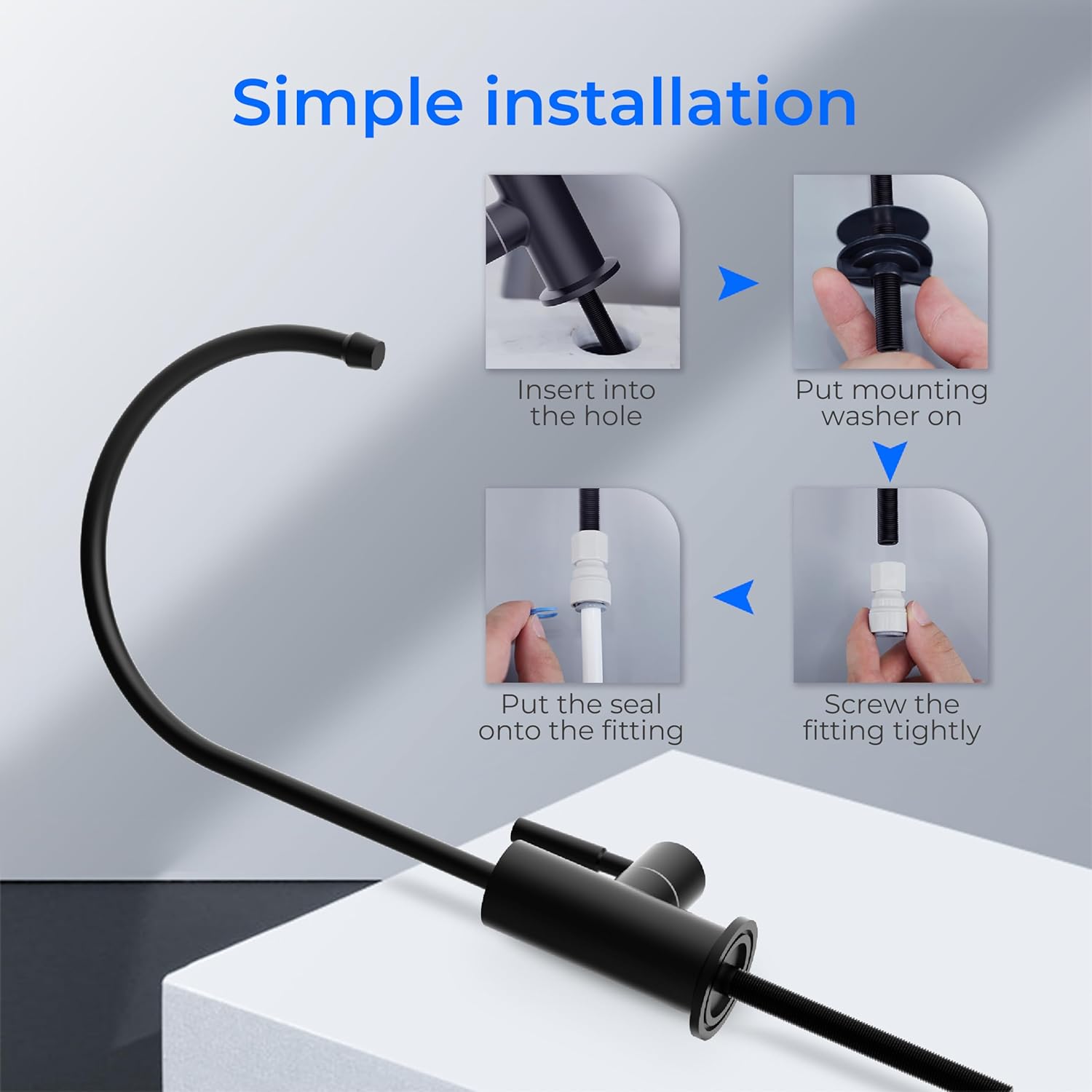

4.2 Faucet Installation Steps

1. Insert Faucet Stem: Insert the faucet stem into the drilled hole on your kitchen countertop.
2. Secure from Underneath: From under the sink, place the mounting washer onto the faucet stem. Then, slip on the wing nut and tighten it securely to hold the faucet in place.
3. Attach Quick-Connect Fitting: Choose the appropriate quick-connect fitting (1/4 inch or 3/8 inch) based on your PE tubing size. Screw the quick-connect fitting tightly onto the faucet stem. Ensure the black seal ring is properly placed on the bottom of the fitting before screwing it on.
4. Connect PE Tubing: Insert your PE tubing into the push-in quick-connect fitting. Push firmly until it is fully seated.
5. Secure with Lock Clip: Secure the tubing connection by inserting the blue lock clip into the fitting. This prevents accidental disconnection.
6. تنظيف النظام: Once all connections are made and the water purification system is connected, turn on the water supply. Flush the faucet for at least 1 minute to clear any air or debris. During this time, carefully check all connections for any leaks.

4.3 دليل فيديو التثبيت

For a visual demonstration of the installation process, please refer to the official Waterdrop installation video below:

5. تعليمات التشغيل

The Waterdrop filtered water faucet is designed for ease of use and convenience.

• مقبض ذراع واحد: The faucet features a quarter-turn single lever handle. Push the handle to the side to open the water flow and return it to the upright position to close.
• صنبور دوار 360 درجة: The spout can swivel 360 degrees, allowing for flexible positioning and easy filling of various containers.
• الماء البارد فقط: This faucet is designed exclusively for cold water applications. Do not connect it to a hot water supply.
• Optimized Water Flow: The narrow faucet outlet is designed to gather water flow, preventing splashes and ensuring a steady stream.

5.1 المنتج أكثرview فيديو

شاهد هذا الفيديو للحصول على لمحة سريعةview of the Waterdrop drinking water faucet's features and benefits:

6. الصيانة

To ensure the longevity and optimal performance of your Waterdrop faucet, follow these maintenance guidelines:

• تنظيف: نظّف الصنبور بانتظام بقطعة قماش ناعمة وصابون لطيف. تجنّب استخدام المنظفات الكاشطة أو المواد الكيميائية القاسية أو الليفة الخشنة، لأنها قد تُتلف الطبقة الخارجية.
• فحص التسريبات: افحص جميع الوصلات أسفل الحوض بشكل دوري للتأكد من عدم وجود أي تسريبات. قم بربط الوصلات بإحكام إذا لزم الأمر.
• استبدال الفلتر: Refer to your water purification system's manual for recommended filter replacement schedules. A clogged filter can reduce water flow.

7. استكشاف الأخطاء وإصلاحها

If you encounter issues with your Waterdrop faucet, consider the following common solutions:

• انخفاض تدفق المياه:
  • Check if the water supply valve under the sink is fully open.
  • Inspect your water purification system's filter. A clogged filter can significantly reduce flow. Replace if needed.
  • Ensure there are no kinks or obstructions in the PE tubing.
• Leaks from Faucet Base or Connections:
  • اغلاق مصدر المياه.
  • Verify that the mounting washer and wing nut under the sink are securely tightened.
  • Check the quick-connect fittings and ensure the PE tubing is fully inserted and secured with the blue lock clip.
  • Ensure the black seal ring is correctly positioned within the quick-connect fitting.
  • If leaks persist, contact customer support.
• مقبض صلب:
  • Over time, mineral buildup can affect handle movement. Ensure regular cleaning.
  • If the handle remains stiff, it may indicate an internal issue. Contact customer support.

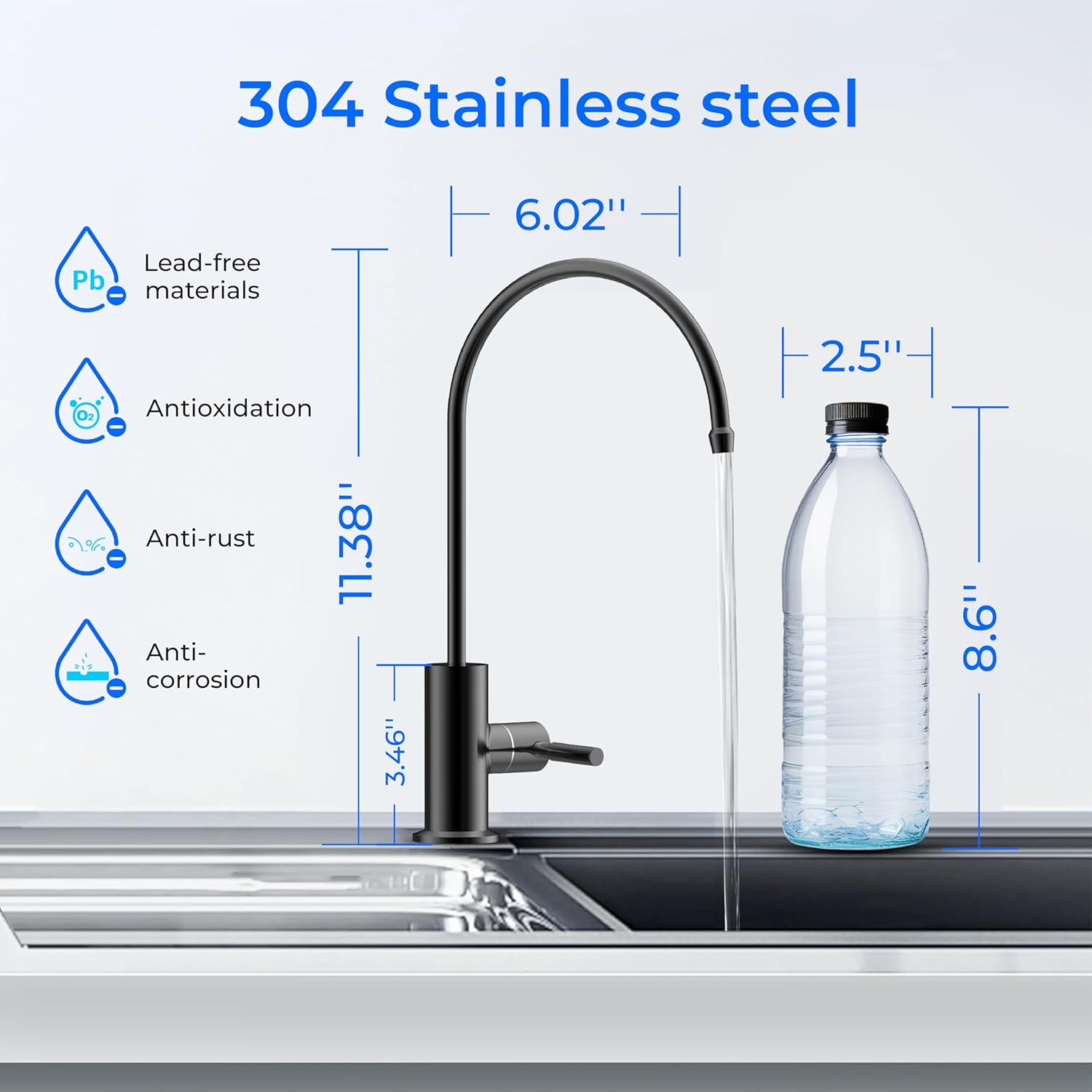

8. المواصفات

9. الضمان والدعم

• ضمان الشركة المصنعة: This Waterdrop faucet comes with a 2-year manufacturer's limited warranty.
• ضمان استعادة الأموال: يُقدم ضمان استرداد الأموال لمدة 30 يومًا.
• دعم العملاء: Waterdrop provides 24/7 customer support. For any questions regarding installation, filters, or other inquiries, please contact us.
• رقم التواصل: 888-352-3558
