Instant Pot Duo 7-in-1 Smart Pressure Cooker User Manual

1. المقدمة

Welcome to the world of convenient and efficient cooking with your new Instant Pot Duo 7-in-1 Smart Pressure Cooker. This versatile appliance combines the functions of a pressure cooker, slow cooker, rice cooker, sauté pan, yogurt maker, steamer, and food warmer, streamlining your kitchen and saving you time and energy. This manual provides essential information for safe operation, setup, and maintenance to ensure you get the most out of your Instant Pot Duo.

2. معلومات هامة حول السلامة

Please read all instructions and safeguards before operating your Instant Pot Duo. Failure to follow these instructions may result in property damage, personal injury, or death.

• قم دائمًا بتشغيل الجهاز على سطح مستوٍ وثابت وغير قابل للاشتعال.
• لا تستخدم الجهاز لأي غرض غير الغرض المخصص له.
• Exercise extreme caution when the pressure cooker is in use. The appliance operates under pressure. Improper use may result in scalding injury.
• تأكد من إغلاق الغطاء وقفلها بشكل صحيح قبل التشغيل.
• Do not immerse the appliance base in water or other liquid.

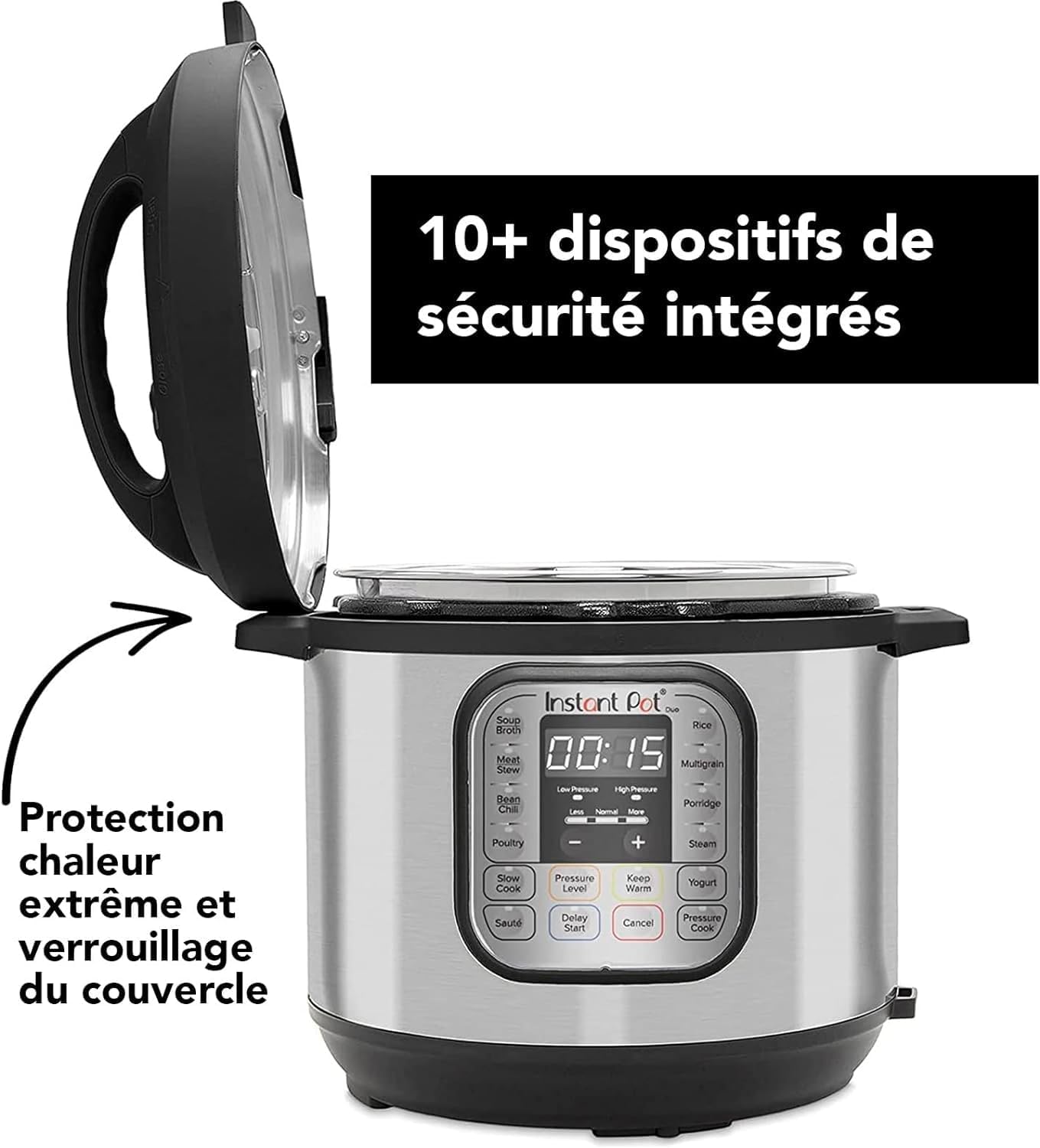

• This appliance is equipped with 10+ integrated safety mechanisms, including extreme heat protection and lid locking. Do not attempt to bypass these features.

3. انتهى المنتجview

3.1 مكونات

Your Instant Pot Duo consists of the following main components:

• Main Cooker Base
• Inner Pot (Stainless Steel)
• Lid with Sealing Ring and Steam Release Handle
• Condensation Collector (at the back)
• سلك الطاقة

3.2 الميزات الرئيسية

• وظيفة 7 في 1: Pressure Cooker, Slow Cooker, Rice Cooker, Sauté Pan, Yogurt Maker, Steamer, and Food Warmer.
• 11 برنامجًا ذكيًا: One-touch programs for Soup/Broth, Meat/Stew, Bean/Chili, Slow Cook, Sauté, Rice, Porridge, Steam, Yogurt, Keep Warm, and Pressure Cook.
• المعالج الدقيق المتقدم: Monitors pressure, temperature, time, and adjusts heating intensity and duration automatically for consistent results.
• كفاءة الطاقة: Cooks up to 70% faster than traditional methods, saving energy.
• تصميم مضغوط: The 3-liter capacity is ideal for 1-2 people or preparing side dishes.
• Easy-to-Use LED Display: Shows cooking progress intuitively.

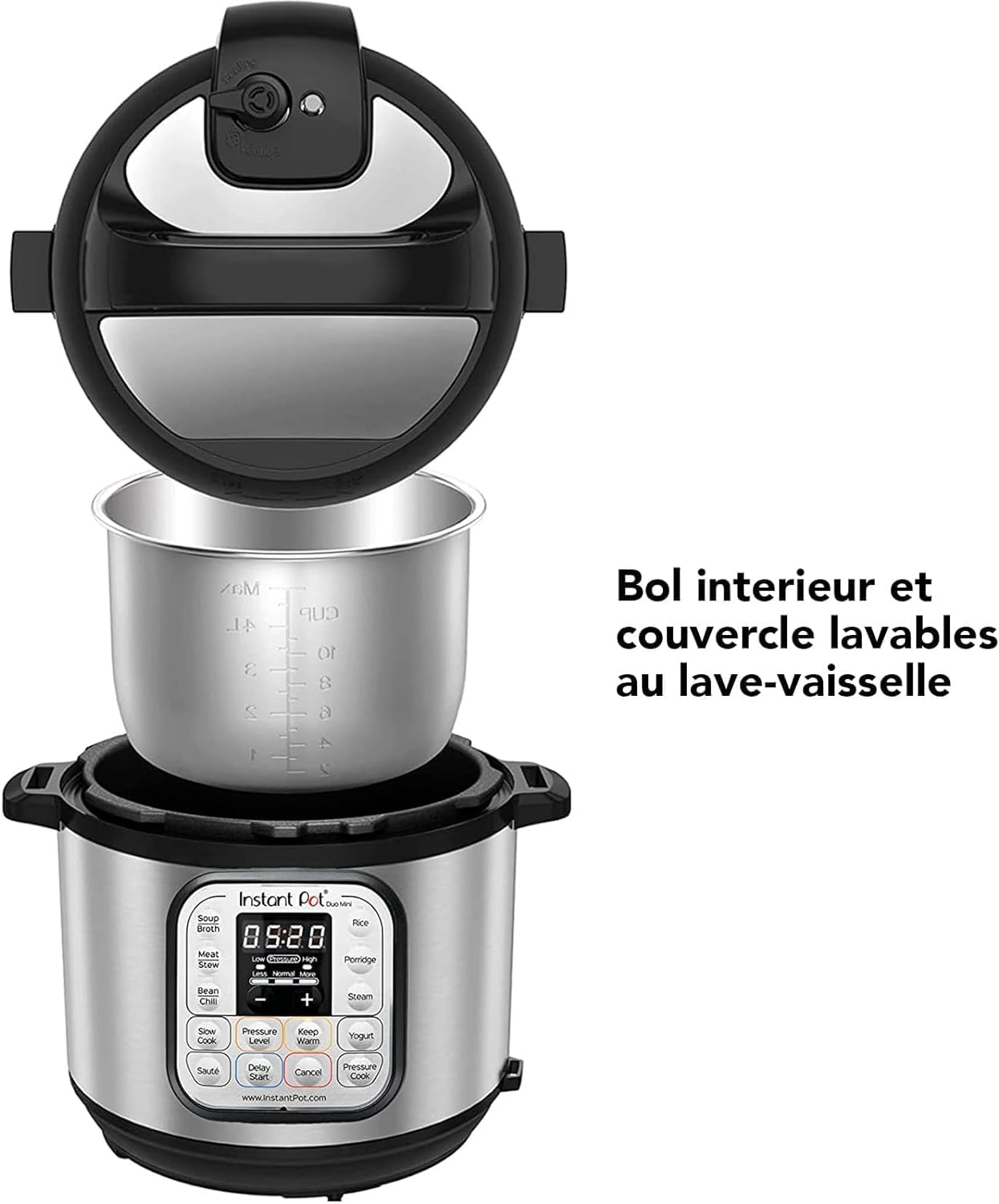

• المكونات الآمنة للغسل في غسالة الأطباق: Inner pot and lid are easy to clean.

4. الإعداد والاستخدام الأول

1. أفرغ: قم بإزالة جميع مواد التغليف والملحقات من الصندوق.
2. المكونات النظيفة: Wash the inner pot, lid, and sealing ring with warm soapy water. Rinse thoroughly and dry. Wipe the exterior of the cooker base with a damp قطعة قماش.
3. تركيب جهاز تجميع التكثيف: Slide the condensation collector into the slot at the back of the cooker base.
4. Perform Water Test (Initial Run):
   • أضف 3 كوب من الماء إلى القدر الداخلي.
   • ضع الوعاء الداخلي في قاعدة جهاز الطهي.
   • Secure the lid, ensuring the steam release handle is in the "Sealing" position.
   • Select the "Steam" program and set the time to 2 minutes.
   • Once cooking is complete, allow pressure to release naturally or use the Quick Release method (see Operating Instructions).
   This test familiarizes you with the appliance and ensures it is functioning correctly.

5. تعليمات التشغيل

5.1 انتهت لوحة التحكمview

The Instant Pot Duo features an intuitive control panel with dedicated Smart Program buttons and a central display.

5.2 Smart Programs (7-in-1 Functions)

The Instant Pot Duo combines multiple kitchen appliances into one. Here's how its 7-in-1 functions work:

• Pressure Cooker: Use for fast cooking of meals like stews, chili, and tough cuts of meat. Select programs like "Meat/Stew" or "Bean/Chili".
• Slow Cooker: Ideal for recipes requiring long, gentle cooking. Use the "Slow Cook" program.
• طباخ الأرز: Perfectly cooks various types of rice. Use the "Rice" program.
• Sauté Pan: Allows you to brown meats or sauté vegetables directly in the inner pot before pressure cooking. Use the "Sauté" program.
• صانع الزبادي: For making homemade yogurt. Use the "Yogurt" program.
• باخرة: Great for steaming vegetables, fish, or dumplings. Use the "Steam" program.
• Food Warmer: Keeps food warm after cooking. The "Keep Warm" function activates automatically after most cooking programs.

5.3 خطوات الطبخ الأساسية

1. إضافة المكونات: Place your food and liquid into the stainless steel inner pot. Do not fill above the MAX PC line for pressure cooking.
2. إغلاق الغطاء: Place the lid on the cooker base and turn it clockwise until it locks. Ensure the steam release handle is in the "Sealing" position.
3. اختر البرنامج: Press the desired Smart Program button (e.g., "Rice", "Meat/Stew"). The display will show the default cooking time.
4. ضبط الوقت (اختياري): Use the "+" or "-" buttons to adjust the cooking time if needed.
5. ابدأ الطهي: The cooker will automatically begin preheating after a few seconds. Once pressure is reached, the cooking countdown will begin.
6. تخفيف الضغط:
   • Natural Release (NPR): Allows pressure to dissipate naturally over time. This is recommended for foamy foods or large cuts of meat.
   • Quick Release (QR): Carefully turn the steam release handle to the "Venting" position. Steam will rapidly escape. Keep hands and face clear of the steam. This method is suitable for quick-cooking foods.
7. غطاء مفتوح: Once the float valve drops down, indicating pressure is released, turn the lid counter-clockwise and lift it away from you to avoid residual steam.

6. الصيانة والتنظيف

Regular cleaning ensures the longevity and optimal performance of your Instant Pot Duo.

• الوعاء الداخلي: الوعاء الداخلي المصنوع من الفولاذ المقاوم للصدأ آمن للاستخدام في غسالة الأطباق. لإزالة بقايا الطعام العنيدة، انقع الوعاء في ماء دافئ وصابون قبل التنظيف.
• الغطاء وحلقة الإحكام: The lid and sealing ring are dishwasher safe. Remove the sealing ring from the lid for thorough cleaning. Ensure the sealing ring is properly re-installed before next use.
• مجمع التكثيف: Remove and empty the condensation collector after each use. Wash with warm soapy water and dry.
• قاعدة الطباخ: امسح الجزء الخارجي من قاعدة الموقد بـamp cloth. Never immerse the cooker base in water or other liquids.
• صمام تحرير البخار: Ensure the steam release valve is clear of food debris before each use.

7. استكشاف الأخطاء وإصلاحها

8. المواصفات

9. الضمان والدعم

Your Instant Pot Duo is covered by a manufacturer's warranty. Spare parts availability is indicated for 2 years from the date of purchase.

For warranty claims, technical support, or to inquire about spare parts, please visit the official Instant Pot webالموقع أو تواصل مع خدمة العملاء مباشرةً. احتفظ بإثبات الشراء للتحقق من صحة الضمان.

رسمي Webموقع: Instantbrands.com
