Whirlpool W10242957 Radiant Surface Element Instruction Manual

مقدمة

This manual provides essential information for the installation, maintenance, and troubleshooting of the Whirlpool Part Number W10242957 Radiant Surface Element. This genuine OEM part is designed for use in compatible Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore electric ranges, stoves, and ovens. It functions as a 2000-watt heating element for the left front or right rear burner positions.

The W10242957 element replaces several older part numbers, including 4343098, 8053622, 8272568, 8523695, and W10242957. Always verify compatibility with your appliance's model number before proceeding with installation.

معلومات السلامة

تحذير: Before attempting any installation, maintenance, or repair on an appliance, always disconnect the appliance from its power source. Failure to do so can result in electrical shock, personal injury, or death.

• ارتدِ معدات الحماية الشخصية المناسبة، مثل القفازات وحماية العين.
• تأكد من أن منطقة العمل مضاءة جيدًا وخالية من العوائق.
• If you are unsure about any step or procedure, consult a qualified appliance repair technician.
• احتفظ بالأطفال والحيوانات الأليفة بعيدًا عن منطقة العمل.
• Handle heating elements carefully as they can be fragile.

المنتج انتهىview

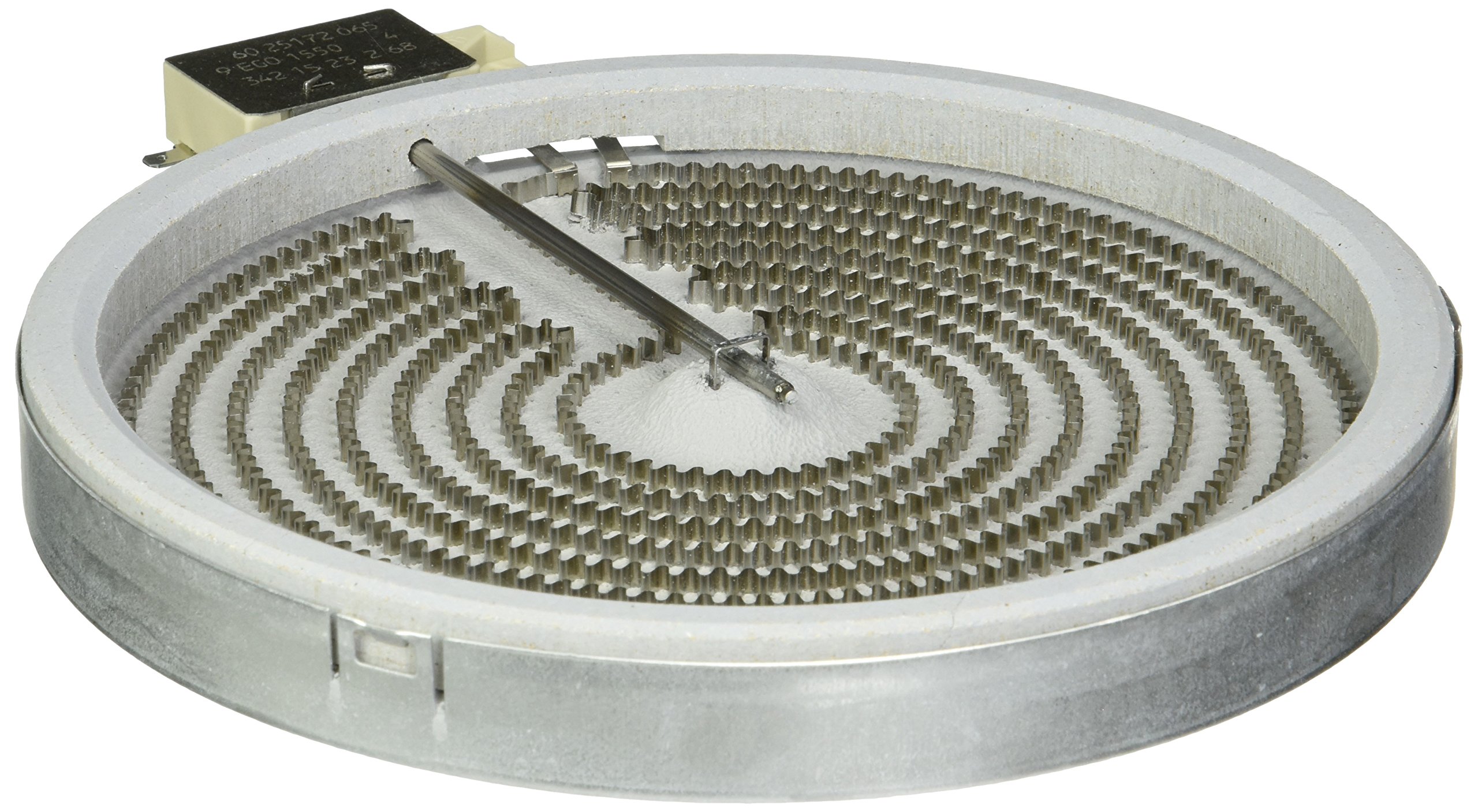

An image showing the Whirlpool W10242957 radiant surface element, a circular heating component typically found on electric ranges and cooktops.

The Whirlpool W10242957 is a radiant surface element designed to provide heat for cooking on electric ranges and cooktops. It is a 2000-watt element, typically used for larger or more frequently used burner positions, such as the left front or right rear. This element is a genuine OEM (Original Equipment Manufacturer) part, ensuring proper fit and function with compatible appliances.

التثبيت (الإعداد)

The following steps outline a general procedure for replacing a radiant surface element. Specific steps may vary depending on your appliance model. Refer to your appliance's service manual for detailed instructions.

1. فصل الطاقة: Unplug the range from the electrical outlet or turn off the circuit breaker supplying power to the appliance.
2. الوصول إلى العنصر: Depending on your range model, you may need to lift the cooktop, remove burner grates, or unscrew retaining clips to access the faulty element.
3. إزالة العنصر القديم: Carefully disconnect the electrical wires from the terminals of the old element. Note the position of each wire for correct reinstallation. Some elements may have a retaining bracket or screw that needs to be removed.
4. تثبيت العنصر الجديد: Connect the electrical wires to the corresponding terminals on the new W10242957 element. Ensure connections are secure. Position the new element correctly within its housing or mounting brackets.
5. عنصر آمن: Reinstall any retaining clips, screws, or brackets that hold the element in place.
6. إعادة تجميع الجهاز: Carefully lower the cooktop or reattach any components removed to gain access.
7. اعادة الطاقة: Plug the range back into the electrical outlet or turn on the circuit breaker.
8. وظيفة الاختبار: Turn on the burner to verify that the new element heats up properly.

If you encounter any difficulties or are uncomfortable performing this repair, it is recommended to contact a certified appliance technician.

عملية

The W10242957 radiant surface element functions as a heat source when electrical current passes through its resistive coil. When the corresponding burner knob on your range is turned on, electricity flows to the element, causing it to heat up and radiate heat to cookware placed on top. The temperature is regulated by the range's infinite switch, which cycles power to the element on and off to maintain the selected heat level.

صيانة

Proper maintenance helps ensure the longevity and efficient operation of your radiant surface element:

• تنظيف: Keep the surface element and surrounding area clean. Spills and food debris can burn onto the element, affecting its performance and potentially causing odors. Always ensure the element is cool and the appliance is unplugged before cleaning.
• تجنب المنظفات القاسية: Do not use abrasive cleaners, steel wool, or sharp objects on the element, as these can damage its surface.
• فحص بانتظام: Periodically inspect the element for any visible damage, such as cracks, breaks, or loose connections. If damage is observed, replace the element.
• تجهيزات المطابخ المناسبة: Use flat-bottomed cookware that matches the size of the element for optimal heat transfer and efficiency.

استكشاف الأخطاء وإصلاحها

If your radiant surface element is not functioning correctly, consider the following common issues:

• Element Not Heating:
  • تأكد من توصيل الجهاز بشكل صحيح وأن قاطع الدائرة لم يفصل.
  • Ensure the burner knob is turned to the correct setting.
  • Inspect the element for visible breaks or damage.
  • A faulty infinite switch (burner control switch) can prevent the element from receiving power.
  • Loose or corroded wire connections to the element terminals.
• Element Heating Unevenly or Too Slowly:
  • This can indicate a partially failed element or a problem with the infinite switch.
  • Ensure cookware is flat and making full contact with the element.
• Element Sparking or Smoking:
  • Immediately disconnect power to the appliance.
  • This often indicates a short circuit or a severely damaged element that requires immediate replacement.

For electrical component issues, it is recommended to consult a qualified technician.

تحديد

الضمان والدعم

Genuine Whirlpool replacement parts typically come with a limited warranty. For specific warranty details regarding the W10242957 radiant surface element, please refer to the documentation included with your purchase or visit the official Whirlpool website. For technical support, service, or to locate authorized service providers, please contact Whirlpool customer service directly or visit their support portal online.

خدمة عملاء ويرلبول: www.whirlpool.com/owners.html
