DIGITAL
MENU BOARD SPX24V2
AOC Commercial Display
It’s common to find promotional materials in dining and beverage retailers, but most of them are static paper menus, lightboxes, and table cards, which can’t keep up with the increasing need for displaying information in the digital era.In light ofthis,AOC unveils the groundbreaking SPX24V2, a state-of-the-art digital menu boardthat redefines the displaying standards at retail counters.
Boasting high brightness, customizable settings, flexible folding, and an Android system, it empowers tea and beverage shops with intelligent upgrades.
Features

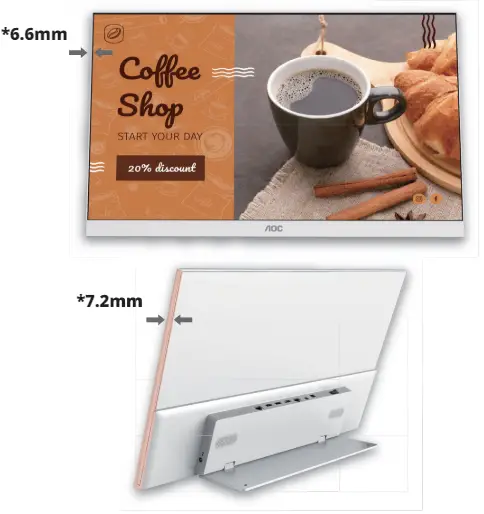

Minimalist Chic: Sleek and Slim
The effortlessly chic appearance of SPX24V2 is further enhanced by its narrow bezel design, lending a sense of delicacy and sophistication to its slim body. Its white metal exterior enhances the overall refinement. AOC has a well-established certification system in energy efficiency and safety compliance, allowing it to better meet the high-quality equipment demands in the new retail industry. When put into use, digital menu boards can elevate the atmospheric appeal of tea and beverage shops, providing an upscale and refined experience that adds value to the store’s service and environment.

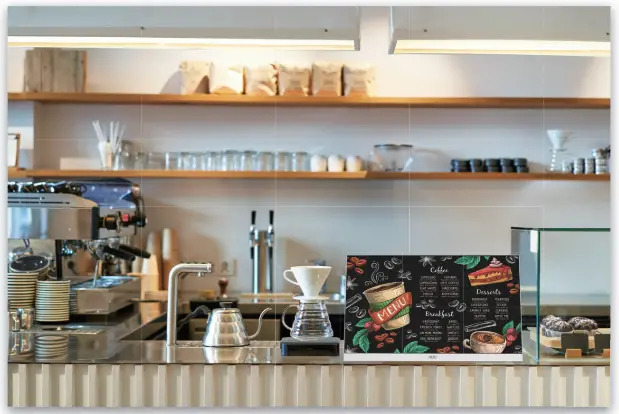

High Brightness and Exquisite Color Display
Unlike conventional display devices, the SPX24V2 digital menu board, considering the varying brightness levels within store environments, has a screen brightness of up to 700 nits to ensure clear visibility of various promotional images and video content even in brightly lit tea and beverage shops. With FHD high-definition resolution and a display contrast ratio of 3000:1, the SPX24V2 digital menu board excels in color performance, enabling real-time displaying of tea and beverage-related information.
Its diverse, innovative, and captivating presentation captures the attention of consumers, thereby elevating conversion rates and boosting revenue.
Customized Screensaver, Run Smart
The SPX24V2 digital menu board allows for personalized screen savers and the display of custom advertisements when there’s no signal. Additionally, users can customize settings like startup logos, animations, and wallpapers. Apart from standard, cool, and warm color temperature options, users can also tailor settings to meet their needs. Moreover, by allowing users to set their preferred power on/off timings, supporting HDMI power-on signal wake-up, and automatically entering sleep mode when no signal is detected, it exemplifies smart operation.

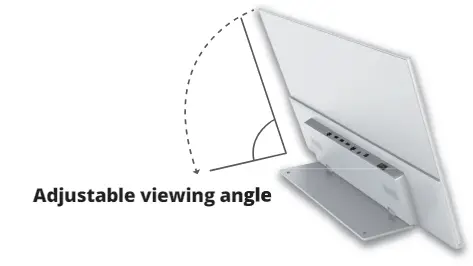

Flexible Folding and Robust
Protection
The next-gen digital menu board, SPX24V2, exhibits enhanced flexibility, with its folding design accommodating various usage angles, catering to diverse scenarios and individual preferences. Moreover, the protective cover included offers robust protection against potential damage and ensuring heightened safety and durability.

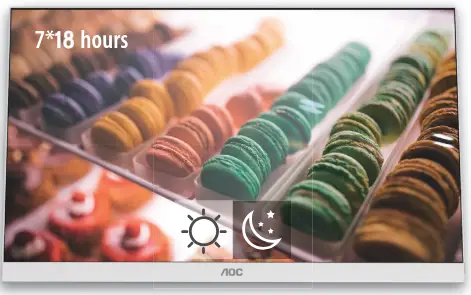

Designed for prolonged usage of 7×18 hours, it has an industrial lifespan of up to 30,000 hours. Its pixel shift and burn-in prevention features allow for customizable settings and automatic screen conditioning, effectively protecting the LCD screen from burn-in damage caused by extended operation. It also has a screen lock function: once activated, remote control buttons, external keypads, USB keyboards, and mice are all disabled, preventing unauthorized operation in public settings.
AOC CMS Content Management
Besides excelling in hardware performance, the SPX24V2 digital menu board also offers a robust and highly compatible software system.
With the incorporation of AOC’s proprietary CMS system, it facilitates timely updates and substitutions of various information. Furthermore, it enables time-specificpush of different beverage products or promotional messages. This assists businesses in effectively cutting costs of printing promotional materials and achieving digital management of stores.
Specifications
| SPX24V2/00 | ||
| Panel | Diagonal Screen Size (inch) Active Area H x V (mm) Panel Technology Resolution Brightness cd/m2 (typ.) Contrast Ratio (typ.) Viewing Angle H/V (min.) Response Time Operation Hours MTBF |
23.8 |
| 527.04(H)x296.46(V)mm | ||
| VA | ||
| 1920 x 1080 | ||
| 700 cd/m² | ||
| 3000 : 1 | ||
| 178 degree / 178 degree | ||
| 9.5 ms | ||
| 18hrs x 7days | ||
| 30,000 hrs | ||
| System | OS DDR Memory(eMMC) CPU/GPU |
Android 9.0 |
| 2GB | ||
| 16GB | ||
| NA | ||
|
Connectivity I/O |
Input Output OPS Support |
HDMI*1,USB 2.0*2,10/100Mbps RJ45*1 |
| Audio Line out*1 | ||
| NA | ||
| Features | Wi-Fi OPS/SDM Slot Power Management Panel Orientation AOC Cloud CMS Built-in Speaker |
YES |
| NA | ||
| YES | ||
| Landscape | ||
| YES | ||
| 3W x 2 | ||
| Environmental Conditions | Operating Temperature Operating Humidity Storage Temperature Storage Humidity |
5˚C ∼ 40˚C |
| 20% ∼ 80% RH Non-Condensing | ||
| -20˚C ∼ 60˚C | ||
| 10% ∼ 90% RH Non-Condensing | ||
| Mechanical | VESA Mount Bezel Width (mm) |
NA |
| T/L/R:2.2mm ,B:15.2mm | ||
| Power | Power Supply Power Consumption Typ. Power Consumption Max. Standby Power Consumption |
Adapter DC 12V/4A |
| 30W | ||
| 54W | ||
| ≤ 0.5 W | ||
| Bundled Accessories | AC Power Cord Remote Control Batteries For Remote Control Mounting kit Quick Start Guide HDMI Cable Stand |
Yes |
| Yes | ||
| Yes | ||
| No | ||
| Yes | ||
| Yes | ||
| Yes | ||
www.aoc.com © 2024 AOC Commercial Display.
All rights reserved.
AOC is a registered trademark.
All other trademarks are the property of their respective owners.
Design and Specifications are subject to change without notice.
