anslut 019929 Strip Light LED

OPERATING INSTRUCTIONS

Important! Read the user instructions carefully before use. Save them for future reference. (Translation of the original instructions)

SAFETY INSTRUCTIONS

• Read these instructions carefully before installation and use, and save them for future reference.
• The product is not dimmable.
• Disconnect the power supply before installation.
• The product is only intended for indoor use in dry areas. Damp areas and outdoor environments require products with a higher protection rating.
• Never modify the product or any of its parts in any way – risk of personal injury or material damage.
• The product is intended for lights with 2- pin IEC approved G13 standard sockets.
• The product should be installed by an authorised electrician in accordance with the relevant electrical safety regulations.

ELECTRICAL SAFETY!
New installations and extensions to existing systems should always be carried out by an authorised electrician. If you have the necessary experience and knowledge (otherwise contact an electrician), you can replace power switches and wall sockets, fit plugs, extension cords and light sockets. Incorrect installation can result in fatal injury and the risk of fire

SYMBOLS

• Read the instructions.
• The product is not dimmable.
• Approved in accordance with the relevant directives.
• Recycle discarded product in accordance with local regulations.

TECHNICAL DATA

• Rated voltage 230 V ~ 50 Hz
• Output 22 W
• Socket G13
• Tube type T8
• Energy class E
• Colour temperature 3000 K
• Luminous flux 2450 lm
• Power factor 0.9
• Colour rendering index 80
• Life span 30000 h
• On/Off 12500 times

INSTALLATION

NEW INSTALLATION

FIG. 1

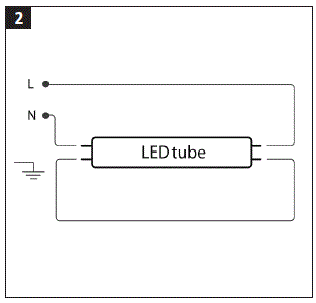

FIG. 2

AFTER INSTALLATION IN LIGHTS WITH CHOKE COIL

Conventional T8 strip light

S = Starter.

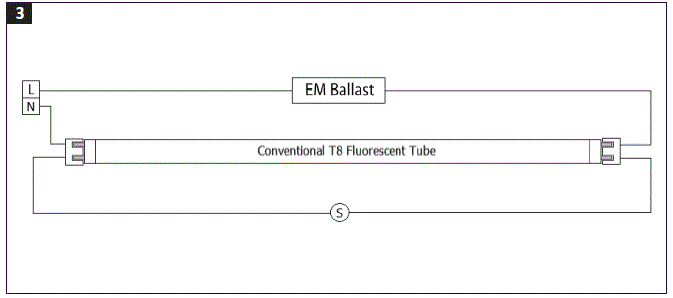

FIG. 3

LED strip light

• Replace the starter with the LED fuse.
• F = LED fuse.

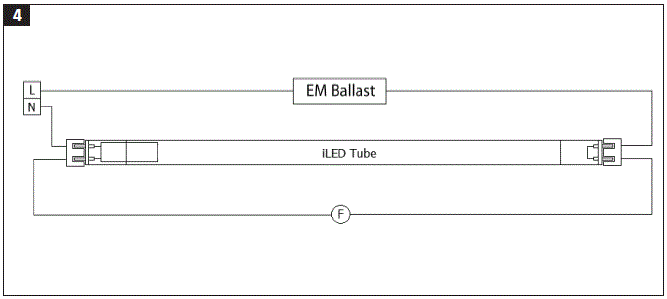

FIG. 4

AFTER INSTALLATION IN LIGHTS WITH ELECTRONIC ACTUATOR

Conventional T8 strip light
A = Electronic actuator.

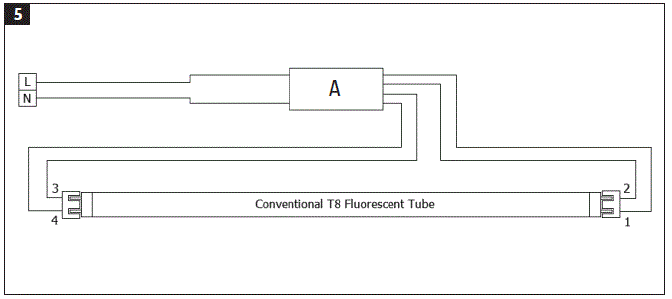

FIG. 5

LED strip light

1. Remove the electronic actuator (B) as shown in the figure below.
2. Connect a direct wire between pin 2 and 3 on the light.
3. Connect pin 1 to the mains phase (L) and pin 4 to neutral (N).

B = Electronic actuator.

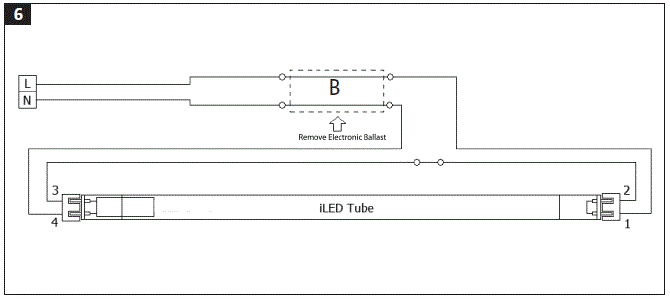

FIG. 6

PRODUCT INFORMATION SHEET

Supplier’s name or trademark:		Anslut
Supplier’s address (a):		Jula AB, Julagatan, 2, 53237 Skara, SE
Model identifier:		019929
Type of light source:
Lighting technology used:		LED	Non-directional or directional:	NDLS
Light source connected to mains supply or light source not connected to mains supply:		MLS	Connected light source (CLS):	no
Colour-tunable light source:		no	Envelope:	–
High luminance light source:		no
Anti-glare shield:		no	Dimmable:	no
Product parameters
Parameter		Value	Parameter	Value
General product parameters:
Energy consumption in on-mode (kWh/1000 h)		22	Energy efficiency class	E
Useful luminous flux (Φuse), indicating if it refers to the flux in a sphere (360˚), in a wide cone (120˚) or in a narrow cone (90˚).		2 450 inSphere (360°)	Correlated colour temperature, rounded to the nearest 100 K, or the range of correlated colour temperatures, rounded to the nearest 100 K, that can be set.	3 000
On-mode power (Pon), expressed in W.		22,0	Standby power (Psb), expressed in W and rounded to the second decimal.	0,00
Networked standby power (Pnet) for CLS, expressed in W and rounded to the second decimal.		–	Colour rendering index, rounded to the nearest integer, or the range of CRI-values that can be set.	80

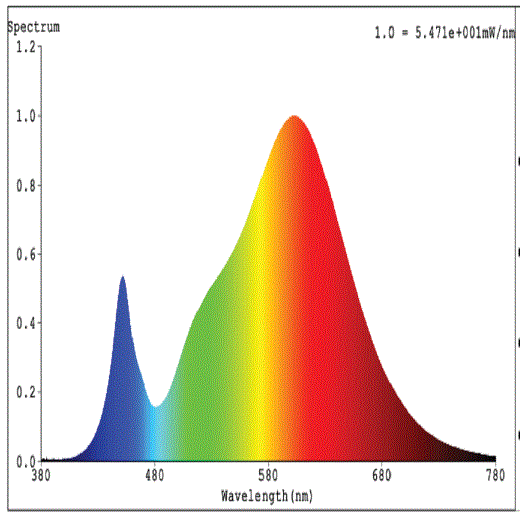

Outer dimensions without separate control gear, lighting control parts and non-lighting control parts, if any (millimetre).	Height	28	Spectral power distribution in the range 250 nm to 800 nm, at full-load.	See image in last page
	Width	28
	Depth	1 500
Claim of equivalent power (c)		–	If yes, equivalent power (W)	–
			Chromaticity coordinates (x and y)	0,4400,400
Parameters for directional light sources:
Peak luminous intensity (cd)			Beam angle in degrees, or the range of beam angles that can be set
Parameters for LED and OLED light sources:
R9 colour rendering index value		2	Survival factor	0,90
The lumen maintenance factor		0,96
Parameters for LED and OLED mains light sources:
Displacement factor (cos φ1)		0,89	Colour consistency in McAdam ellipses	3
Claims that an LED light source replaces a fluorescent light source without integrated ballast of a particular wattage.		-(b)	If yes then replacement claim (W)	–
Flicker metric (Pst LM)		0,0	Stroboscopic effect metric (SVM)	0,0

• ”-”: not applicable;
• ”-”: not applicable;

Flowing Chart

• www.jula.com
• JULA AB, BOX 363, SE-532 24 SKARA
• 2025-06-17
• © Jula AB
