1. ምርት አብቅቷልview
The ACOVA Regate Mixed Towel Dryer is a high-performance steel radiator designed for heating bathrooms and drying towels. It features flat horizontal elements (70 x 11 mm section) and round vertical collectors (38 mm diameter). The unit is treated with a double protection, anti-corrosion surface treatment using high-resistance cataphoresis baths, finished with an epoxy/polyester powder coating for durability.
This model includes an integrated TimerProg control unit, positioned at the bottom right of the appliance, with an electronic ambient thermostat (Category C). It supports programming via a 6-order pilot wire system.

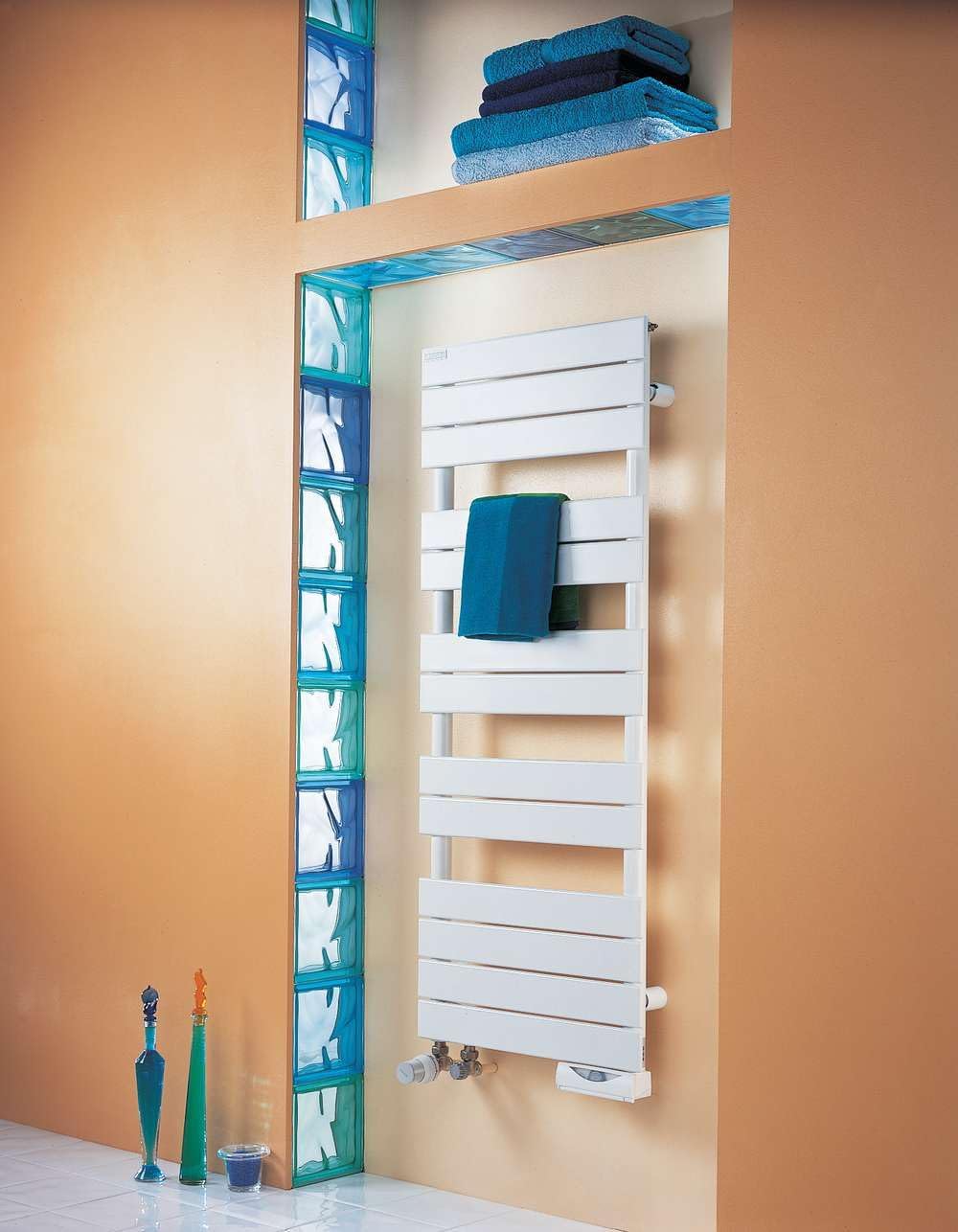

This image shows the ACOVA Regate Mixed Towel Dryer, model 321574, mounted vertically in a bathroom. The white radiator features flat horizontal elements and round vertical collectors. A blue towel is draped over one of the heating bars. The control unit is visible at the bottom right. The installation is within a wall niche, flanked by decorative glass blocks.
2. ማዋቀር እና መጫን
Installation of the ACOVA Regate Mixed Towel Dryer should be performed by a qualified professional in accordance with local regulations and safety standards.
2.1 መጫን
- The appliance is fixed using 4 adjustable wall brackets, which are painted in the same color as the unit and supplied in the packaging.
- Ensure the mounting surface is suitable to support the product's weight (approximately 18 kg).
- The distance from the wall to the connection sleeve axis should be between 70 mm and 85 mm.
2.2 ግንኙነቶች
- The towel dryer requires two 1/2" orifices for water supply connections.
- An 1/8" orientable air bleed valve is supplied and must be installed to allow for air purging from the system.
- Connect the electrical supply to the integrated TimerProg control unit. Ensure proper grounding.
3. የአሠራር መመሪያዎች
The ACOVA Regate Mixed Towel Dryer is controlled via its integrated TimerProg unit, located at the bottom right of the appliance.
3.1 መሠረታዊ አሠራር
- ማብራት/ማጥፋት፡ Use the main power button on the TimerProg unit to switch the appliance on or off.
- የሙቀት ማስተካከያ; The electronic ambient thermostat allows you to set the desired room temperature. Refer to the TimerProg unit's specific instructions for detailed temperature setting procedures.
3.2 ፕሮግራሚንግ
The TimerProg unit supports programming via a 6-order pilot wire. This allows for advanced scheduling of heating cycles to optimize comfort and energy consumption.
- Consult the detailed instructions provided with the TimerProg control unit for information on setting up daily or weekly programs.
- Typical programming modes include Comfort, Eco, Frost Protection, and Off.
4. ጥገና
Regular maintenance ensures optimal performance and longevity of your towel dryer.
4.1 ጽዳት
- Ensure the appliance is switched off and cool before cleaning.
- ንጣፎችን ለስላሳ, መamp ጨርቅ. ማጽጃ ማጽጃዎችን፣ መፈልፈያዎችን ወይም ጨካኝ ኬሚካሎችን አይጠቀሙ ምክንያቱም እነዚህ መጨረሻውን ሊጎዱ ይችላሉ።
- ለጠንካራ ምልክቶች፣ መለስተኛ የሳሙና መፍትሄ መጠቀም ይቻላል፣ ከዚያም በንጹህ ጨርቅ መጥረግ፣ damp ጨርቅ እና በደንብ ማድረቅ.
4.2 Air Purging
Air can accumulate in the heating system, reducing efficiency. It is recommended to purge air periodically, especially if you notice cold spots on the radiator.
- Locate the 1/8" orientable air bleed valve, typically at the top of the radiator.
- Using a radiator key or a suitable tool, slowly open the valve until air escapes.
- Once water starts to flow steadily from the valve, close it.
- Ensure the system pressure is maintained after purging.
5. መላ መፈለግ
If you encounter issues with your ACOVA Regate Mixed Towel Dryer, consult the following common problems and solutions.
| ችግር | ሊሆን የሚችል ምክንያት | መፍትሄ |
|---|---|---|
| Towel dryer not heating | የኃይል አቅርቦት የለም። ቴርሞስታት በጣም ዝቅተኛ ነው። በስርዓቱ ውስጥ አየር | የኤሌክትሪክ ማብሪያና ማጥፊያውን እና የኃይል ግንኙነቱን ይፈትሹ ቴርሞስታት ቅንብርን ጨምር Purge air from the radiator (see Section 4.2) |
| Uneven heating (cold spots) | Air trapped in the radiator | Purge air from the radiator (see Section 4.2) |
| የመቆጣጠሪያ ክፍል ምላሽ እየሰጠ አይደለም | የኃይል መቋረጥ የክፍል ብልሽት | የኃይል አቅርቦትን ያረጋግጡ Reset the unit (if applicable, consult TimerProg manual) ችግሩ ከቀጠለ የደንበኞች ድጋፍን ያነጋግሩ |
| የውሃ ማፍሰስ | ልቅ ግንኙነቶች የተጎዳ አካል | Tighten connections (ensure system is depressurized first) Contact a qualified professional immediately |
For issues not listed here or if solutions do not resolve the problem, please contact a qualified technician or ACOVA customer support.
6. ዝርዝሮች
| ባህሪ | ዝርዝር |
|---|---|
| የምርት ስም | አኮቫ |
| የሞዴል ቁጥር | 321574 |
| የምርት ዓይነት | Mixed Towel Dryer / Radiator |
| ቁሳቁስ | ብረት |
| ቀለም | ነጭ (አርኤል 9016) |
| Horizontal Elements | Flat, 70 x 11 mm section |
| Vertical Collectors | Round, 38 mm diameter |
| የገጽታ ሕክምና | Double protection, anti-corrosion cataphoresis baths, epoxy/polyester powder coating |
| የመቆጣጠሪያ ክፍል | Integrated TimerProg with electronic ambient thermostat (Cat. C) |
| ፕሮግራም ማውጣት | 6-order pilot wire compatible |
| የውሃ ግንኙነቶች | 2 x 1/2" orifices |
| Air Purge Valve | 1/8" orientable (supplied) |
| Wall Connection Axis | ከ 70 እስከ 85 ሚ.ሜ |
| በመጫን ላይ | 4 adjustable wall brackets (supplied) |
| የምርት ክብደት | 18 ኪ.ግ |
| ASIN | B00CS638EY |
7. የዋስትና መረጃ
Specific warranty terms for the ACOVA Regate Mixed Towel Dryer are provided by the manufacturer or your retailer at the time of purchase. Please retain your proof of purchase for warranty claims.
Generally, ACOVA products come with a manufacturer's warranty covering defects in materials and workmanship under normal use. The duration and conditions of the warranty may vary by region and product model. For detailed warranty information, please refer to the documentation included with your product or contact your point of purchase.
8. ድጋፍ
For technical assistance, spare parts, or further inquiries regarding your ACOVA Regate Mixed Towel Dryer, please contact:
- የእርስዎ ቸርቻሪ፡ The store or online platform where you purchased the product can often provide initial support and guide you through warranty processes.
- ACOVA Customer Service: Visit the official ACOVA website for contact information, FAQs, and additional resources. Look for a 'Support' or 'Contact Us' section.
ድጋፍ በሚያገኙበት ጊዜ፣ እባክዎን የምርት ሞዴል ቁጥርዎን (321574) እና የግዢ ማረጋገጫ ያግኙ።
