alvasys automation DR Telegram Driver User Manual
Ver: 1.0 Date: January 20, 2025 Author: M.Meriano

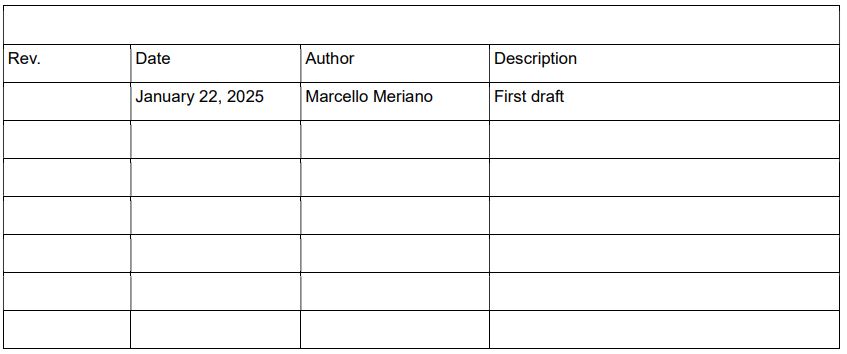

1 History
2 index
3 Confidentiality Notice
The information in this document is confidential Information of alvasys automation ag (“alvasys”). Such information and the software described herein are provided under license agreement and may only be used in accordance with this agreement. The information contained in this document is provided solely for the use of employees, licensees and system owners of ALVASYS. The contents of this document may not be passed on to others or reproduced for others. Although all efforts made to ensure the accuracy of this document, ALVASYS shall not be liable for damages of any kind, including consequential damages, resulting from the application of the information contained herein. Information and specifications published here are current as of the date of this publication and are subject to change without notice. This document may be copied by parties authorized to distribute ALVASYS products in connection with the distribution of those products, provided that this is authorized by the contracts permitting such distribution. It may not otherwise be copied, photocopied, reproduced, translated or reduced in any electronic or machine-readable form, in whole or in part, without the prior written consent of ALVASYS.
4 introduction
Requirements
- Niagara 4.x(>= 4.7)
- A license to use the alvassiTELEGRAM driver is necessary! The License is included with newly issued
licenses, if not please provide the Host ID + Serial Number and the info@alvasys.ch send. - Telegram account!

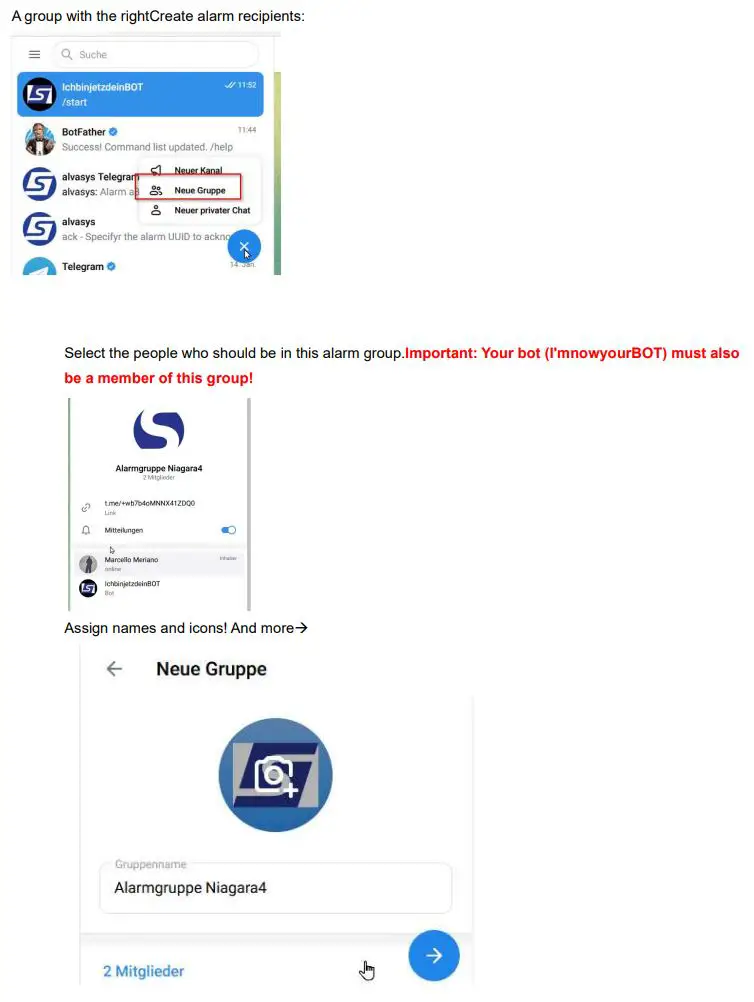

5 Telegram bot and group

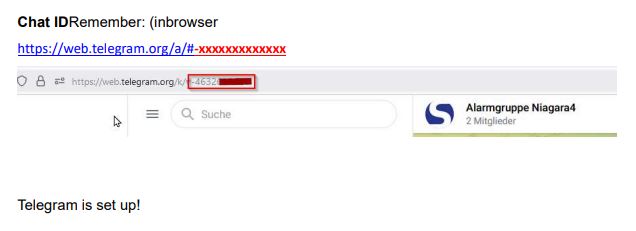

The best way to create the Telegram bot is on the web! Important: You must already have the APP installed on your mobile phone! For your information there is only one bot per JACE, but multiple groups can be made per bot! https://web.telegram.org/k/and connect to your mobile phone:

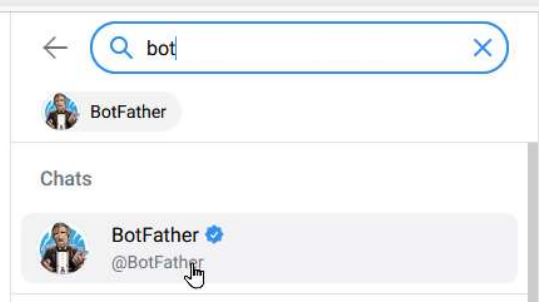

- Set up your own account: Search for BotFather and select it!

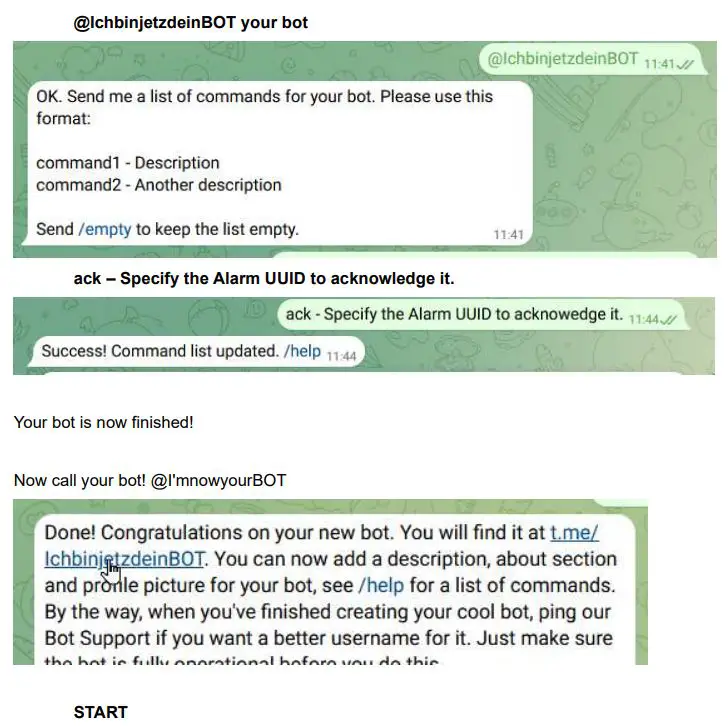

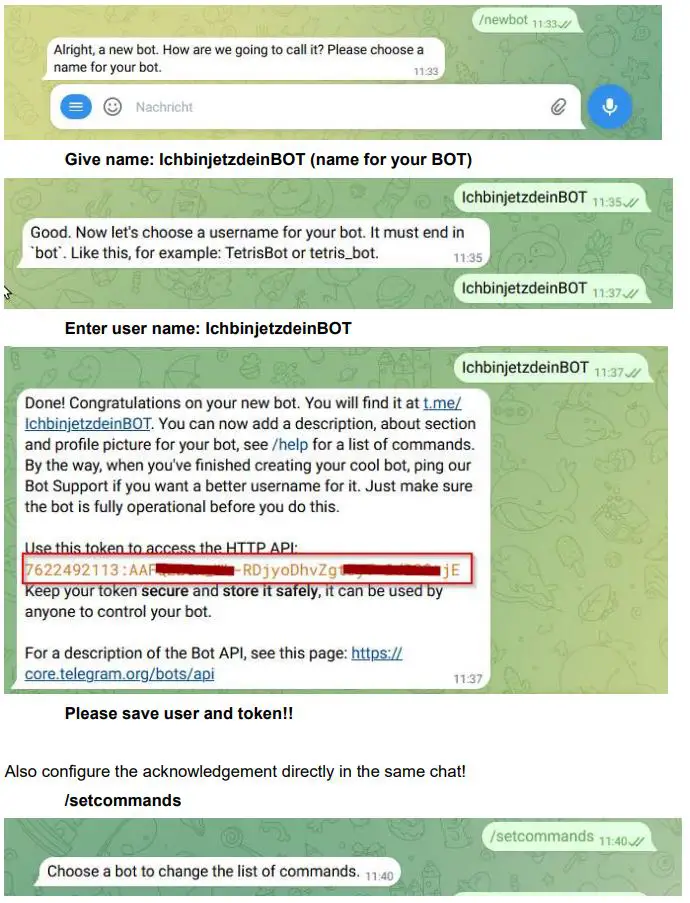

- own bot create under BotFather: /newbot
6 modules
The modules of the driveralvassiTELEGRAM contains two
- alvassiTELEGRAM-rt.jar
- alvassiTELEGRAM-wb.jar
Compatibility
Platforms
The driveralvassiTELEGRAMruns on Niagara 4.x(>= 4.7) platforms.
Test with the version
Niagara 4.14.x
Without a license, sending and receiving of theNo news!
Licenses:
SSI-DR-TELEGRAM5 for 5 alarm groups
SSI-DR-TELEGRAMIP15 for 15 alarm groups
SSI-DR-TELEGRAMIP50 for 50 alarm groups
SSI-DR-TELEGRAMIP1U Update + 1 alarm group
SSI-DR-TELEGRAMIP5U Update + 5 alarm group
SSI-DR-TELEGRAMIP10U Update + 10 alarm group

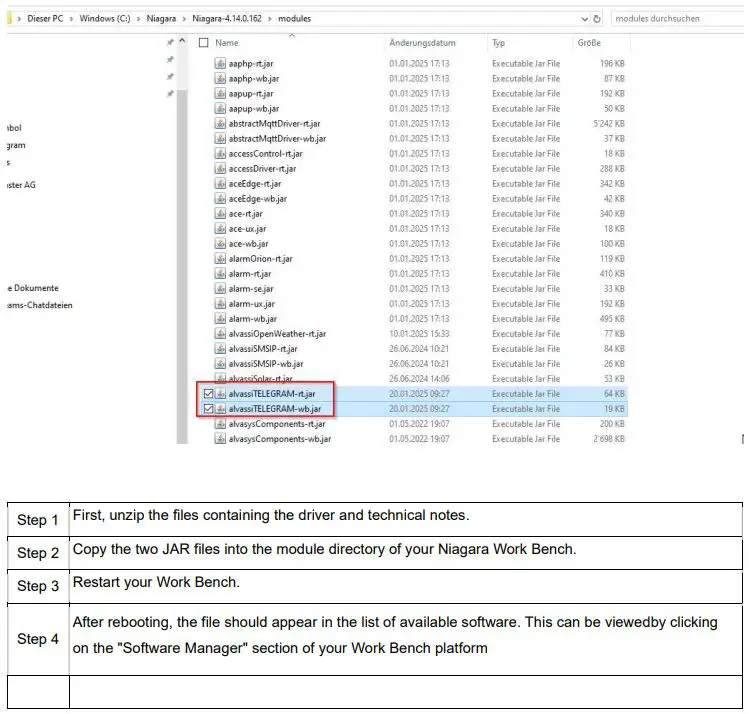

7 Installing the modules
Insert the modules under your installation: C:NiagaraNiagara-4.Versionxyzmodules

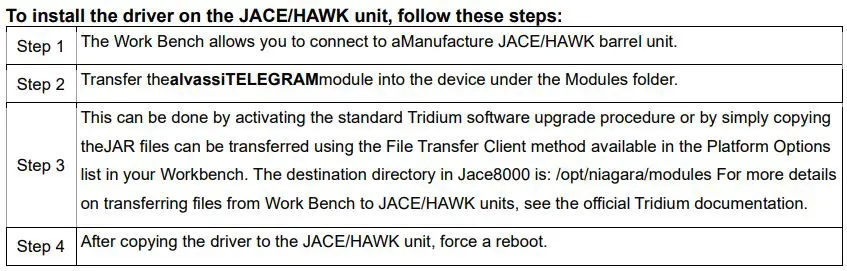

8 Installing TELEGRAM modules

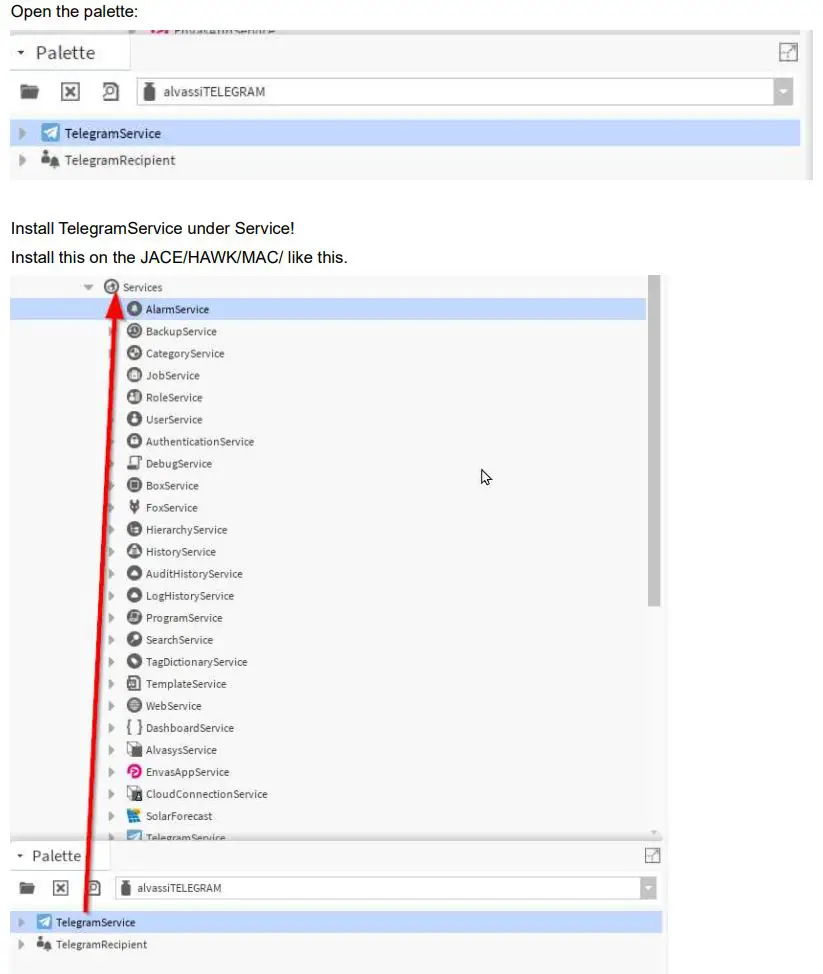

Inserting the modules underthe service JACE/MAC/HAWK/

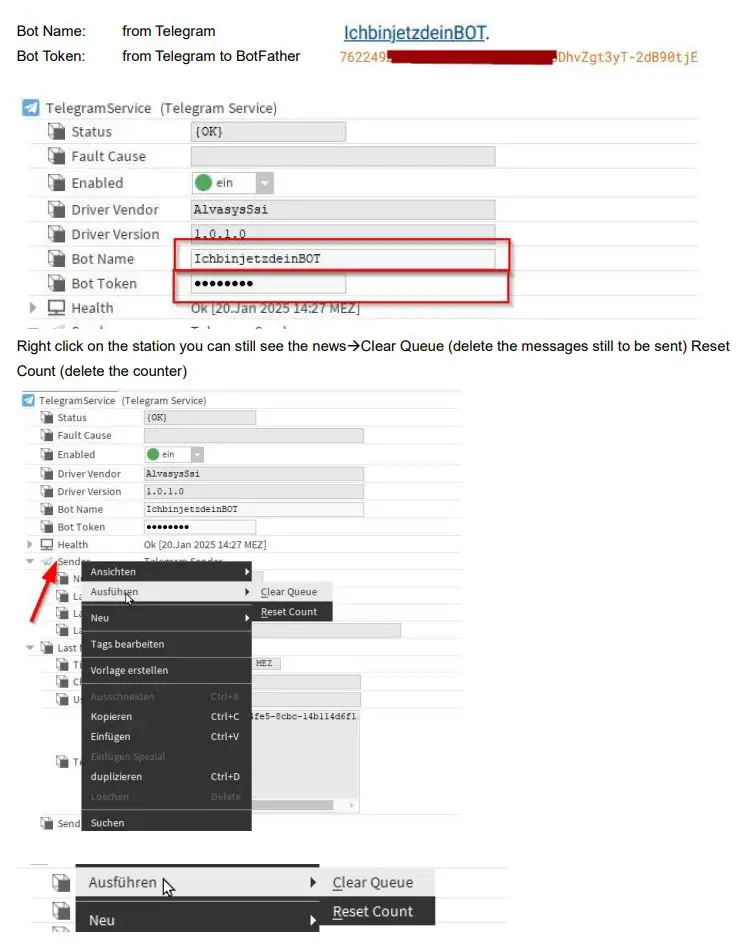

Setting in the Telegram service
Enable service: Shows how many messages are still pending and which ones were last received.

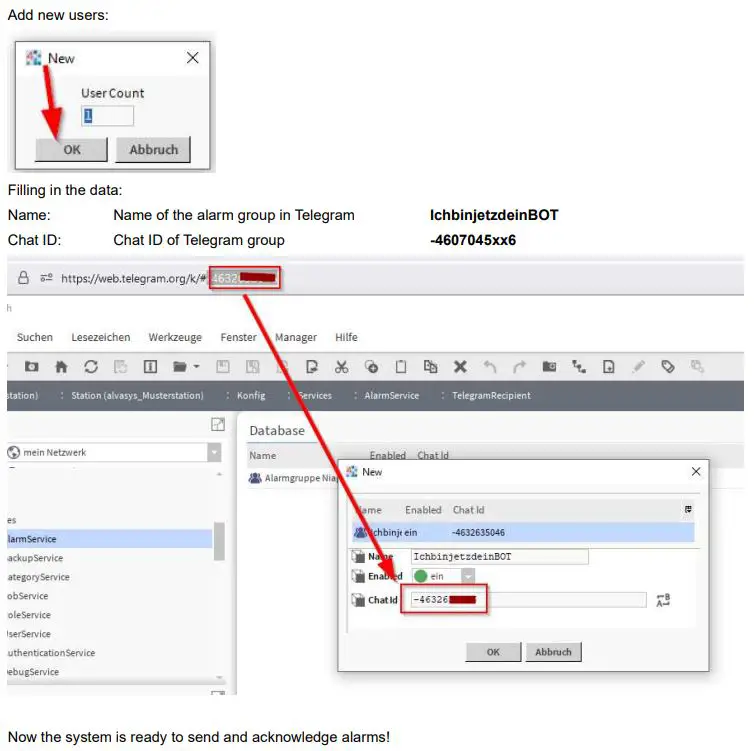

Setting up and configuring Telegram Recipient (JACE/MAC/HAWK)
Insert the Telegram Recipient into the Alarm Service
Alarms that arrive in the Telegram group can be freely adapted to recipients in the alarm text.

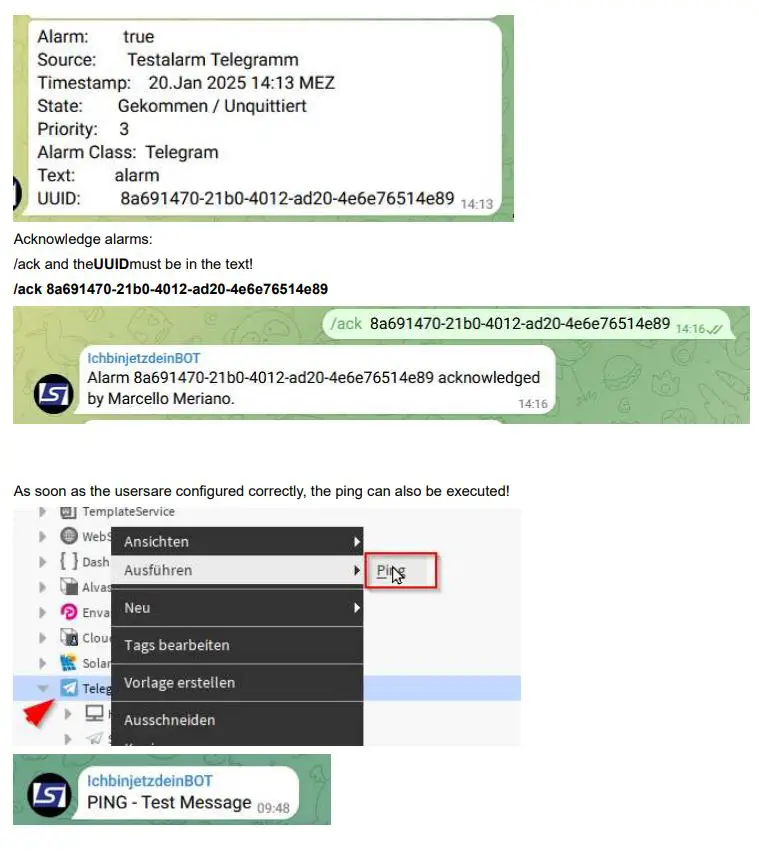

If the alarms need to be acknowledged, it is necessary to send the UUID.
+41 (0)44 261 00 70 info@alvasys.ch / www.alvasys.ch / www.alvasys.de
alvasys automation ag / Hermetschloostrasse 75 / CH-8048 Zürich
