Altronix T3SH75XK1Q 16 Door access and power Integration kit User Guide
Key Features
– Accommodates the following Software House controllers:
1 – iStar Ultra GCM/ iStar Ultra GCM G2 and 2 – iStar Ultra ACM
– Programmable Features:
– Fail-safe, fail-secure or auxiliary outputs
– High & low voltage & current monitoring by output
– Battery back-up by output
– Any combination of the above
– Monitor power supply(ies) input for voltage & current limits
– Programmable timer events, user levels
– Enable or disable alerts by type
– Programmable alert reporting delay
– Unit includes:
– Removable backplane
– 2” high finger duct for wire management
– Custom wire assemblies for power distribution with terminal blocks for controller connections
– Convenient knockout configuration:
– One (1) single knockout 2.415” (2” Conduit)
– Two (2) double knockouts
1.948” (1.5” Conduit) / 1.701” (1.25” Conduit)
– Thirteen (13) double knockouts
1.362” (1” Conduit) / 1.115” (3/4” Conduit)
– Supervision
– AC Fail
– Low Battery and Battery Presence
– Low power shutdown
– 16 AWG galvanized steel backplane simplifies board layout and
wire management
– Enclosure accommodates up to four (4) 12VDC/12AH batteries
– CE European Conformity
– Lifetime Warranty*
*Altronix Power Supply/Chargers and Sub-Assemblies only

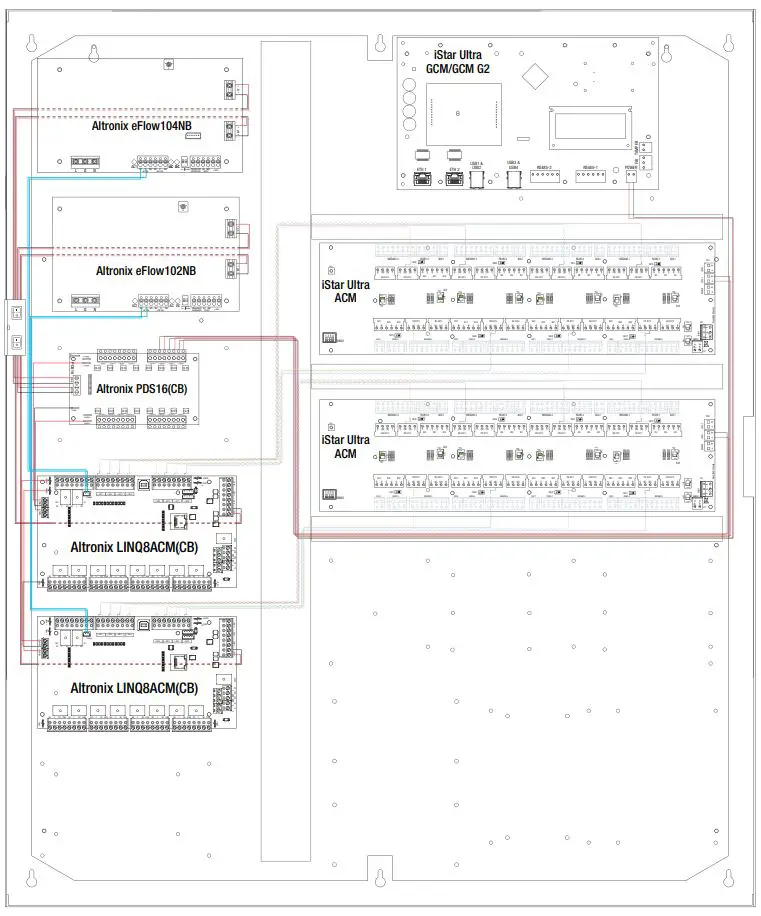

Specifications
Power Supply/Charger 1 (eFlow104NB):
Input
Voltage 120VAC, 60Hz, 4.5A
Input Fuse 6.3A/250V
Output
Voltage 24VDC @ 10A.
Auxiliary 1A (unswitched)
Protection Overvoltage protection. Filtered and regulated
Power Supply/Charger 2 (eFlow102NB):
Input
Voltage 120VAC, 60Hz, 3.5A
Input Fuse 5A/250V
Output
Voltage 12VDC @ 10A
Auxiliary 1A (unswitched)
Protection Overvoltage protection. Filtered and regulated
Both Power Supplies:
Battery Charging
Capacity 12VDC/12AH (2 within enclosure)
40AH/65AH (requires separate enclosure)
Type Sealed lead acid or gel type
Failover Upon AC loss, instantaneous
Batteries are sold separately
Fire Alarm Disconnect
Supervised Latching or non-latching
EOL 10K Resistor
Supervision
AC Failure Form “C” contacts
Battery Form “C” contacts
Low DC Power Shutdown
Shuts down DC output terminals if battery voltage drops below
71-73% for 12V units and 70-75% for 24V units (depending on the
power supply). Prevents deep battery discharge
Indicators (LED)
AC Input 120VAC is present
DC Output Powered
Battery Discharged or not connected
Dual Input Power Distribution Modules (PDS16):
Input
Voltage 24VDC from eFlow104NB and
12VDC from eFlow102NB
Input Fuses 15A/32V
Outputs
Voltage 12VDC and/or 24VDC
Any of the sixteen (16) power outputs are selectable
to follow power Input 1 or Input 2
Individual outputs may be set to OFF position for servicing
Output Fuses 3A/32V
Indicators (LED)
DC Output Sixteen (16) individual output LEDs
Green: 12VDC
Red: 24VDC
Two (2) Network Access Power Controllers (LINQ8ACM):
Input
Voltage 24VDC from eFlow104NB and
12VDC from eFlow102NB
Input Fuses 15A/32V
Outputs
Fuse protected outputs
Any of the eight (8) fuse protected power outputs are selectable to follow power Input 1 or Input 2
Individual outputs may be set to OFF position for servicing
Output Fuses: 3A/32V
Programming Features:
Eight (8) Programmable Outputs:
– Fail-safe, fail-secure or auxiliary outputs
– Input controlled or manually controlled through software
– High (over) and low (under) voltage and current monitoring by output
– Multiple outputs may be programmed to be triggered by a single input
– Battery back-up by output
Eight (8) Programmable Trigger Inputs:
– Normally open (NO), Normally colsed (NC) or Open collector sink inputs
– Wet Input (5VDC – 24VDC) with 10k resistor
– Any combination of the above
Other Programmable Trigger Inputs:
– Monitor power supply(ies) input for voltage and currect limits (high/low)
– Input and output current calibration, Programmable timer events
– Programmable user levels, Enable or disable alerts by type
– Programmable alert reporting delay
Indicators (LED)
Green AC LED: indicates AC trouble condition
Green BAT LED: indicates battery trouble condition
Green FACP LED: indicates FACP disconnect is triggered
Flashing Blue Heartbeat LED: indicates network connection
Individual OUT1 – OUT8 Red LEDs: indicate outputs are triggered
Individual Voltage LEDs: indicate 12VDC (Green) or 24VDC (Red)
T3SH75XK1Q Kit:
Agency Listings
CE European Conformity
Physical and Environmental:
Dimensions (H x W x D)
Enclosure: 36.12″ x 30.125″ x 7.06″ (917.5mm x 768.1mm x 179.3mm)
Shipping: 40.75″ x 35.25″ x 12″ (1035.1mm x 895.4mm x 304.8mm)
Weight (approx.)
Product: 95.6 lb. (43.36 kg)
Shipping: 108.8 lb. (49.35 kg)
Temperature
Operating 0ºC to 49ºC (32ºF to 120ºF)
Storage 20ºC to 70ºC ( 4ºF to 158ºF)
Relative Humidity 85% +/ 5%
BTU/Hr. (approx.): 289 BTU/Hr.
Accessories (order separately)

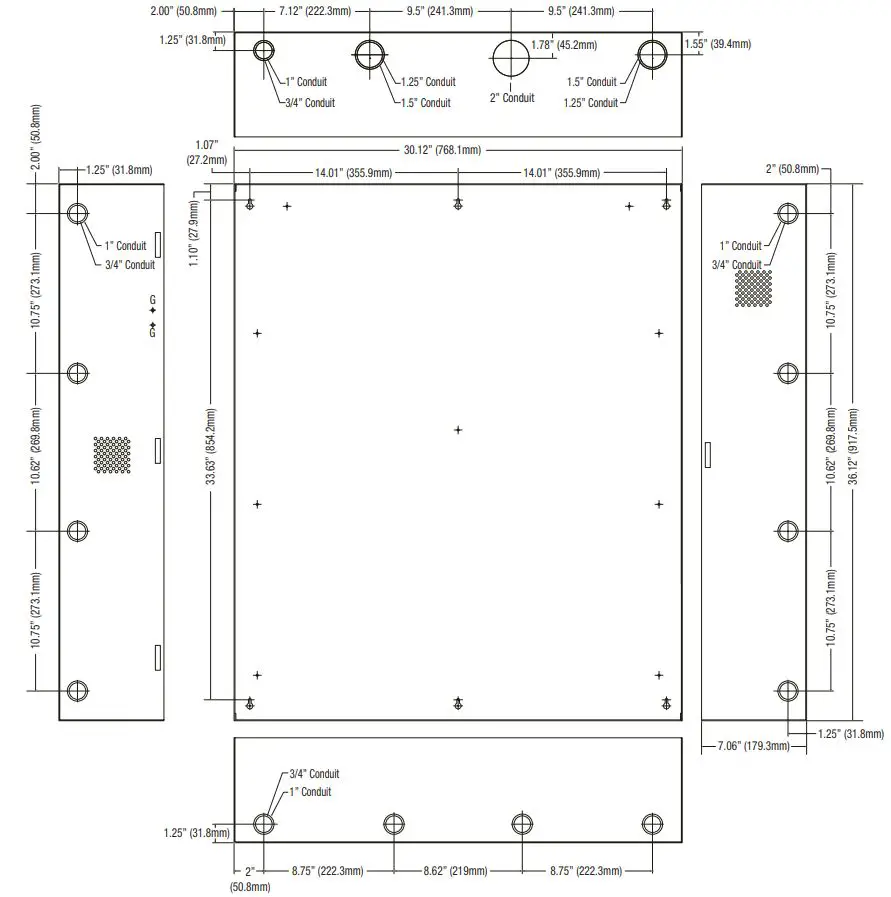

Dimensions and Drawing
Dimensions (H x W x D approximate)
36.12″ x 30.125″ x 7.06″ (917.5mm x 768.1mm x 179.3mm)
