Introduction

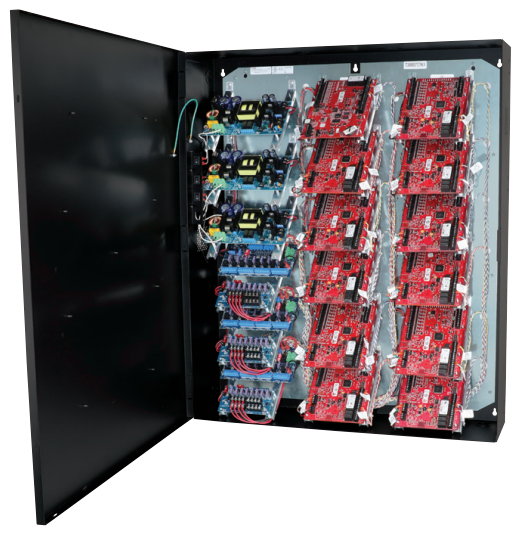

Altronix T3MB755K1D is a 24-door access and power integration kit which includes Altronix power and sub-assemblies along with factory installed wire management and wire assemblies that are pre-configured with terminal blocks for Mercury* hardware. This unit provides ample power and dual voltage outputs to support Mercury platform controllers and locking devices. The T3MB755K1D accommodates one (1) Intelligent Dual Reader Controller and eleven (11) Dual Reader Interface Modules. Trove Plus simplifies field installations and provides reliable, robust critical power and control for the most demanding applications.

*Also compatible with these authentic Mercury partners:
AccessNsite, Avigilon, BadgePass, BluBox, Feenics, Genetec, Identicard, IMRON, Johnson Controls, Kastle, Keri Systems, Lenel/S2, LockState, Maxxess, Midpoint Security, NLSS, Open Options, Panasonic i-PRO MonitorCast, Quintron, RS2, S2 Security, Schneider Electric, Vanderbilt

Key Features

Accommodates the following Mercury controllers:
1 – LP1502 / LP4502 and 11 – MR52
Convenient knockout configuration:
- One (1) single knockout 2.415” (2” Conduit)
- Two (2) double knockouts
  1.948” (1.5” Conduit) / 1.701” (1.25” Conduit)
- Thirteen (13) double knockouts
  1.362” (1” Conduit) / 1.115” (3/4” Conduit)
Unit includes:
- Removable backplane with mounting brackets
- Wire management
- Custom Wire Harnesses for power distribution and controller connections
16 AWG galvanized steel backplane simplifies board layout and wire management

AC input and DC output LED indicators
Supervision
- AC Fail
- Low Battery and Battery Presence
- Low power shutdown
Built-in charger for sealed lead acid or gel type batteries

Instantaneous transfer to stand-by batteries
CE European Conformity

Enclosure accommodates up to four (4) 12VDC/12AH batteries
Lifetime Warranty

*Altronix Power Supply/Chargers and Sub-Assemblies only

Specifications

Power Supply/Charger 1 (eFlow104NB):

Input
- Voltage: 120VAC, 60Hz, 4.5A
- Input Fuse: 6.3A/250V
Output
- Voltage: 24VDC @ 10A.
- Auxiliary: 1A (unswitched)
- Protection: Overvoltage protection. Filtered and regulated

Power Supply/Chargers 2 and 3 (eFlow102NB):

Input
- Voltage: 120VAC, 60Hz, 3.5A
- Input Fuse: 5A/250V
Output
- Voltage: 12VDC @ 10A
- Auxiliary: 1A (unswitched)
- Protection: Overvoltage protection. Filtered and regulated

Both Power Supplies:

Battery Charging
- Capacity: Up to 40AH/65AH (requires separate enclosure)
- Type: Sealed lead acid or gel type
- Failover: Upon AC loss, instantaneous
  Batteries are sold separately
Fire Alarm Disconnect
- Supervised Latching or non-latching
- EOL 10K Resistor
Supervision
- AC Failure: Form “C” contacts
- Battery: Form “C” contacts
- Low DC Power Shutdown
  Shuts down DC output terminals if battery voltage drops below 71-73% for 12V units and 70-75% for 24V units (depending on the power supply). Prevents deep battery discharge

Indicators (LED)
- AC Input: 120VAC is present
- DC Output: Powered
- Battery: Discharged or not connected

Three (3) Dual Input Access Power Controllers (ACMS8CB):

Input
- Voltage: 24VDC from eFlow104NB and 12VDC from eFlow102NB
- Input PTCs: 9A
Outputs
- Voltage: 24VDC
  - Eight (8) 24VDC independently controlled PTC outputs
    a) Fail-Safe and/or Fail-Secure power outputs Form “C” Relays rated 28VAC or VDC @ 2.5A
    b) Auxiliary power outputs (unswitched)
    c) Any combination of the above
- Output PTCs: 2.5A

Indicators (LED)
- Red LEDs: Outputs are triggered (relays energized)
- Green LED: FACP disconnect is triggered

Three (3) Dual Input Power Distribution Modules (PDS8CB):

Input
- Voltage: 24VDC from eFlow104NB and 12VDC from eFlow102NB
- Input PTCs: 9A
Outputs
- Voltage: 24VDC
  - Any of the eight (8) power outputs are selectable to follow power Input 1 or Input 2
  - Individual outputs may be set to OFF position for servicing
- Output PTCs: 2.5A

Indicators (LED)
- DC Output: Eight (8) individual output LEDs
- Green: 12VDC
- Red: 24VDC

T3MB755K1D Kit:

Agency Listings
- CE: European Conformity
  - All components of this Trove kit are UL Listed sub-assemblies.
  - Please refer to the corresponding Sub-Assembly Installation Guides for further information

Physical and Environmental:
- Dimensions (H x W x D)
  - Enclosure:
    36.12” x 30.125” x 7.06” (917.5mm x 768.1mm x 179.3mm)
  - Shipping:
    40.75” x 35.25” x 12” (1035.1mm x 895.4mm x 304.8mm)
- Weight (approx.)
  - Product: 85.6 lb. (42.27 kg)
  - Shipping: 106.4 lb. (48.26 kg)
- Temperature
  - Operating: 0ºC to 49ºC (32ºF to 120ºF)
  - Storage: – 20ºC to 70ºC (– 4ºF to 158ºF)
- Relative Humidity: 85% +/– 5%
- BTU/Hr. (approx.): 433 BTU/Hr

Accessories (order separately)

LINQ2 – Network Supervision

Altronix LINQ2 Network Communication Module provides remote supervision, control and monitoring over
LAN/WAN
- Remotely reports accurate power diagnostics
- Controls power and resets devices
- Reports system diagnostics via Email
  LINQ2

WM5, WM25, WM100 – Magnetic Cable Tie Mounts

Altronix WM5, WM25, and WM100 are packs of 5, 25 or 100 magnetic cable tie mounts respectively.
They accommodate standard zip ties or velcro straps.
These are ideal for wire management in our Trove series.
WM5

MM4, MM8, MM12, MM24 – Magnetic Mounting Solution

Altronix mounting magnets accommodate screws and nylon standoffs to allow for mounting various boards/ accessories in any metal enclosure or backplane.
Mounting Magnet

BR1 – Sub-Assembly Mounting Bracket

Altronix BR1 mounting bracket is compatible with Altronix Maximal and Trove enclosures. It allows to mount
one (1) PD4UL(CB), PD8UL(CB), ACM4(CB), MOM5, VR6, PDS8, NetWay5B or LINQ8PD(CB) sub-assembly on
the enclosure’s inside wall, saving valuable space.

TROVE3BWC / TROVE3SWC – Battery/Wire Trough Enclosure

Altronix Trove3BWC and Trove3SWC are dual-purpose enclosures that can be used as wiring troughs or battery cabinets when mounted above or below (Trove3BWC) or on either side (Trove3SWC) of the Trove integrated power and access solution. The knockouts on the Trove3BWC and Trove3SWC have been strategically placed to line up with the Trove3 allowing for easy conduit connections between cabinets.Trove3BWC and Trove3SWC include cam locks and 2 tamper switches each to ensure access to wiring and batteries is secure.
Typical battery/wiring setup with Trove3 Enclosure (not included)

Dimensions and Drawing

Dimensions (H x W x D approximate)
36.12” x 30.125” x 7.06” (917.5mm x 768.1mm x 179.3mm)

Customer Support
