ALL LED 12100TD Constant Voltage
LED Driver User Manual

• This product may need to be installed by a qualified electrical installer.
• Please read this guide in its entirety to fully understand the products before attempting any install.
• All electrical work should be completed in accordance with the latest IET regulations, and/or any other relevant rules, regulations or laws of the country in which it is being installed.
• The item must be installed in isolation from any insulating material and is adequately ventilated to prevent premature failure.
• Ensure power supply is isolated prior to installation, maintenance or performing any other form of electrical work.
• The company MUST be contacted immediately for advice or swift resolution of any matters concerning any of ALL
  LED’s products.

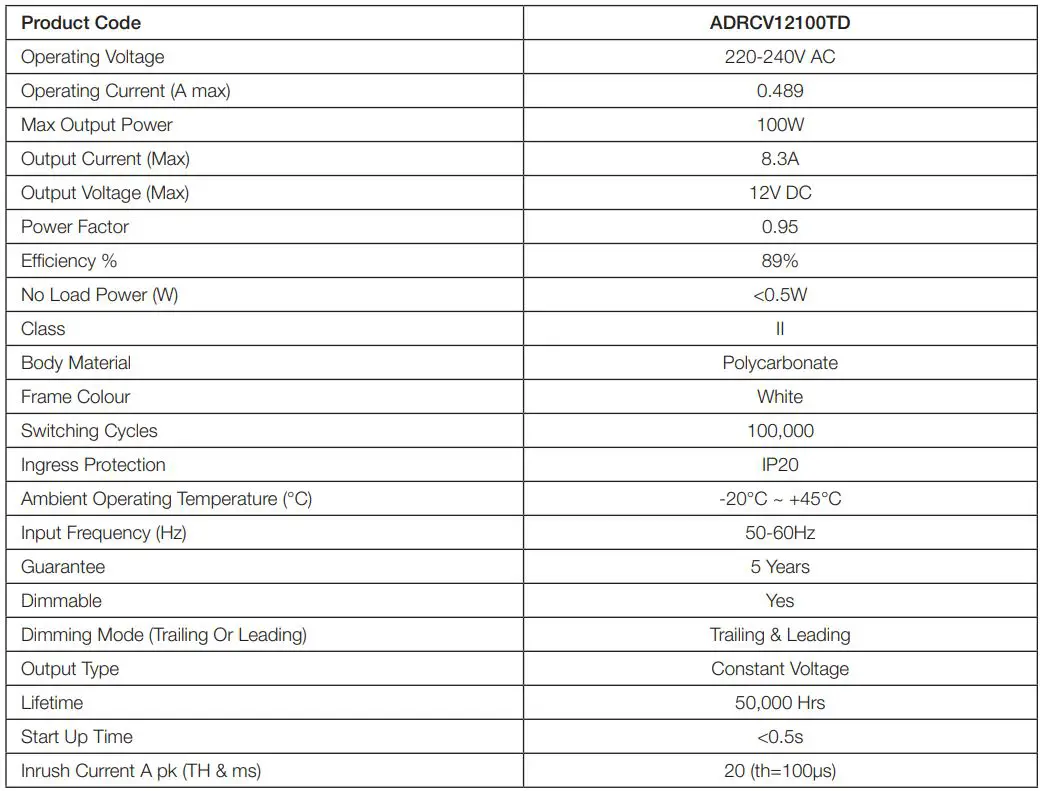

Technical Specifications

Installation Instructions

1. We recommend checking the products for suitability prior to installation.
2. Turn off power supply at source to avoid any risk of electric shock.
3. Locate where the LED driver is to be installed.
4. Affix the LED driver to the surface / area using the appropriate method according the substrate of the base material.
5. Connect the DC output side of the LED driver to the luminaire using the diagram below for reference purposes.
   Ensure the correct polarity.
6. Connect the AC input of the LED driver to the relevant electrical circuit.
7. Double check the connections and the overall installation. Turn the power supply on and check the item is functioning as it should.
8. Turn the power supply on and check the item is functioning as it should.

Notes

• Should you encounter any difficulties, please refer to the troubleshooting guide on the next page.
• Should you encounter any further difficulties with this product, please contact the ALL LED technical team.
• Should this product cease working, a replacement drive unit will be dispatched to try to solve the issue.
• Do not hold this product by the trailing lead, it may damage the integrity of the product.
• THIS UNIT MAY HOLD SOME RESIDUAL DISCHARGE, PLEASE LEAVE DISCONNECTED AT MAINS FOR A MINIMUM OF 24 HOURS BEFORE HANDLING ANY ELECTRICAL COMPONENTS ON THIS ITEM.
• This item is CONSTANT VOLTAGE and requires PARALLEL wiring on the DC side.

Dimensions

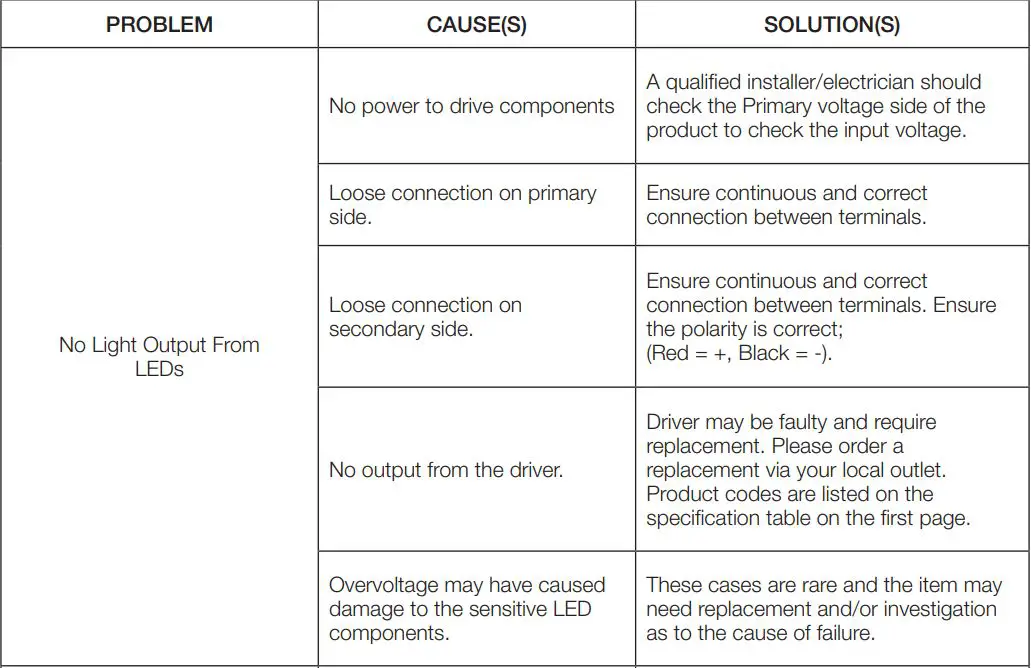

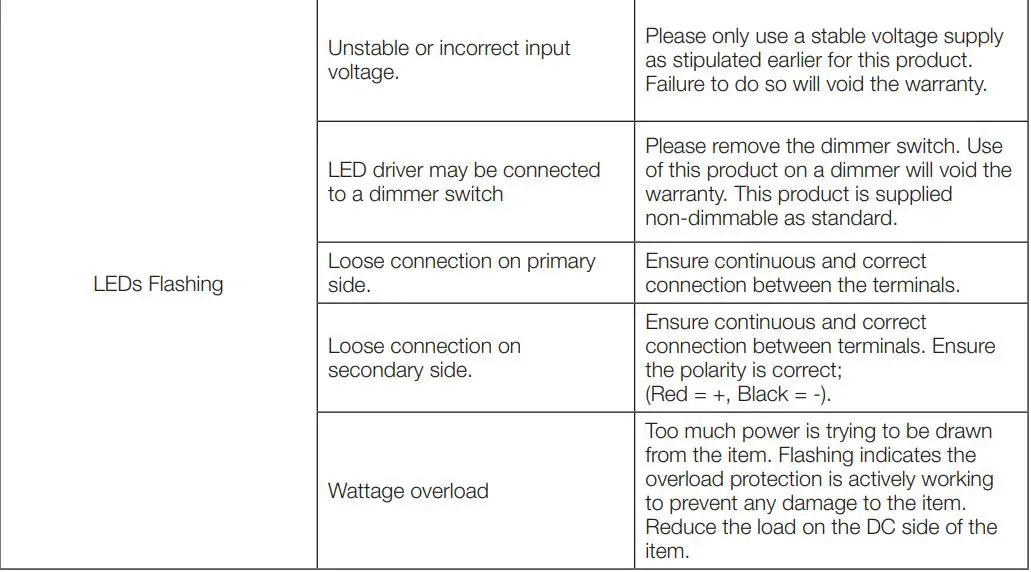

Troubleshooting Guide

ATTENTION
IF ANY PROBLEMS PERSIST, PLEASE CALL THE ALL LED TECHNICAL DEPARTMENT FOR FURTHER ASSISTANCE.

Safety

• Do not cover the ground contact.
• Do not cover the item, hang or fasten anything from it.
• Do not operate if any visible damage can be seen to the product.
• Do not operate if any water ingress has occurred.
• Do not operate if any smoke, steam or crackling noises can be heard from the item.
• Do not operate if any signs of overheating are recognised.
• Avoid installation in any areas where there is a risk of strong mechanical loads.
• Do not place any material over the item.
• Do not insert objects into the item.
• Do not clean using any solvent based abrasive or aggressive product.
• Do not pull any cables connected to the product.
• Light engines/LEDs, other light sources and lighting products may heat up, please take care when handling the products.
• The manufacturer will not be deemed liable or held responsible for any damages caused by faults or manufacturing
  defects that may be present in any of its products or the misuse or incorrect installation of this device. Please refer to our troubleshooting guide for further information.
• The manufacturer will not be held liable for any death(s) or injuries caused by misuse or poor installation or any unreported faults of this product version or versions thereof.
• Do not connect to a temporary electricity supply, this may damage the electronics.
• Isolate the item from direct, strong sunlight. · Keep away from children.

Returns & Faulty Items

• If any problem is encountered during or after installation, please call the ALL LED technical department to get the problem resolved as soon as possible.
• Please do not just return the item to the outlet you purchased it from, as you are only entitled to a replacement or refund after the unit has undergone testing and the unit has been confirmed as having a manufacturing defect/fault. Your statutory rights are not affected.
• The manufacturer will not be deemed liable or held responsible for any damages caused by faults or manufacturing defects that may be present in any of its products or the misuse or incorrect installation of this device. Please refer to our trouble shooting guide for further information.
• All goods are supplied under the terms and conditions of ALL LED LTD, a copy of which may be obtained upon written request.

Environmental Protection Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice
ISOLATE MAINS SUPPLY BEFORE HANDLING ANY ELECTRICAL PRODUCTS

The manufacturer will not be deemed liable or held responsible for any damages caused by faults or manufacturing defects that may be present in any of its products
or the misuse or incorrect installation of this device Your statutory rights are not affected.

ALL LED LTD 42 Sedgwick Road,
Luton, LU4 9DT
www.allledgroup.com
sales@allledgroup.com
Tel: +44 (0)208 841 9000
