BI-FLEX M7 Bi Color Kit
User Manual
 |
 |
BI-FLEX M7 Bi Color Kit
THANK YOU FOR YOUR PURCHASE
Version: 22. August 2022, 1:50 PM
Aladdin Lights
info@aladdin-lights.com
START-UP GUIDE

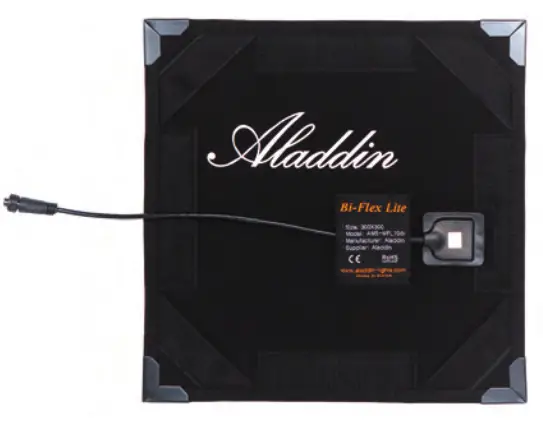

| 1 | Connector |
| 2 | Metal corner (can be attached to magnets) |
| 3 | Velcro |
Unpack your panel and accessories from the kit. The panel features a short cable with connector. Plug it in to your dimmer-unit or use the extansion cable in between. Plug n your dimmer-unit to a power outlet. Instead of using the power outlet, there’s an option to use the integrated V-Mount or Gold-Mount plate on top of the dimmer to use atteries from 12-30V DC.
Just note that you need batteries which can handle the power draw of 30 watts from the panel. There’s a simple calculation for that:
If you are using 14.8V batteries you need at least a working current of 4.8A. If your battery is rated at 14.8V and 100Wh/6.8Ah you can run your BI-FLEX M7 for 1 hour.
For any further questions about using our products please refer to our customer service or watch the instructional videos on www.aladdin-lights.com or YouTube.
IMPORTANT CAUTIONS AND WARNINGS
- Do not use near flammables and heaters.
- Do not expose the unit to direct sunlight for a long period (applies also for storing in a car).
- Do not use the dimmer wire or extension wire to hang or mount the panel.
- Do not bend or fold the panel more than 90 degrees.
- Do not tape directly on the LEDs of the panel – they can burn out.
- Do not damage the product with improper force or cause any impact with heavy objects.
- Do not cut the panel with sharp objects.
- Keep out of reach of children.
- The panel will heat up when running a long period of time on 100% power, make sure to have it in your eyesight at all times. Use the X-BEND holder or frame to assure enough air flow for heatreduction.
- Use the product only within the temperature range of -10°C – +40°C.
- Make sure the panel has cooled down before storing it in the pouch or any other case.
- When you have technical problems while using the product, stop using it immediately and contact your dealer / reseller.
WARRANTY
We provide a one year warranty period after the purchase. This warranty covers repairs or a replacement for faulty products within this period. After this warranty has been xpired, you can still get repairs for your product which will be charged extra.
Aladdin Lights reserves the right to refuse warranty service on products under disputable conditions.
WARRANTY EXCLUSIONS
In case of any of the below listed causes, the warranty does not apply, even if it is within the free warranty period.
– Product failure due to consumer negligence.
– Product failure due to usage of not compatible power sources.
– Product failure due to disassembly by not official resellers/distributors.
SELECTED OPTIONAL ACCESSORIES
 |
|
| MFL-DMXAT1 For controlling your light over a DMX controller. |
1X1-FR-KIT Frame for easy mounting. |
TECHNICAL SPECIFICATIONS
| Light source | 70W Bi-Color Micro LEDs |
| CRI | Ra 97 |
| TLCI | 98 |
| Color temperature | 3000K – 6000K |
| Beam angle | 140° |
| Dimmer | Dimming: (1%–100%) |
| Cooling | Passive cooling |
| Dimmer input | 12V to 30VDC |
| Power unit input | Automatic voltage 100V to 240VAC |
| Power consumption | 70W |
| Dimensions | 300mm x 300mm x 5mm |
| Weight | 237g |
| Connection | Connector plug |
| Temperature range | -10°C – +40°C |
| DMX512 support | With separate attachment |
| DMX512 | 2 channels – White Bi-Color |
| IP-Rating | 32 |
