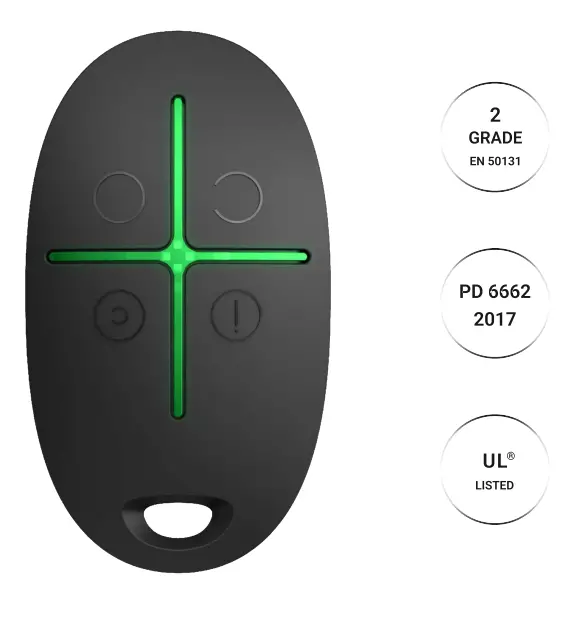

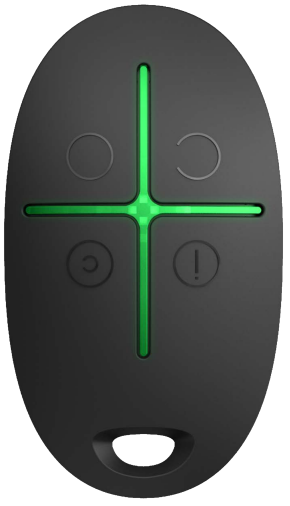

AJAX Space Control Security System Key Fob

Product Overview

4 buttons

• Arm
  • Arms the system
• Night Mode
  • Activates Night Mode (arms devices for perimeter security)
• Disarm
  • Disarms the system
• Panic
  • Notifies a security company and users about danger or emergency

Protection against accidental activation: double or long press

Jeweller

communication technology

• Up to 1,300 m of radio communication in an open space
• Encryption and device authentication to prevent spoofing
• Indication of command execution by LED

Flawless autonomy

• Up to 5 years of operation
• Pre-installed replaceable battery
• Low battery warning

Quick setup

• Pairing with a hub via QR code
• Remote control and configuration in the app
• It can be carried around in a pocket or on the key ring

Compliance

• EN 50131 (Grade 2)
• PD 6662:2017
• UL985, UL1023, UL2610
• ULC S545, ULC S304

Installation

• Operating temperature range
  • from – 25°C to +50°C
• Operating humidity
  • up to 95%
• Protection class
  • IP50

Compatibility

• Hubs
  • Hub (2G), Hub Plus, Hub 2 (2G),
  • Hub 2 (4G), Hub 2 Plus,
  • Hub Hybrid (2G), Hub Hybrid (4G)
• Range extenders
  • ReX, ReX 2

Enclosure

• Colour
  • white
  • black
• Dimensions
  • 65 × 37 × 10 mm
• Weight
  • 13 g

Communication with control panel

Jeweller communication technology

Frequency bands

• 866.0-866.5 MHz
• 868.0-868.6 MHz
• 868.7-869.2 MHz
• 905.0-926.5 MHz
• 915.85-926.5 MHz
• 921.0-922.0 MHz
• Depends on the region of sales.

Jeweller communication range

up to 1,300 m In an open space.

Complete set

Ajax SpaceControl Jeweller 1 x CR2032 battery (pre-installed) Quick start guide

Power supply

• Battery
  • 1 × CR2032
    Pre-installed.
• Battery life
  • up to 5 years

Contact

For detailed information, scan the QR code or follow the link:

support.ajax.systems/en/manuals/ajaxspacecontrol

• support@ajax.systems
• @AjaxSystemsSupport_Bot
• ajax.systems
