AJAX Security IP Camera Mounting Box Installation Guide

Baseline product line
Junction Box (118×59)
Security IP camera mounting box

Contents hide

Flexible camera installation

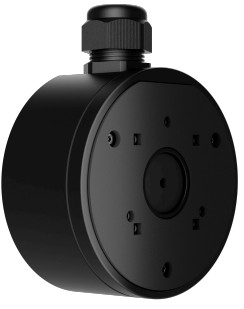

JunctionBox is a waterproof aluminum mounting box for the Ajax IP cameras’ cable management. It provides convenient installation of Ajax cameras on concrete walls, ceilings, or columns both outdoors and indoors. Every detail is thought out to the smallest point, so PRO users can be sure of the reliability and longevity of JunctionBox from Ajax.

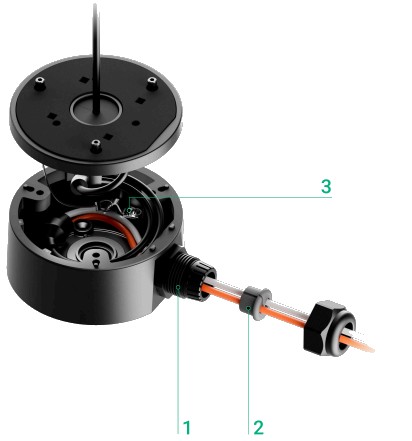

Thoughtfulness in every detail

Waterproof cable gland
To protect the cable from damage during installation and operation and to prevent water from entering the mounting box.

Two-cable sealing ring
For waterproof connection of PoE cable or both Ethernet and power cables.
Grounding terminal
Grounding is carried out by a specialist in compliance with local electrical safety rules and regulations.

Easy installation and maintenance

Installation template to perfectly match holes
Reusable even after dismantling
Two options for cable gland installation: at the top or at the side
All fastenings are included PRO does not need to take additional mounts to the facility

Compatibility	Installation	Technical specifications	Complete set
Compatible devices BulletCam (5 Mp/2.8 mm) BulletCam (5 Mp/4 mm) BulletCam (8 Mp/2.8 mm) BulletCam (8 Mp/4 mm) DomeCam Mini (5 Mp/2.8 mm) DomeCam Mini (5 Mp/4 mm) DomeCam Mini (8 Mp/2.8 mm) DomeCam Mini (8 Mp/4 mm) TurretCam (5 Mp/2.8 mm) TurretCam (5 Mp/4 mm) TurretCam (8 Mp/2.8 mm) TurretCam (8 Mp/4 mm)	Operating temperature range from -40 °C to +60 °C	Color white, black Dimensions 117,14 « 58.3 mm Weight 4689 Material aluminum ADC12	JunctionBox (118*59) Installation template Installation kit Quick start guide
