ANKO GFCI Outlet User Manual

1. Introduction to GFCI Outlets

A Ground Fault Circuit Interrupter (GFCI) outlet is a fast-acting circuit breaker designed to shut off electric power in the event of a ground fault within as little as 1/40 of a second. It is designed to protect people from severe or fatal electric shocks. This ANKO GFCI outlet features self-testing capabilities, an LED indicator, and is tamper-resistant and weather-resistant for both indoor and outdoor applications.

Image 1.1: Four ANKO GFCI 20 Amp Outlets. These outlets are designed for safety, featuring test and reset buttons and an LED indicator for status.

Image 1.2: Key features of the ANKO GFCI outlet, including UL listing, tamper and weather resistance, self-test function, and wiring options.

Image 1.3: Explanation of GFCI functionality, illustrating how it protects against ground faults and the meaning of its LED indicators.

2. Wat is in die boks

Your ANKO GFCI Outlet package includes the following components:

• GFCI Outlet (20 Amp)
• Versierder Muurplaat
• Monteer skroewe
• Complete Installation Instructions (this manual)

3. Belangrike veiligheidsinligting

Please read and understand all instructions before installing or using this product. Failure to follow these instructions may result in electric shock, fire, or serious injury.

• WAARSKUWING: Turn off power at the circuit breaker or fuse box before wiring.
• Installasie moet uitgevoer word deur 'n gekwalifiseerde elektrisiën of 'n kundige persoon wat vertroud is met elektriese bedrading.
• Do not use this device with aluminum wiring. Use only with copper or copper-clad wire.
• Maak seker dat alle draadverbindings stewig en behoorlik geïsoleer is.
• This GFCI is designed for 20 Amp, 125 Volt, 60HZ circuits. Do not exceed these ratings.
• Die tamper-resistant feature helps prevent accidental insertion of foreign objects into the receptacle openings, enhancing child safety.
• The weather-resistant feature provides enhanced protection against moisture and UV degradation, making it suitable for damp of nat plekke.

4. Produkspesifikasies

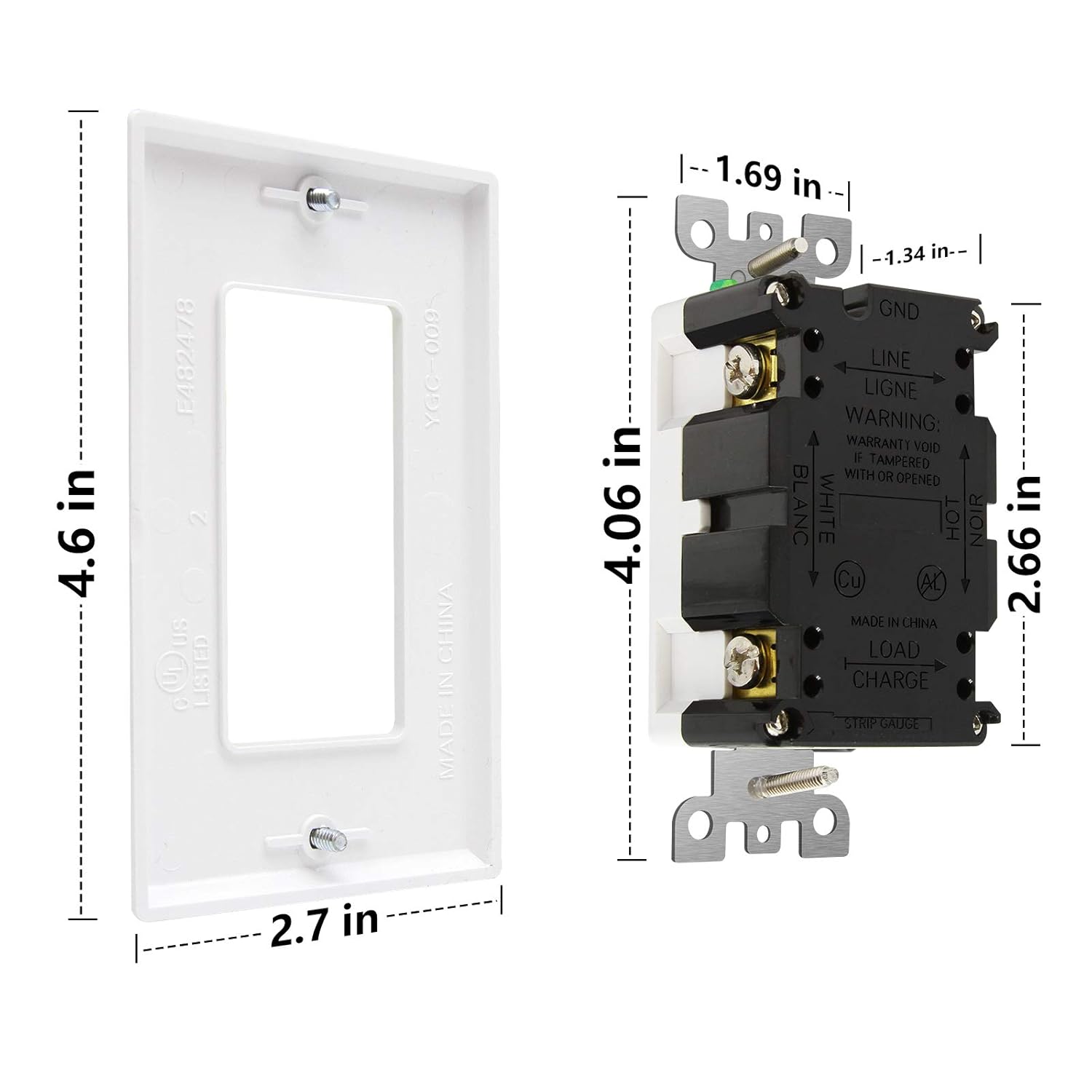

Image 4.1: Dimensions of the ANKO GFCI outlet and its accompanying decorator wall plate.

5. Installasiehandleiding

Follow these steps carefully to install your ANKO GFCI outlet. Installation typically takes about 10 minutes.

5.1. Voorbereiding

1. BELANGRIK: Turn off power to the circuit at the main service panel (circuit breaker or fuse box) before beginning work. Verify power is off using a voltage toetser.
2. Remove the existing wall plate and outlet from the electrical box.
3. Carefully pull the wires out of the electrical box.

5.2. Bedradingsverbindings

Identify the wires in your electrical box:

• LYN Drade: These wires bring power from the circuit breaker. Typically, the black wire is the Hot (LINE Hot) and the white wire is the Neutral (LINE White).
• LAAI Drade: These wires carry power to downstream outlets or devices protected by this GFCI. Typically, the black wire is the Hot (LOAD Hot) and the white wire is the Neutral (LOAD White).
• GROUND Wire: This is typically a bare copper or green insulated wire.

The ANKO GFCI outlet supports both back-wire and side-wire connections. For side-wire connections, strip wires approximately 1 inch (2.5 cm) and wrap 2/3 of the way around the screw.

Image 5.1: Terminal identification on the ANKO GFCI outlet for proper wiring.

5.3. Wiring Scenarios

Scenario A: One Cable (2-3 Wires) Entering the Box

This scenario is common when the GFCI is at the end of a circuit or is the only outlet on a branch.

1. Koppel die LINE Hot (black) wire from the electrical box to the LINE Hot Terminal (brass screw) on the GFCI.
2. Koppel die LYN Neutraal (white) wire from the electrical box to the LINE White Terminal (silver screw) on the GFCI.
3. Koppel die Grond (bare copper or green) wire from the electrical box to the Aardingterminaal (green screw) on the GFCI. If the box has a grounding terminal, connect the ground wire from the cable to it, then run a pigtail to the GFCI's grounding terminal.
4. Cap off or insulate the LAAI terminals on the GFCI. Do not connect any wires to the LOAD terminals in this scenario.

Scenario B: Two Cables (4-6 Wires) Entering the Box

This scenario is used when the GFCI will protect other downstream outlets or devices.

1. Verbind die inkomende LINE Hot (black) wire to the LINE Hot Terminal (brass screw) on the GFCI.
2. Verbind die inkomende LYN Neutraal (white) wire to the LINE White Terminal (silver screw) on the GFCI.
3. Connect the outgoing LOAD Hot (black) wire to the LOAD Hot Terminal (brass screw, typically covered by yellow tape) on the GFCI.
4. Connect the outgoing LOAD Neutral (white) wire to the LOAD White Terminal (silver screw, typically covered by yellow tape) on the GFCI.
5. Koppel almal Grond wires (bare copper or green) together with a wire connector, then run a pigtail to the Aardingterminaal (green screw) on the GFCI. If the box has a grounding terminal, connect the ground wires from the cables to it, then run a pigtail to the GFCI's grounding terminal.

Image 5.2: Detailed wiring diagrams for common installation scenarios: single cable and dual cable connections.

5.4. Finale Stappe

1. Carefully push the wired GFCI outlet back into the electrical box.
2. Secure the GFCI to the electrical box using the provided mounting screws.
3. Attach the decorator wall plate using the provided screws.
4. Herstel die kragtoevoer by die hoofdienspaneel.
5. Druk die TERUGSTEL button on the GFCI. The green LED indicator should illuminate, indicating proper function.
6. Voer die TOETS procedure as described in the "Operating Instructions" section to ensure proper operation.

6. Bedryfsinstruksies

6.1. LED-aanwyserstatus

• Groen LED AAN: The GFCI is functioning correctly and providing protection.
• Rooi LED AAN: The GFCI has reached its end-of-life and can no longer provide ground fault protection. It must be replaced immediately.
• Red LED Blinking (briefly, every 40 seconds): This indicates the automatic self-test is occurring. This is normal operation.
• No LED ON (when power is present): The GFCI is tripped or malfunctioning. Press the RESET button. If it does not reset, check wiring or replace the unit.

6.2. Manual Test Procedure

It is recommended to test your GFCI outlet monthly to ensure proper operation.

1. Prop alamp or radio into the GFCI receptacle and turn it ON.
2. Druk die TOETS knoppie. Die lamp/radio should turn OFF, and the GFCI should trip (the RESET button will pop out, and the green LED may turn off or a red LED may appear depending on the model's specific indicator behavior after trip).
3. Druk die TERUGSTEL knoppie. Die lamp/radio should turn ON, and the GFCI should reset (the RESET button will go in, and the green LED should illuminate).
4. If the GFCI does not trip when the TEST button is pressed, or if it does not reset when the RESET button is pressed, it is malfunctioning and must be replaced.

6.3. Automatic Self-Test

Your ANKO GFCI outlet performs an automatic internal self-test every 40 seconds to confirm its ability to respond to a ground fault. During this brief test, the red LED may blink once. This is a normal function and indicates the GFCI is continuously monitoring its protective capabilities.

7. Onderhoud

• Regularly test the GFCI outlet monthly as described in the "Operating Instructions" section.
• Keep the outlet clean. Wipe with a dry, soft cloth. Do not use liquid cleaners or aerosols.
• If the red LED illuminates continuously, the GFCI has reached its end-of-life and needs to be replaced.
• Do not attempt to repair the GFCI outlet. If it malfunctions, replace it with a new one.

8. Probleemoplossing

9. Waarborg en Ondersteuning

ANKO products are manufactured to high-quality standards. For warranty information, technical support, or customer service inquiries, please refer to the contact information provided on the product packaging or visit the official ANKO webwebwerf. Bewaar asseblief u bewys van aankoop vir waarborgeise.

For further assistance, you may contact ANKO customer support through their official channels. Always provide your product model number (ANKPS-301-4P) when seeking support.
