Inleiding
Thank you for choosing the Anko Wireless Doorbell. This instruction manual provides detailed guidance on how to set up, operate, and maintain your new doorbell system. Designed for convenience and reliability, this plug-and-play kit offers a wide operating range, multiple chime options, and adjustable volume levels to suit your needs.
The Anko Wireless Doorbell kit, featuring a sleek white receiver and a compact push button transmitter.
Pakketinhoud
Maak asseblief seker dat alle items in u pakket teenwoordig is:
- 1 x drukknoppie (sender)
- 1 x Plugin Chime (Receiver)
- 2 x skroewe
- 1 x Dubbelzijdige kleefband
- 1 x 12V 23A battery for Transmitter (pre-installed or included separately)

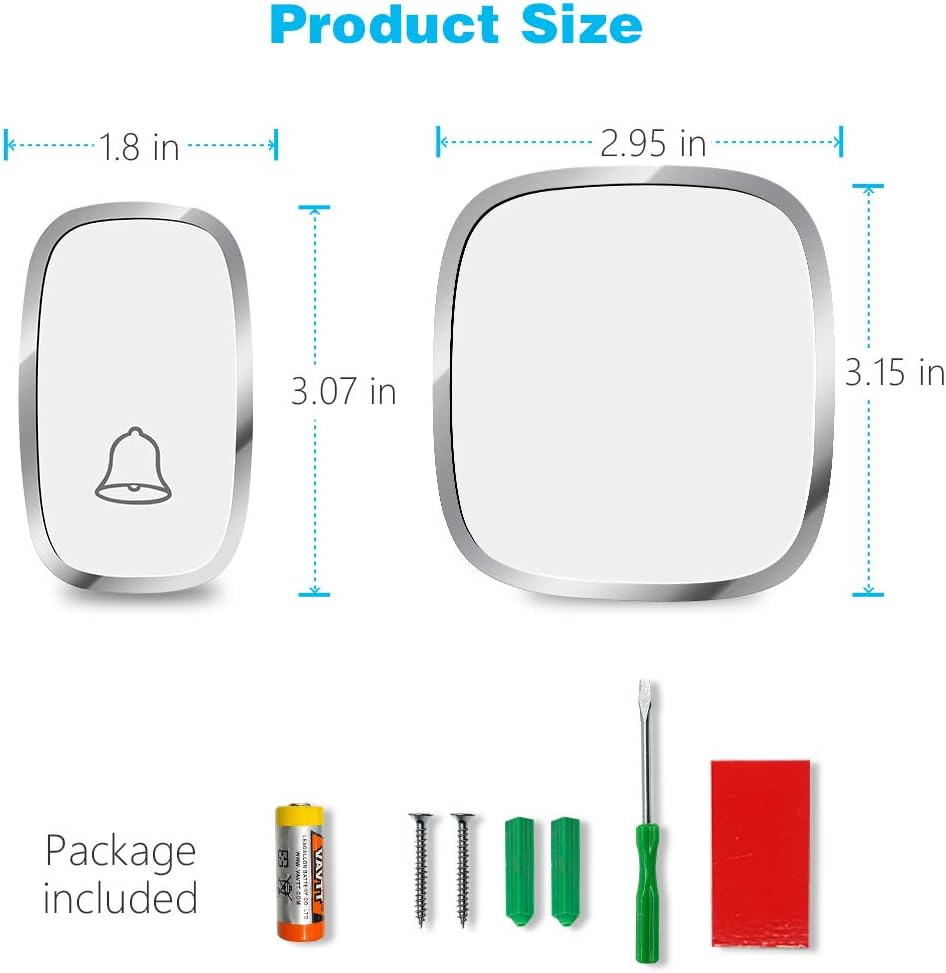

All components included in the Anko Wireless Doorbell package, ready for installation.
Opstelling
The Anko Wireless Doorbell is designed for easy, plug-and-play installation. No complex wiring is required.
1. Install the Transmitter (Push Button)
The transmitter is powered by a 12V 23A battery (included). It can be mounted using either the provided adhesive tape or screws.
- Installasie van kleefband: Clean the desired mounting surface thoroughly. Peel off one side of the double-sided adhesive tape and apply it to the back of the transmitter. Peel off the other side and firmly press the transmitter onto the wall or door frame.
- Skroef installasie: Open the back cover of the transmitter. Use the provided screws to secure the back plate to the wall or door frame. Snap the transmitter unit back onto the secured plate.
Ensure the transmitter is placed in a location where it is easily accessible to visitors and within the operating range of the receiver.
2. Install the Receiver (Plug-in Chime)
Simply plug the receiver into any standard AC 110V ~ 220V 50Hz / 60Hz wall outlet. Choose a central location in your home where the chime can be easily heard.
Visual guide for the two installation methods: adhesive for quick setup, or screws for a more permanent fixture.
The doorbell offers an impressive 1000 feet (300 meters) operating range in open space, ensuring reliable signal transmission throughout your property.
Bedryfsinstruksies
Changing Chime Melodies
The receiver offers 36 different chime melodies. To change the melody, press the 'Music Options' button on the side of the receiver. Each press will cycle through the available tunes. Stop pressing when you find your preferred melody.
Aanpassing van volume
The doorbell features 4 adjustable volume levels, ranging from 25dB to 85dB. To adjust the volume, press the 'Volume Level' button on the side of the receiver. Each press will cycle through the volume settings.
LED Flash Indicator
The receiver is equipped with a blue LED flash indicator. This feature provides a visual alert when the doorbell is pressed, which is particularly useful for individuals with hearing impairments or in noisy environments.
The receiver unit showcasing its 36 music options and 4 adjustable volume levels, from a quiet 25dB to a loud 85dB.
The blue LED flash on the receiver provides a visual cue, making it ideal for the hearing impaired or in loud settings.
Onderhoud
Skoonmaak
Wipe the doorbell units with a soft, dry cloth. Do not use abrasive cleaners or solvents, as these may damage the finish.
Senderbattery vervanging
The transmitter is powered by a 12V 23A battery. If the transmitter stops working or the signal weakens, it may be time to replace the battery. To replace, open the back cover of the transmitter, remove the old battery, and insert a new 12V 23A battery, ensuring correct polarity.
Waterbestandheid (IP44)
The transmitter (push button) is rated IP44 dustproof and waterproof, meaning it is protected against solid objects larger than 1mm and splashing water from any direction. While it can withstand rain, avoid submerging it in water.
The IP44 rating ensures the transmitter is dustproof and waterproof, suitable for outdoor use in various weather conditions.
Probleemoplossing
| Probleem | Moontlike oorsaak | Oplossing |
|---|---|---|
| Die deurklokkie lui nie. | Transmitter battery is dead or low. Receiver is unplugged or not powered. Units are out of range. | Replace the 12V 23A battery in the transmitter. Ensure the receiver is securely plugged into a working outlet. Move the receiver closer to the transmitter. |
| Kort bedryfsbereik. | Interference from metal structures or other electronic devices. Thick walls or obstacles. | Relocate the receiver or transmitter to minimize interference. Avoid placing units near large metal objects. |
| Chime sounds intermittently or unexpectedly. | Interference from other wireless devices. Low battery in transmitter. | Change the chime melody to see if it resolves the issue. Replace the transmitter battery. |
Spesifikasies
| Kenmerk | Detail |
|---|---|
| Modelnommer | ANKOWD01 |
| Wireless Range | 1000 feet (300 meters) maximum in open air |
| Chime Options | 36 melodieë |
| Volumevlakke | 4 vlakke (25dB tot 85dB) |
| Ontvanger krag | AC 110V ~ 220V 50Hz / 60Hz |
| Sender Krag | 1 x 12V 23A battery |
| Waterproof Rating (Transmitter) | IP44 (Stofdig en Waterdig) |
| Beheer metode | Raak |
| Produk Dimensies (Sender) | 1.8 x 3.07 duim (ongeveer) |
| Produk Dimensies (Ontvanger) | 2.95 x 3.15 x 2.25 duim (ongeveer) |
| Item gewig | 5.6 onse |
| UPC | 638183953648 |
Waarborg en Ondersteuning
Anko products are manufactured to the highest quality standards. For warranty information or technical support, please refer to the contact details provided on your product packaging or visit the official ANKO webwebwerf. Bewaar asseblief u bewys van aankoop vir enige waarborgeise.
