1. Introduction
The Novastar V760 is a high-performance, two-in-one video processor and full-color LED display control system designed for large screen applications. It integrates video processing, screen control, and configuration functions into a single device, offering versatile input and output options for various display scenarios. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your V760 unit.
2. Safety Information
- Ensure the power supply voltage matches the requirements specified on the device.
- Do not expose the device to rain, moisture, or extreme temperatures.
- Avoid blocking ventilation openings to prevent overheating.
- Do not attempt to open or service the device yourself. Refer all servicing to qualified personnel.
- Disconnect power before cleaning or performing any maintenance.
3. Package Contents
Please check the package contents upon receipt. If any items are missing or damaged, contact your supplier immediately.
- 1x Novastar V760 Video Processor Unit
- 1x Power Cable
- 1x USB Cable
- 1x DVI Cable
- 1x HDMI Cable
- 1x Quick Guide (Chinese)
- 1x Certificate of Conformity (Chinese)
4. Product Overview
The Novastar V760 features a robust design with a user-friendly front panel and comprehensive connectivity on the rear panel.
4.1 Front Panel
The front panel includes a display screen, a control dial, and various buttons for input selection and system navigation.
Figure 4.1: Novastar V760 Front and Rear Panels (Note: Only supports Chinese operating systems)
4.2 Rear Panel
The rear panel provides all necessary input and output ports for connecting video sources, control devices, and LED displays.
- USB Ports: For connecting a control PC and USB storage devices.
- HDMI Inputs: For high-definition video sources.
- DVI Inputs: For digital video interface sources.
- VGA Input: For analog video graphics array sources.
- CVBS Input: For composite video broadcast signal sources.
- RJ45 Output: Ethernet ports for connecting to LED display panels.
- Power Input: AC power connector.
5. Setup
Follow these steps to set up your Novastar V760 video processor:
- Placement: Place the V760 on a stable, flat surface or mount it in a standard rack. Ensure adequate ventilation around the unit.
- Connect Input Sources: Connect your video sources (e.g., computers, media players) to the appropriate HDMI, DVI, VGA, or CVBS input ports on the rear panel.
- Connect Control PC: Connect a control PC to the V760 via a USB cable. This PC will be used for configuring the LED display and managing the video processor.
- Connect LED Display: Connect the RJ45 output ports of the V760 to your LED display panels using Ethernet cables. Ensure correct cabling order for your specific LED display configuration.
- Connect Power: Connect the power cable to the V760's AC power input and then to a suitable power outlet.
- Power On: Turn on the power switch on the V760. The device will initiate its startup sequence.
Figure 5.1: Novastar V760 Typical Wiring Diagram
6. Operating Instructions
The Novastar V760 operates with a control interface that supports Chinese operating systems. Familiarity with the Chinese language is required for full functionality.
- Initial Configuration: Upon first power-on or after a factory reset, you will need to configure the LED display parameters using the control software on your connected PC. This includes screen resolution, refresh rate, and mapping of LED modules.
- Input Source Selection: Use the front panel buttons or the control software to select the desired video input source (HDMI, DVI, VGA, CVBS).
- Output Adjustment: Adjust output parameters such as brightness, contrast, and color temperature as needed to optimize the display quality.
- Saving Settings: Save your configuration settings to prevent loss during power cycles.
7. Maintenance
- Cleaning: Use a soft, dry cloth to clean the exterior of the device. Do not use liquid or aerosol cleaners.
- Ventilation: Regularly check that the ventilation openings are clear of dust and debris to ensure proper airflow.
- Storage: When not in use for extended periods, store the device in a cool, dry place, away from direct sunlight and extreme temperatures.
- Firmware Updates: Check the manufacturer's website periodically for firmware updates to ensure optimal performance and access to new features.
8. Troubleshooting
- No Power: Ensure the power cable is securely connected and the power outlet is functional. Check the power switch on the unit.
- No Signal on LED Display: Verify that input sources are correctly connected and active. Check the selected input source on the V760. Ensure Ethernet cables to the LED display are properly connected and the display is powered on.
- Distorted or Incorrect Display: Check the LED display configuration settings (resolution, mapping) in the control software. Ensure the input signal format and resolution are compatible with the V760 and the LED display.
- Control Software Issues: Ensure the USB cable connecting the control PC is secure. Restart the control software and/or the V760 unit.
9. Specifications
9.1 General Specifications
| Feature | Specification |
|---|---|
| Power Interface | 100-240V AC, 50/60Hz |
| Power Consumption | 12 W |
| Operating Temperature | -20°C to 60°C |
| Operating Humidity | 20%RH to 90%RH (non-condensing) |
| Storage Temperature | 10%RH to 95%RH (non-condensing) |
| Product Dimensions (L×W×H) | 482.6 mm × 250.0 mm × 50.0 mm |
| Product Weight | 2.8 kg |
| Total Package Weight | 6 kg |
| Noise Level (Typical, 25°C/77°F) | 38dB (A) |
Figure 9.1: Novastar V760 Dimensional Drawing
9.2 Video Source Characteristics
| Input Interface | Bit Depth | Signal Format | Max Input Resolution |
|---|---|---|---|
| HDMI 1.3 | 8bit | RGB4:4:4 | 1920 × 1080@60Hz |
| YCbCr4:4:4 | 1920 × 1080@60Hz | ||
| YCbCr4:2:2 | 1920 × 1080@60Hz | ||
| YCbCr4:2:0 | Not supported | ||
| HDMI 1.3 | 10bit | RGB4:4:4 | 1920 × 1080@60Hz |
| YCbCr4:4:4 | 1920 × 1080@60Hz | ||
| YCbCr4:2:2 | 1920 × 1080@60Hz | ||
| YCbCr4:2:0 | Not supported | ||
| HDMI 1.3 | 12bit | - | Not supported |
| DVI | 8bit | RGB4:4:4 | 1920 × 1080@60Hz |

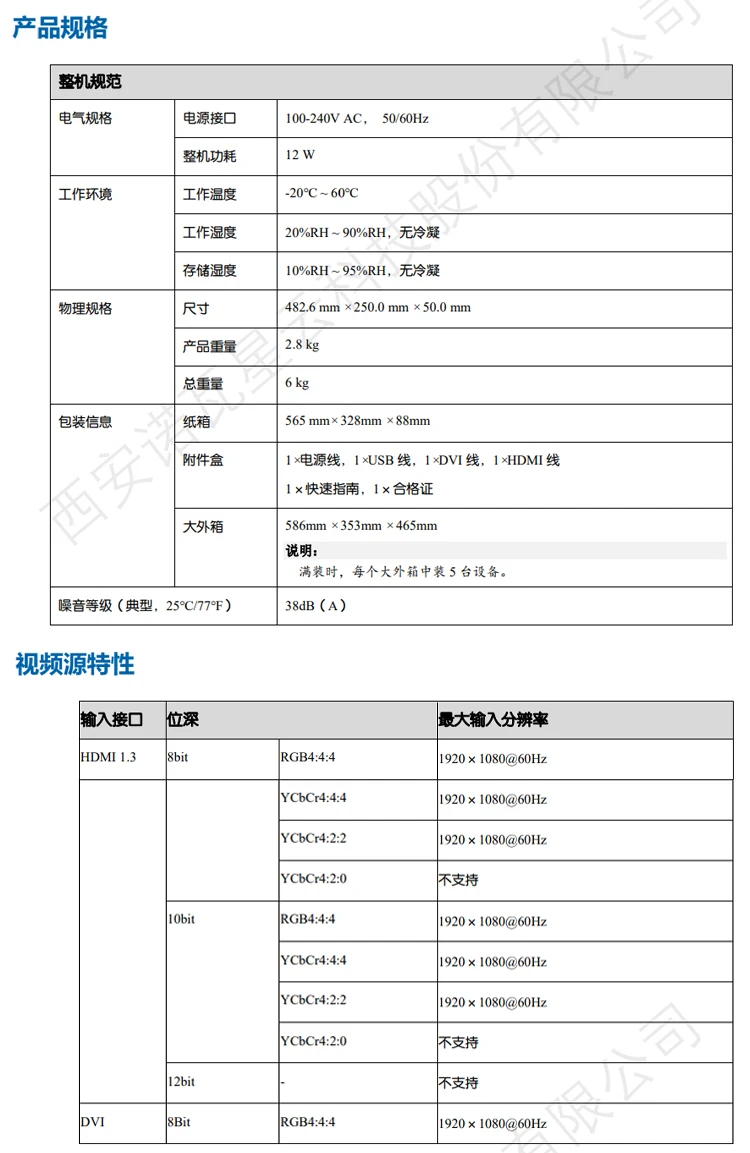

Figure 9.2: Novastar V760 Video Source Characteristics (Original Chinese table for reference: View Image)
10. User Tips
- Language Limitation: Please note that the Novastar V760's operating system and control software primarily support Chinese. Users should be prepared for this language requirement during setup and operation.
- Software Compatibility: Ensure you use the official Novastar control software compatible with the V760 model for optimal performance and stability.
- Cable Quality: Use high-quality HDMI, DVI, USB, and Ethernet cables to ensure stable signal transmission, especially for long runs.
11. Warranty and Support
For warranty information, technical support, or service inquiries, please contact your original point of purchase or the official Novastar support channels. Keep your purchase receipt as proof of purchase.
