1. Product Overview
The Magic Chef MRC-L30B is a versatile mini electric pressure cooker designed for efficient and convenient cooking. With its 3-liter capacity, it is ideal for 3-4 servings, making it suitable for small families or individuals. It features a high-pressure cooking system, multiple cooking programs, and a user-friendly touch display.
2. Setup and Initial Use
2.1 Unpacking
Carefully remove all packaging materials. Ensure all components are present: the main unit, inner pot, rice paddle, and measuring cup.
2.2 Initial Cleaning
- Wash the inner pot, rice paddle, and measuring cup with warm, soapy water. Rinse thoroughly and dry.
- Wipe the exterior of the main unit with a damp cloth. Do not immerse the main unit in water.
- Ensure the detachable lid and its rubber gasket are clean and properly seated.
2.3 Placement
Place the pressure cooker on a stable, flat, heat-resistant surface, away from direct heat sources or water. Ensure there is adequate ventilation around the unit.
2.4 Assembling the Lid

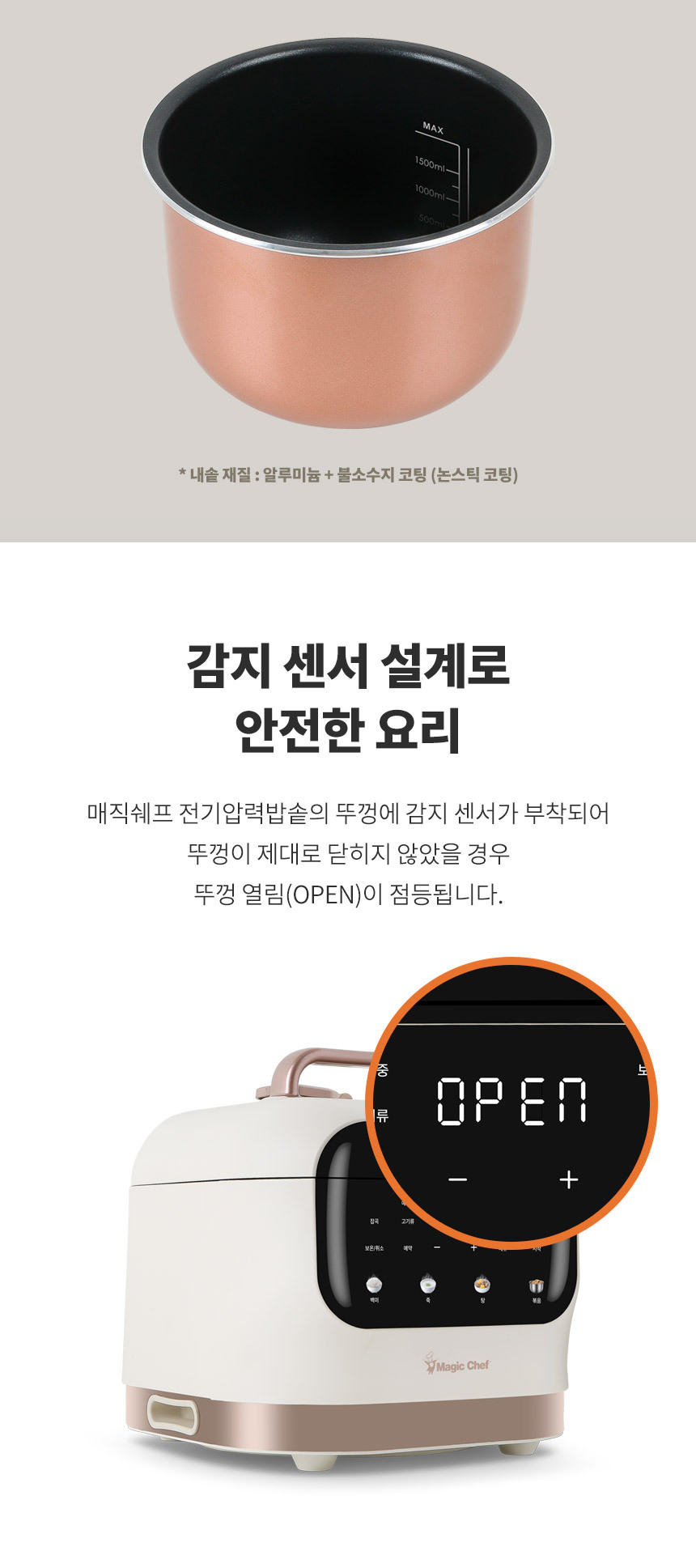

Ensure the lid is properly aligned and closed. The unit features a safety sensor that will display "OPEN" if the lid is not securely fastened.
3. Operating Instructions

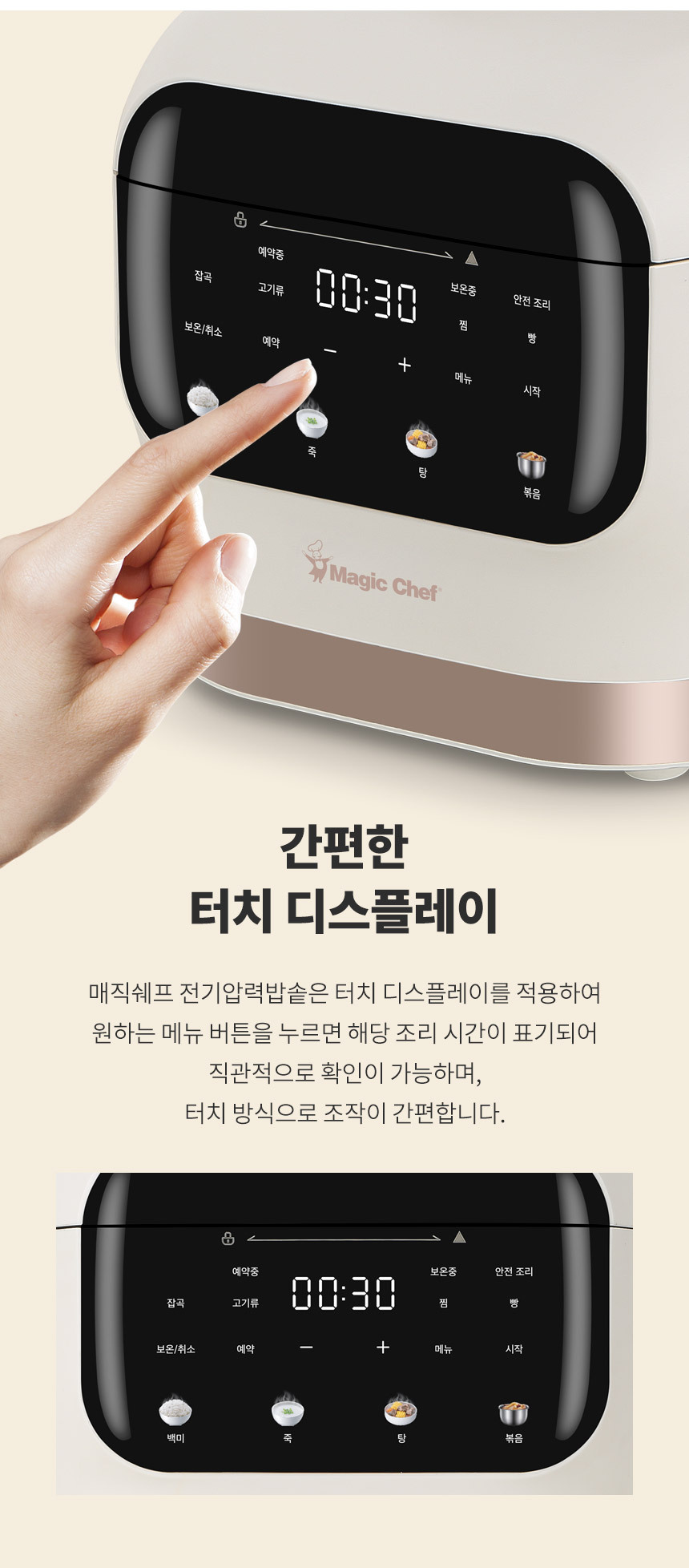

3.1 Control Panel and Touch Display
The MRC-L30B features an intuitive touch display for selecting cooking programs and adjusting settings. The display shows the remaining cooking time.

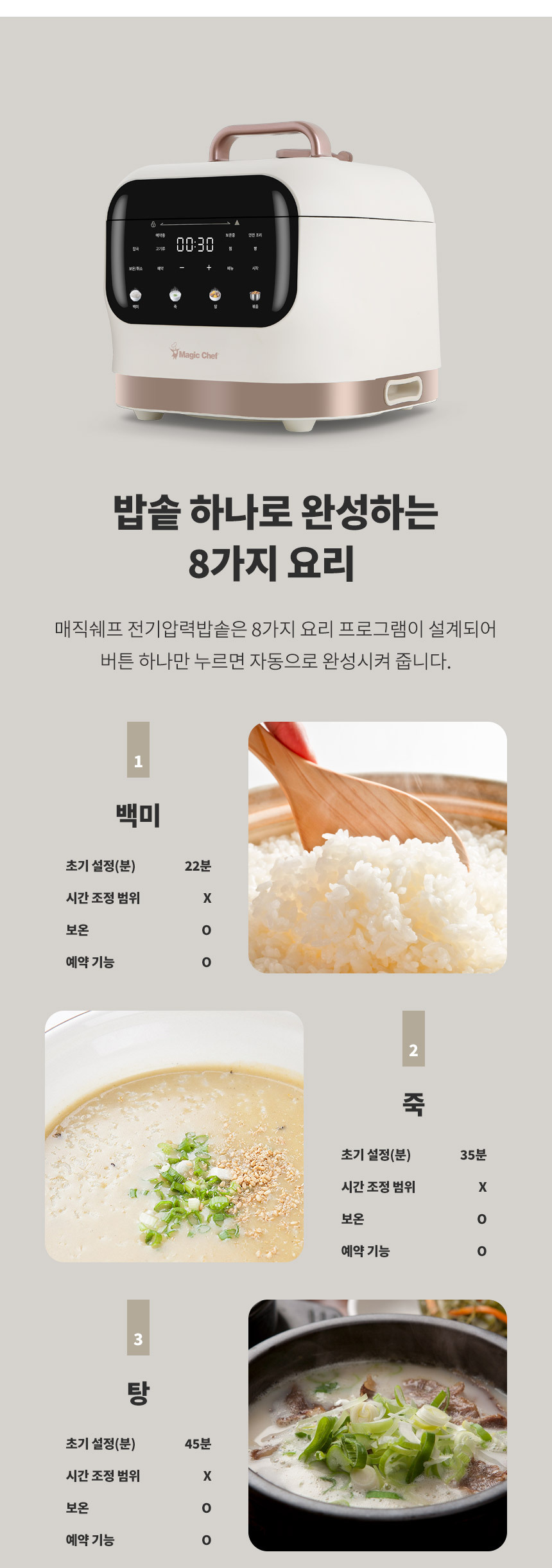

3.2 Cooking Programs
The cooker offers 8 pre-set cooking programs. Select the desired program by touching the corresponding icon on the control panel. The default cooking time will be displayed, and for some programs, it can be adjusted.
| Program | Default Time | Time Adjustment Range | Keep Warm | Reservation |
|---|---|---|---|---|
| White Rice | 22 min | N/A | Yes | Yes |
| Porridge | 35 min | N/A | Yes | Yes |
| Soup | 45 min | N/A | Yes | Yes |
| Mixed Grain | 30 min | 25-95 min | Yes | Yes |
| Meat | 40 min | 30-95 min | Yes | Yes |
| Stew | 45 min | 30-95 min | Yes | Yes |
| Bread | 45 min | 40-50 min | No | No |
| Stir-fry | 20 min | N/A | No | No |
3.3 Reservation Function
The reservation function allows you to set a delayed start time for your cooking. You can adjust the reservation time between 2 and 24 hours for compatible programs (White Rice, Porridge, Soup, Mixed Grain, Meat, Stew).
3.4 Keep Warm Function
After most cooking programs are complete, the cooker will automatically switch to the Keep Warm mode. This function can maintain food temperature for up to 24 hours. Note that the 'Bread' and 'Stir-fry' programs do not automatically enter Keep Warm mode.
4. Maintenance and Cleaning
Regular cleaning ensures optimal performance and longevity of your Magic Chef pressure cooker.
4.1 Inner Pot

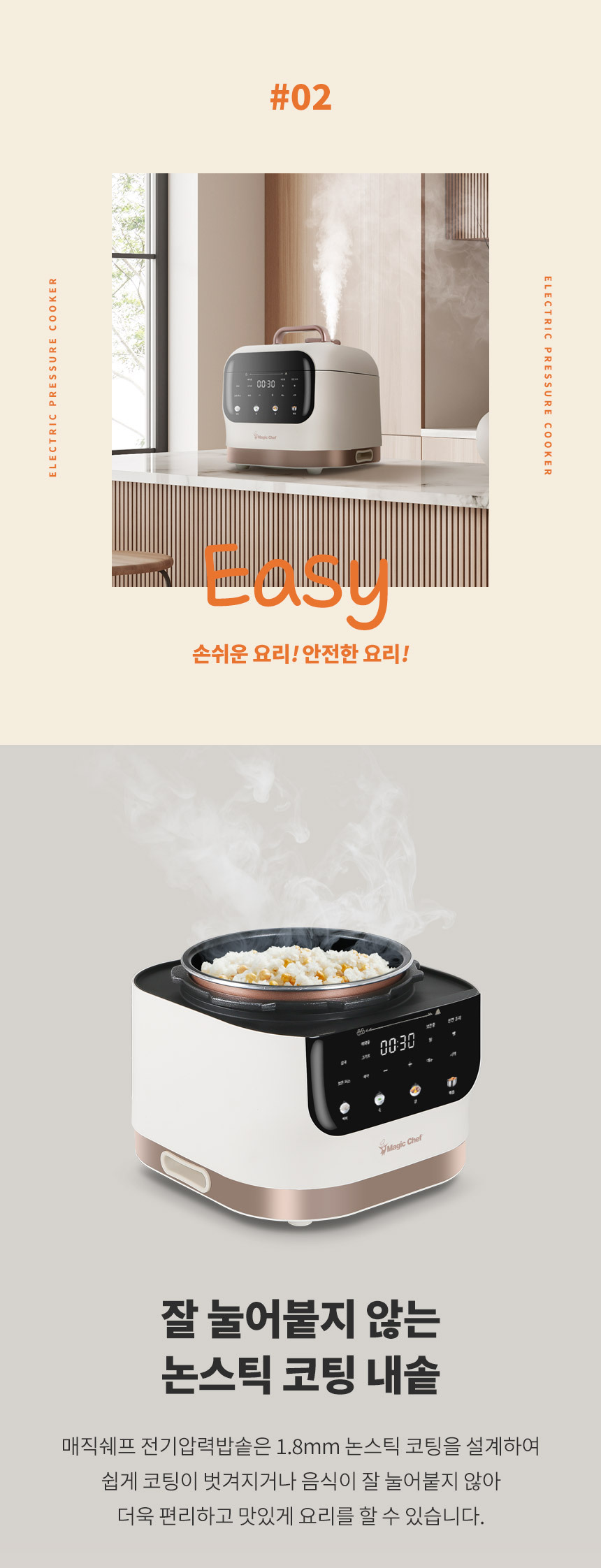

The inner pot features a durable 1.8mm non-stick coating. After each use, wash the inner pot with warm, soapy water and a soft sponge. Avoid abrasive cleaners or metal scouring pads that could damage the non-stick surface.

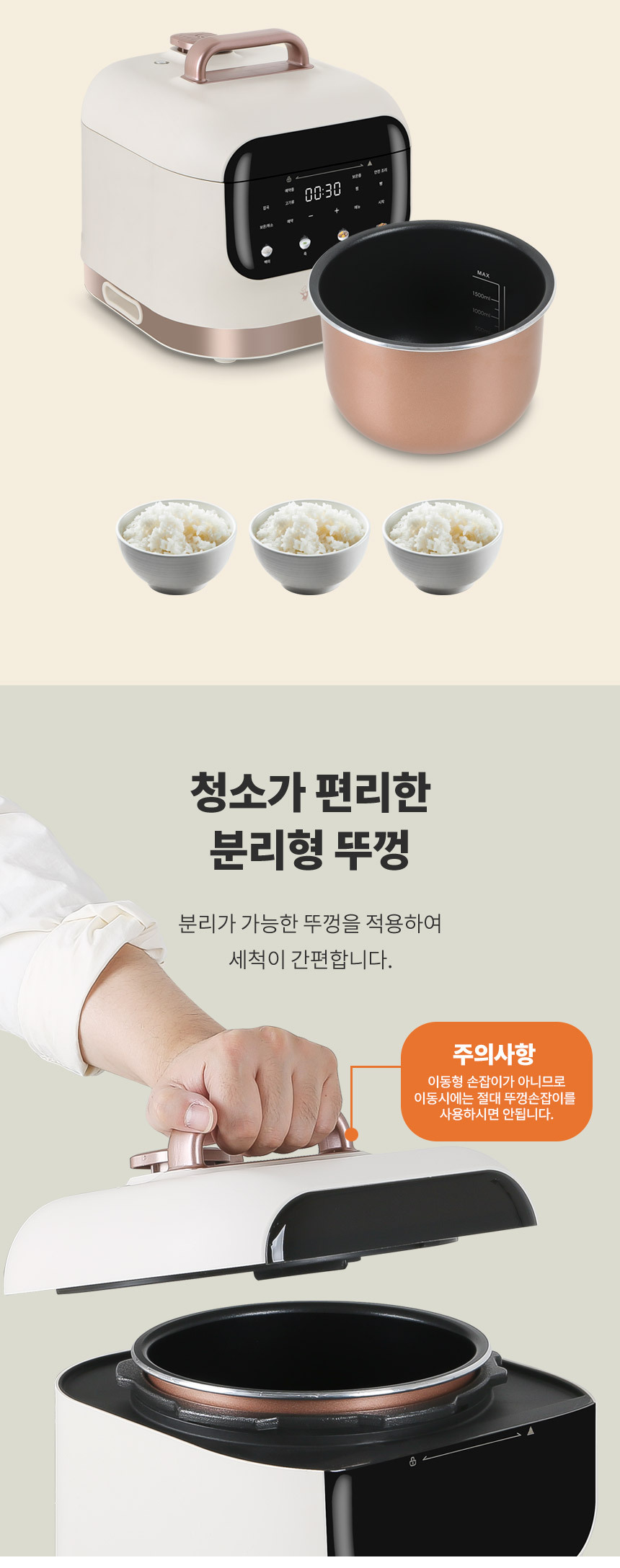

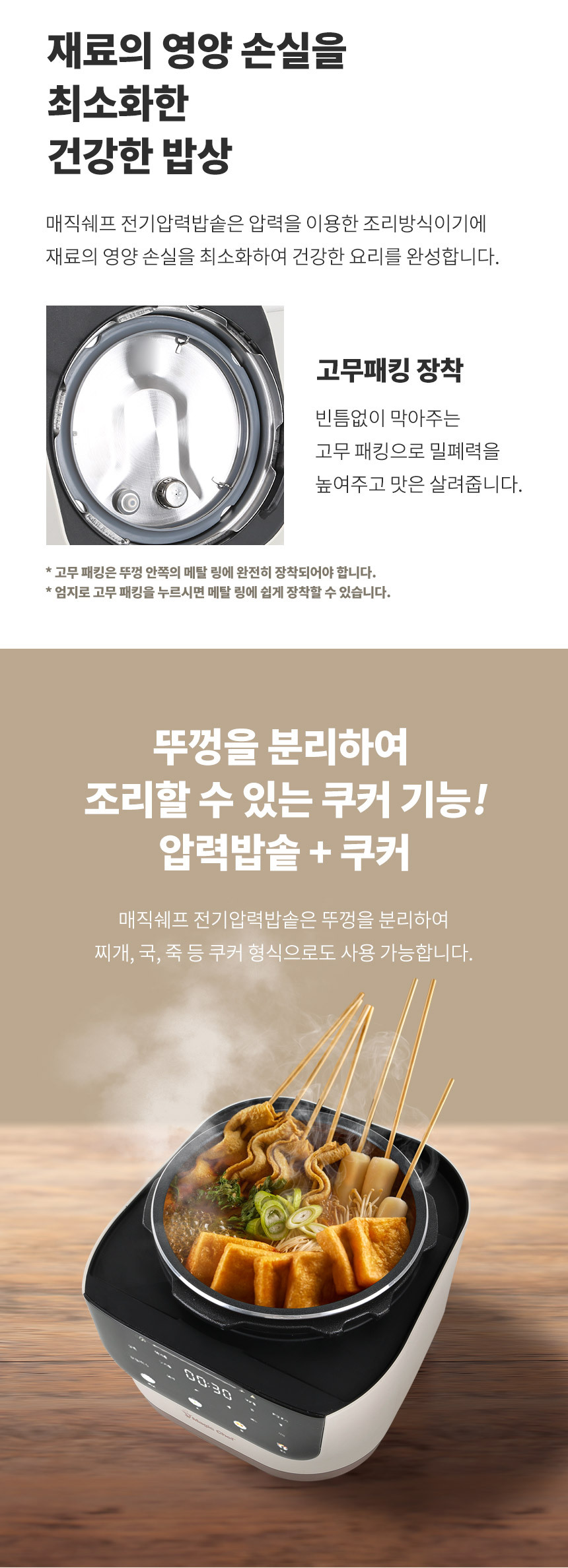

4.2 Detachable Lid
The lid is designed to be detachable for thorough cleaning. Remove the lid and wash it with warm, soapy water. Pay attention to the rubber gasket and ensure no food particles are trapped. Rinse and dry completely before reattaching.
4.3 Water Collector

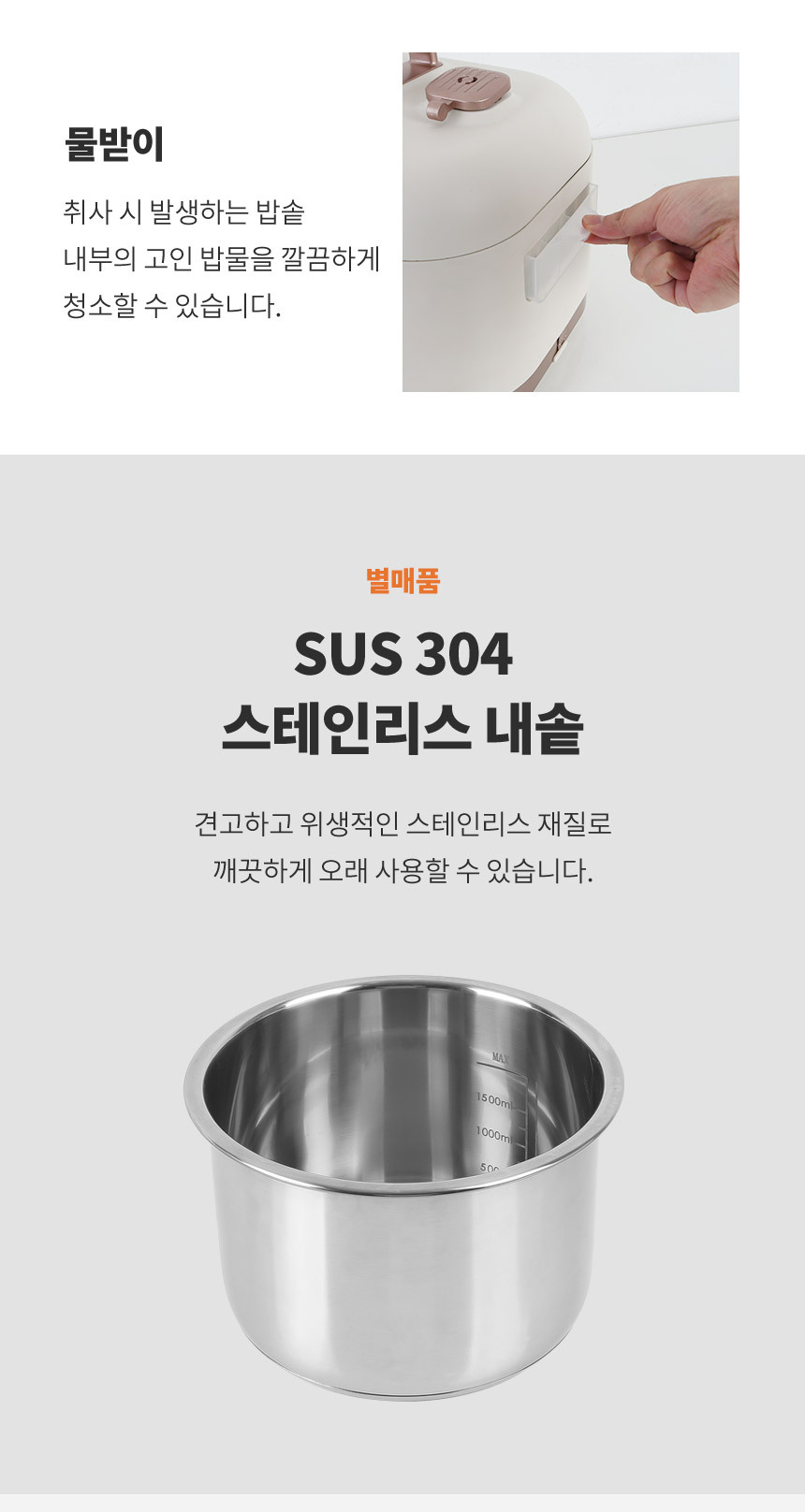

The water collector, located on the side of the unit, collects condensation during cooking. Regularly remove and empty the water collector, then wash and dry it before reattaching.
4.4 Exterior
Wipe the exterior of the main unit with a soft, damp cloth. Do not use harsh chemicals or abrasive materials. Ensure the unit is unplugged and cool before cleaning.
5. Troubleshooting
If you encounter any issues with your Magic Chef pressure cooker, please refer to the following common problems and solutions:
- Unit does not turn on: Ensure the power cord is securely plugged into both the cooker and a working electrical outlet.
- "OPEN" message on display: This indicates that the lid is not properly closed or locked. Open the lid, realign it, and close it firmly until the message disappears. The safety sensor prevents operation if the lid is not secure.
- Food not cooking properly: Verify that the correct cooking program was selected and that the water/ingredient ratios are accurate for the recipe. Ensure the inner pot is correctly seated.
- Excessive steam leakage: Check if the lid gasket is properly installed and clean. Ensure the lid is closed securely.
For issues not listed here, please contact customer support.

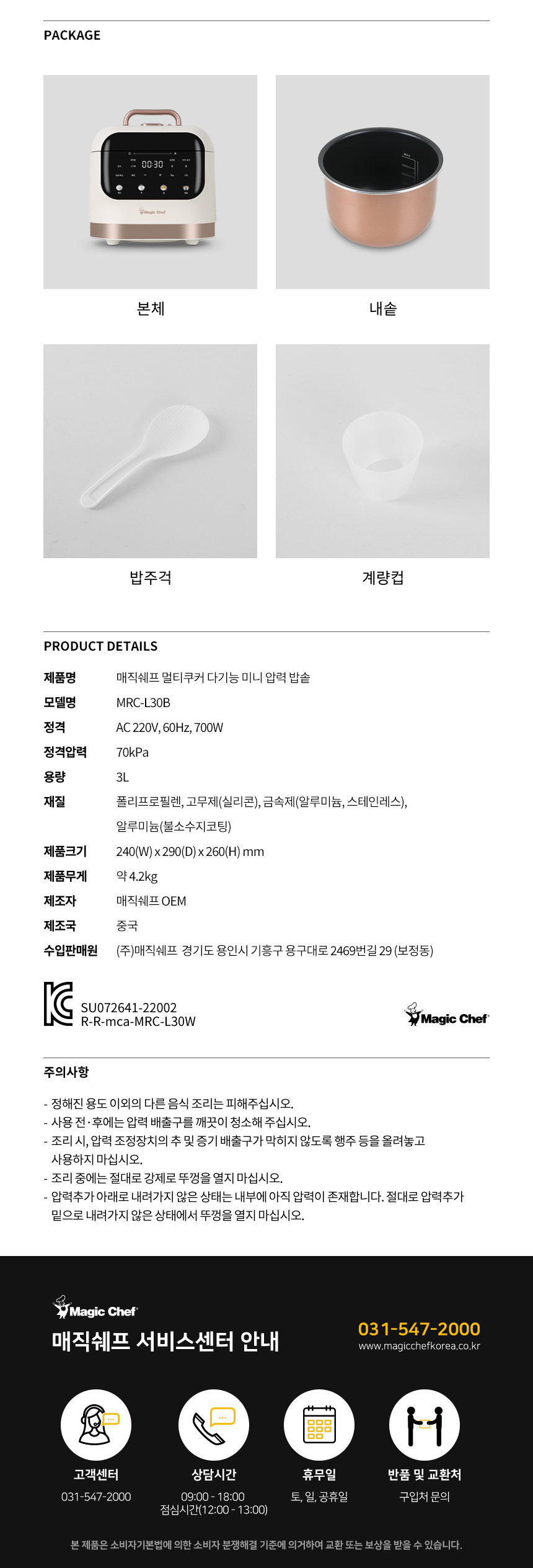

6. Specifications
| Feature | Specification |
|---|---|
| Model | MRC-L30B |
| Brand | Magic Chef |
| Type | Multi-functional Mini Electric Pressure Cooker |
| Capacity | 3 Liters (suitable for 3-4 servings) |
| Rated Voltage | AC 220V, 60Hz |
| Power Consumption | 700W |

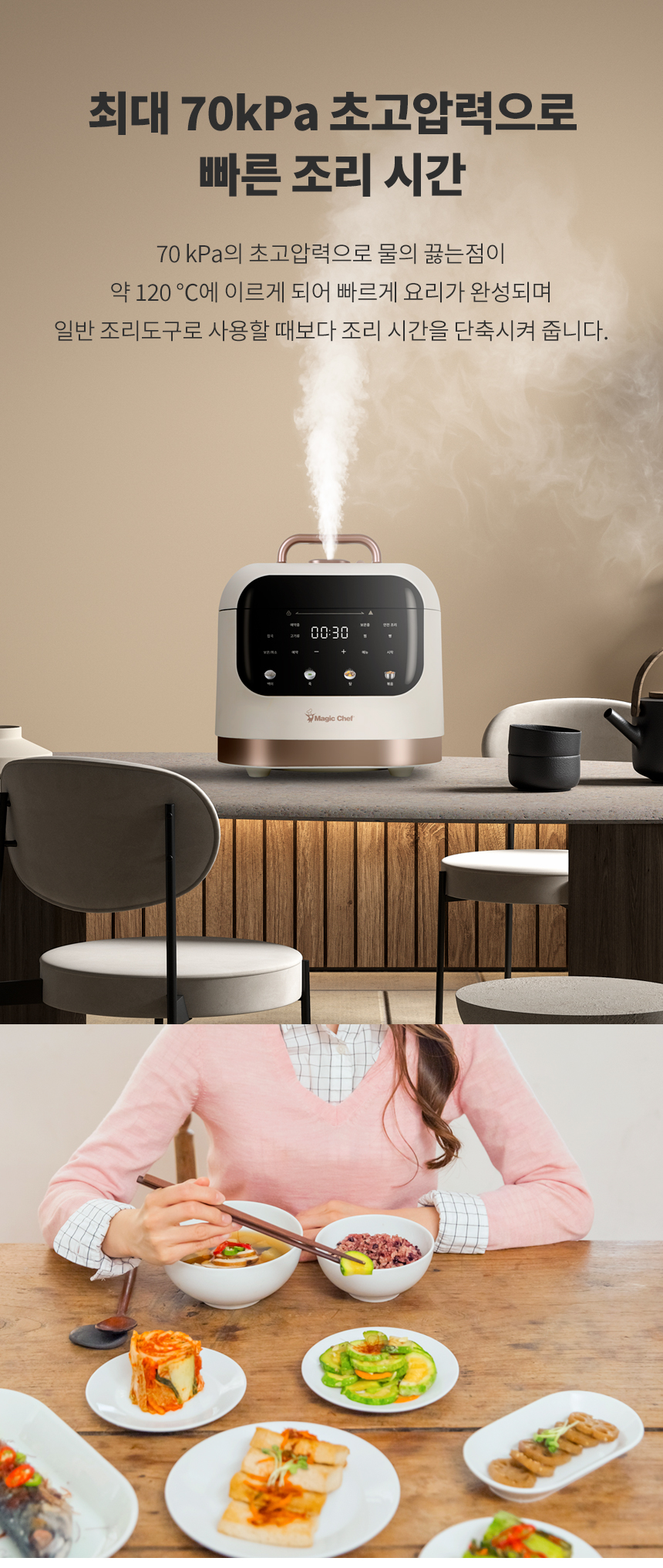

| Rated Pressure | 70kPa |
| Inner Pot Material | Aluminum alloy with 1.8mm fluororesin (non-stick) coating |

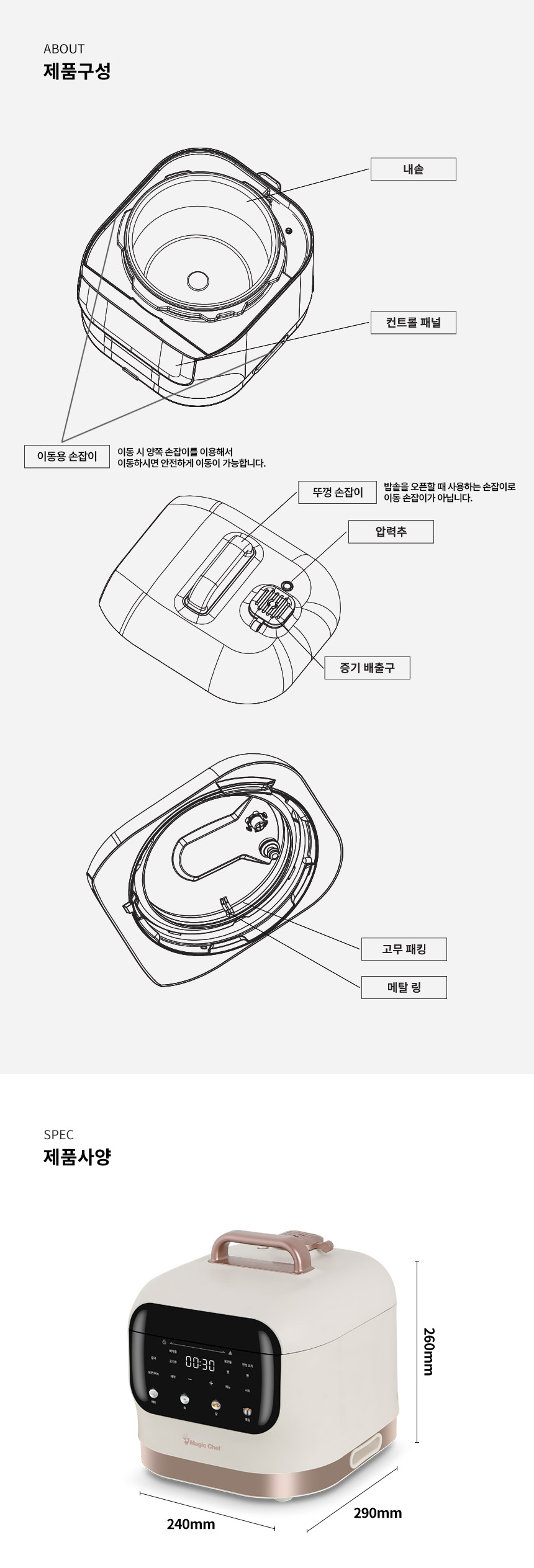

| Dimensions (W x D x H) | 240mm x 290mm x 210mm |
| Product Weight | 3.0 kg |
| Origin | Mainland China |
Note: An optional SUS 304 Stainless Steel inner pot may be available for separate purchase.
7. Warranty and Support
For product inquiries, technical support, or warranty claims, please contact Magic Chef customer service.
Customer Service Information:
- Phone: 02-714-3040
- Operating Hours: Monday - Friday, 10:00 AM - 5:00 PM (Lunch break: 12:00 PM - 1:00 PM)
- Closed: Saturdays, Sundays, and Public Holidays
8. User Tips
Based on user feedback, here are some tips to enhance your cooking experience:
- Water Levels: Always ensure you use the correct water-to-ingredient ratio for optimal results, especially for rice and porridge.
- Experiment with Mixed Grains: The adjustable time range for 'Mixed Grain' allows for customization. Experiment to find your preferred texture.
- Regular Cleaning: Consistent cleaning of the inner pot, lid, and water collector prevents residue buildup and maintains cooking efficiency.
- Safety First: Always double-check that the lid is securely closed before starting any pressure cooking program to avoid the 'OPEN' error and ensure safe operation.
