Delta DOP-100 Series 7-Inch HMI Display User Manual

1. Introduction

This manual provides essential information for the installation, operation, and maintenance of the Delta DOP-100 Series 7-inch Human Machine Interface (HMI) displays. The DOP-100 series offers a range of models designed for various industrial automation applications, providing intuitive control and monitoring capabilities.

Various Delta DOP-100 series HMI models — Figure 1: Overview of Delta DOP-100 Series HMI Displays.

2. Product Overview and Features

The Delta DOP-100 Series HMIs are advanced human-machine interfaces featuring a 7-inch display. They are designed for robust performance in industrial environments, offering a variety of communication options and user-friendly functionalities.

2.1 Key Features Across DOP-100 Series

Embedded Linux System: Provides an open and stable platform for program development.
LUA Language Support: Simple and structural programming language to meet diverse application demands.
DIAScreen Software: New software offering enhanced functions and a better user interface.
Wide Operating Temperature: Applicable in various industrial operation environments (0ºC ~ 50ºC).
CE / UL Certified: Compliant with international safety and quality standards.
High Durability: Touch panel validated for over 10,000,000 pressing times.
IP65 Rating: Protects the HMI from rain and dust ingress.
Diagnostics Function: Collects and troubleshoots issues remotely.
Power Isolation: Protects the HMI from accidental surge interference.
VNC Remote Monitoring: Allows remote control via mobile devices.
File Support: Supports PDF and TXT file reading, and vivid GIF graphic elements.
User-Friendly: Intuitive operation interfaces for ease of use.

2.2 Model Type Definitions

The DOP-100 series includes different types, each with specific communication port configurations:

Diagram explaining HMI type definitions (B, D, C, E, W) — Figure 2: DOP-100 Series HMI Type Definitions.

B Type (Basic HMI): Features 2 Serial Communication Ports (D-sub x1). Example: DOP-107BV.
D Type (Basic HMI with Ethernet): Features 2 Serial Communication Ports (D-sub x1) and 1 Ethernet port (RJ45 x1). Example: DOP-107DV.
C Type (Standard HMI): Features 3 Serial Communication Ports (D-sub x2). Example: DOP-107CV.
E Type (Standard HMI with Ethernet): Features 3 Serial Communication Ports (D-sub x2) and 1 Ethernet Port (RJ45 x1). Example: DOP-107EV, DOP-107EG.
W Type (Advanced HMI): Features at least 2 Serial Communication Ports & 1 Ethernet Port, narrow frame design, and multi-language support. Example: DOP-107WV.

Specific feature sets for Basic, Standard, and Advanced models are detailed in the following figures:

Feature list for Basic HMI models (DOP-107BV, DOP-107SV, DOP-107DV) — Figure 3: Basic HMI Features (DOP-107BV, DOP-107SV, DOP-107DV).

Feature list for Standard HMI models (DOP-107CV, DOP-107EV, DOP-107EG) — Figure 4: Standard HMI Features (DOP-107CV, DOP-107EV, DOP-107EG).

Feature list for Advanced HMI models (DOP-107WV) — Figure 5: Advanced HMI Features (DOP-107WV).

3. Setup and Installation

3.1 Physical Installation

The HMI unit should be installed in a suitable industrial panel cutout. Refer to the dimensional drawings for precise cutout dimensions and mounting instructions for each model.

Dimensional drawings for DOP-107BV, DOP-107DV, DOP-107CV, DOP-107EV, DOP-107EG, DOP-107WV models, showing front, side, and rear dimensions, and panel cutout sizes. — Figure 6: Dimensional Drawings and Panel Cutout for DOP-100 Series HMIs.

Ensure adequate ventilation around the unit and maintain the specified operating temperature range of 0ºC to 50ºC.

3.2 Electrical Connections

Connect the HMI to a DC 24V power supply. Ensure the power supply is stable and within the specified voltage tolerance (+/- 15%). The HMI features power isolation to protect against surge interference.

Refer to the rear view images for specific port locations and types for your model:

Power Input: DC 24V terminal block.
Serial Communication Ports (COM1, COM2, COM3): D-sub connectors for RS-232, RS-422, and RS-485 communication. The number and type of ports vary by model (refer to Section 2.2).
Ethernet Port (LAN): RJ45 connector for high-speed Ethernet communication (available on D, E, and W type models).
USB Ports: USB Host and USB Slave ports for connecting peripherals or for data transfer.

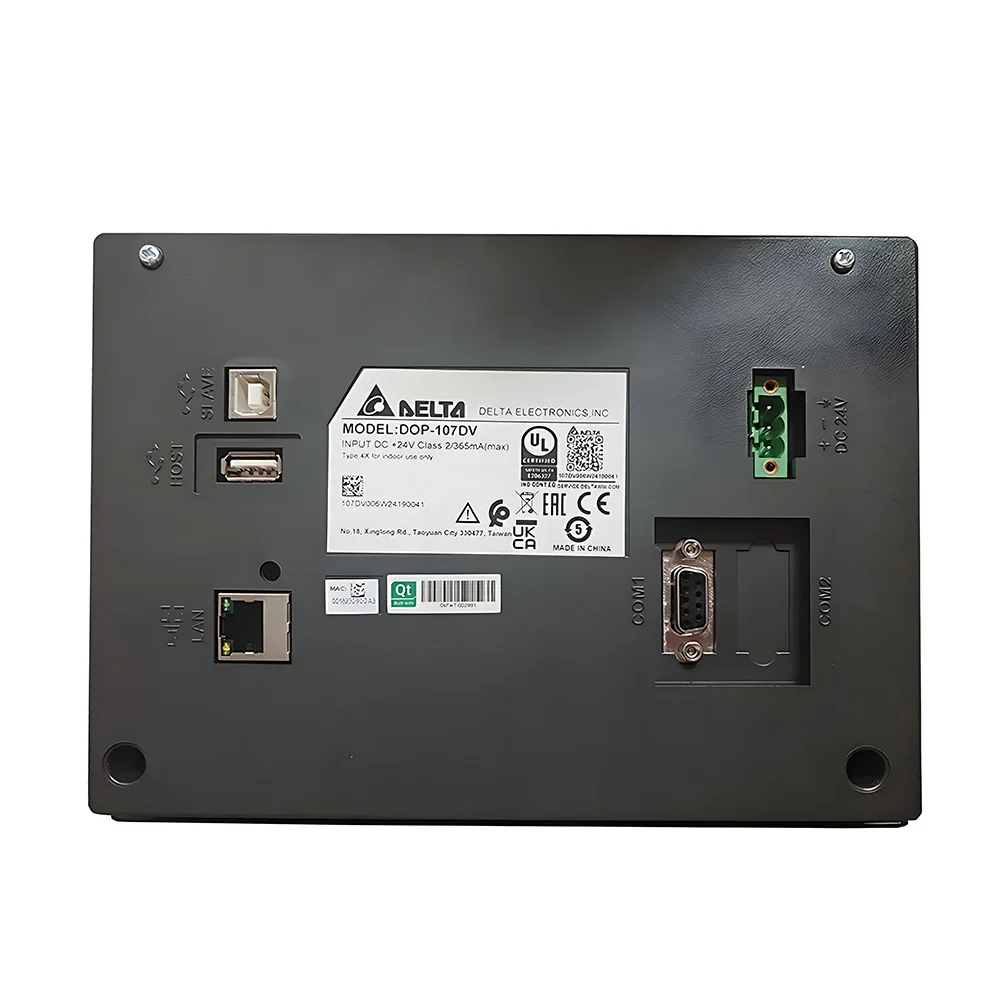

Rear view of DOP-107DV HMI showing DC 24V power input, COM1, COM2, LAN, and USB ports. — Figure 7: Rear View of DOP-107DV HMI.

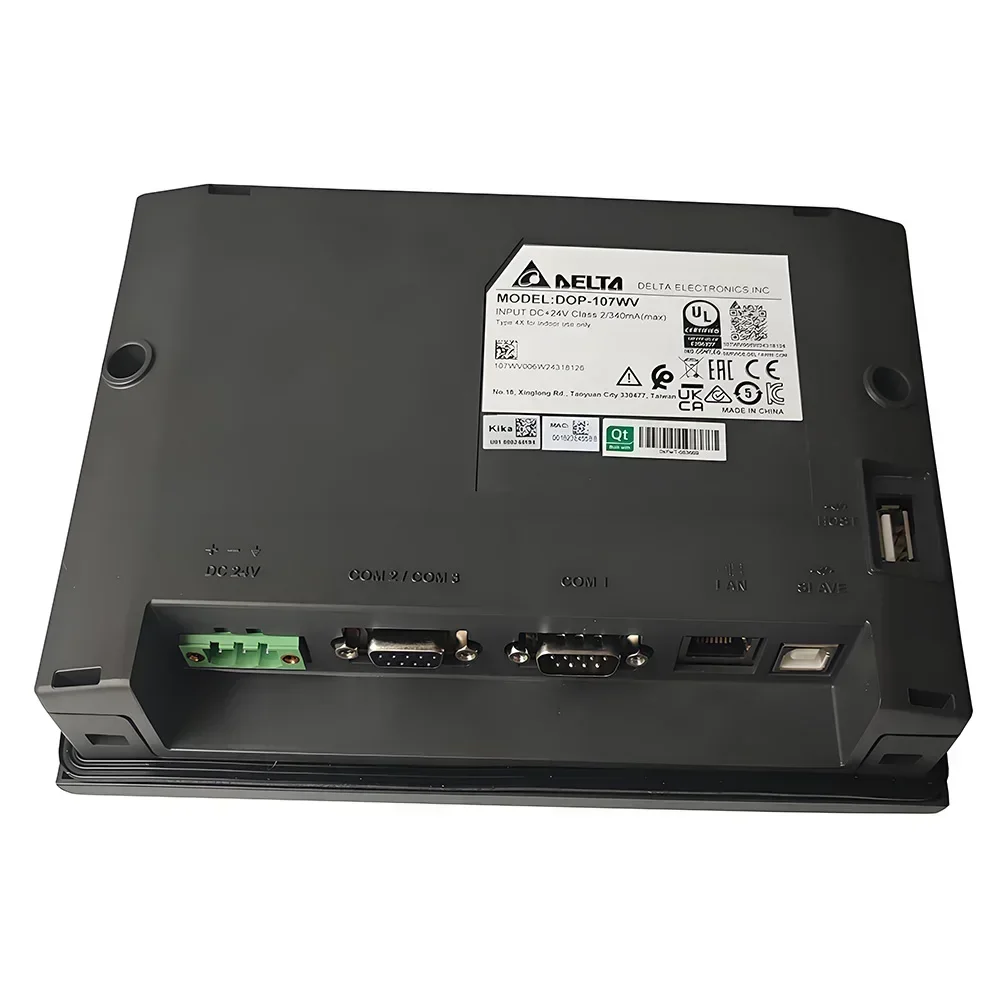

Rear view of DOP-107WV HMI showing DC 24V power input, COM1, COM2/COM3, LAN, and USB ports. — Figure 8: Rear View of DOP-107WV HMI.

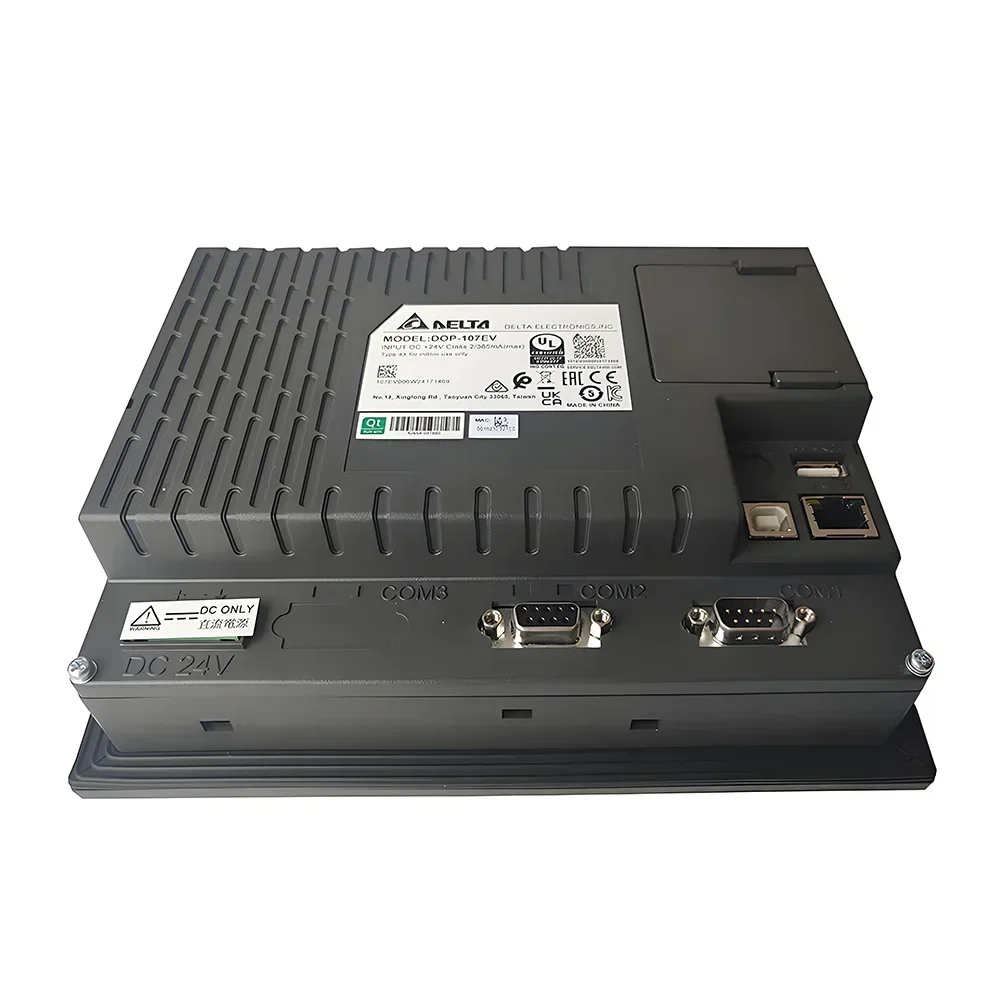

For other models, refer to the following images for port configurations:

3.3 Software Setup

The HMI utilizes the DIAScreen software for project development and configuration. Install the latest version of DIAScreen on your PC. The Embedded Linux System provides the operating environment for the HMI.

For detailed software instructions and downloads, please visit the official Delta Download Center:

Delta HMI Download Center

4. Operation

4.1 Basic Operation

The HMI features a responsive touch panel for intuitive interaction. Projects developed in DIAScreen can be uploaded to the HMI to display custom interfaces for controlling and monitoring industrial processes.

4.2 Communication

The HMI supports various communication protocols:

Ethernet Communication: Connects to master devices or PLCs via high-speed Ethernet.
Serial Communication: Utilizes RS-232, RS-422, and RS-485 for connecting to a wide range of industrial devices. Communication isolation circuits enhance stability.

4.3 Advanced Functions

VNC Remote Monitoring: Allows users to remotely monitor and control the HMI from mobile devices.
FTP/eMail Support: Enables simple data transmission and real-time status updates.
PDF and TXT Reader: View documentation directly on the HMI.
GIF Graphic Elements: Supports vivid GIF elements for dynamic displays.
Multilingual Input (DOP-107WV): Supports 16 different languages for easy operation.
OPC UA (DOP-107WV): Supports M2M communication and data transmission among machines.
QRCode Scanning (DOP-107WV): Generates QRCodes for mobile device identification.

5. Maintenance

5.1 Environmental Considerations

The HMI is designed for industrial environments with an IP65 rating, protecting it from dust and water splashes. However, avoid exposing the unit to direct sunlight, extreme temperatures, or corrosive substances. Ensure the operating temperature remains between 0ºC and 50ºC.

5.2 Cleaning

To clean the display and casing, use a soft, damp cloth. Do not use abrasive cleaners or solvents, as these may damage the surface.

5.3 Diagnostics

The built-in Diagnostics Function helps in collecting and troubleshooting issues remotely. Regularly check system logs and diagnostic reports for optimal performance.

6. Troubleshooting

This section provides general guidance for common issues. For detailed troubleshooting, refer to the comprehensive manuals available on the Delta Download Center.

No Power:
- Verify the DC 24V power supply is connected correctly and providing the correct voltage.
- Check power cables and connections for any damage.
Display Not Responding:
- Ensure the HMI is powered on.
- If the screen is frozen, try a soft reset (if available) or power cycle the unit.
- Check for any physical damage to the touch panel.
Communication Issues:
- Verify cable connections for Ethernet and serial ports.
- Check communication settings in DIAScreen software (baud rate, parity, IP address, etc.).
- Ensure the connected PLC or device is properly configured and communicating.
Software/Project Upload Errors:
- Ensure the correct HMI model is selected in DIAScreen.
- Check USB or Ethernet connection for stability during upload.
- Verify project integrity and compilation status.

Utilize the HMI's built-in Diagnostics Function to identify and resolve issues more efficiently.

7. Specifications

The following table provides detailed performance and electrical specifications for the Delta DOP-100 Series 7-inch HMI models. For complete specifications, refer to the official product documentation.

Detailed HMI Performance Specification Table for DOP-107BV, DOP-107CV, DOP-107DV, DOP-107EV, DOP-107WV, DOP-107EG models, including display size, resolution, backlight, CPU, memory, communication ports, USB, Ethernet, SD card, buzzer, power input, power consumption, vibration endurance, shape size, cutout size, weight, and environmental specifications. — Figure 9: HMI Performance Specifications for DOP-100 Series.

Key specifications include:

Display Size: 7-inch TFT LCD
Resolution: 800 x 480 pixels (for most models), 1024 x 600 pixels (for DOP-107WV)
Backlight: LED Backlight
CPU: ARM Cortex-A8 (800 MHz)
Memory: Flash 256 MB, RAM 256 MB (some models have RAM 512 MB)
Touch Panel: Four-wire resistor, over 10,000,000 pressing times
Communication: RS-232, RS-485, RS-422 (specific configurations vary by model)
Ethernet: 10/100 Mbps auto-sensing (available on D, E, W types)
USB: 1 USB Slave Ver 2.0 / 1 USB Host Ver 2.0
Power Input: DC +24V (-15% / +15%), supplied by Class 2 or SELV circuit
Operating Temperature: 0ºC ~ 50ºC
Storage Temperature: -20ºC ~ 60ºC
Protection Rating: IP65 / NEMA4 / UL Type 4X (indoor use only)

8. Warranty and Support

The Delta DOP-100 Series HMIs are CE and UL certified, ensuring compliance with relevant safety and quality standards.

For technical support, additional documentation, software updates, and detailed warranty information, please refer to the official Delta Electronics website or contact your local Delta distributor.

A comprehensive collection of user manuals and related files can be found at the Delta Download Center:
