1. Introduction
Thank you for choosing the FOXSUR 12V/24V Smart Automotive Battery Charger. This high-power, intelligent charger is designed to maintain and restore various types of automotive batteries, ensuring optimal performance and extended lifespan. Featuring a large digital display, multiple charging modes, and advanced safety protections, this charger is an essential tool for car, motorcycle, and other vehicle owners.
This manual provides detailed instructions for the safe and effective use of your new battery charger. Please read it thoroughly before operation and keep it for future reference.
2. Safety Information
Always prioritize safety when working with electrical equipment and batteries. Failure to follow these instructions may result in electric shock, fire, or serious injury.
- Ensure the charger is disconnected from the AC power outlet before making or breaking connections to the battery.
- Operate the charger in a well-ventilated area.
- Wear eye protection and protective clothing when working with batteries.
- Keep children and unauthorized persons away from the charging area.
- Do not charge frozen batteries.
- Do not expose the charger to rain or excessive moisture.
- Avoid sparks or flames near the battery during charging, as batteries can produce explosive gases.
- If the power cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons to avoid a hazard.
3. Package Contents
Upon opening the package, please verify that all items are present and undamaged:
- FOXSUR 12V/24V Smart Automotive Battery Charger Unit
- Battery Clamps (Red for positive, Black for negative)
- AC Power Cord
- Instruction Manual (this document)
4. Product Features
- Sturdy and Durable Design: Features a main aluminum alloy shell for enhanced durability and a premium feel.
- Large Screen Color Display: Provides clear, remote viewing of charging status, including detection, power, current, voltage, and temperature.
- 8-Stage Intelligent Charging: An optimized charging process that is more battery-friendly, protecting against overcharge and helping restore drained batteries.
- Multiple Charging Current Options: Selectable currents of 2A, 8A, 20A, 25A, or automatic mode for wide applicability.
- BOOSTER Function: An all-new feature for 12V batteries, providing maximum current for worry-free car starting.
- Wide Battery Compatibility: Suitable for most battery types including Calcium, EFB, GEL, AGM, Wet, LiFePO4, and other lead-acid batteries.
- Automatic Temperature Detection: The charger automatically adjusts the charging voltage based on ambient temperature (e.g., Winter mode for -10°C, Summer mode for 28°C).
- Microprocessor Control (CPU): Ensures precise and efficient charging.

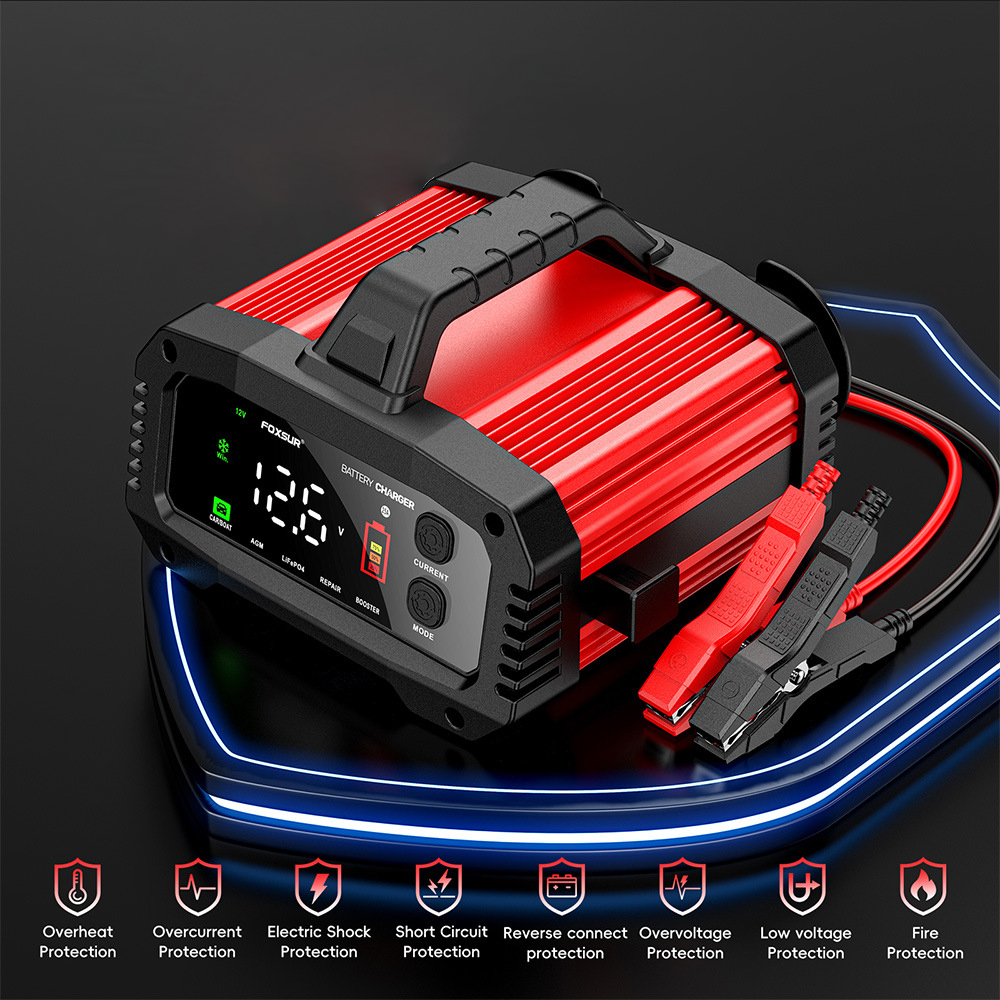

- Comprehensive Safety Protections: Includes polarity protection, output short protection, non-battery link protection, overvoltage protection, and over-temperature protection.
- Replaceable Power Cord: Designed for convenience and easy maintenance.
5. Specifications
| Attribute | Value |
|---|---|
| Manufacturer Part Number | 30011 |
| Origin | Mainland China |
| Material | Metal, Plastic |
| Input Voltage | 100-240V AC, 50-60Hz |
| Rated Output | 12V 25A, 24V 15A |
| Minimum Start Voltage | 5.0V |
| Battery Range | 6-400Ah |
| Thermal Protection | 65°C +/- 5°C |
| Efficiency | Approx. 85% |
| Cooling | Fan |
| Battery Types Supported | Calcium, GEL, AGM, EFB, Wet, LiFePO4, Lead Acid batteries |

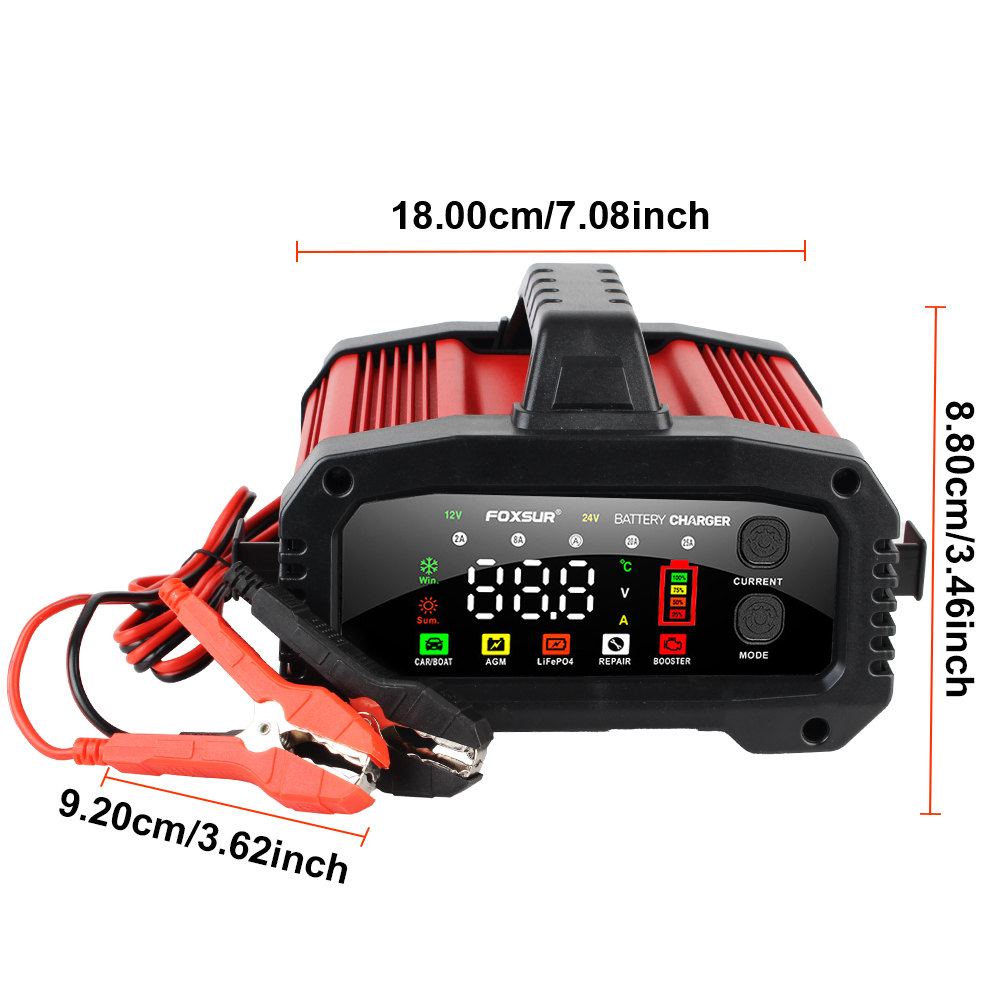

| Product Dimensions (L x H x W) | 18.00 cm (7.08 in) x 8.80 cm (3.46 in) x 9.20 cm (3.62 in) |
| Package Weight | 1.739 kg |
6. Setup
Follow these steps to set up your FOXSUR battery charger:
- Connect AC Power: Insert the AC power cord into the charger's power inlet, then plug the other end into a standard 100-240V AC wall outlet. The charger's display will light up.
- Connect Battery Clamps:
- Connect the RED (+) positive clamp to the positive terminal of the battery.
- Connect the BLACK (-) negative clamp to the negative terminal of the battery.
Ensure a secure connection. The charger will automatically detect the battery voltage (12V or 24V) and display the current battery status.
7. Operating Instructions
Once connected, the charger will automatically begin the charging process. You can adjust settings using the control buttons.
- Automatic Detection: The charger automatically detects the battery voltage (12V or 24V) and displays the current state. It also features auto temperature detection, adjusting charging voltage for optimal performance in different climates (Winter mode below 10°C, Summer mode above 28°C).

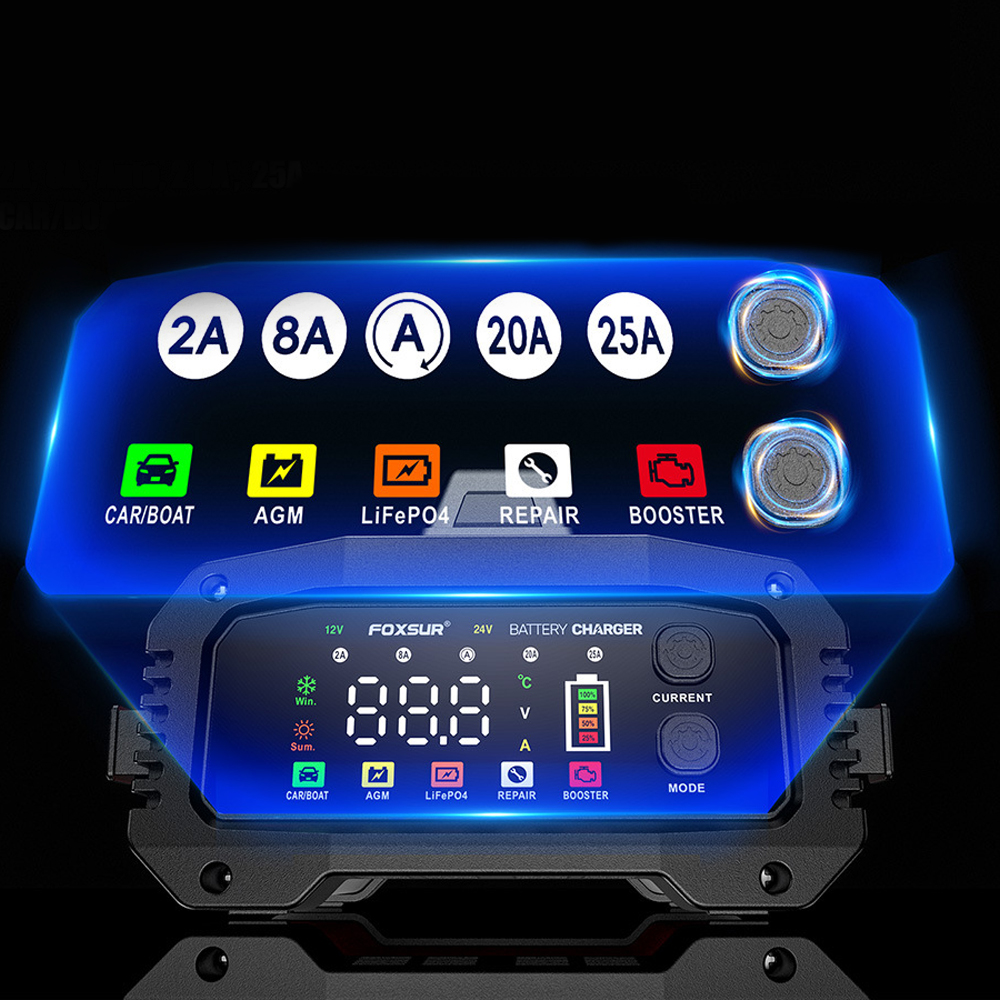

- Select Charging Current: Press the 'CURRENT' button to cycle through available charging current options (2A, 8A, 20A, 25A, or automatic). The display will show the selected current.
- Select Charging Mode: Press the 'MODE' button to select the appropriate battery type/mode. Options include: CAR/BOAT, AGM, LiFePO4, REPAIR, and BOOSTER. Ensure you select the correct mode for your battery type.
- Monitoring: The large digital display provides real-time information on voltage, current, temperature, and battery charge percentage.
8. 8-Stage Charging Process
The FOXSUR charger utilizes an advanced 8-stage charging process to optimize battery health and longevity:
- Battery Desulphation: Uses pulse current to break down lead sulphate crystals that build up on battery plates, restoring battery capacity.
- Soft Start Charge: Gently introduces current to the battery to prevent damage, especially for deeply discharged batteries.
- Bulk Charge: Charges the battery at its maximum rate to bring it to approximately 80% capacity.
- Absorption Charge: Charges at a decreasing rate to bring the battery to 100% capacity.
- Battery Test: Monitors the battery to ensure it can hold a charge.
- Recondition Charge: Applies a higher voltage to recondition and recover deeply discharged or sulfated batteries.
- Float & Maintenance Charging: Maintains the battery at full charge by providing a small, constant current.
- Re-start Charge after Battery Discharged: If the battery voltage drops below a certain level during maintenance, the charger will automatically restart the charging cycle.
9. Booster Mode
The BOOSTER mode is a specialized function designed for 12V batteries to assist with emergency starting of vehicles with discharged batteries.
- Activation: Select 'BOOSTER' mode using the 'MODE' button.
- Operation: In Booster mode, the charger will deliver the maximum possible current to the 12V battery for approximately 200 seconds.
- Vehicle Start: After the 200-second boost period, the display screen will show "on", indicating that you can now attempt to start your vehicle.
Important: This function is only for 12V batteries. Do not use Booster mode on 24V batteries or other battery types.
10. Maintenance
Proper maintenance will ensure the longevity and optimal performance of your FOXSUR battery charger:
- Cleaning: Wipe the charger casing with a soft, dry cloth. Do not use harsh chemicals or abrasive cleaners.
- Storage: Store the charger in a cool, dry place when not in use. Ensure the cables are neatly coiled and not kinked.
- Cable Inspection: Regularly inspect the AC power cord and battery clamps for any signs of damage, fraying, or corrosion. Replace if necessary.
- Ventilation: Ensure the cooling fan and ventilation openings are free from dust and debris to prevent overheating.
11. Troubleshooting
If you encounter issues with your charger, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Charger not turning on | No AC power, faulty power cord, internal issue. | Check AC power connection and outlet. Inspect power cord for damage. |
| No charging activity | Incorrect battery connection, battery too low (below 5.0V), incorrect mode selected, faulty battery. | Ensure clamps are correctly connected (+ to +, - to -). Verify battery voltage is above 5.0V. Select appropriate charging mode. Test battery condition. |
| Charger displays error code or protection icon | Overheat, short circuit, reverse polarity, overvoltage, low voltage. | Refer to the safety icons on the charger. Disconnect, check connections, allow to cool if overheating, and re-attempt. |
| Battery not fully charging | Battery capacity too large for selected current, sulfated battery, faulty battery. | Ensure selected current is appropriate for battery size. Try 'REPAIR' mode for sulfated batteries. Consider professional battery testing. |
| Booster mode not working for 24V battery | Booster mode is only for 12V batteries. | Do not use Booster mode on 24V batteries. |
12. User Tips
- Automatic Restart: The charger is designed to retain the charge level and automatically restart the charging process if the battery voltage drops during maintenance, ensuring your battery remains optimally charged.
- Emergency Starting: For emergency starting of a discharged 12V battery, utilize the dedicated 'BOOSTER' mode. After the 200-second boost, the display will indicate when it's safe to start your vehicle.
- Universal Power Input: The charger supports a wide input voltage range of 100-240V AC, making it compatible with various power outlets globally. If you have a US plug type, it typically comes with a converter for EU plug types.
- Battery Health: For older or deeply discharged batteries, consider using the 'REPAIR' mode to help recondition and potentially restore their capacity.
13. Warranty and Support
For warranty information, technical support, or service inquiries, please contact your retailer or the manufacturer directly. Keep your purchase receipt as proof of purchase.
