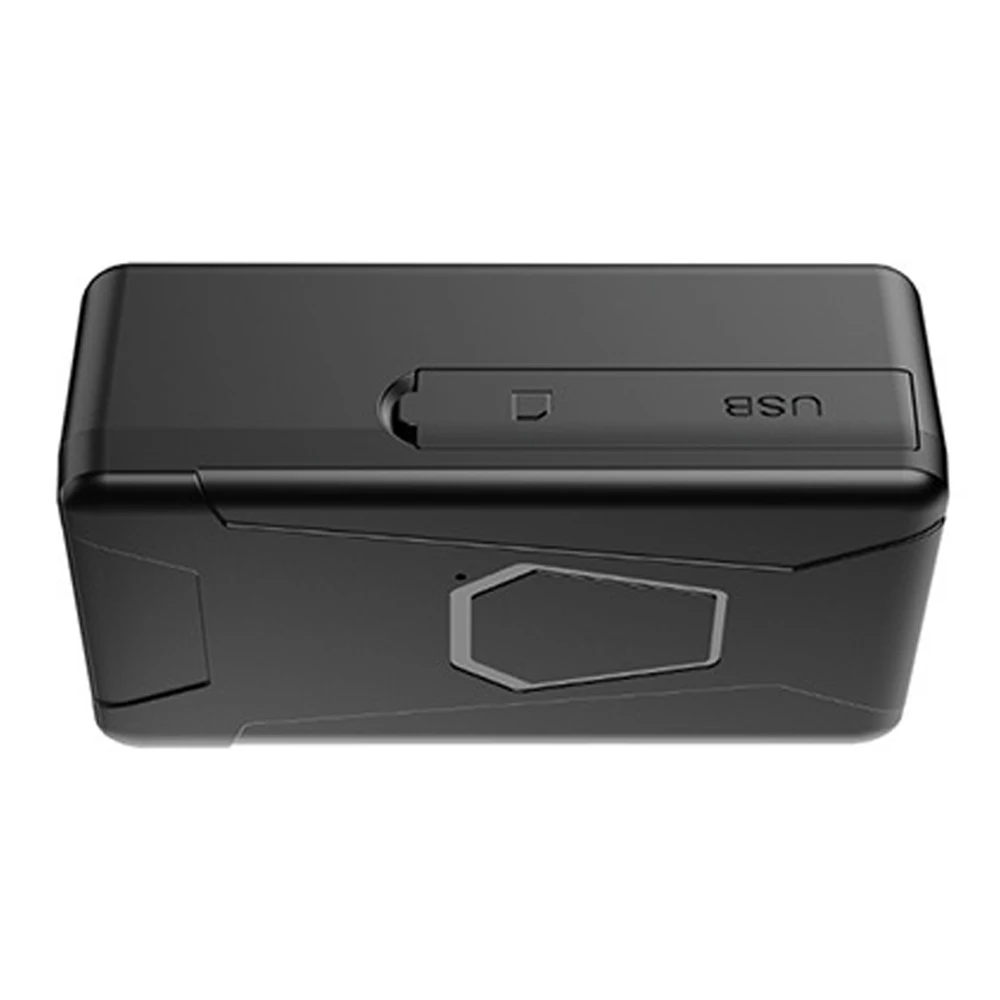

PG-10 Mini GPS Tracker User Manual

1. Introduction

The PG-10 Mini GPS Tracker is a compact and versatile tracking device designed for real-time location monitoring of vehicles, motorcycles, electric scooters, pets, children, and other valuable assets. Featuring GPS/LBS dual positioning, a magnetic mount, and a built-in rechargeable battery, it offers reliable tracking and various alarm functions for enhanced security and peace of mind.

2. Key Features

• Fast and Precise Positioning: Utilizes both GPS and LBS (Location Based Service) for accurate real-time tracking.
• 2G Network Connectivity: Provides countrywide coverage with minute-by-minute real-time updates.
• Long Standby Time: Equipped with a built-in 800mAh polymer battery.
• Magnetic Mount: Strong built-in magnets allow for easy and firm attachment to metallic surfaces, especially in vehicles.
• Compact and Lightweight Design: Extremely portable with dimensions of 50*30*22mm.
• Multiple Alarm Modes: Supports Vibration Alarm, Power Failure Alarm, SOS Alarm, Geo-Fence Alarm, and Over Speed Alarm.
• Track Playback: Review historical routes and movements.
• APP Control: Manage and monitor the device via a dedicated mobile application.
• Audio Recording: Capable of audio recording (specific activation method via app).

3. Specifications

4. Package Contents

Upon opening the package, you should find the following items:

• 1 x PG-10 Mini GPS Tracker
• (Note: USB charging cable and user manual may be included separately or integrated.)

5. Setup Guide

1. Insert 2G SIM Card: The tracker requires a 2G GSM SIM card (not included) with data and call functions enabled. Carefully open the SIM card slot (usually located under a cover or near the USB port) and insert the SIM card in the correct orientation.
2. Charge the Device: Before first use, fully charge the tracker using a standard USB charger. Connect the USB cable to the tracker's USB port (view USB port). The device is designed to charge automatically when connected to a power source, such as a vehicle's engine power.
3. Download Mobile Application: Search for the official tracking application (name usually provided in a small leaflet or QR code with the product) on your smartphone's app store (iOS/Android) and install it.
4. Register and Log In: Open the application, register a new account if required, and log in. You will typically need to add your device by entering its unique ID number (found on the tracker itself or its packaging).
5. Mount the Tracker: Utilize the strong built-in magnets to firmly attach the tracker to a suitable metallic surface. For vehicle tracking, common locations include under the seat, inside the glove compartment, or other discreet areas.

6. Operation

1. Real-time Tracking: Open the mobile application. The current location of your tracker will be displayed on the map. The device provides continuous updates.
2. Track Playback: Within the app, navigate to the 'History' or 'Track Playback' section to view past routes and movements of the tracker over a specified period.
3. Setting Up Geo-Fence: Define a safe area or virtual boundary on the map using the app. You will receive an alert if the tracker enters or exits this predefined zone.
4. SOS Alarm: If the tracker has an SOS button (check device for physical button), pressing it will send an emergency alert to pre-configured contacts via the app.
5. Over Speed Alarm: Set a maximum speed limit in the app. If the tracker exceeds this speed, an alert will be sent.
6. Vibration Alarm: Configure the tracker to send an alert if it detects significant vibration or movement.
7. Power Failure Alarm: Receive an alert if the tracker's external power supply is disconnected.
8. Audio Recording: Refer to the specific instructions within your mobile application for activating and managing the audio recording feature.

7. Maintenance

• Keep Dry: Avoid exposing the device to water or moisture to prevent damage to internal components.
• Avoid Extreme Temperatures: Do not store or operate the tracker in extremely hot or cold environments.
• Clean Gently: Use a soft, dry cloth to clean the device. Do not use harsh chemicals or solvents.
• Regular Charging: Ensure the device is regularly charged, especially if not connected to a continuous power source, to maintain battery health.
• Software Updates: Periodically check the mobile application for any available software or firmware updates for the tracker to ensure optimal performance and new features.

8. Troubleshooting

Device not powering on:

Ensure the device is fully charged. Connect it to a USB power source and check if the power LED indicator lights up.

No GPS signal or inaccurate positioning:

Ensure the device is in an open area with a clear view of the sky. Verify that the 2G SIM card is correctly inserted, active, and has sufficient balance/data. Check the GPS LED indicator for signal status.

Tracker not appearing on the app:

Confirm that the device ID was entered correctly during registration. Check your phone's internet connection. Ensure the tracker's SIM card has an active data plan.

Alarms not working:

Verify that the alarm settings are correctly configured in the mobile application. Ensure the app has necessary permissions on your phone (e.g., notifications).

9. User Tips

• Understand 2G Network: This device operates on a 2G network. Ensure that 2G services are still available and supported by your chosen SIM card provider in your region for optimal functionality.
• App Familiarization: Take time to explore all features within the mobile application. Many advanced settings and alarm configurations are managed directly through the app.
• Optimal Placement: For best GPS accuracy, place the tracker where it has the clearest line of sight to the sky, avoiding heavy metallic obstructions if possible.

10. Warranty and Support

For warranty information, technical support, or service inquiries, please refer to the documentation provided with your purchase or contact the seller directly. Keep your purchase receipt as proof of purchase.
