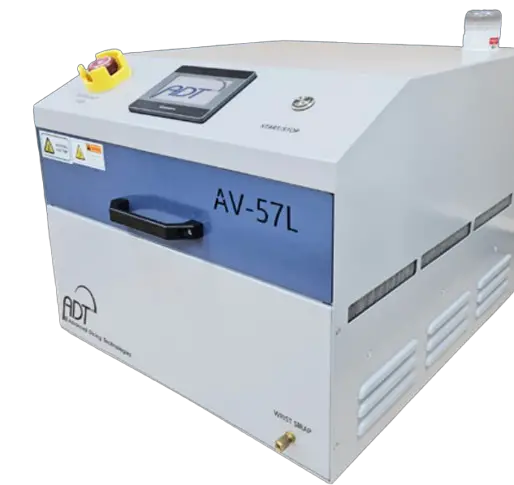

ADT AV-57L LED UV Curing Machine

ADT-AV-57L-LED-UV-Curing-Machine-PRODUCT-

Specifications

  • Type: LED UV Curing System
  • UV Wavelength: 365 nm
  • Intensity: Controllable from 0% to 100%
  • Voltage (single-phase): 100-230 VAC
  • Current: 16-20 Amps
  • Frequency: 50/60 Hz
  • Power: 2,880-5,280 VA
  • Operating Temperature: 15-30°C (59-86°F)
  • Operating Humidity: 20-90% RH (non-condensing)
  • Maximum Frame Diameter: 12
  • Exposure Area: 400×400 mm

Operation

The AV-57L LED UV Curing System is designed for efficient curing of various materials. Follow these steps to operate the system:

  1. Ensure the system is connected to a power source within the specified voltage and current range.
  2. Turn on the power switch located on the system.
  3. Set the desired intensity level using the controller.
  4. Place the material to be cured within the exposure area of the system.
  5. Activate the curing process using the user interface panel.
  6. Monitor the curing process through the LED intensity indicators and light tower.

Maintenance

To ensure optimal performance, regular maintenance of the AV-57L LED UV Curing System is essential. Follow these maintenance guidelines:

  • Clean the system components regularly to prevent dust  buildup
  • Check for any loose connections or damaged parts and repair them promptly.
  • Calibrate the intensity control periodically to maintain curing efficiency.

Safety Precautions
When using the AV-57L LED UV Curing System, observe the following safety precautions:

  • Do not look directly at the UV light source to avoid eye damage.
  • Ensure proper ventilation in the operating area to dissipate heat generated during curing.
  • Use appropriate personal protective equipment, such as gloves and safety goggles, when handling materials.

LED UV Curing System
Cutting-edge UV LED Curing Machine The AV-57L features advanced LEDs emitting a precise 365 nm light wave, offering unmatched curing efficiency for demanding applications. Experience new levels of speed and performance.

  • System Features
    •  Compact design: Space-saving tabletop unit without compromising functionality
    •  Touchscreen controls: Real-time monitoring with precision
    •  Fast curing: Achieves superior results in just 5 seconds
  • Operational Features
    •  Programmable controls for tailored efficiency
    •  Manual or automatic stop options for flexibility
    •  Light tower & buzzer for clear alerts
    •  Fast curing: Achieves superior results in just 5 seconds
  • Intensity
    • The nominal intencity of the UV LED is shown in the following graph:
  • Safety Features
    •  Emergency Stop Button: Instantly cuts power for safety
    •  Drawer sensor: Automatically halts operation if opened
    •  Separate work area: Keeps electronics isolated for added safety
  • Versatile Curing Options
    •  Nitrogen Kit: Removes Oxygen for optimal curing
    • Frame Shutter Kit: Protects the frame from UV radiation

Measured Intensity

ADT-AV-57L-LED-UV-Curing-Machine-FIG-1

Description

ADT-AV-57L-LED-UV-Curing-Machine-FIG-2

  1. Emergency stop button
  2. Controller
  3. Light tower
  4. Start/Stop button
  5. Sliding drawer
  6. ESD wrist-strap socket
  7. Nitrogen* flow control
  8. Nitrogen* pressure valve with gauge
  9. System nameplate
  10. Power (on/off) switch
  11. AC mains power socket
  12. Grounding wire holder
  13. Ventilation exit
    Nitrogen Kit (Optional)

User Interface Data

PLC Operator Panel
Type Electrically programmable

               controller

Display size 4.3″ color touchscreen
User control Setup and manual

               activation

Indications Curing timer and process

               parameters

Log Machine errors
Led intensity Controllable (0%-100%)
Light tower Green, Yellow, Red, Buzzer
Power Cut off EMO – Emergency push

               button

Dimensions

Width 500 mm (19.7″)
Depth (drawer closed) 550 mm (21.7″)
Depth (drawer open) 1100 mm (43.3″)
Hight 400 mm (15.7″)
Weight 56 Kg (123.5 lbs.)

Site Requirements

Voltage (single-phase) 100-230 VAC
Current 16-20 Amps
Frequency 50/60 Hz
Power 2,880-5,280 VA
Operating

Temperature

15-30 (59-86) 0C (0F)
Temperature Variation ±1 (±1.8) 0C (0F)
Operating Humidity 20-90 %RH (non-

              condensing)

Curing Data

Maximum frame Dia. 12″
Exposure Area 400×400 mm
UV wavelength 365 nm

Nitrogen Kit (Optional)

Pressure 2-3 bar
Flow 0-25 LPM
Quick Inlet 8 mm (OD)
Fibration Level <0.1 μm

ADT-AV-57L-LED-UV-Curing-Machine-FIG-3

ADT-AV-57L-LED-UV-Curing-Machine-FIG-4
