ASM01693 Refrigerant System Module for Digital Compressors

Stay in control with customizable control solutions. AAON offers a wide range of control solutions to optimally regulate and monitor the operation of your HVAC systems.

PHYSICAL

Configurable Unit Controllers that Can be Used for Multiple Applications

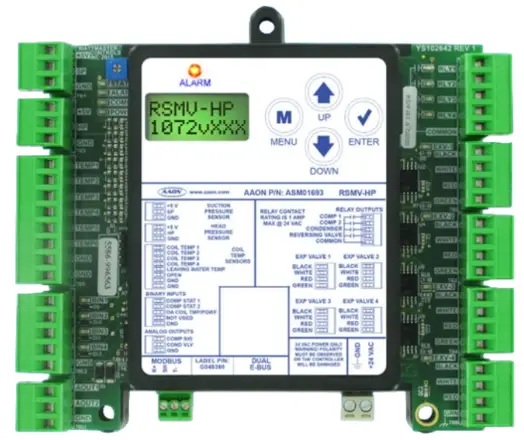

The RSMV-HP monitors and controls one refrigeration circuit of the HVAC unit. The RSMV-HP is connected to the VCC-X/VCCX2 Controller.
The RSMV-HP provides seven analog inputs, four binary inputs, four relays, and two analog outputs.
Up to four RSMV-HP’s can be connected, depending on the size of the system. The module is designed for R410-A refrigerant.
Allows Connection for Communicating Sensors
There are two E-BUS expansion ports which allow the connection of communicating sensors and E-BUS modules.
Electrical and Environmental

INSTALLATION

Mounting
The RSMV-HP is housed in a plastic enclosure. It is designed to be mounted using the three mounting holes in the enclosure base and the included mounting screws (#8 x 1” sheet metal screws).
The RSMV-HP needs to be installed in an environment which can maintain a temperature range of -4°F to 158°F not to exceed 95% RH levels (Non-Condensing). It is important to mount the device in a location that is free from extreme high or low temperatures, moisture, dust, and dirt. Be careful not to damage the electronic components when mounting the module.

Scan the code for additional product informationhttps://www.aaon.com/
Contact AAON Support for Technical Assistance
www.aaon.com/contact
