LS XBM-DN32H Programmable Logic Controller
Product Specifications
- C/N: 10310001549
- Product: Programmable Logic Controller – XGB CPU (Modular)
- Compatible Modules: XBM-DN32H, XBM/XEM-DR14H2, XBM/XEM-DN/DP16/32H2, XBM/XEM-DN/DP32HP
- Dimensions: 6mm x 6mm x 6mm
- Operating Conditions: Temperature range -55°C to 70°C, Humidity 5%RH to 95%RH
Product Usage Instructions
- Ensure the PLC unit is powered off before installation.
- Connect the compatible modules (XBM-DN32H, XBM/XEM-DR14H2, XBM/XEM-DN/DP16/32H2, XBM/XEM-DN/DP32HP) as needed.
- Securely mount the PLC unit in a suitable location following manufacturer guidelines.
Configuration
- Connect the USB-301A cable to the PLC for programming.
- Use the C40HH-SB-XB and XTB-40H(TG7-1H40S) accessories for additional functionality with compatible modules.
Operation
Ensure all connections are secure and the PLC is powered on. Monitor the status indicators for proper functionality.
Maintenance
Regularly inspect the PLC unit for any signs of damage or wear.
Keep the unit clean and free from dust accumulation.
Frequently Asked Questions (FAQ)
Q: What is the operating temperature range of the PLC?A: The operating temperature range is -55°C to 70°C.
This installation guide provides simple function information of PLC control. Please carefully read this data sheet and manuals before using products. Especially read safety precautions and handle the products properly.
Safety Precautions
Meaning of warning and caution inscription
WARNING
WARNING indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.
CAUTION
CAUTION indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.
It may also be used to alert against unsafe practices.
WARNING
- Do not contact the terminals while the power is applied.
- Protect the product from being gone into by foreign metallic matter.
- Do not manipulate the battery. (Charge, disassemble, hitting, short, soldering)
CAUTION
- Be sure to check the rated voltage and terminal arrangement before wiring.
- When wiring, tighten the screw of terminal block with the specified torque range.
- Do not install the flammable things on surroundings.
- Do not use the PLC in the environment of direct vibration.
- Except expert service staff, do not disassemble or fix or modify the product.
- Use the PLC in an environment that meets the general specifications contained in this datasheet.
- Be sure that external load does not exceed the rating of output product.
- When disposing of PLC and battery, treat it as industrial waste.
Operating Environment
To install, observe the below conditions.
| No | Item | Specification | Standard | ||||
| 1 | Ambient temp. | 0 ~ 55℃ | – | ||||
| 2 | Storage temp. | -25 ~ 70℃ | – | ||||
| 3 | Ambient humidity | 5 ~ 95%RH, non-condensing | – | ||||
| 4 | Storage humidity | 5 ~ 95%RH, non-condensing | – | ||||
| 5 | Vibration Resistance | Occasional vibration | – | – | |||
| Frequency | Acceleration | Amplitude | Times | IEC 61131-2 | |||
| 5≤f<8.4㎐ | – | 3.5mm | 10 times in each direction forX, Y, Z | ||||
| 8.4≤f≤150㎐ | 9.8㎨(1g) | – | |||||
| Continuous vibration | |||||||
| Frequency | Acceleration | Amplitude | |||||
| 5≤f<8.4㎐ | – | 1.75mm | |||||
| 8.4≤f≤150㎐ | 4.9㎨(0.5g) | – | |||||
Performance Specifications
The following table shows the general specifications of the XGB. For more information, please refer to user manual.
General Specifications
| Items | Specifications |
| Operation method | Reiterative operation, fixed cycle operation,
Interrupt operation, constant period scan |
| I/O control method | Batch processing by simultaneous scan (Refresh method),
Directed by program instruction |
| Processing speed
(Basic instruction) |
XBM-H type: 83ns/step, XBM/XEM-H2/HP type:
40ns/step |
| Program memory capacity(MK) | H type: 20Kstep, H2/HP Type: 64Ksteps |
| Program memory capacity(IEC) | H2/HP type: 384Kbyte |
| Maximum expansion stages | Main + Expansion 7slot
(Communication: max 2slot, High speed I/F: max 2 slot) |
| Operation mode | RUN, STOP, DEBUG |
| Self-diagnosis function | Delay of operation, abnormal memory, abnormal I/O |
| Program port | USB(1Ch) |
| Back-up method | Setting latch area at basic parameter |
| RTC | Operates for 183 days(25℃), when power is off after charging(3.0V) |
| Built-in function | Cnet(RS-232, RS-485), Enet, PID, High-speed counter Positioning:
|
Applicable Support Software
For system configuration, the following version is necessary.
- XG5000 Software
- XBM-DN32H, XBM-DN/DP32H2, XBM-DN/DP32HP: V4.22 or above
- XEM-DN/DP32H2, XEM-DN/DP32HP: V4.26 or above
- XBM/XEM-DN/DP16H2, XBM/XEM-DR14H2: V4.75 or above
- O/S
- XBM-DN32H: O/S V1.0 or above
- XBM-DN/DP32H2, XBM-DN/DP32HP: O/S V2.0 or above
- XEM-DN/DP32H2, XEM-DN/DP32HP: O/S V2.1 or above
- XBM/XEM-DN/DP16H2, XBM/XEM-DR14H2: O/S V3.0 or above
Accessories and Cable Specifications
Check the component in package.
- XGB-POWER(3P) : Power cable for connecting 24V
Check the accessory. Purchase it, if needed.
- USB-301A: USB connect (download) cable
- C40HH-□□SB-XBI : XBM/XEM-DN/DP32H/H2/HP Main unit input/output connection
- XTB-40H(TG7-1H40S) :XBM/XEM-DN/DP32H/H2/HP Main unit input/output Terminal block

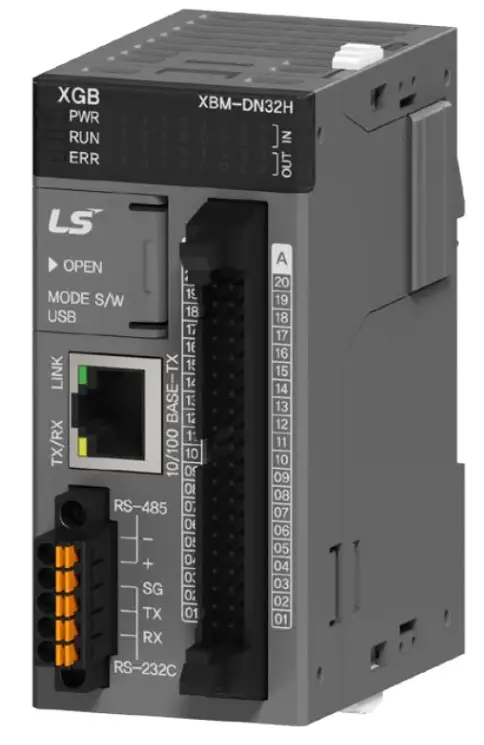

Parts name and Dimension (mm)
This is front part of the CPU. Refer to each name when driving the system. For more information, refer to user manual.
Input/ Output indicator LED- Input/ Output connector
- Built-in RS-232/485 connecting connector
- Power connector
- Built-in Enet connecting connector
- Mode S/W, USB Cover
- Status indicator LED
- RS-485Termination Resistor Switch

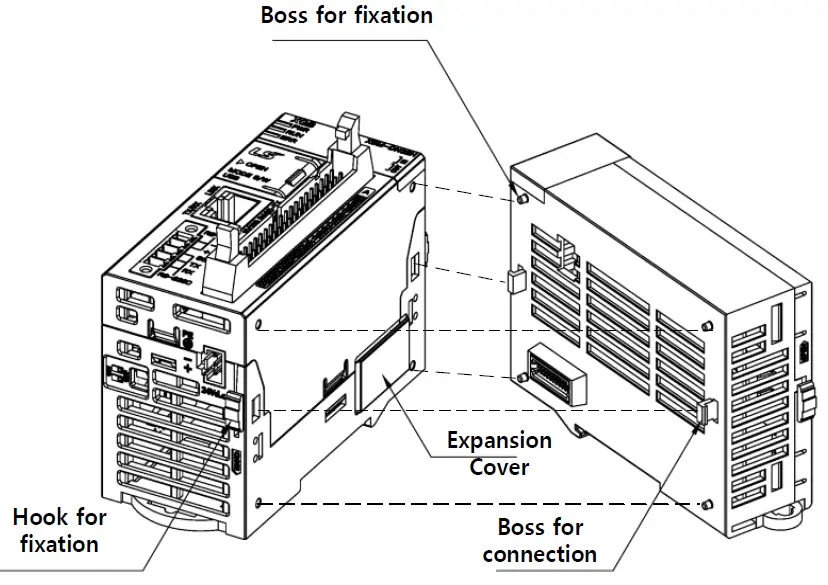

Installing / Removing Modules
Here describes the method to attach and detach each product.
- Installing module
- Eliminate the Extension cover at the right-bottom side of the product.
- Push the product and connect it in alignment with Hook for fixation of four edges and Hook for connection at the bottom.
- After connection, push down the Hook for fixation and fix it completely.
- Removing module
- Push up the Hook for connection and then detach the product with two hands. (Do not detach the product by force.)
Power specification
Here describes the Power specification of XGB. For more information, refer to user manual.
| Items | Specification | |
|
Power Specification |
Rated voltage | DC24V |
| Input voltage range | DC20.4~28.8V (-15%, +20%) | |
| Input current | 1A (Typ.550㎃) | |
| Permitted momentary power failure | Less than 1㎳ | |
Warranty
- The warranty period is 36 months from the date of manufacture.
- The initial diagnosis of faults should be conducted by the user. However, upon request, LSELECTRIC or its representative(s) can undertake this task for a fee. If the cause of the faultis found to be the responsibility of LS ELECTRIC, this service will be free of charge.
Exclusions from warranty
- Replacement of consumable and life-limited parts (e.g. relays, fuses, capacitors ,batteries, LCDs, etc.)
- Failures or damages caused by improper conditions or handling outside those specifiedin the user manual
- Failures caused by external factors unrelated to the product
- Failures caused by modifications without LS ELECTRIC’s consent
- Use of the product in unintended ways
- Failures that cannot be predicted/solved by current scientific technology at the time of manufacture
- Failures due to external factors such as fire, abnormal voltage, or natural disasters
- Other cases for which LS ELECTRIC is not responsible
- For detailed warranty information, please refer to the user’s manual.
- The content of the installation guide is subject to change without notice for product performance improvement.
LS ELECTRIC Co., Ltd. www.ls-electric.com 10310001549 V5.8 (2024.06)
E-mail: automation@ls-electric.com
- Headquarter/Seoul Office
Tel: 82-2-2034-4033,4888,4703 - LS ELECTRIC Shanghai Office (China)
Tel: 86-21-5237-9977 - LS ELECTRIC (Wuxi) Co., Ltd. (Wuxi, China)
Tel: 86-510-6851-6666 - LS-ELECTRIC Vietnam Co., Ltd. (Hanoi, Vietnam)
Tel: 84-93-631-4099 - LS ELECTRIC Middle East FZE (Dubai, U.A.E.)
Tel: 971-4-886-5360 - LS ELECTRIC Europe B.V. (Hoofddorf, Netherlands)
Tel: 31-20-654-1424 - LS ELECTRIC Japan Co., Ltd. (Tokyo, Japan)
Tel: 81-3-6268-8241 - LS ELECTRIC America Inc. (Chicago, USA)
Tel: 1-800-891-2941 - Factory: 56, Samseong 4-gil, Mokcheon-eup, Dongnam-gu, Cheonan-si, Chungcheongnam- do, 31226, Korea
