LS XB Series Programmable Logic Controller

Product Information

Specifications:

• C/N: 10310001095
• Product: Programmable Logic Controller
• XGB CPU (E)
• Models: XB(E)C-DR10/14/20/30E, XB(E)C-DN10/14/20/30E, XB(E)C-DP10/14/20/30E

Product Usage Instructions

XG5000 Software Installation:
Ensure you have version V4.01 of the XG5000 software.

PMC-310S Connection:
Connect using RS-232C interface.

Physical Installation:
Mount the PLC in a suitable location following the provided dimensions (in mm). Ensure proper ventilation and space for maintenance.

Wiring Connections:
Follow the wiring diagram provided with the PLC. Ensure correct connections for power supply, input/output devices, and communication interfaces.

Powering Up:
Apply power within the specified voltage range. Check for proper power indicators and system initialization.

Programming:
Use the XG5000 software to program the PLC logic based on your application requirements. Test the program thoroughly before deployment.

FAQ

• What is the recommended software version for programming?
  The recommended software version is V4.01 of the XG5000 software.
• How should I connect the PMC-310S?
  Connect the PMC-310S using an RS-232C interface.
• What are the environmental conditions for operating the PLC?
  Operating temperature range is -25°C to 70°C, with a humidity range of 5% to 95% RH.

This installation guide provides simple function information of PLC control. Please carefully read this data sheet and manuals before using products. Especially read safety precautions and handle the products properly.

Safety Precautions

Meaning of warning and caution inscription

• WARNING
  WARNING indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury
• CAUTION
  CAUTION indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury. It may also be used to alert against unsafe practices
• WARNING
  1. Do not contact the terminals while the power is applied.
  2. Protect the product from being gone into by foreign metallic matter.
  3. Do not manipulate the battery (charge, disassemble, hitting, short, soldering)
• CAUTION
  1. Be sure to check the rated voltage and terminal arrangement before wiring
  2. When wiring, tighten the screw of terminal block with the specified torque range
  3. Do not install the flammable things on surroundings
  4. Do not use the PLC in the environment of direct vibration
  5. Except expert service staff, Do not disassemble or fix or modify the product
  6. Use the PLC in an environment that meets the general specifications contained in this datasheet.
  7. Be sure that external load does not exceed the rating of output module.
  8. When disposing of PLC and battery, treat it as industrial waste.

Operating Environment

To install, observe the below conditions.

No	Item	Specification					Standard
1	Ambient temp.	0 ~ 55℃					–
2	Storage temp.	-25 ~ 70℃					–
3	Ambient humidity	5 ~ 95%RH,  non-condensing					–
4	Storage humidity	5 ~ 95%RH,  non-condensing					–
5	Vibration Resistance	Occasional vibration				–	–
		Frequency	Acceleration		Amplitude	Times	IEC 61131-2
		5≤f<8.4㎐	–		3.5mm	10 times in each direction for X, Y, Z
		8.4≤f≤150㎐	9.8㎨(1g)		–
		Continuous vibration
		Frequency	Frequency	Amplitude
		5≤f<8.4㎐	–	1.75mm
		8.4≤f≤150㎐	4.9㎨(0.5g)	–

Performance specifications

This is Performance specification of XGB. For more details, refer to related manual.

Item				Specification
Operation method				Reiterative operation, fixed cycle operation, Interrupt operation, constant period scan
I/O control method				Scan synchronous batch processing (refresh method) Direct method by instruction
Operation speed				Basic instruction: 0.24㎲/step
Max expansion slot				Main+Option (option 1slot: 10/14 point type, option 2slot: 20/30 point type)
task		Initialization		1
		Fixed cycle		1
		External point		Max. 8
		Internal device		Max. 4
Operating mode				RUN, STOP
Self-diagnosis				Delay of operation, abnormal memory, abnormal I/O
Program port				RS-232C(Loader)
Data keeping method at power failure				Setting latch area at basic parameter
Built-in Function	Cnet I/F function			Dedicated protocol, Modbus protocol User defined protocol
				Selects one port between RS-232C 1 port and RS-485 1 port by parameter
	High Speed Counter		Performance	1-phase : 4㎑ 4 channels 2-phase : 2㎑ 2 channels
			Counter mode	4 counter modes are supported based on input pulse and INC/DEC method ·  1 pulse operation Mode : INC/DEC count by program ·  1 pulse operation Mode : INC/DEC count by phase B pulse input ·  2 pulse operation Mode : INC/DEC count by input pulse ·  2 pulse operation Mode : INC/DEC count by difference of phase
			operation	32bit signed counter
			Function	·  Internal/external preset  · Latch counter ·  Compare output                · No. of rotation per unit time
	Pulse catch			50㎲ 4 points
	External point interrupt			4 points: 50㎲
	Input filter			Selects among 1,3,5,10,20,70,100㎳ (For each module)

Applicable Support Software

For system configuration, the following version is necessary.
XG5000 Software: V4.01 or above

Accessories and Cable Specifications

Check the accessory (Order the cable if needed)
PMC-310S : RS-232 connecting (download) cable

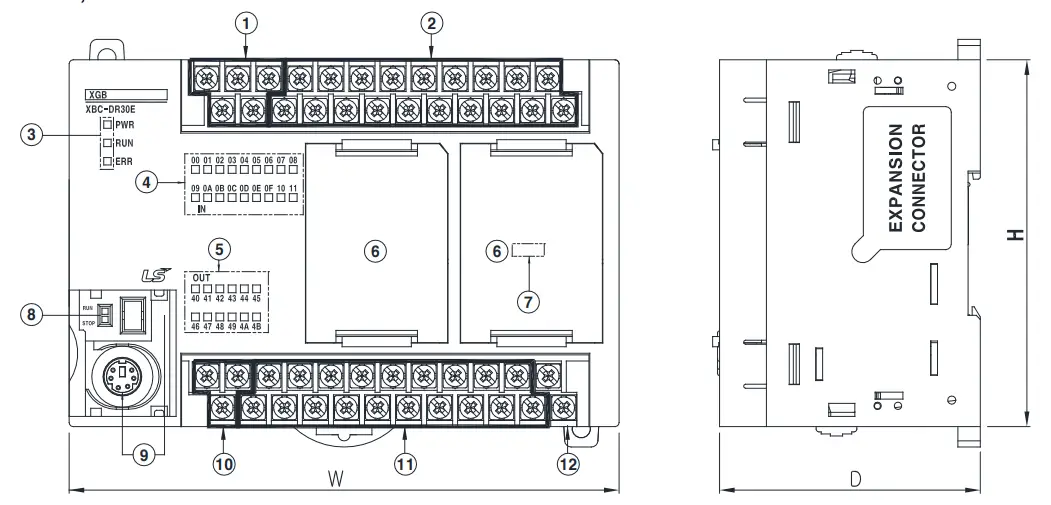

Parts name and Dimension (mm)

This is front part of the CPU. Refer to each name when driving the system. For moreinformation, refer to user manual.

1. Built-in Communication Terminal block
2. Input terminal block
3. Operation status LED
4. Input status LED
5. Output status LED
6. Option board holder
7. O/S mode dip switch
8. RUN/STOP mode switch
9. PADT Connector
10. Power terminal block
11. Output terminal block
12. 24V Output (sub-power)

Dimension(mm)

Module	W	D	H
XB(E)C-DR(N)(P)10/14E	97	64	90
XB(E)C-DR(N)(P)20/30E	135	64	90

Wiring

Power wiring

1. In case that the power change is larger than the range of standard, connect constant voltage transformer
2. Connect the power having the small noise between cables or between earths. In case of having lots of noise, connect the isolating transformer or noise filter.
3. power for PLC, I/O device and other machines should be separate.
4. Use the dedicated earth if possible. In case of Earth works, use 3 class earth (earth resistance 100 Ω or less) and Use more than 2 mm2 cable for earth. If the abnormal operation is found according to the earth, separate the earth

Warranty

• The warranty period is 36 months from the date of manufacture.
• The initial diagnosis of faults should be conducted by the user. However, upon request, LSELECTRIC or its representative(s) can undertake this task for a fee. If the cause of the fault is found to be the responsibility of LS ELECTRIC, this service will be free of charge.
• Exclusions from warranty
  1. Replacement of consumable and life-limited parts (e.g. relays, fuses, capacitors, batteries,LCDs, etc.)
  2. Failures or damages caused by improper conditions or handling outside those specified in the user manual
  3. Failures caused by external factors unrelated to the product
  4. Failures caused by modifications without LS ELECTRIC’s consent
  5. Use of the product in unintended ways
  6. Failures that cannot be predicted/solved by current scientific technology at the time of manufacture
  7. Failures due to external factors such as fire, abnormal voltage, or natural disasters
  8. Other cases for which LS ELECTRIC is not responsible
• For detailed warranty information, please refer to the user’s manual.
• The content of the installation guide is subject to change without notice for product performance improvement.
