PHILIPS RC170B Smart Bright Dual Select Panel

Specifications

• Brand: SmartBright
• Model: Dual_Select Panel RC170B LED Panel
• Power Consumption: 26/31/34W, 30/34/38W (Selectable)
• Luminous Flux: 3100/3700/4100lm, 4000/4500/5000lm (Selectable)
• Color Temperature: 4000K, 5000K, 6500K (Selectable)
• Input Voltage: 220- 240V ~
• Frequency: 50/60Hz
• Dimensions: 1195×295, 595×595, 1195×595 (depending on model)

Product Usage Instructions:

Installation:
The product should be installed with the safety cable. Ensure to use the appropriate mounting set for your installation type: plaster ceiling set, suspension set, or surface mounted set.

Selecting Lumen and Color Temperature:
This LED panel allows you to select different lumen outputs and color temperatures. Use the provided controls to adjust between High, Middle, and Low settings for both lumen and color temperature based on your preference.

Power Consumption and Luminous Flux:
You can choose between different power consumption levels and corresponding luminous flux outputs. Select the wattage and lumen combination that suits your lighting needs.

Electrical Safety Information:
Ensure proper connection of electrical supply cables to the luminaires. The leakage current of the electrical circuit may vary based on cable ratings, lengths, and site conditions. Do not cover the luminaire with thermally insulating material.

Mounting Instruction

Product Type	CCT (K)	Power (W)	Lumen Output (1m)	Voltage	Frequency	Dimension /LxW (mm)	Dimension / H (mm)	Dimension/HI (mm)
RC170B LED31_37_41/SCCT PSU W30L120 GM	4000K 5000K 6500K (Selectable)	26/31/34W (Selectable)	3100/3700/4100lm (Selectable)	220-240V~	50/60Hz	1195×295	34	59	1.44
RC170B LED31_37_41/SCCT PSU W60L60 GM						595×595	34	59	1.38
RC170B LED40_45_50/SCCT PSU W60L120 GM		30/34/38W (Selectable)	4000/4500/5000lm (Selectable)			1195×595	34	59	3.85

Plaster ceiling set 911401824580: RC048Z SMB-PLC

Suspension set 911401824680: RC048Z SMB-2

Surface mounted set

• 911401822187：Panel SMB W60L60 HQ
• 911401822287：Panel SMB W30L120 HQ
• 911401822387：Panel SMB W60L120 HQ

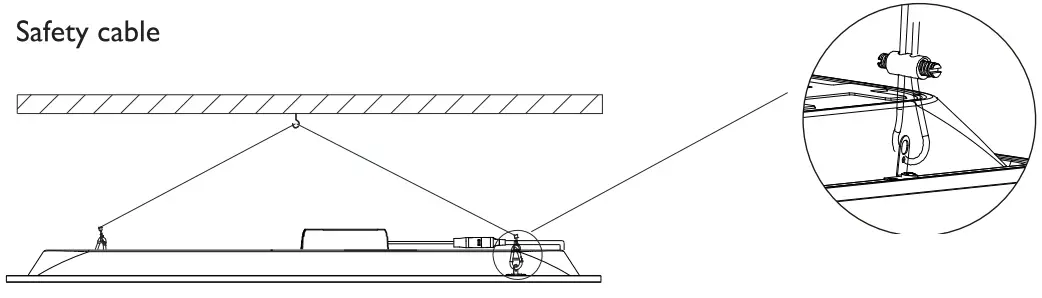

• Safety cable
• 911401824780：RC048Z SC

A Visible Profile Ceiling Mounting(VPC)

The product should be installed with safety cable. (Safety cable is not included in the box)

Wiring Method/Metode pemasangan kabel

• N: Blue/Biru
• e Brown/CokIat
• Please use IP20 or higher terminal box (Dimen Sion should be IOx20x25 or higher.)
• It is not included in package.

6060 30120	Lumen selectable	Lumen	Wattage	lout
	High	4100lm	34W	900mA
	Middle	3700lm	31W	850mA
	Low	3100lm	26W	750mA

60120	Lumen selectable	Lumen	Wattage	lout
	High	5000lm	38W	800mA
	Middle	4500lm	34W	720mA
	Low	4000lm	30W	640mA

RC170B LED31_37_41/SCCT PSU W30L120 GM	0.21	30	300		13	23
RC170B LED31_37_41/SCCT PSU W60L60 GM	0.21	30	300	＜0.7	13	23
RC170B LED40_45_50/SCCT PSU W60L120 GM	0.21	30	300		14	25

• The leakage current *(touch current or protective conductor current) of electrical circuit may be greatly dependent upon electrical supply cables used such as its rating and length, proper connection of electrical supply cables to luminaires and
  wiring connection topology of luminaires to the supply electrical circuit amongst other site conditions.
• In some cases referred to as Earth Leakage Current.

Please read this manual carefully before using the product.

1. For indoor use only.
2. Do not switch on before complete installation.
3. The luminaire shall be installed by a qualified electrician and wired in accordance with the latest IEE electrical regulations or the national requirements.
4. The light source of this luminaire is not replaceable; when the light source reaches its end of life the whole luminaire shall be replaced.
5. Luminaire must not be used or stored in corrosive environment where hazardous materials such as Sulphur, Chlorine, phthalates, etc, are present.
6. Risk of overheating or fire if the clearance distances are compromised.
7. Care should be taken at installation to allow adequate air flow for optimum lifetime performance.

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmentally safe recycling.
Luminaire is not suitable for application covering with thermally insulating material

SignifyLuminaires (Shanghai) Co., Ltd.

• 2F, Building 1, No.2555，Hechuan Road, Minhang District, Shanghai City, P.R. China China Postal code: 200233

FAQs

Is the safety cable included in the box?
No, the safety cable is not included in the box. It should be installed with the product for safety measures.

Can I adjust both color temperature and lumen output?
Yes, you can adjust both the color temperature and lumen output using the selectable options provided.

What are the available mounting options for this LED panel?
The available mounting options include a plaster ceiling set, suspension set, and surface mounted set. Choose the appropriate set based on your installation requirements.
