Bosch UniversalLeafBlower 18V-130 User Manual

1. Isingeniso

Thank you for choosing the Bosch UniversalLeafBlower 18V-130. This cordless garden blower is designed for quick and efficient removal of leaves, debris, and light garden waste from outdoor areas. Its lightweight design and powerful radial fan make garden clean-up effortless. Please read this manual carefully before operating the device to ensure safe and optimal performance.

2. Ulwazi Lokuphepha

Ngaso sonke isikhathi qaphela izinyathelo zokuphepha eziyisisekelo lapho usebenzisa amathuluzi kagesi ukunciphisa ingozi yomlilo, ukushaqeka kukagesi, nokulimala komuntu siqu.

Izexwayiso Zokuphepha Ezivamile:

• Funda zonke izexwayiso zokuphepha, imiyalelo, imidwebo, kanye nemininingwane enikezwe naleli thuluzi lamandla.
• Gcina indawo yokusebenza ihlanzekile futhi ikhanyiswe kahle. Izindawo eziminyene noma ezimnyama zimema izingozi.
• Ungawasebenzisi amathuluzi kagesi endaweni eqhumayo, njengalapho kukhona uketshezi oluvuthayo, amagesi, noma uthuli.
• Gcina izingane nababukele kude ngenkathi usebenzisa ithuluzi lamandla. Iziphazamiso zingakwenza ulahlekelwe ukuzilawula.
• Gqoka imishini yokuzivikela efanele, okuhlanganisa ukuvikela amehlo, ukuvikela ukuzwa, kanye nezicathulo eziqinile.
• Qinisekisa ukuthi i-nozzle inamathiselwe ngokuphephile ngaphambi kokusebenza.
• Do not point the blower nozzle at people or animals.
• Use only Bosch 18V System batteries and chargers.

3. Umkhiqizo Uphelileview

The Bosch UniversalLeafBlower 18V-130 is a compact and powerful tool for garden maintenance.

Umfanekiso 3.1: Bosch UniversalLeafBlower 18V-130 with its packaging, showcasing the main unit and detachable nozzle.

Umfanekiso 3.2: Key features of the UniversalLeafBlower 18V-130, including the powerful radial fan, easy nozzle attachment, and Syneon Technology for optimized power and runtime.

Izingxenye:

• Blower Unit (main body with motor and handle)
• Blower Nozzle (detachable)
• Ibhethri (not included with this model)
• Ishaja (not included with this model)

4. Setha

4.1 Attaching the Blower Nozzle

1. Align the tabs on the blower nozzle with the slots on the blower unit's air outlet.
2. Insert the nozzle into the outlet.
3. Twist the nozzle clockwise until it clicks securely into place. Ensure it is firmly locked before use.

Umfanekiso 4.1: Attaching the blower nozzle by twisting it into place on the main unit.

4.2 Ukufaka/Ukukhipha Ibhethri

This tool is part of the Bosch 18V System and requires an 18V Lithium-Ion battery (sold separately).

• Ukufaka: Slide the charged battery into the battery slot on the blower unit until it clicks into place.
• Iyasusa: Press the battery release button and slide the battery out of the slot.

Umfanekiso 4.2: The Bosch 18V battery system is compatible with a wide range of Bosch garden and power tools.

5. Iziqondiso Zokusebenza

5.1 Ukuvula / Ukuvula

• To turn on the blower, press and hold the ON/OFF trigger switch located on the handle.
• To turn off the blower, release the ON/OFF trigger switch.

5.2 Ukulawula Isivinini

The UniversalLeafBlower 18V-130 features a 2-speed control to optimize power, noise, and runtime based on your needs.

• The blower offers two speed settings: a lower speed for lighter debris and longer runtime, and a higher speed for tougher tasks and faster cleaning.
• Adjust the speed by sliding the speed selector switch (if present) or by varying pressure on the trigger, depending on the model variant. Refer to the specific markings on your tool.

Umfanekiso 5.1: The speed control allows adjustment of airflow from 185 km/h to 245 km/h, depending on debris type and cleaning distance.

5.3 Operating Tips

• Start with the lower speed setting for general clean-up and switch to higher speed for stubborn debris.
• Work in sections, blowing debris into a manageable pile.
• Avoid blowing directly into flowerbeds or delicate areas.

Umfanekiso 5.2: The UniversalLeafBlower 18V-130 in use, demonstrating its effectiveness for quick outdoor area cleaning.

6. Isondlo

6.1 Ukuhlanza

• Likhiphe njalo ibhethri ngaphambi kokuhlanza.
• Wipe the exterior of the blower with a soft, damp indwangu. Ungasebenzisi izihlanzi noma izinyibilikisi eziqinile.
• Clear any debris from the air intake and outlet vents to ensure proper airflow.

6.2 Isitoreji

• Store the blower in a dry, secure place, out of reach of children.
• Detach the nozzle for more compact storage if desired.
• Gcina amabhethri endaweni epholile, eyomile, kude nelanga eliqondile namazinga okushisa aphezulu.

Umfanekiso 6.1: The compact design allows for convenient storage, such as hanging on a wall.

7. Ukuxazulula izinkinga

8. Imininingwane

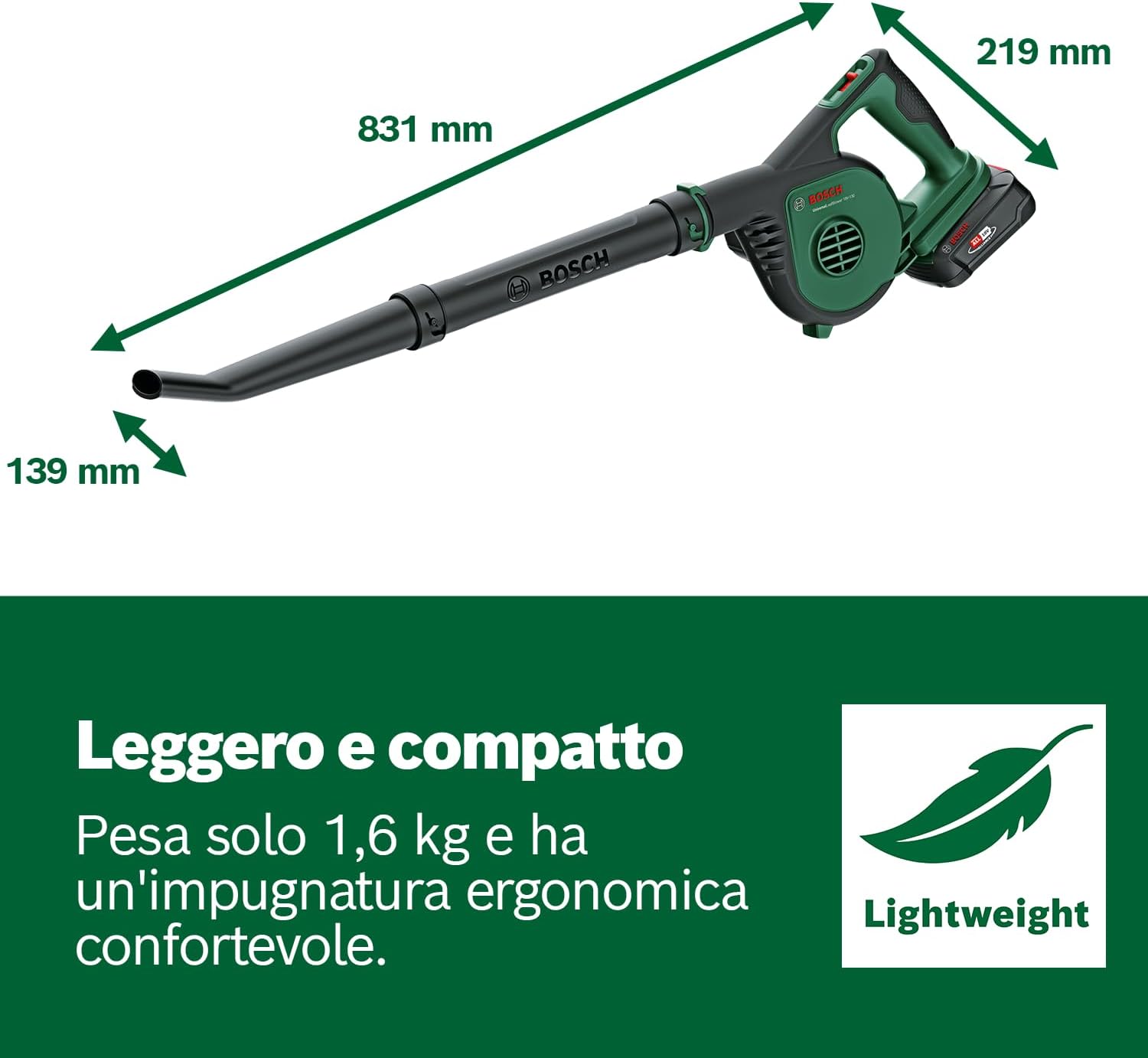

Umfanekiso 8.1: Dimensions of the UniversalLeafBlower 18V-130, highlighting its compact and lightweight design.

9. Iwaranti kanye Nokusekela

Ukuze uthole ulwazi lwewaranti nokusekelwa kwamakhasimende, sicela ubheke ikhadi lewaranti elifakwe nomkhiqizo wakho noma uvakashele i-Bosch esemthethweni website. You can also contact Bosch customer service for assistance with product registration, technical support, or spare parts.

For more information on the Bosch 18V System, visit the Isitolo se-Bosch ku-Amazon.
