Whirlpool W10404412 Dishwasher Door Latch Instruction Manual

1. 產品結束view

The Whirlpool W10404412 is a genuine replacement door latch assembly designed for various Whirlpool and KitchenAid dishwasher models. This component is crucial for ensuring the dishwasher door remains securely closed during operation, allowing the wash cycle to initiate and complete correctly. It often includes the door switch mechanism.

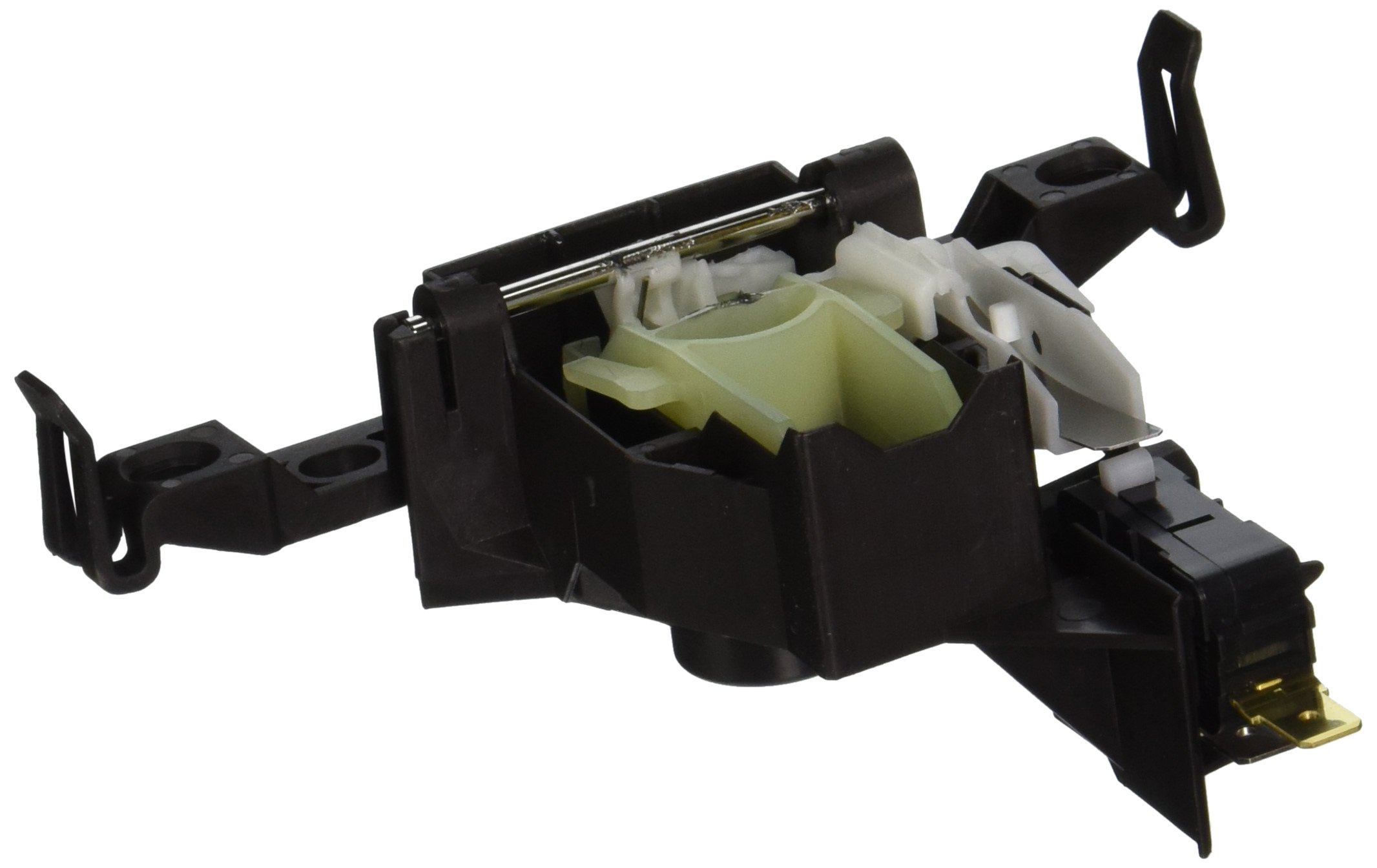

圖1： Whirlpool W10404412 Dishwasher Door Latch Assembly. This image shows the complete latch mechanism, including the main housing, internal plastic components, and electrical contacts for the door switch.

2. 安裝說明

This door latch is a replacement part. Installation typically involves accessing the dishwasher's control panel and door assembly. It is recommended to consult a qualified technician or refer to specific model-based repair guides for detailed steps. Always ensure the appliance is disconnected from power before beginning any repair work.

2.1 安全注意事項

• 斷開電源： Before starting any installation or repair, always unplug the dishwasher from the electrical outlet or turn off the circuit breaker supplying power to the appliance.
• 穿戴防護裝備： Use gloves to protect hands from sharp edges and safety glasses to protect eyes.
• 小心處理： The latch assembly contains delicate components; handle it carefully to avoid damage.

2.2 General Installation Steps (Consult Model-Specific Guide)

1. 打開門板： Open the dishwasher door and locate the screws securing the inner door panel to the outer panel. Remove these screws.
2. 獨立面板： Carefully separate the inner and outer door panels. The control panel may need to be partially detached or removed to gain full access.
3. Locate Old Latch: Identify the existing door latch assembly. Note how it is mounted and connected.
4. 斷開接線： Disconnect any electrical connectors attached to the old latch. Take a photo if necessary to remember the wiring configuration.
5. 拆除舊門閂： Unscrew or unclip the old latch assembly from its mounting position.
6. 安裝新門閂： Position the new W10404412 latch assembly and secure it with the original screws or clips.
7. 重新連接線路： Attach the electrical connectors to the new latch, ensuring a secure connection.
8. 重新組裝門： Carefully reassemble the inner and outer door panels, securing them with the screws removed earlier.
9. 測試功能： Reconnect power to the dishwasher and test the door latch by opening and closing the door, and attempting to start a cycle.

筆記： Many helpful video tutorials for replacing dishwasher door latches on Whirlpool and KitchenAid models can be found online by searching for your specific dishwasher model number.

3. 操作原則

The door latch assembly serves two primary functions:

• 安全關閉： It physically holds the dishwasher door firmly shut during operation, preventing water leaks and ensuring proper wash performance.
• 安全聯鎖： The integrated door switch within the latch assembly detects whether the door is fully closed and latched. For safety and proper operation, the dishwasher's control board will only allow a wash cycle to begin or continue if this switch signals that the door is securely shut. If the door is opened during a cycle, the switch will interrupt power to internal components, pausing or stopping the cycle.

4、維護保養

The Whirlpool W10404412 door latch is designed for durability and typically requires minimal maintenance. However, to prolong its lifespan and ensure reliable operation:

• 保持區域清潔： Periodically wipe down the area around the door latch and strike plate on the dishwasher tub to prevent buildup of food debris or detergent residue, which could impede smooth latching.
• 避免強行關閉： Close the dishwasher door gently but firmly. Slamming the door can put undue stress on the latch mechanism, leading to premature wear or breakage.
• 檢查是否有損壞： Occasionally inspect the latch for any visible signs of wear, cracks, or misalignment. If any issues are observed, consider replacement to prevent further problems.

5。 故障排除

A faulty door latch is a common cause of various dishwasher issues. If you experience any of the following, the W10404412 latch may need inspection or replacement:

重要的： Always disconnect power to the dishwasher before attempting any troubleshooting or repair. If you are unsure about any step, consult a professional appliance technician.

6. 規格

7. 保固信息

Specific warranty details for replacement parts like the W10404412 door latch are typically provided at the point of purchase or by the retailer/distributor. Genuine Whirlpool parts generally come with a limited warranty against defects in material and workmanship. Please retain your proof of purchase for any warranty claims. For detailed warranty terms, refer to the documentation provided with your purchase or contact Whirlpool customer service.

8. 客戶支持

For further assistance, technical support, or to inquire about other genuine Whirlpool replacement parts, please visit the official Whirlpool website or contact their customer service department. When contacting support, have your appliance's full model number and serial number ready for faster service.

惠而浦官方 Web地點： www.whirlpool.com
