Zapotec Go
Quick Guide
Installer

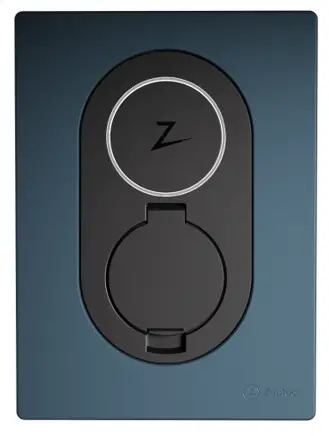

Get to know Zaptec Go
Included in the box:
- Remove Front Cover
- Mount the charging station
Make sure it’s level and at an appropriate height.
- Place the power cable Choose between three entry options (top, back, and bottom) . Punch out the knockout tab to install from 1 or 2.
Each charging station must be protected by a max. 40A Type A 30mA RCD circuit breaker.
- Secure cable
Prevent cable from being dislocated by using the cable clamp and screws (max torque 3 Nm). Use the sealing cones to make the installation water-resistant.
- Electrical connection
Connect all wires and firmly press down all levers as illustrated. Then turn on the circuit breaker to continue.
- Configure charging station
Scan the QR code with the camera and complete the installation in the Zapotec App.
It is possible to configure the charging station without using the app, please note there might be limited functionality doing so.
The switch is located above the connection terminal.
Switch configurations:
1 – 6 Amps
2 – 10 Amps
3 – 13 Amps
4 – 16 Amps
5 – 20 Amps6 – 25 Amps
7 – 32 Amps
8 – Not in use
9 – Not in use
0 – Unconfigured or configured with App - Confirm green light
Configuration is completed when the charging station status indicator changes to flashing green and then turns to a white status indicator.
- Mount the Front Cover
Secure and lock the front cover (max torque 1 Nm).
Zapotec Charger AS
Made in Norway
zaptec.com
© Zaptec Charger AS 27 .05 .2021 . All rights reserved. ZM000769
