DYMROGE Cordless Heated Shoulder Massager Pad Model 102378 User Manual

Ọrọ Iṣaaju

Thank you for choosing the DYMROGE Cordless Heated Shoulder Massager Pad. This manual provides important information for the safe operation, maintenance, and troubleshooting of your device. Please read it thoroughly before first use and retain it for future reference.

Package Awọn akoonu

Rii daju pe gbogbo awọn nkan wa ninu package:

• Shoulder Heat Pad
• Long Extension Strap
• Short Extension Strap
• Okun Ngba agbara USB
• Afowoyi Olumulo (iwe-ipamọ yii)

Alaye Aabo pataki

• Maṣe lo lori awọ ara igboro.
• Avoid prolonged use at the highest temperature setting.
• Do not operate the screen controller during charging to prevent damage.
• Use only the provided USB charging cable and a 5V 2A or higher output power adapter for charging.
• The device features auto safety cutoff and overheat protection for secure use.

Eto ati Lilo akọkọ

1. Ngba agbara ẹrọ

Before first use, fully charge the shoulder massager pad. Connect the provided USB charging cable to the device and a 5V 2A or higher output power adapter. The built-in 5000mAh battery supports cordless use once charged.

Pataki: Do not operate the screen controller while the device is charging, as this may cause damage.

2. Siṣàtúnṣe Fit

The shoulder pad is designed for a comfortable, looser fit and includes two extension straps to accommodate various body types and both left or right shoulders.

1. Place the shoulder pad on the desired shoulder (left or right).
2. Adjust the main strap for a snug yet comfortable fit.
3. If needed, attach the long or short extension strap to achieve the optimal fit.

Image: The DYMROGE shoulder massager pad showing its universal and adjustable design, including dimensions and the two extension straps for a customized fit.

Awọn ilana Iṣiṣẹ

The device features an intelligent LED touch control panel for easy operation.

1. Agbara Tan / Paa

Press and hold the power button on the touch panel to turn the device on or off.

2. Heating Levels

The shoulder pad offers 5 heating levels, with temperatures ranging from 50℃ to 70℃ (122°F to 158°F). Each level corresponds to a specific temperature setting.

• Press the heating button to cycle through the 5 heating levels.
• To switch the temperature display between Celsius (℃) and Fahrenheit (°F), simultaneously long press the Heating button and Vibrating button for 3 seconds.

Akiyesi: Do not use the heating function on bare skin. Avoid prolonged use at the highest temperature setting.

Image: A user relaxing with the shoulder massager, illustrating the 5 available heating levels and the method to switch between Celsius and Fahrenheit.

3. Massaging Modes

The device is equipped with 4 powerful motors, providing 5 distinct massaging modes (F01 to F05). The intensity of the massage increases with each mode.

• Press the vibrating button to cycle through the 5 massaging modes.
• Select the mode that provides your desired massage intensity.

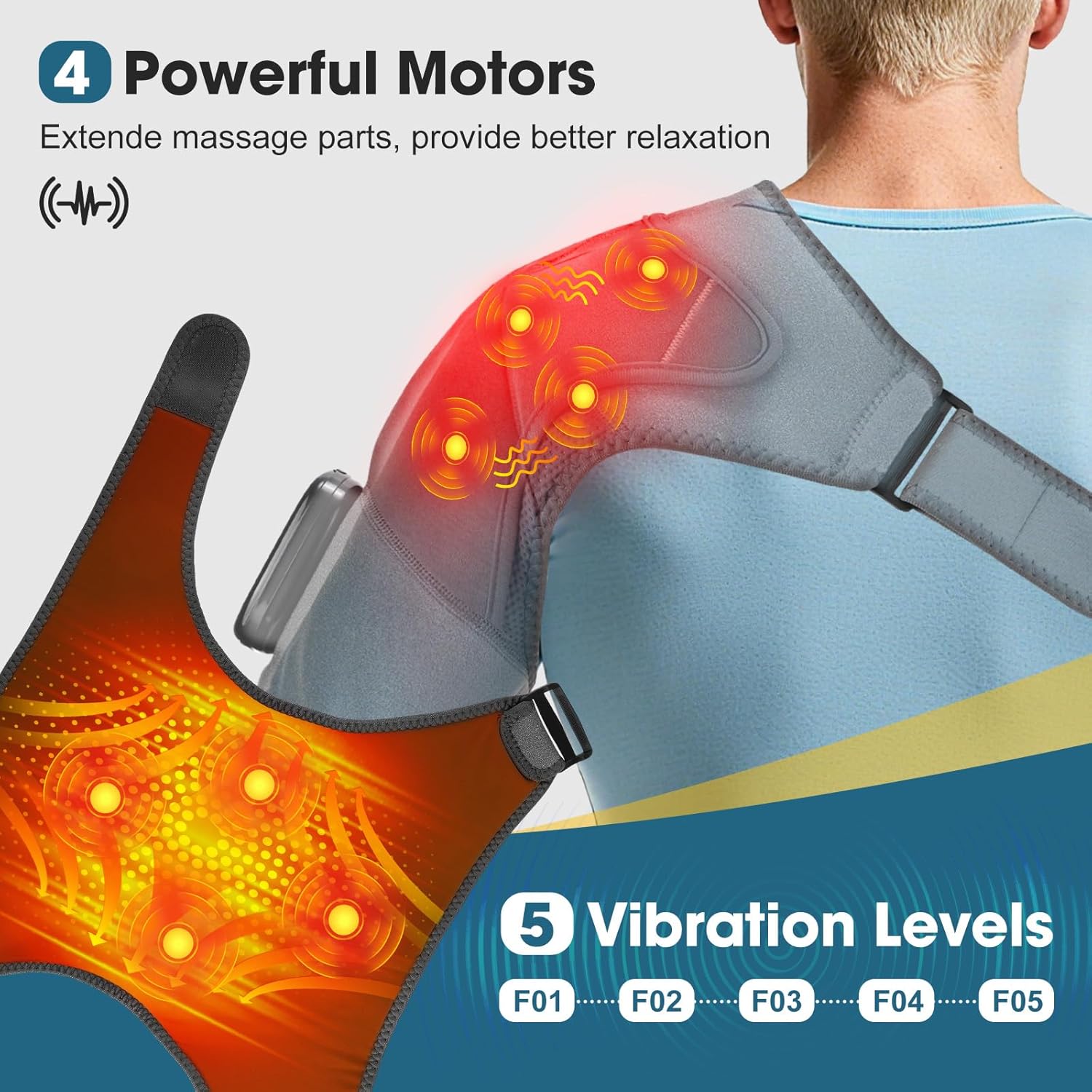

Image: An illustration of the shoulder massager highlighting the placement of 4 powerful motors and the 5 available vibration levels (F01-F05).

4. Awọn Eto Aago

Customize your session with 3 timing settings: 20, 35, or 45 minutes.

• Upon powering on, the device defaults to a 20-minute auto turn-off setting.
• Press the timer button to cycle through the 20, 35, and 45-minute options.
• The device will automatically shut off after the selected time.

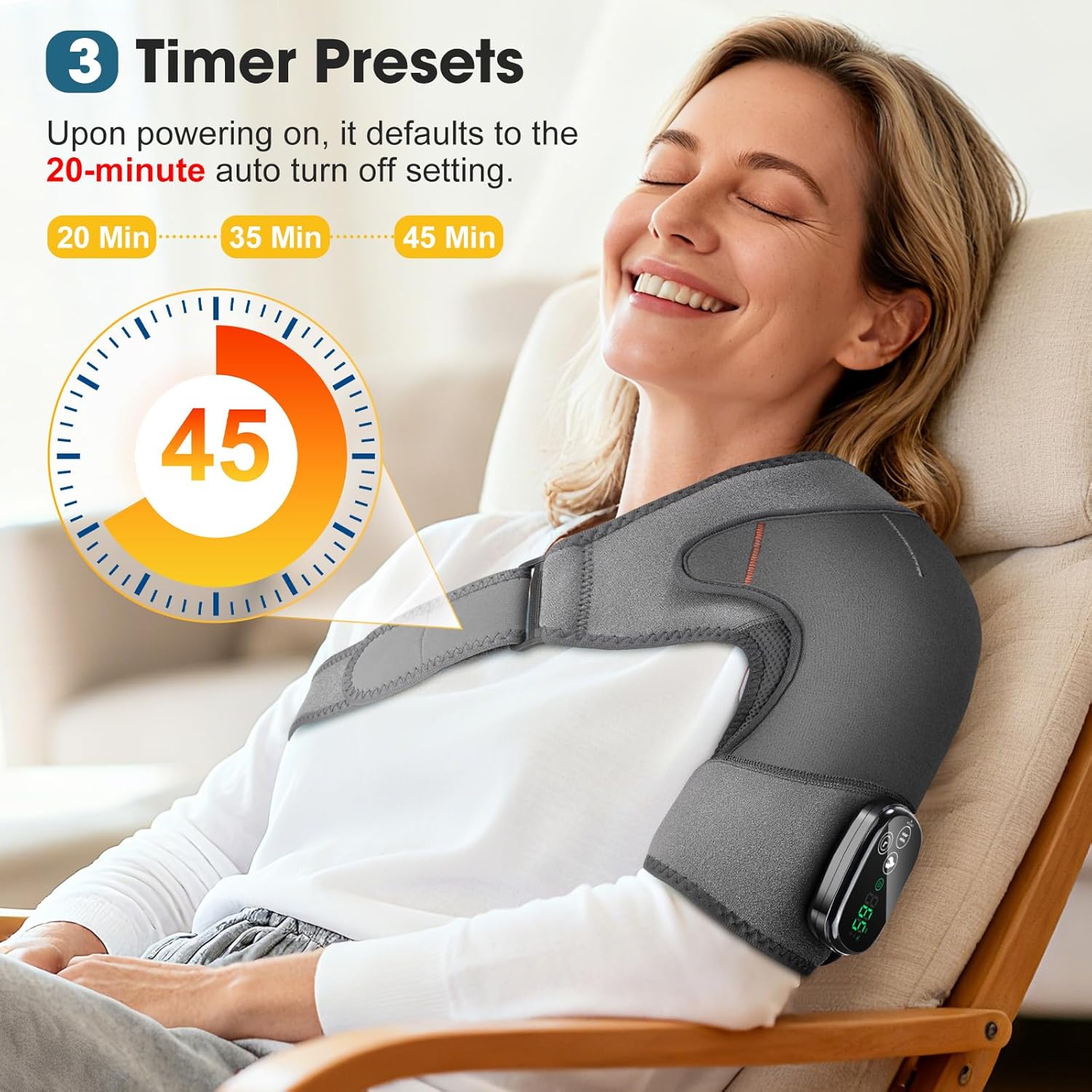

Image: A user enjoying the shoulder massager, with a graphic illustrating the 3 available timer presets: 20, 35, and 45 minutes.

5. Lock Function and Low-Power Alert

The LED touch panel includes a lock function to prevent accidental changes during use. It also provides a low-power alert to indicate when recharging is needed.

Itọju ati Itọju

To clean the shoulder massager pad, simply wipe it with a wet cloth. Do not submerge the device in water or use harsh cleaning agents.

Laasigbotitusita

Awọn pato

Atilẹyin ọja ati Support

For warranty information or technical support, please refer to the contact details provided with your purchase or visit the official DYMROGE webojula. Tọju iwe-ẹri rira rẹ bi ẹri rira fun awọn iṣeduro atilẹyin ọja.
