SHARP ES-SD70NB-FB 7 kg Semi-Automatic Top Loading Washing Machine User Manual

1. Ifihan

This manual provides essential information for the safe and efficient operation, installation, and maintenance of your SHARP ES-SD70NB-FB 7 kg Semi-Automatic Top Loading Washing Machine. Please read it thoroughly before using the appliance and retain it for future reference.

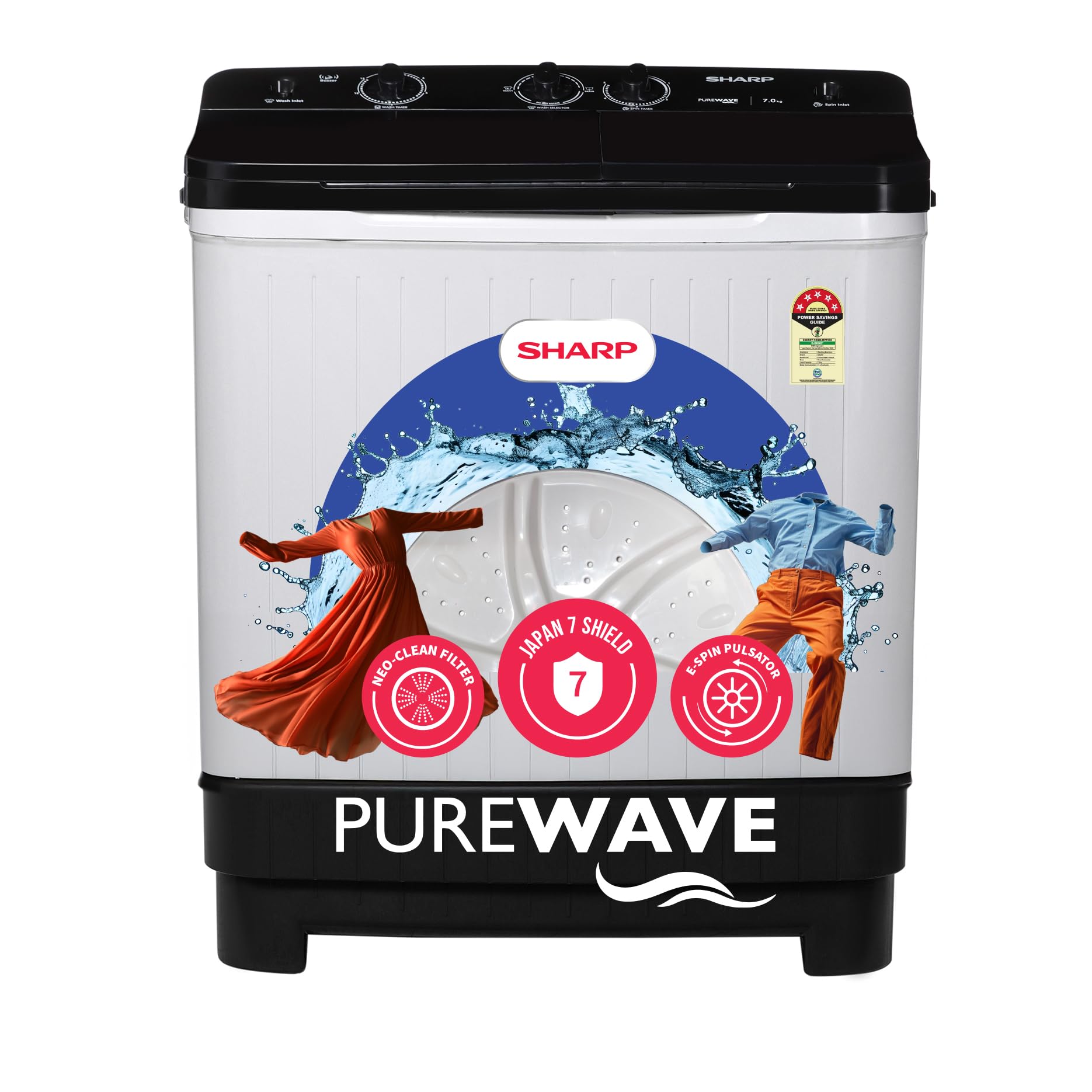

Figure 1: SHARP ES-SD70NB-FB 7 kg Semi-Automatic Top Loading Washing Machine (Grey)

2. Awọn ilana aabo

Observe the following safety precautions to prevent accidents and ensure proper operation:

• Ensure the washing machine is installed on a stable, level surface to prevent vibration and noise.
• Ma ṣe ṣiṣẹ ẹrọ naa pẹlu okun agbara ti o bajẹ tabi pulọọgi.
• Pa awọn ọmọde ati awọn ohun ọsin kuro ninu ohun elo lakoko iṣẹ.
• Má ṣe fi àwọn ẹ̀yà iná mànàmáná sínú omi tàbí àwọn ohun míràn.
• Unplug the machine from the power outlet before cleaning or performing any maintenance.
• Ma ṣe fọ awọn nkan ti o jẹ ẹlẹgbin pẹlu awọn nkan ina.
• Rii daju didasilẹ to dara lati yago fun mọnamọna itanna.

3. Ọja Ipariview

The SHARP ES-SD70NB-FB is a 7 kg semi-automatic top-loading washing machine designed for efficient and convenient laundry care. Key features include a 5-star energy efficiency rating, E-Spin Pulsator, and Japan 7 Shields for enhanced durability and protection.

Irinše ati Awọn ẹya ara ẹrọ

• Ọpọn fifọ: Fún fífọ aṣọ.
• Ọpọn ìwẹ̀: For drying clothes.
• Ibi iwaju alabujuto: Features knobs for wash timer, wash program selection, and spin timer.
• E-Spin Pulsator: Delivers superior wash performance.
• NeoClean Filter: Traps lint and debris during the wash cycle.
• Collar Scrubber: Integrated feature for effective collar cleaning.
• Rat Mesh: Protects the machine from rodents.
• Anti-rust Cabinet: Ṣe idaniloju agbara igba pipẹ.
• Buzzer: Indicates the end of a cycle.
• Awọn kẹkẹ Castor: For easy movement of the appliance.

Figure 2: Control Panel and Key Features (5 Star Energy Efficient, Collar Scrubber, NeoClean Filter)

Figure 3: E-Spin Pulsator for effective washing

4. Eto

Proper installation ensures optimal performance and longevity of your washing machine.

Unpacking ati Placement

1. Fara yọ gbogbo awọn ohun elo apoti kuro.
2. Place the washing machine on a firm, level surface. Ensure there is adequate space around the machine for ventilation and operation.
3. Avoid placing the machine in direct sunlight or near heat sources.

Figure 4: Product Dimensions (75D x 45W x 93H Centimeters)

Omi ati Sisan awọn isopọ

1. Connect the water inlet hose to a suitable water tap. Ensure a secure connection to prevent leaks.
2. Gbe okun ṣiṣan silẹ lati gba laaye fun fifa omi to dara. Rii daju pe ko tan tabi dina.

olusin 5: Ẹyìn view with water inlet and drain hose connections

Asopọ Itanna

Pulọọgi okun agbara sinu iṣan itanna ti ilẹ. Rii daju voltage ibaamu awọn pato ti awọn fifọ ẹrọ.

5. Awọn ilana Iṣiṣẹ

Follow these steps for effective washing and spinning of your laundry.

Ilana fifọ

1. Gbe ifọṣọ: Open the wash tub lid and place clothes loosely into the wash tub. Do not overload.
2. Ṣafikun Detergent: Fi iye ọṣẹ ti o yẹ kun taara sinu iwẹ fifọ.
3. Kun Omi: Fi omi kún agbada ìfọṣọ náà dé ipele tí a fẹ́.
4. Yan Ètò Ìfọmọ́: Turn the 'Wash Program' knob to select either Onírẹlẹ for delicate fabrics or Alagbara for heavily soiled items.
5. Ṣètò Aago Fọ: Turn the 'Wash Timer' knob to the desired washing duration. The machine will start automatically.
6. Sisan omi: Once the wash cycle is complete, turn the 'Drain' knob to drain the water from the wash tub.

Spinning Procedure

1. Transfer Laundry: Carefully transfer the washed clothes from the wash tub to the spin tub. Distribute them evenly.
2. Close Spin Lid: Ensure the spin tub lid is securely closed.
3. Ṣètò Aago Yiyi: Turn the 'Spin Timer' knob to the desired spinning duration. The machine will begin spinning.
4. Yọ aṣọ fifọ kuro: Once the spin cycle is complete and the tub has stopped, open the lid and remove the spun clothes.

6. Itọju

Regular maintenance helps prolong the life of your washing machine and ensures optimal performance.

Cleaning the NeoClean Filter

1. After each wash cycle, remove the NeoClean Filter located inside the wash tub.
2. Open the filter and remove any accumulated lint and debris.
3. Rin àlẹmọ labẹ omi ṣiṣan lati sọ di mimọ daradara.
4. Reinsert the clean filter back into its position in the wash tub.

Figure 6: NeoClean Filter for lint and debris collection

Gbogbogbo Cleaning

• Mu ese ita ẹrọ naa pẹlu asọ, damp asọ. Maṣe lo awọn afọmọ abrasive.
• Clean the wash and spin tubs periodically to prevent residue buildup.
• Rí i dájú pé kò sí ìdènà nínú ihò ìṣàn omi náà.

Rat Protection

The machine is designed with rat-proof materials and a rat mesh to protect vital components. Regularly inspect the area around the machine for any signs of rodent activity.

Figure 7: Rat Protection design

7. Laasigbotitusita

Tọkasi apakan yii fun awọn ojutu si awọn ọran ti o wọpọ ti o le ba pade.

Ẹrọ Ko Bẹrẹ

• Ṣayẹwo boya okun agbara ti wa ni edidi ni aabo sinu iṣan iṣẹ kan.
• Ensure the wash or spin timer knob is set to a duration.
• Verify that the water supply is connected and turned on.

Poor Washing Performance

• Do not overload the wash tub.
• Ensure sufficient water level for the load size.
• Check if the NeoClean Filter is clean.
• Use the appropriate amount and type of detergent.

Gbigbọn pupọ tabi Ariwo

• Ensure the machine is placed on a firm, level surface.
• Distribute laundry evenly in the wash or spin tub.
• Check for any foreign objects in the tubs.

Ti iṣoro naa ba wa lẹhin igbiyanju awọn iṣeduro wọnyi, jọwọ kan si atilẹyin alabara.

8. Awọn pato

9. Atilẹyin ọja

Your SHARP ES-SD70NB-FB washing machine comes with the following warranty:

• Atilẹyin ọja okeerẹ 2 ọdun on the entire product.
• 5 Ọdun atilẹyin ọja on the Wash Motor.

Warranty claims can be made with your Amazon invoice. Please refer to the warranty card included with your product for full terms and conditions.

Àwòrán 8: Ìwífún nípa Àtìlẹ́yìn

10. Atilẹyin

For further assistance, technical support, or service requests, please contact the manufacturer:

Olupese: SHARP, Sharp Business Systems India Pvt Ltd

Adirẹsi: First Floor, Plot No 51 Okhla Industrial Area, Phase - 3, Near Modi Mill., Delhi - 110020

A user manual is included with your product for detailed information.
