ExcelTek 971LM Compatible Garage Door Remote Control

Ìwífún Tó Ṣe Pàtàkì Nípa Ìbáramu

This remote control is designed to work exclusively with Liftmaster, Chamberlain, Craftsman, Sears, Raynor, and AccessMaster garage door openers that feature a Pupa or Orange Learn Button. It is not compatible with other learn button colors or brands.

Image: Compatibility diagram highlighting the required Red or Orange Learn Button on the garage door opener.

Àwọn Àwòrán Latọna jijin Tó Báramu:

• Liftmaster: 91LM, 92LM, 94LM, 96LM, 970LM, 971LM, 972LM, 973LM, 974LM
• Chamberlain: 950CB, 953CB, 956CB
• Sears Craftsman: 139.53680, 139.53681, 139.53661, 139.53662, 139.53663, 139.53664

Ọja Pariview

The ExcelTek 971LM compatible garage door remote control offers a convenient and secure way to operate your garage door. Its compact design and robust features ensure reliable performance.

Image: The ExcelTek remote control, showing its compact size and attached keychain clip.

Awọn ẹya pataki:

• Security+ Rolling Code Technology: Enhances security by changing the code each time the remote is used.
• Rọrun lati ṣe eto: Simple wireless connection process.
• Sliding Protective Cover: Ṣe idilọwọ awọn titẹ bọtini lairotẹlẹ.
• Multi-Frequency Support: Supports up to 3 encrypted frequencies (buttons C and D are linked).
• Iwapọ ati iwuwo fẹẹrẹ: Designed for portability and convenience.
• Ikole ti o tọ: Rugged plastic and metal case for long-lasting use.
• Built-in LED Indicator: Illuminates when a signal is transmitted.
• Metal Reinforced Keychain Hole: Designed to withstand pressure.

Image: Detailed diagram illustrating the various features of the ExcelTek remote control.

Awọn akoonu idii:

• ExcelTek 971LM Compatible Remote Control
• Keychain Clip
• 1 x 27A 12V Battery (pre-installed)
• Awọn ilana siseto

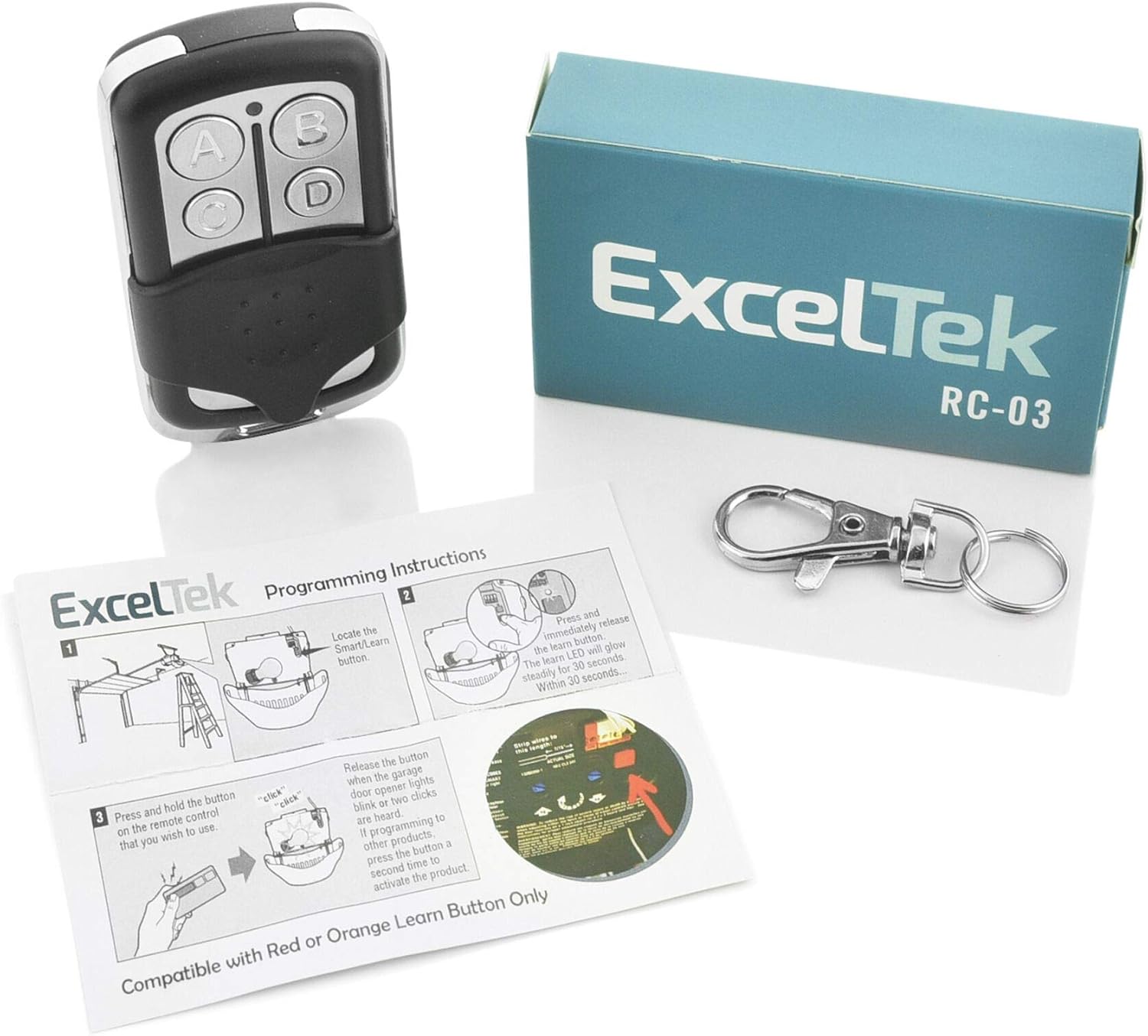

Image: The remote control, its packaging, programming instructions, and keychain clip.

Eto ati Awọn ilana siseto

Follow these steps to program your ExcelTek remote control to your garage door opener. Ensure your garage door opener has a Red or Orange Learn Button before proceeding.

1. Locate the Smart/Learn Button: Find the Smart/Learn button on your garage door opener unit. This button is typically located on the motor head unit, often under the light cover or on the back panel.
2. Mu Ipo Ẹkọ Ṣiṣẹ: Press and immediately release the Smart/Learn button on your garage door opener. The Learn LED indicator on the opener will glow steadily for 30 seconds, indicating it is in programming mode.
3. Ṣe eto latọna jijin: While the Learn LED is glowing (within 30 seconds), press and hold the desired button on your ExcelTek remote control. Release the button on the remote when the garage door opener lights blink or two clicks are heard. This confirms successful programming.

   Note: If programming to other products or if the first attempt is unsuccessful, you may need to press the remote button a second time to activate the product.

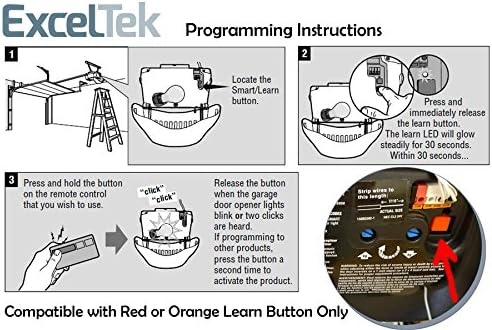

Image: Visual guide for programming the remote control, detailing the steps to sync with your garage door opener.

Awọn ilana Iṣiṣẹ

Using your ExcelTek remote control is straightforward:

• Open/Close Garage Door: Slide the protective cover down to expose the buttons. Press the programmed button (A, B, C, or D) once to open or close your garage door.
• Prevent Accidental Activation: Always slide the protective cover back up when not in use to prevent unintended button presses, especially when carrying the remote in a pocket or bag.
• Ibiti: The remote has a maximum operating range of approximately 100 meters (328 feet). Optimal performance may vary based on environmental factors and obstructions.

Image: A person using the ExcelTek remote control to operate a garage door.

Itoju

Rirọpo Batiri:

The remote control uses one 27A 12V battery. When the remote's range decreases significantly or the LED indicator does not light up, it may be time to replace the battery.

1. Ṣí iṣakoso latọna jijin pẹlu iṣọra casing.
2. Remove the old 27A 12V battery.
3. Insert a new 27A 12V battery, ensuring correct polarity (+/-).
4. Ti iṣakoso latọna jijin de casing ni aabo.

Ninu:

To clean the remote control, wipe it with a soft, dry cloth. Do not use abrasive cleaners or solvents, as these can damage the casing tabi ti abẹnu irinše.

Laasigbotitusita

• Remote Not Working / Intermittent Operation:
  • Check the battery: Ensure the battery is correctly installed and has sufficient charge. Replace if necessary.
  • Reprogram the remote: Follow the "Setup and Programming Instructions" to re-sync the remote with your garage door opener.
  • Check compatibility: Verify that your garage door opener has a Red or Orange Learn Button.
  • Obstructions: Ensure there are no obstructions blocking the signal between the remote and the garage door opener.
• Garage Door Opens/Closes Accidentally:
  • Ensure the sliding protective cover is closed when the remote is not in active use to prevent accidental button presses.
• Ipinsi iṣẹ ti o dinku:
  • Rọpo batiri naa.
  • Ensure there are no new sources of interference (e.g., new electronic devices) near your garage door opener.

Awọn pato

Atilẹyin ọja ati Support

For warranty information or technical support, please refer to the documentation included with your purchase or contact ExcelTek customer service directly. Contact details can typically be found on the product packaging or the manufacturer's official webojula.
