WUNDA Smart Connection Box User Guide

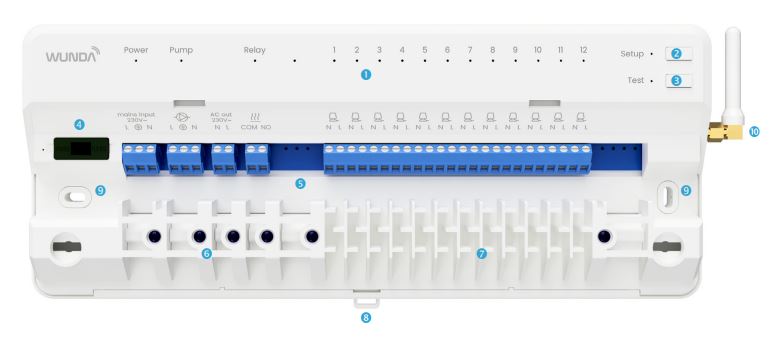

Welcome to your Smart Connection Box
- Status Lights
- Setup Pairing Button
- Output Test Button
- 5A Fuse
- Terminal Blocks
- Wire Clamping Area
- Actuator Cable Channel
- DIN Mounting Rail Clamp
- Wall Fixing Holes
- Antenna
Quick install guide
- A. First ensure your choice of Hub is set up and your App is installed.
- B. Mount Connection Box near manifold
- C. Connect actuators to terminal r
- D. Connect power, pump and heating source
- E. Launch your App and choose Devices , then Add device and choose Smart Connection Box.
- F. Hold the Setup Button o and wait until it shows the device has been successfully paired. G.
For more information please visit: www.wundasmart.com/ support
Need our help?
Our designated support staff are on hand to answer all your
questions help@wundasmart.com
0800 083 2677

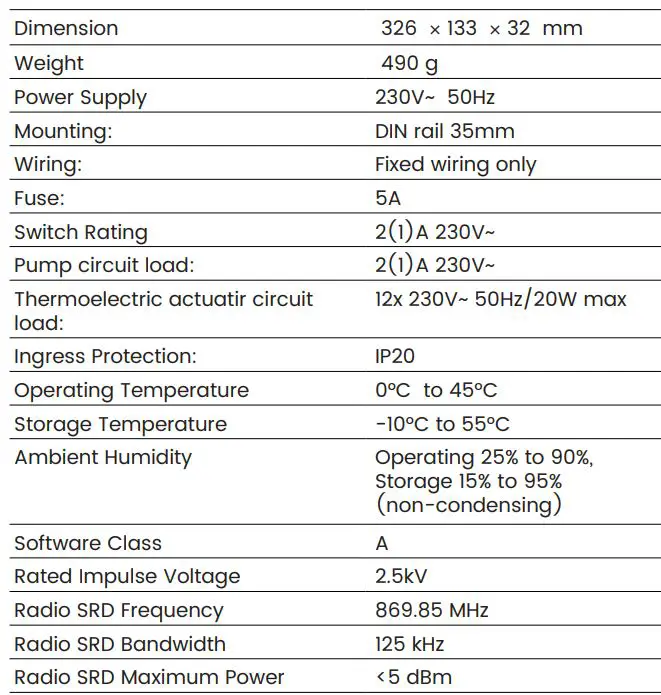

Technical Specification
EU Declaration of Conformity
This device is in compliance with essential requirements and other relevant provisions of the following EU Directives:
- RED Directive 2024/53/EU
- RoHS Directive 2011/65/EU
A Copy of the EU Declaration of Conformity is available at: wundasmart.com/conformity
Precautions
- Installation and connection should be carried out by YJHMSNHFQXJW[NHJTWFZYMTWN_JIFSIVZFQNJIUJWXTSX according to applicable regulations and standards.
- Always disconnect the power supply when connecting or disconnecting the devices powered from the main device.
- Before the installation, read the terms and conditions of the warranty and these instructions. Improper installation or use against these instructions will void the warranty.
- All repairs to the device should be carried out by a competent electrician. Otherwise, it will void the warranty.
- This device should not be installed or worked on by minors, people with reduced physical or mental abilities or with lack of experience or knowledge of the equipment, except if supervision and instruction for the safe use of the equipment is provided in such a manner that all the associated hazards are understood.
- If a power cord is damaged, it should be replaced by a hazard.
- Do not install the device with mechanically damaged casing or damaged/broken cables.
- The device must not be exposed to water or excessive humidity resulting in steam condensation (e.g. caused by rapid changes of the ambient temperature).
The WEEE symbol means that a device must be disposed of separately from general household waste. When a device reaches the end of its safe disposal or recycling.
This conserves natural resources, protects human health and helps the environment.
Heating Source – Voltage Free (Wiring example)
Heating Source – 230V – Output (wiring example)
If you are wiring your two port valve or direct feed to trigger the boiler to the connection box, ensure that you select the relay within the app when you are selecting your actuators.
Installers notepad
Output no Conneted to loop no Room name
1 _____________________
2 _____________________
3 _____________________
4 _____________________
5 _____________________
6 _____________________
7 _____________________
8 _____________________
9 _____________________
10 _____________________
11 _____________________
12 _____________________
This Smart Connection Box is connoted to: __________________________________________ ____________________________________________________________________________________ ____________________________________________________________________________________ ___________________________________________________________________________________ _____________________
Notes: __________________________________________ ____________________________________________________________________________________ ____________________________________________________________________________________ ___________________________________________________________________________________ _____________________
Manufacturer
WundaGroup PLC Caldicot, NP265AD :SNYJI0NSLITR www.wundasmart.com
