SunSun CTF-1200B SuperECO Pond Pump User Manual

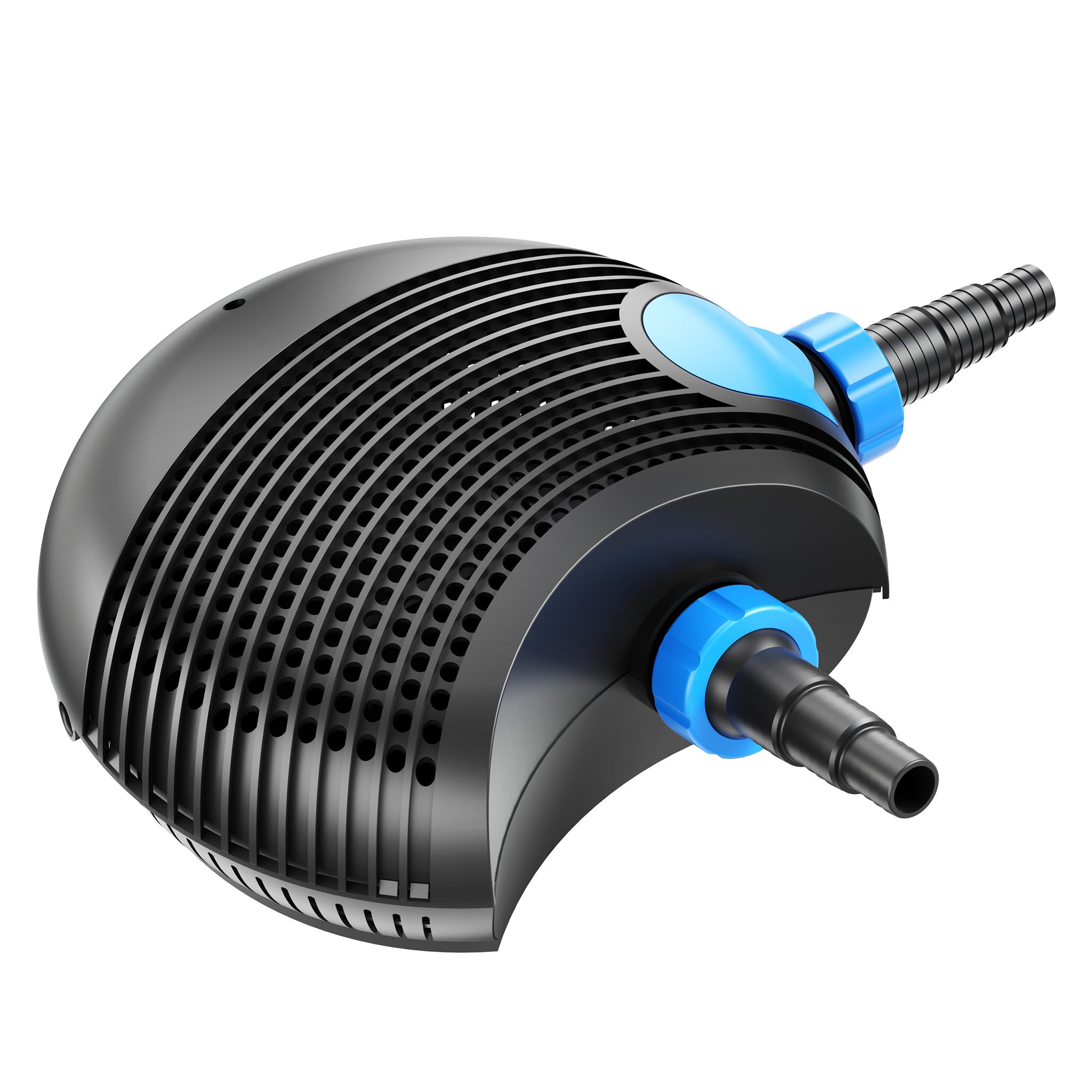

1. Giới thiệu và kết thúcview

Thank you for choosing the SunSun CTF-1200B SuperECO Pond Pump. This high-performance, energy-efficient pump is designed for continuous operation in various water features, including garden ponds, fountains, and filtration systems. Its robust construction and versatile applications ensure clear and healthy water circulation while minimizing electricity costs.

Hình ảnh: SunSun CTF-1200B SuperECO Pond Pump installed in a clear pond, connected to an external filter system. This setup demonstrates a typical installation for water circulation and filtration.

2. Hướng dẫn an toàn

Vui lòng đọc kỹ tất cả hướng dẫn an toàn trước khi lắp đặt và vận hành. Việc không tuân thủ các hướng dẫn này có thể dẫn đến điện giật, hỏa hoạn hoặc thương tích nghiêm trọng.

• Always disconnect the pump from the power supply before handling, installing, or performing any maintenance.
• Ensure the power cable is undamaged. Do not operate the pump if the cable is cut or frayed.
• The pump must be fully submerged in water during operation. Never run the pump dry.
• Do not use the pump for liquids other than water.
• Hãy đảm bảo ổ cắm điện được bảo vệ bằng thiết bị ngắt mạch chống rò rỉ điện (GFCI) hoặc thiết bị chống rò rỉ dòng điện (RCD).
• Keep children and pets away from the pond area during pump operation and maintenance.
• The pump is designed for water temperatures between 4°C and 35°C.

3. Tính năng sản phẩm

• Hiệu suất năng lượng cao: Operates at only 100 watts for a flow rate of 12000 l/h, reducing electricity costs.
• Ứng dụng đa năng: Suitable for pond circulation, fountains, waterfalls, and integrated filtration systems.
• Optimized Filtration System: Integrates seamlessly with main filters, UVC clarifiers, or secondary installations via a Y-connector.
• Durable Ceramic Shaft: Equipped with a powerful motor featuring a wear-resistant ceramic shaft, suitable for saltwater, copper-free, and rust-resistant.
• Bảo trì dễ dàng: Designed for simple, tool-free disassembly and cleaning.
• Đánh giá chống nước IPX8: Ensures reliable operation when fully submerged.

Hình ảnh: Một chi tiết view of the pump's powerful motor, featuring a durable ceramic shaft. The image emphasizes its resistance to wear, suitability for saltwater environments, and its copper-free, rust-resistant construction, ensuring longevity and reliability.

4. Thiết lập

Follow these steps for proper installation of your SunSun CTF-1200B pond pump:

1. Tháo hộp và kiểm tra: Carefully remove all components from the packaging. Inspect the pump and accessories for any damage.
2. Chọn Vị trí: Place the pump in the deepest part of your pond, ensuring it is fully submerged and stable. Avoid placing it directly on the pond bottom to prevent excessive sludge intake.
3. Kết nối ống: Attach the appropriate hose (25mm, 30mm, or 38mm) to the pump's outlet. Secure with a hose clamp (not included) to prevent leaks. If connecting to a skimmer or filter, ensure all connections are tight.
4. Kết nối điện: Route the power cable safely to a GFCI/RCD protected outdoor electrical outlet. Ensure the cable is not pinched or damaged.
5. Bơm chìm: Gently lower the pump into the water until it is fully submerged.
6. Bật nguồn: Plug the pump into the electrical outlet. The pump should start circulating water immediately.

Hình ảnh: This diagram provides key product details for the SunSun CTF-1200B pump. It highlights the pump's dimensions (353mm x 400mm x 170mm), its IPX8 waterproof rating, a maximum immersion depth of 2 meters, and compatible hose diameters (25mm, 30mm, 38mm).

Hình ảnh: This image illustrates the SunSun CTF-1200B pump connected to a skimmer system, emphasizing its energy-efficient operation. It also notes the recommended water temperature range for use (4°C - 35°C) and a crucial safety reminder that the device must only be used submerged in water.

5. Hướng dẫn vận hành

The SunSun CTF-1200B pump is designed for continuous, reliable operation. Once installed and powered on, it will begin circulating water. Ensure the pump is always fully submerged during operation to prevent damage.

• Nhiệt độ nước: The pump is designed to operate efficiently in water temperatures ranging from 4°C to 35°C.
• Điều chỉnh lưu lượng: If your setup includes a flow regulator (not supplied with the pump), adjust the water flow as needed for your specific application (e.g., fountain height, waterfall intensity).
• Skimmer Use: When used with a skimmer, the pump effectively removes surface debris and particles, contributing to clearer water.

Hình ảnh: This image showcases the versatility of the SunSun CTF-1200B pump, displaying four different application scenarios: a serene garden pond, an elegant fountain, a vibrant large aquarium, and a natural-looking artificial stream. This highlights its suitability for various water features.

6. Bảo trì

Regular cleaning and maintenance will ensure the longevity and optimal performance of your pump. The pump's design allows for easy, tool-free disassembly for cleaning.

1. Ngắt nguồn: Luôn rút phích cắm máy bơm khỏi nguồn điện trước khi tiến hành bảo trì.
2. Remove from Water: Carefully lift the pump out of the pond.
3. Disassemble Casing: Máy bơm casing can be opened easily, often with a simple twist or by unscrewing a few fasteners (some models may require a screwdriver for initial access).
4. Clean Impeller and Motor: Remove the impeller assembly. Clean the impeller, impeller chamber, and motor housing thoroughly with a soft brush and clean water to remove any debris, algae, or mineral buildup.
5. Kiểm tra các thành phần: Check the impeller, shaft, and seals for any signs of wear or damage. Replace any worn parts if necessary.
6. Lắp ráp lại: Carefully reassemble the pump, ensuring all parts are correctly seated and the casing đã được đóng kín.
7. Rửa sạch: Rinse the assembled pump before returning it to the pond.

Hình ảnh: This image shows a screwdriver being used to open a screw on the bottom casing of the pump, illustrating the first step in disassembling the unit for maintenance or cleaning.

Hình ảnh: Một nội bộ view of the pump, showing the main motor and impeller assembly being carefully lifted out of the pump casing. This step is essential for accessing the impeller for cleaning.

Hình ảnh: This image depicts the cleaning process, showing a brush being used to remove debris from the impeller and motor housing under running water, ensuring thorough maintenance.

KHAI THÁC. Xử lý sự cố

Nếu bạn gặp sự cố với máy bơm, hãy tham khảo các vấn đề và giải pháp thường gặp sau đây:

8. Thông số kỹ thuật

Hình ảnh: This graphic presents a performance curve chart illustrating the relationship between flow rate (Output L/h) and maximum head (H(m)) for various CTF pump models. A table below specifically details the CTF-1200B's maximum head of 6.5m, flow rate of 12000 l/h, power consumption of 100W, and IPX8 rating.

Hình ảnh: An exploded diagram of the CTF-1200B pump, showing all its individual components disassembled. Each part is numbered and referenced in an accompanying table, providing a clear overview for assembly, disassembly, or part replacement.

KHÔNG.	Tên bộ phận	KHÔNG.	Tên bộ phận
1	Blue Top Cover	2	Pump Body Upper Part
3	Ủng hộ	4	Ủng hộ
5	Động cơ	6	Hỗ trợ máy bơm
7	Pump Body Lower Part	8	Vòng chữ O 1
9	Nắp ổ trục	10	Vòng bi
11	Rotor	12	Vỏ cánh quạt
13	Vòng chữ O 2	14	Mặt bích 1
15	Vòng ren	16	Vòng chữ O 3
17	Chỗ thoát	18	Vòng chữ O 4
19	Mặt bích 2	20	Blue Side Cover

9. Bảo hành và Hỗ trợ

For warranty information or technical support, please contact SunSun customer service through your retailer or the official SunSun webtrang web. Giữ lại biên lai mua hàng làm bằng chứng mua hàng.

Thông tin liên lạc: Please refer to the contact details provided with your purchase or visit the official SunSun webtrang web hỗ trợ.
