Generic Zigbee Smart Switch Module (TYZG-002RF) 85-250V User Manual

تعارف

The Generic Zigbee Smart Switch Module (TYZG-002RF) is a 1-channel smart relay switch designed for home automation. It operates with AC 85-250V or USB 5V power input and is compatible with Zigbee gateways, enabling control via mobile applications and voice assistants like Amazon Alexa and Google Home. This module supports various working modes including interlock, jog (momentary), and self-locking, making it suitable for controlling a wide range of household appliances such as lights, electric kettles, garage doors, and access control systems. It also functions as a Zigbee router to extend network stability.

حفاظتی معلومات

• The device features a fire-proof and flame-retardant shell for enhanced safety.
• AES-128 encryption is utilized to protect data and device privacy.
• کسی بھی وائرنگ یا تنصیب کو انجام دینے سے پہلے ہمیشہ یہ یقینی بنائیں کہ بجلی منقطع ہے۔
• Installation should be performed by a qualified professional if you are unsure about electrical wiring.

پیکیج کے مشمولات

• 1 x Zigbee Smart Switch Module
• 1 x English Instruction Manual (this document)
• 1 x Product Packaging

استعمال سے پہلے چیک لسٹ

Before proceeding with installation and setup, please ensure the following:

1. A 2.4G WiFi network is available (5G networks are not supported).
2. An Android device with version 4.0 or above is needed for app control.
3. If your wireless router has MAC address filtering enabled, disable this function in the router settings.
4. A Zigbee gateway (hub) is mandatory for operation. Ensure the smart switch is placed close to the Zigbee gateway during the pairing process.

سیٹ اپ

Pairing with Zigbee Gateway

1. Ensure your Zigbee gateway is powered on and in pairing mode.
2. Power on the smart switch module.
3. Open the Tuya or Smart Life app and follow the in-app instructions to add a new device.
4. The device should be quickly discovered and added to your Zigbee gateway hub.
5. Alternatively, if your Alexa device is connected to a compatible Zigbee hub, you can ask "Alexa, find devices."

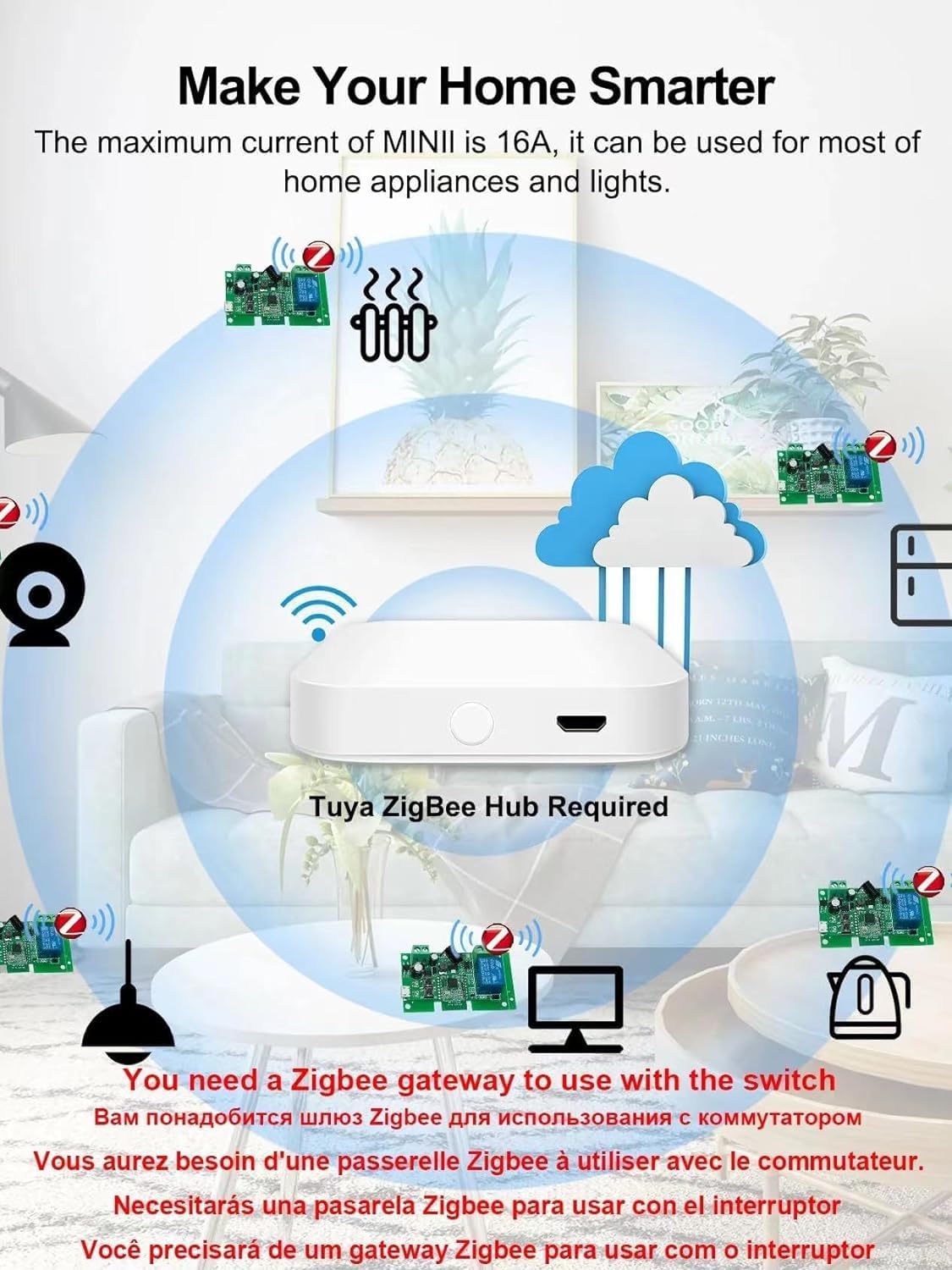

Diagram illustrating a smart home setup with multiple Zigbee smart switch modules connected to a central Tuya Zigbee Hub. This shows how the hub acts as the central point for controlling various appliances and lights, extending the smart home network.

وائرنگ ڈایاگرام

Wiring diagram for access control in inching (momentary) mode. This setup shows how to connect the smart switch to an access control system, using the COM and NO terminals for a pulse signal output. The input power is AC 85-250V.

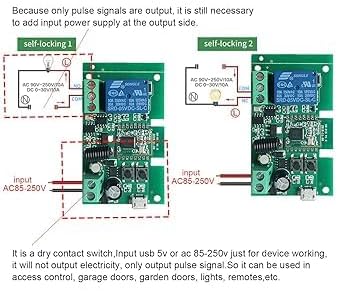

Wiring diagrams for self-locking modes. Two configurations are shown for connecting the smart switch to a load (e.g., a light bulb) in self-locking mode. The device provides a pulse signal output and requires an external power supply for the output side. It supports both AC 85-250V and USB 5V input for device operation.

Setting Working Modes

The smart switch supports two working modes: Latching and Momentary (Jog) mode. These modes determine how the relay behaves when activated.

• لمحاتی موڈ: In this mode, the switch acts like a push button, providing a brief pulse signal. This is suitable for applications such as garage door openers or access control systems that require a momentary contact closure.
• لیچنگ موڈ: In this mode, the switch acts as a standard ON/OFF switch. Once activated, it remains in that state until another command is received. This is suitable for controlling lights or other appliances that require continuous power.

To switch between these working modes, press the mode button located on the module board. Refer to the product's physical instructions for the exact location of the mode button.

آپریٹنگ

ایپ کنٹرول

• Manage numerous Zigbee smart switches using the Tuya or Smart Life application on your smartphone.
• The app provides real-time status tracking of your devices, showing their current ON/OFF state.
• Remotely turn on/off household appliances connected to the switch from anywhere with an internet connection.

وائس کنٹرول

The smart switch is compatible with Amazon Alexa and Google Assistant for hands-free voice control.

• Ensure your smart switch is successfully paired with your Zigbee gateway and linked to your Alexa or Google Home account.
• Use simple voice commands such as:
  • "الیکسا، [ڈیوائس کا نام] آن کریں۔"
  • "Ok Google، [device name] کو آف کر دو۔"
  • "Alexa, set [device name] to [ON/OFF]."

Illustration of voice control with Amazon Alexa. A user is shown giving a command to turn on a light, and Alexa responds.

Illustration of voice control compatibility with Amazon Alexa and Google Assistant, showing smart speakers and a light bulb.

آریف کنٹرول

The module includes a built-in 433MHz RF receiver and supports learning 433MHz RF fixed codes for remote control. An RF remote control is not included and must be purchased separately.

اسمارٹ مناظر۔

Create custom smart scenes within the Tuya or Smart Life app to automate appliances based on various conditions such as departure mode, home mode, temperature, humidity, or other environmental factors. This feature allows for intelligent linkage with other Zigbee products to create a fully automated smart home experience.

ٹائمرز

Set up to 8 different timers per device, including schedule, countdown, and cycle timers, to automate device operation according to your daily routine or specific needs.

شیئرنگ

Share control of the smart switch with family members through the Tuya or Smart Life app, allowing multiple users to manage the connected appliances.

دیکھ بھال

• Keep the device clean and free from dust by gently wiping it with a dry cloth.
• زیادہ گرمی سے بچنے کے لیے ماڈیول کے ارد گرد مناسب وینٹیلیشن کو یقینی بنائیں۔
• ڈیوائس کو انتہائی درجہ حرارت، براہ راست سورج کی روشنی، یا زیادہ نمی کے سامنے لانے سے گریز کریں۔
• Do not attempt to disassemble or repair the device yourself, as this may void the warranty and pose safety risks.

خرابی کا سراغ لگانا

• آلہ جوڑا نہیں بن رہا ہے: Ensure the Zigbee gateway is powered on and in pairing mode. Verify the smart switch is within effective range of the gateway. Confirm that your WiFi network is 2.4Ghz, as 5Ghz is not supported. Reset the device if necessary (refer to product specific reset instructions).
• No response from device: Check all power connections to the smart switch. Verify the Zigbee gateway is online and connected to the internet. Ensure the device status in the Tuya/Smart Life app is correct and shows as online.
• صوتی کنٹرول کے مسائل: Confirm that the smart switch is correctly linked to your Amazon Alexa or Google Home account. Check your internet connection and the functionality of your voice assistant device. Try re-syncing devices through the voice assistant app.
• وقفے وقفے سے رابطہ: Ensure the Zigbee gateway is centrally located and not obstructed by physical barriers. The smart switch can act as a Zigbee router to extend network stability, but optimal placement of the gateway is crucial.

وضاحتیں

وارنٹی

Warranty information for this product is typically provided at the point of purchase or on the manufacturer's official website. Please refer to your retailer or the manufacturer for specific warranty terms and conditions, including coverage duration and claim procedures.

حمایت

For technical support, troubleshooting assistance, or further inquiries regarding the Generic Zigbee Smart Switch Module, please contact the retailer or manufacturer directly. Contact details can usually be found on the product packaging, the seller's information page, or the manufacturer's official webسائٹ
