Nashi Compact Pro Smart Bidet Toilet Seat User Manual

1. Вступ

Thank you for choosing the Nashi Compact Pro Smart Bidet Toilet Seat. This manual provides detailed instructions for the safe and efficient installation, operation, and maintenance of your new bidet seat. Please read this manual thoroughly before use and keep it for future reference.

2. Ключові характеристики

• Wash and Dry Function: The Compact Pro bidet incorporates water wash and drying functions. The water jet, heated instantaneously, features 4 temperature levels and 4 pressure levels. The drying air has 4 temperature levels. Functions are controllable from the side control panel. For enhanced hygiene, an intimate hygiene filter is included, capable of removing organic matter from the water.
• Self-Cleaning and Complete Hygiene: The retractable stainless chrome injector (anti-bacterial and anti-corrosive) is detachable and self-cleans before and after use. The nozzle position is adjustable in 4 positions and offers 4 wash functions (anal, feminine, children, and massage). Additionally, it includes a presence sensor to prevent accidental activation.
• Heated Seat and Built-in Deodorizer: For greater comfort during use, the heated seat has 4 different temperature levels and an occupancy sensor. When not in use, an energy-saving mode can be configured to maintain the seat at a low constant temperature. It also includes a bamboo charcoal deodorizer to keep the bathroom fresh.
• Durable and Quality Materials: The lid and seat are manufactured from high-quality, resistant ABS. This equipment has an IPX4 protection rating, certified for high water resistance. The seat also includes adjustable LED courtesy lights.
• Maximum Autonomy for Children and Seniors: The Nashi toilet seat is ideal for maintaining proper hygiene in sensitive areas for the entire family, including children and seniors, who will gain greater independence. Both the toilet seat and lid feature soft-close functionality, eliminating slams and noise.
• Easy Installation and Compatibility: It fits toilets where the distance from the cistern to the tip of the closed lid is 50 cm or more. It only requires a water inlet and a power outlet for easy installation.

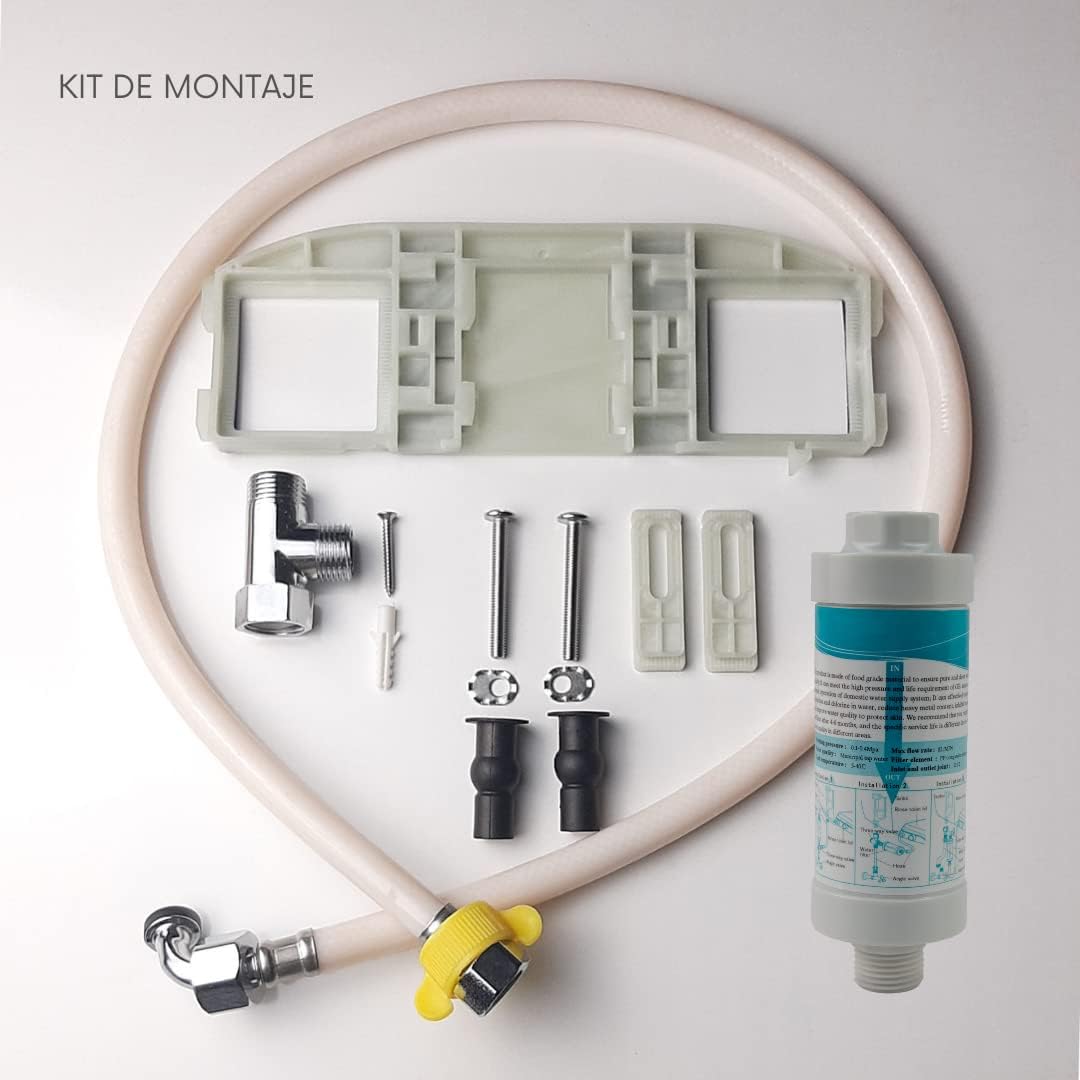

3. Вміст упаковки

The Nashi Compact Pro package includes the following items:

• Nashi Compact Pro Bidet Toilet Seat/Lid
• Повна інструкція з експлуатації
• Hose (50 cm)
• Т-подібний з'єднувач
• Screws and installation hardware
• Power cable (1.5 m, Type F plug, 220V)

4. Посібник із встановлення

Before starting the installation, ensure you have all the components listed in the Package Contents section. It is important to disconnect the power and close the main water supply valve before proceeding.

4.1. Перевірка сумісності

Measure the distance from the cistern to the front tip of your toilet bowl. The Nashi Compact Pro requires a minimum distance of 50 cm for proper fit. Refer to the diagram below for guidance.

4.2. Покрокове встановлення

Follow these steps to install your Nashi Compact Pro bidet toilet seat:

1. Підготуйте туалет: Remove your existing toilet seat and clean the toilet bowl surface.
2. Встановити монтажну пластину: Place the mounting plate onto the toilet bowl, aligning the holes. Insert the rubber nuts, plastic panel, and flat gasket one by one into the toilet holes.
3. Надійна монтажна пластина: Insert the screws and tighten them to secure the mounting plate.
4. Прикріпіть сидіння для біде: Slide the main bidet seat structure onto the mounting plate until you hear a "click," indicating it is securely in place.
5. Підключення впускного отвору для води: Connect the water inlet hose to the bidet seat's water connection point.
6. Встановлення Т-подібного клапана: Screw the T-shaped shut-off valve onto the wall water supply.
7. Підключити фільтр: Screw the water filter onto the T-shaped valve.
8. Connect Hose to Filter: Screw the connector joint of the hose to the filter.
9. Підключіть живлення: Plug the power cable into a suitable 220V outlet.

5. Інструкція з експлуатації

The Nashi Compact Pro offers various functions for personalized hygiene. All functions are controlled via the side panel.

5.1. Панель керування завершеноview

5.2. Основні функції

• Сидіння з підігрівом: The seat automatically heats up when occupied. Use the "Seat Temp" buttons on the control panel to adjust between 4 temperature levels.
• Функції прання:
  • Rear Wash / Massage: Activates the posterior wash. Press again for massage function.
  • Feminine Wash / Massage: Activates the feminine wash. Press again for massage function.
  • Дитячий режим: Забезпечує делікатне прання, що підходить для дітей.
  • Температура води: Adjust the water temperature using the "Water Temp" buttons (4 levels).
  • Тиск води: Adjust the water pressure using the "Pressure" buttons (4 levels).
  • Положення сопла: Adjust the nozzle's position using the "Position" buttons (4 positions).
• Функція сушіння: After washing, press the "Dryer" button to activate the warm air dryer. Adjust air temperature using the "Dryer Temp" buttons (4 levels).
• Стій: Press the "Stop" button to cease any active washing or drying function.
• Датчик присутності: The bidet seat features a sensor that detects occupancy, preventing accidental activation of functions when not in use.
• Режим енергозбереження: Activate this mode to maintain the heated seat at a lower, constant temperature when not in use, saving energy.
• Ввічливість: The seat includes adjustable LED courtesy lights for nighttime use.

6. Технічне обслуговування

Regular maintenance ensures the longevity and optimal performance of your Nashi Compact Pro bidet toilet seat.

• Очищення форсунок: The retractable nozzle is self-cleaning before and after each use. For deeper cleaning, the nozzle can be detached.
• Заміна фільтра: The intimate hygiene filter should be replaced periodically, typically every 6 months, depending on water quality and usage. To replace, close the water supply, unscrew the old filter, and screw in the new one.
• Генеральне прибирання: Clean the exterior of the bidet seat with a soft, damp cloth and mild, non-abrasive cleaner. Avoid harsh chemicals that could damage the ABS material.
• Дезодорант: The built-in bamboo charcoal deodorizer helps maintain freshness. No specific maintenance is required for this component.

7. Вирішення проблем

If you encounter any issues with your Nashi Compact Pro, please refer to the following common troubleshooting steps:

If the problem persists after attempting these solutions, please contact Nashi customer support for assistance.

8. Технічні характеристики

9. Гарантія та підтримка

The Nashi Compact Pro Smart Bidet Toilet Seat comes with a Гарантія 3 рік covering the entire product.

For technical support, warranty claims, or any questions regarding your product, please contact Nashi customer service through the retailer where you purchased the product or visit the official Nashi webсайт.
